2.6 - FUEL SYSTEM

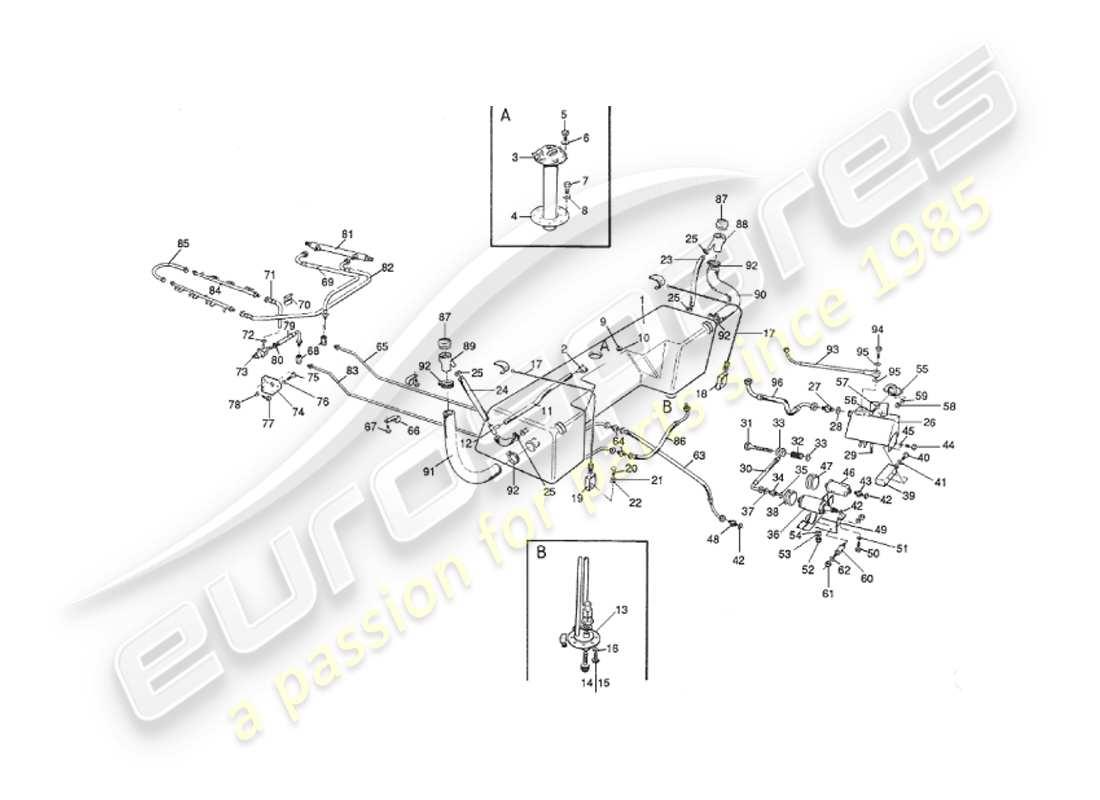

Aston Martin V8 Virage (1999) Fuel System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 85-72810
INSULATION, FUEL TANK
From (V) 60180
from £66.00
from £66.00
# -
MPN: 696785
BLACK TUBING, 200MM
From (V) 60180
from £50.03
from £50.03
# -
MPN: 85-53449
Thermal barrier kit, fuel tank
Virage saloon
from £196.16
from £196.16
# -
MPN: 85-61598
Thermal barrier kit, fuel tank
Volante
# -
MPN: 34-51673
Fuel tank assembly, complete
Virage saloon
# -
MPN: 34-60457
Fuel tank assembly, complete
Volante
# -
MPN: 34-64288
Fuel tank assembly, complete
Volante from (V) 60081 up to 60224
# -
MPN: 34-65008
Fuel tank assembly, complete
Volante From (V) 69225
# 1
MPN: 34-50692
FUEL TANK ASSEMBLY
Virage saloon
from £4,855.03
from £4,855.03
# 1
MPN: 34-60245
FUEL TANK ASSEMBLY
Volante
# 1
MPN: 34-64289
FUEL TANK ASSEMBLY
Volante from (V) 60081 up to 60224
from £3,230.61
from £3,230.61
# 1
MPN: 34-64980
FUEL TANK ASSEMBLY
Volante From (V) 69225
from £3,368.32
from £3,368.32
# 2
MPN: 090-034-0002
PRESSURE/VACUUM RELIEF VALVE
from £109.89
from £109.89
# -
-
GASKET
# -
-
JOINTING COMPOUND, HERMETITE GOLD
# -
-
Ring stiffener
# -
-
SCREW, NO.10-24 UNC X 5/8, RELIEF VALVE TO FUEL TANK
# -
-
WASHER, SPRING, NO 10, RELIEF VALVE TO FUEL TANK
# 3
MPN: 37-52406
Fuel tank sender assembly
Virage saloon
Supersession
Supersession
# 3
MPN: 37-60319
Fuel tank sender assembly
Volante
# 3
MPN: 37-64334
Fuel tank sender assembly
Volante Up to (V) 60080
# 3
MPN: 37-64246
Fuel tank sender assembly
Volante from (V) 60081 up to 60224
# -
-
SENSOR, LOW FUEL
Volante From (V) 69225
# -
-
KIT-CLAMP RING/GASKET, SENDER UNIT
# 4
MPN: 34-24166
ADAPTOR PLATE, SENDER UNIT
Volante Up to (V) 60080
from £12.90
from £12.90
# 5
MPN: 692215
SCREW, M5 X 20, SENDER TO ADAPTOR PLATE
from £0.47
from £0.47
# 6
MPN: 692055
WASHER, PLAIN, M5, SENDER TO ADAPTOR PLATE
from £0.47
from £0.47
# -
-
Jointing compound, Hermetite Gold, sender sealing
# 7
MPN: 693303
SCREW, 10-24 UNC X 5/8 LONG, SENDER UNIT TO TANK
Volante Up to (V) 60080
from £1.54
from £1.54
# 8
MPN: 591-000-0203
WASHER, SPRING, NO 10, SENDER UNIT TO TANK
Volante Up to (V) 60080
from £0.47
from £0.47
# 9
MPN: 095-034-0124
ROLL-OVER VALVE
from £232.98
from £232.98
# 10
MPN: 095-034-0125
Gasket, roll-over valve
from £25.63
from £25.63
# 11
MPN: 692236
TUBING, NYLAFLEX, PRESSURE/VAC VALVE TO TEE PIECE
from £12.27
from £12.27
# 12
MPN: 692446
TEE PIECE, NYLON, 10-6-10
from £8.20
from £8.20
# 13
MPN: 34-55488
FUEL PICK-UP AND RETURN ASSEMBLY
Virage saloon
from £357.39
from £357.39
# 13
MPN: 34-62085
FUEL PICK-UP AND RETURN ASSEMBLY
Volante
from £357.39
from £357.39
# -
-
Fuel filter, breather tube
# -
-
Fuel filter, pick-up
# -
-
SEAL, BOOT FLOOR
# -
-
CUP, SEAL
# 14
MPN: 694350
SCREW, HEX HEAD, 10-24 UNC X 11/2 PICK UP TO TANK
from £0.81
from £0.81
# 15
MPN: 693303
SCREW, HEX HEAD, 10-24 UNC X 5/8 PICK UP TO TANK
from £1.54
from £1.54
# 15
MPN: 695970
SCREW, SKT HEAD, 10-24 UNC X 5/8 PICK UP TO TANK
from £0.66
from £0.66
# 16
MPN: 591-000-0203
WASHER, SPRING, NO 10 FUEL PICK UP TO TANK
from £0.47
from £0.47
# -
-
JOINTING COMPOUND, HERMETITE GOLD, PICK UP SEALING
# 17
MPN: 34-53214
CABLE ASSEMBLY, FUEL TANK
Virage saloon
from £25.99
from £25.99
# 17
MPN: 34-60311
CABLE ASSEMBLY, FUEL TANK
Volante
from £13.81
from £13.81
# 18
MPN: 34-52582
BRACKET, FUEL STRAP, RH
from £25.67
from £25.67
# 19
MPN: 34-52583
BRACKET, FUEL STRAP, LH
from £25.67
from £25.67
# 20
MPN: 692138
SCREW, M10 X 20, FUEL TANK STRAP BRACKET ATTACH
from £1.32
from £1.32
# 21
MPN: 692048
WASHER, SPRING, M10, FUEL TANK STRAP BRACKET ATTACH
from £0.47
from £0.47
# 22
MPN: 692058
WASHER, PLAIN, M10, FUEL TANK STRAP BRACKET ATTACH
from £0.47
from £0.47
# 23
MPN: 34-51832
FUEL BREATHER HOSE, RH
Virage saloon
from £20.81
from £20.81
# 24
MPN: 34-51833
FUEL BREATHER HOSE, LH
Virage saloon
from £20.81
from £20.81
# 25
MPN: 114679
Hose clip, 16 - 25 mm, fuel breather hoses
Virage saloon
from £0.51
from £0.51
# -
-
FUEL BREATHER HOSE, RH AND LH
Volante convertible
# -
-
Hose clip, 12 - 22 mm, fuel breather hoses
Volante convertible
# 26
MPN: 34-51681
ANTI-SURGE TANK, WELDED ASSEMBLY
Volante Up to (V) 60070
from £852.84
from £852.84
# 26
MPN: 34-64282
ANTI SURGE TANK, WELDED ASSEMBLY
From (V) 60071
from £852.26
from £852.26
# -
-
DROP PLATE, ANTI-SURGE TANK
Volante Only
# -
-
NUT, M8, DROP PLATE ANTI SURGE TANK
Volante Only
# -
-
HEATSHIELD, ANTI-SURGE TANK
Virage saloon
# -
-
HEATSHIELD, ANTI-SURGE TANK
Volante convertible
# -
-
BRACKET, HEATSHIELD MOUNTING, TOP
# -
-
SCREW, M6 X 25
# -
-
WASHER, SPRING, M6
# -
-
WASHER, PLAIN, M6
# 27
MPN: 694351
ADAPTOR, 1/2 BSP, MALE/MALE
from £7.45
from £7.45
# 28
MPN: 695009
SEAL, BONDED, 1/2 BSP
from £3.07
from £3.07
# 29
MPN: 690375
STUD, 1/4 UNC/UNF X 3 LONG
from £8.50
from £8.50
# 30
MPN: 34-51682
HOSE ASSEMBLY, ANTI-SURGE TANK TO PUMP
from £330.75
from £330.75
# -
-
FUEL PIPE ASSEMBLY
Volante, use with later anti surge tank
# 31
MPN: 34-53944
BANJO BOLT ASSEMBLY, HOSE TO ANTI-SURGE TANK
from £120.34
from £120.34
# 32
MPN: 695182
FILTER, FUEL PICK-UP TUBE
from £13.30
from £13.30
# 33
MPN: 695014
SEAL, BONDED, M16, BANJO BOLT TO ANTI-SURGE TANK
from £2.93
from £2.93
# -
-
WASHER, SEALING, BANJO BOLT TO ANTI-SURGE TANK
# 34
MPN: 694353
ADAPTOR, M16 - 1.5 X 3/8 BSP, MALE/MALE
from £10.16
from £10.16
# 35
MPN: 695014
Seal, bonded, M16, union to fuel pump
from £2.93
from £2.93
# 36
MPN: 34-26155
fuel pump
# 37
MPN: 695016
Seal, bonded, M13, fuel pump to manifold
from £6.22
from £6.22
# 38
MPN: 693068
Rest rubber, fuel pump
from £32.62
from £32.62
# 39
MPN: 34-51698
MANIFOLD BLOCK
from £110.21
from £110.21
# 40
MPN: 119591
PLUG, 1/8 BSP, FLANGED, MANIFOLD DRAIN
from £11.15
from £11.15
# 41
MPN: 695015
SEAL, BONDED, 1/8 BSP, MANIFOLD DRAIN
from £3.01
from £3.01
# 42
MPN: 695016
SEAL, BONDED, M13
from £6.22
from £6.22
# 43
MPN: 693810
Adaptor, 9/16 JIC X M14, fuel filter to manifold
from £14.91
from £14.91
# 44
MPN: 123125
BOLT, 1/4 UNC X 1/2, MANIFOLD ATTACH
from £0.83
from £0.83
# -
-
WASHER, SPRING, 1/4, MANIFOLD ATTACH
# 45
MPN: 691100
WASHER, 1/4 X 9/16, MANIFOLD ATTACH
from £0.47
from £0.47
# 46
MPN: 34-53604
FUEL FILTER
from £67.69
from £67.69
# 47
MPN: 693068
REST RUBBER
from £32.62
from £32.62
# 48
MPN: 694354
ADAPTOR, M12-1.5 X 3/8 BSP
from £12.41
from £12.41
# 49
MPN: 34-51805
CLAMP PLATE ASSEMBLY, FUEL PUMP AND FILTER
Virage saloon
from £69.52
from £69.52
# 49
MPN: 34-62379
CLAMP PLATE ASSEMBLY, FUEL PUMP AND FILTER
Volante
from £255.30
from £255.30
# 49
MPN: 34-64285
CLAMP PLATE ASSEMBLY, FUEL PUMP AND FILTER
Volante, use with later anti surge tank
from £59.68
from £59.68
# 50
MPN: 123125
BOLT, 1/4 UNC X 1/2, CLAMP PLATE ATTACH
from £0.83
from £0.83
# 51
MPN: 691100
WASHER, 1/4 X 9/16, CLAMP PLATE ATTACH
from £0.47
from £0.47
# 52
MPN: 541004
NUT, 1/4 UNF, PLATE TO STUD
# 53
MPN: 119480
Washer, spring, 1/4, plate to stud
# 54
MPN: 691100
WASHER, 1/4 X 9/16, PLATE TO STUD
from £0.47
from £0.47
# 55
MPN: 694417
UPPER MOUNTING RUBBER, ANTI-SURGE TANK
from £81.22
from £81.22
# 56
MPN: 693754
SCREW, M8-1.25 X 20, RUBBER MTG TO ANTI-SURGE TANK
from £0.47
from £0.47
# 57
MPN: 692057
WASHER, PLAIN, M8, RUBBER MTG TO ANTI-SURGE TANK
from £0.47
from £0.47
# 58
MPN: 692077
NUT, M8, ASSEMBLY TO BOOT FLOOR
# 59
MPN: 692057
WASHER, PLAIN, M8, ASSEMBLY TO BOOT FLOOR
from £0.47
from £0.47
# 60
MPN: 692599
RUBBER ISOLATOR, ANTI SURGE TANK
from £58.30
from £58.30
# 61
MPN: 692482
NUT, M8, ISOLATOR TO ANTI-SURGE TANK
from £0.81
from £0.81
# 62
MPN: 692057
WASHER, PLAIN, M8, ISOLATOR TO ANTI SURGE TANK
from £0.47
from £0.47
# 63
MPN: 34-54388
Hose assembly, fuel filter to feed pipe
from £141.95
from £141.95
# 64
MPN: 694352
ADAPTOR, 9/16 JIC X 3/8 BSP
Early cars
from £7.22
from £7.22
# 65
MPN: 34-51686
FUEL FEED PIPE ASSEMBLY VIRAGE SALOON
from £111.03
from £111.03
# 65
MPN: 34-61200
Fuel feed pipe assembly, Volante convertible
from £72.98
from £72.98
# 65
MPN: 34-64107
Fuel feed pipe assembly, Volante convertible
From Oct 1992 for revised exhaust
# -
-
HEAT PROTECTION HOSE
# 66
MPN: 692208
P' CLIP, NYLON, 1/2
from £0.47
from £0.47
# 67
MPN: 691204
SCREW, 10-24 UNC X 1/2 LONG
P' clip attachment
from £0.47
from £0.47
# 68
MPN: 694421
ELBOW, 90, 3/8 BSP X 9/16 JIC
from £29.61
from £29.61
# 69
MPN: 34-54664
Hose assembly, fuel pipe to fuel cooler
from £175.37
from £175.37
# 70
MPN: 694925
Clip, double pipe, feed hose to return hose
2 off LHD
from £6.25
from £6.25
# 71
MPN: 34-51689
HOSE ASSEMBLY, FUEL RAIL TO PRESSURE REGULATOR
Volante Up to (V) 60179
from £41.96
from £41.96
# 71
MPN: 34-64701
HOSE ASSEMBLY, FUEL RAIL TO PRESSURE REGULATOR
Volante from (V) 60180 up to 60224
from £43.63
from £43.63
# 72
MPN: 693168
O' CLIP, HOSE TO PRESSURE REGULATOR
Volante Up to (V) 60179
from £0.66
from £0.66
# 72
MPN: 697879
O' CLIP, HOSE TO PRESSURE REGULATOR
Volante From (V) 60180
from £0.47
from £0.47
# 73
MPN: 08-21023
PRESSURE REGULATOR
Volante Up to (V) 60224
from £182.89
from £182.89
# 73
MPN: 08-56067
PRESSURE REGULATOR
Volante From (V) 69225
# 74
MPN: 34-51623
BRACKET, FUEL PRESSURE REGULATOR
Volante Up to (V) 60179
from £53.18
from £53.18
# 74
MPN: 34-64691
BRACKET, FUEL PRESSURE REGULATOR
Volante from (V) 60180 up to 60224
from £8.86
from £8.86
# 75
MPN: 693220
BOLT, M6 X 12, PRESSURE REGULATOR TO BRACKET
Volante Up to (V) 60224
from £0.47
from £0.47
# 76
MPN: 692056
WASHER, PLAIN, M6, PRESSURE REGULATOR TO BRACKET
Volante Up to (V) 60224
from £0.47
from £0.47
# 77
MPN: 692090
SCREW, M5 X 12, BRACKET TO BULKHEAD
Volante Up to (V) 60179
from £0.47
from £0.47
# 78
MPN: 692055
WASHER, PLAIN, M5, BRACKET TO BULKHEAD
Volante Up to (V) 60179
from £0.47
from £0.47
# 79
MPN: 34-54666
HOSE ASSEMBLY, PRESSURE REGULATOR TO RETURN PIPE
Volante Up to (V) 60179
from £45.02
from £45.02
# 79
MPN: 34-64702
HOSE ASSEMBLY, PRESSURE REGULATOR TO RETURN PIPE
Volante from (V) 60180 up to 60224
from £17.95
from £17.95
# 79
MPN: 34-64951
HOSE ASSEMBLY, PRESSURE REGULATOR TO RETURN PIPE
Volante From (V) 69225
from £45.07
from £45.07
# 80
MPN: 692153
MONOCLAMP, HOSE TO PRESSURE REGULATOR
from £0.90
from £0.90
# 81
MPN: 34-51691
FUEL COOLER
from £415.67
from £415.67
# 82
MPN: 34-54665
Hose assembly, fuel cooler to fuel rail
Volante Up to (V) 60224
from £197.76
from £197.76
# 82
MPN: 34-56071
Hose assembly, fuel cooler to fuel rail
Volante From (V) 69225
# 83
MPN: 34-51693
FUEL RETURN PIPE ASSEMBLY VIRAGE SALOON
from £108.42
from £108.42
# 83
MPN: 34-61202
Fuel return pipe assembly, Volante convertible
from £72.98
from £72.98
# 83
MPN: 34-64105
Fuel return pipe assembly, Volante convertible
From Oct 1992 for revised exhaust
# 84
MPN: 08-25911
FUEL RAIL ASSEMBLY
Volante Up to (V) 60224
from £649.26
from £649.26
# 84
MPN: 08-64736
FUEL RAIL ASSEMBLY, RH : SEE SECT 2.5B FOR LATEST FIXING
Volante From (V) 69225
from £705.49
from £705.49
# 84
MPN: 08-71845
FUEL RAIL ASSEMBLY, LH : SEE SECT 2.5B FOR LATEST FIXING
Volante From (V) 69225
from £676.09
from £676.09
# 85
MPN: 08-26423
Tube assembly, fuel rail connecting
Volante Up to (V) 60224
# 85
MPN: 08-56134
Tube assembly, fuel rail connecting
Volante From (V) 69225
from £101.02
from £101.02
# 86
MPN: 34-51697
Hose assembly, return pipe to tank
Volante Up to (V) 60025
# 86
MPN: 34-55727
Hose assembly, return pipe to tank
Volante From (V) 60026
from £52.07
from £52.07
# 87
MPN: 68-24064
FUEL FILLER CAP
from £82.48
from £82.48
# 88
MPN: 68-51906
FUEL FILLER ASSEMBLY, RH
Unleaded fuel
from £148.86
from £148.86
# 89
MPN: 68-51907
FUEL FILLER ASSEMBLY, LH
Unleaded fuel
from £148.86
from £148.86
# 89
MPN: 68-55344
FUEL FILLER ASSEMBLY, RH
Leaded Fuel
from £181.68
from £181.68
# 89
MPN: 68-55345
FUEL FILLER ASSEMBLY, LH
Leaded Fuel
from £181.68
from £181.68
# 90
MPN: 34-51910
FUEL FILLER HOSE, RH VIRAGE SALOON
from £59.50
from £59.50
# 91
MPN: 34-51911
FUEL FILLER HOSE, LH VIRAGE SALOON
from £56.67
from £56.67
# 91
MPN: 34-60316
FUEL FILLER HOSE, RH VOLANTE CONVERTIBLE
from £72.15
from £72.15
# 91
MPN: 34-60317
FUEL FILLER HOSE, LH VOLANTE CONVERTIBLE
from £70.06
from £70.06
# 92
MPN: 692670
HOSE CLIP, 50 - 70 MM, FUEL FILLER
from £1.61
from £1.61
# 93
MPN: 34-54017
Hose, fuel tank to anti-surge tank
from £109.01
from £109.01
# 94
MPN: 694416
BANJO BOLT, M16
from £9.83
from £9.83
# 95
MPN: 695014
SEAL, BONDED, M16
from £2.93
from £2.93
# 96
MPN: 34-51679
Hose assembly, fuel tank to anti-surge tank
from £143.35
from £143.35
# -
-
vacuum valve
# -
-
MOUNTING BRACKET, VACUUM VALVE
# -
-
SENDER, FUEL LEVEL
Up to November 1995
# -
-
SENDER, FUEL LEVEL
From November 1995
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (1999) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (1999) TROQUE CONVERTOR, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR, GEARBOX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (1999) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (1999) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (1999) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (1999) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (1999) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (1999) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (1999) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (1999) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (1999) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (1999) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (1999) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (1999) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL, EMISSION CONTROL, EXHAUST PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
