3.11 - Hypoid Mounting

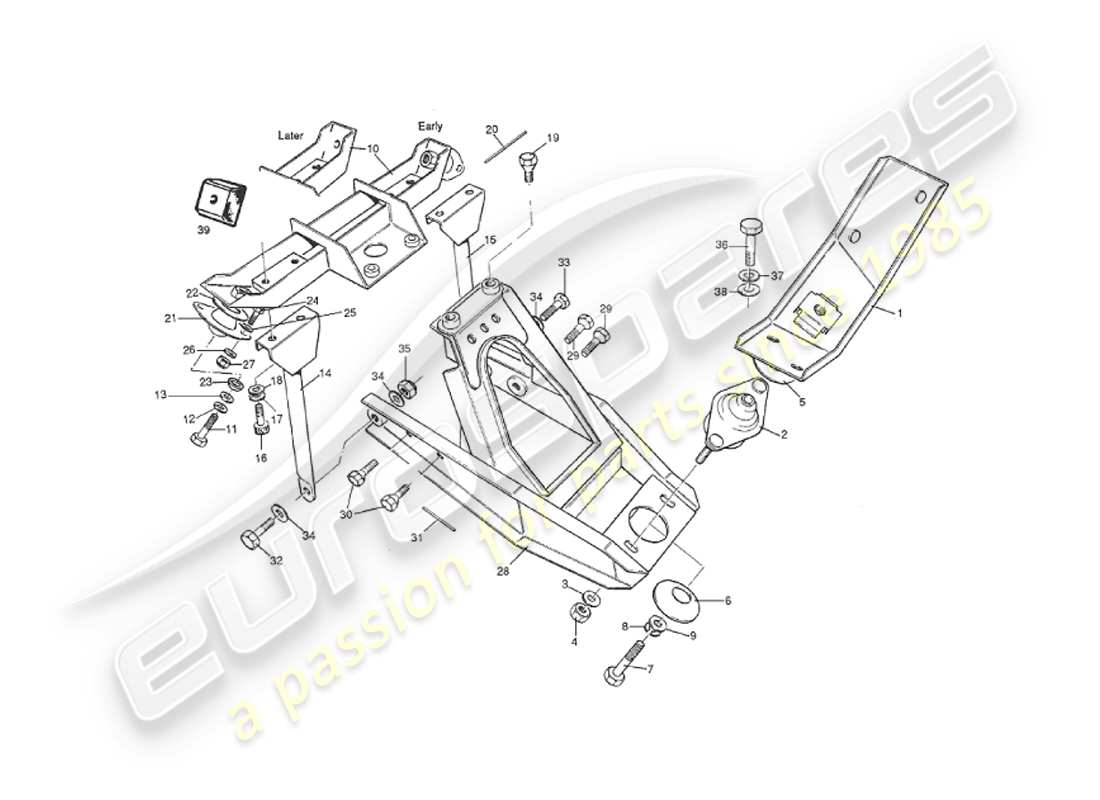

Aston Martin V8 Virage (1999) Hypoid Mounting Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 27-50095
DIFFERENTIAL MOUNTING BRACKET ASSEMBLY, FRONT
# 2
MPN: 26-14857
MOUNTING ASSEMBLY, FINAL DRIVE
from £61.31
from £61.31
# 3
MPN: 119471
WASHER, PLAIN, 5/16
Final drive mounting attachment
# 4
MPN: 123115
NUT, NYLOC, 5/16 UNF
Final drive mounting attachment
from £3.58
from £3.58
# 5
MPN: 068-026-0136
BEVELLED WASHER
from £33.94
from £33.94
# 6
MPN: 095-026-0141
BEVELLED WASHER
from £35.44
from £35.44
# 7
MPN: 520724
BOLT, 7/16 UNF X 3
from £1.21
from £1.21
# 8
MPN: 119483
WASHER, SPRING, 7/16
from £0.84
from £0.84
# 9
MPN: 119473
WASHER, PLAIN, 7/16
from £0.47
from £0.47
# 10
MPN: 27-53804
Cross-member assembly, differential mounting, rear
Revised bracket fitted to Volante from (V) 60003 Supply 2 off item 39 when fitting to all earlier cars
# 11
MPN: 520724
BOLT, 7/16 UNF X 3
from £1.21
from £1.21
# 12
MPN: 119483
WASHER, SPRING, 7/16
from £0.84
from £0.84
# 13
MPN: 119473
WASHER, PLAIN, 7/16
from £0.47
from £0.47
# 14
MPN: 27-50918
SUPPORT TUBE ASSEMBLY, DIFFERENTIAL MOUNTING RH
from £179.29
from £179.29
# 15
MPN: 27-50919
SUPPORT TUBE ASSEMBLY, DIFFERENTIAL MOUNTING, LH
from £179.29
from £179.29
# 16
MPN: 694134
CAPSCREW, M10 X 25
from £0.99
from £0.99
# 17
MPN: 692048
WASHER, SPRING, M10
from £0.47
from £0.47
# 18
MPN: 692058
WASHER, PLAIN, M10
from £0.47
from £0.47
# 19
MPN: 069-026-0132
SCREW, HYPOID TO MOUNTING BRACKET
from £52.72
from £52.72
# 20
MPN: 695393
LOCKING WIRE, 1 MM
from £388.40
from £388.40
# 21
MPN: 068-026-0149
METALASTIC MOUNTING
from £41.90
from £41.90
# 22
MPN: 068-026-0136
BEVELLED WASHER
from £33.94
from £33.94
# 23
MPN: 27-52087
BEVELLED WASHER
from £12.21
from £12.21
# 24
MPN: 692129
SCREW, M8 X 25
Early cars
from £0.59
from £0.59
# 25
MPN: 119471
WASHER, PLAIN, 5/16
Early cars
# -
-
SCREW, M8 X 20
Later cars
# 26
MPN: 690270
WASHER, PLAIN, 11/32 X L O.D.
from £1.54
from £1.54
# 27
MPN: 692135
NUT, NYLOC, M8
from £0.94
from £0.94
# 28
MPN: 27-53807
CARRIER ASSEMBLY, DIFFERENTIAL MOUNTING
from £359.92
from £359.92
# 29
MPN: 069-026-0133
SCREW, 7/16 UNF X 1
from £20.86
from £20.86
# 30
MPN: 069-026-0134
SCREW, 7/16 UNF X 1 1/2
from £17.59
from £17.59
# 31
MPN: 695393
LOCKING WIRE, 1 MM
from £388.40
from £388.40
# 32
MPN: 692229
SCREW, M10 X 40
from £0.47
from £0.47
# 33
MPN: 692429
BOLT, M10 X 50
from £1.46
from £1.46
# 34
MPN: 692058
WASHER, PLAIN, M10
from £0.47
from £0.47
# 35
MPN: 692034
NUT, NYLOC, M10
from £0.47
from £0.47
# 36
MPN: 692483
SCREW, M12 X 25
from £1.37
from £1.37
# 37
MPN: 692049
WASHER, SPRING, M12
from £0.47
from £0.47
# 38
MPN: 692059
WASHER, PLAIN, M12
from £0.47
from £0.47
# 39
MPN: 27-55489
Tapped plate
Volante from (V) 60003. Used with revised item 10
from £52.53
from £52.53
