3.1B - Automatic

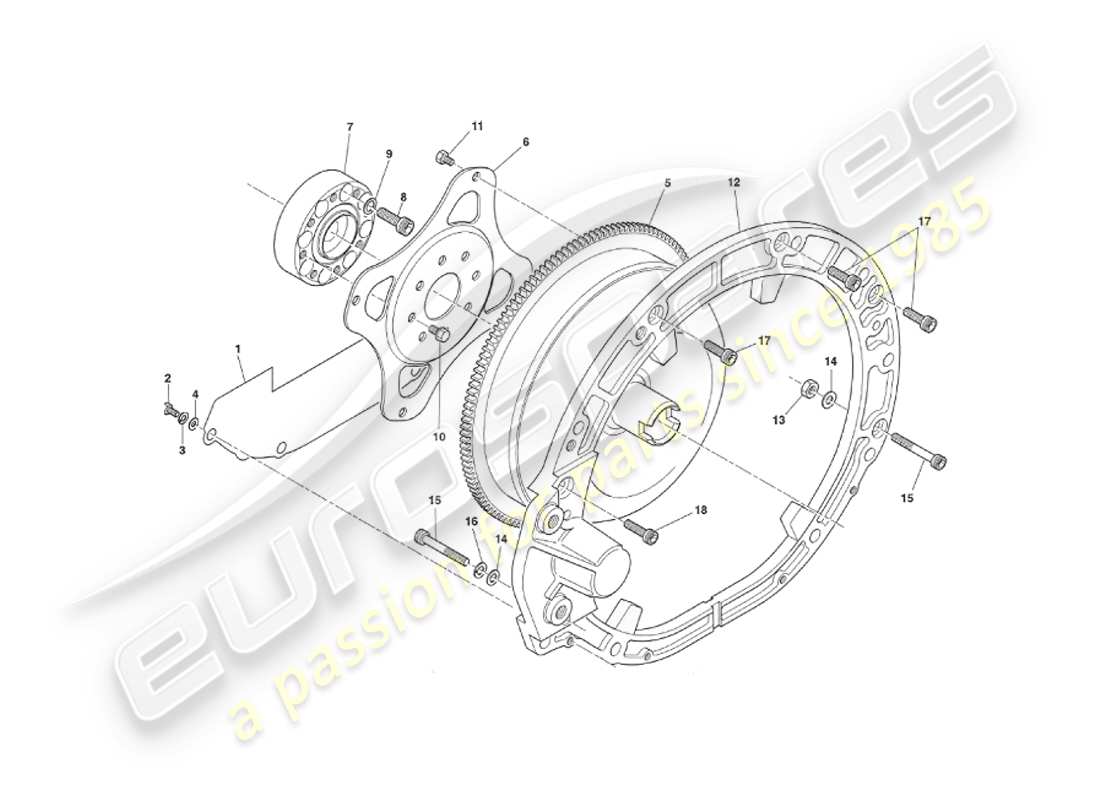

Aston Martin V8 Virage (1999) Automatic Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # -
                MPN: 42-62811
                GEAR BOX AND TORQUE CONVERTER ASSY
                from £5,287.54
                from £5,287.54
                A/GBX & T/CONV-MODIF Genuine Aston Martin - New (to order)
                # 1
                MPN: 42-62527
                COVER PLATE, BELL HOUSING
                Virage. Volante up to Nov 1992
                from £8.03
                from £8.03
                COVER BELL HOUSING Genuine Aston Martin - New (to order)
                # 1
                MPN: 42-64278
                COVER PLATE, BELL HOUSING
                Volante from November 1992
                from £86.96
                from £86.96
                COVER BELL HOUSING Genuine Aston Martin - New (to order)
                # 2
                MPN: 510404
                SCREW, 1/4 UNC X 1/2
                Cover plate to gearbox
                from £0.77
                from £0.77
                SCREW 1/4 UNC X 1/2 Genuine Aston Martin - New (to order)
                # 3
                MPN: 119480
                WASHER, SPRING, 1/4
                Cover plate to gearbox
                Washer, spring, 1/4, plate to stud Genuine Aston Martin - New (to order)
                # 4
                MPN: 119470
                WASHER, PLAIN, 1/4
                Cover plate to gearbox
                Washer, plain, 1/4 Oil seal housing to block Genuine Aston Martin - New (to order)
                # 5
                MPN: 42-63030
                TORQUE CONVERTER
                Part of 42-62811
                from £970.03
                from £970.03
                TORQUE CONVERTOR Genuine Aston Martin - New (to order)
                # 6
                MPN: 42-61643
                DRIVE PLATE, TORQUE CONVERTER
                from £360.88
                from £360.88
                DRIVE PLATE Genuine Aston Martin - New (to order)
                # 7
                MPN: 42-61642
                ADAPTOR, CRANKSHAFT/DRIVE PLATE
                Up to approx (V) 60209
                from £569.97
                from £569.97
                ADAPTOR - CRANKSHAFT Genuine Aston Martin - New (to order)
                # 7
                MPN: 42-64743
                ADAPTOR, CRANKSHAFT/DRIVE PLATE
                From approx (V) 60210
                from £453.75
                from £453.75
                ADAPTOR - CRANKSHAFT Genuine Aston Martin - New (to order)
                # 8
                MPN: 095-002-0103
                BOLT, DURLOC, 3/8 UNF, ADAPTOR TO CRANKSHAFT
                Up to approx (V) 60209
                from £11.85
                from £11.85
                BOLT 3/8 UNF DURLOK Genuine Aston Martin - New (to order)
                # -
                -
                CAPSCREW, M12 X 35, ADAPTOR TO CRANKSHAFT
                From approx(V) 60210
                # 9
                MPN: 42-64802
                WASHER, SPECIAL, M12, ADAPTOR TO CRANKSHAFT
                From approx(V) 60210
                from £0.47
                from £0.47
                WASHER M12-SPECIAL Genuine Aston Martin - New (to order)
                # 10
                MPN: 42-64113
                SCREW, DURLOK, M10 X 16
                Drive plate to adaptor
                from £6.50
                from £6.50
                DURLOC BOLT M10X16 Genuine Aston Martin - New (to order)
                # 11
                MPN: 696263
                BOLT, 5/16 UNF
                Torque converter to drive plate
                from £4.44
                from £4.44
                BOLT 5/16 UNF SPCL Genuine Aston Martin - New (to order)
                # 12
                MPN: 42-61547
                ADAPTOR RING, GEARBOX TO ENGINE
                from £1,989.06
                from £1,989.06
                ADAPTOR - MACHINED Genuine Aston Martin - New (to order)
                # 13
                MPN: 696078
                NUT, NYLOC, 7/16 UNC, ADAPTOR RING TO BLOCK
                from £0.47
                from £0.47
                NUT 7/16 UNC HEX SLK Genuine Aston Martin - New (to order)
                # 14
                MPN: 119473
                WASHER, PLAIN, 7/16 UNC, ADAPTOR RING TO BLOCK
                from £0.47
                from £0.47
                WASHER 7/16 PLN MED Genuine Aston Martin - New (to order)
                TOOL KIT 512BBI Genuine Ferrari Part - New (to order)
                # 15
                MPN: 696046
                CAPSCREW, 7/16 UNC X 3 5/8, ADAPTOR RING TO BLOCK
                Up to November 1993
                CAPSCREW, 7/16 UNC X 3 5/8, ADAPTOR RING TO BLOCK Genuine Aston Martin - New (to order)
                # 15
                MPN: 696588
                CAPSCREW, 7/16 UNC X 2 5/8, ADAPTOR RING TO BLOCK
                From November 1993
                from £8.20
                from £8.20
                BOLT 7/16 Genuine Aston Martin - New (to order)
                # 16
                MPN: 119483
                WASHER, SPRING, 7/16, ADAPTOR RING TO BLOCK
                from £0.84
                from £0.84
                WASHER 7/16 SPRING Genuine Aston Martin - New (to order)
                # 17
                MPN: 696044
                CAPSCREW, 7/16 UNC X 7/8, ADAPTOR RING TO BLOCK
                from £3.40
                from £3.40
                SCREW 7/16 UNC X7/8 Genuine Aston Martin - New (to order)
                # 18
                MPN: 696045
                CAPSCREW, 7/16 UNC X 1 1/8, ADAPTOR RING TO BLOCK
                from £4.17
                from £4.17
                SCREW 7/16 UNCX1 1/8 Genuine Aston Martin - New (to order)
                # 18
                MPN: 696143
                CAPSCREW, 7/16 UNC X 1 1/2, G/BOX TO ADAPTOR RING
                from £2.46
                from £2.46
                SCREW 7/16 UNCX1 1/2 Genuine Aston Martin - New (to order)
                # 18
                MPN: 696043
                CAPSCREW, 7/16 UNC X 1 1/4, G/BOX TO ADAPTOR RING
                from £2.83
                from £2.83
                SCREW 7/16 UNCX1 1/4 Genuine Aston Martin - New (to order)
                # -
                -
                STEPPED DOWEL, G/BOX TO ADAPTOR RING
