4.2 - Front Suspension

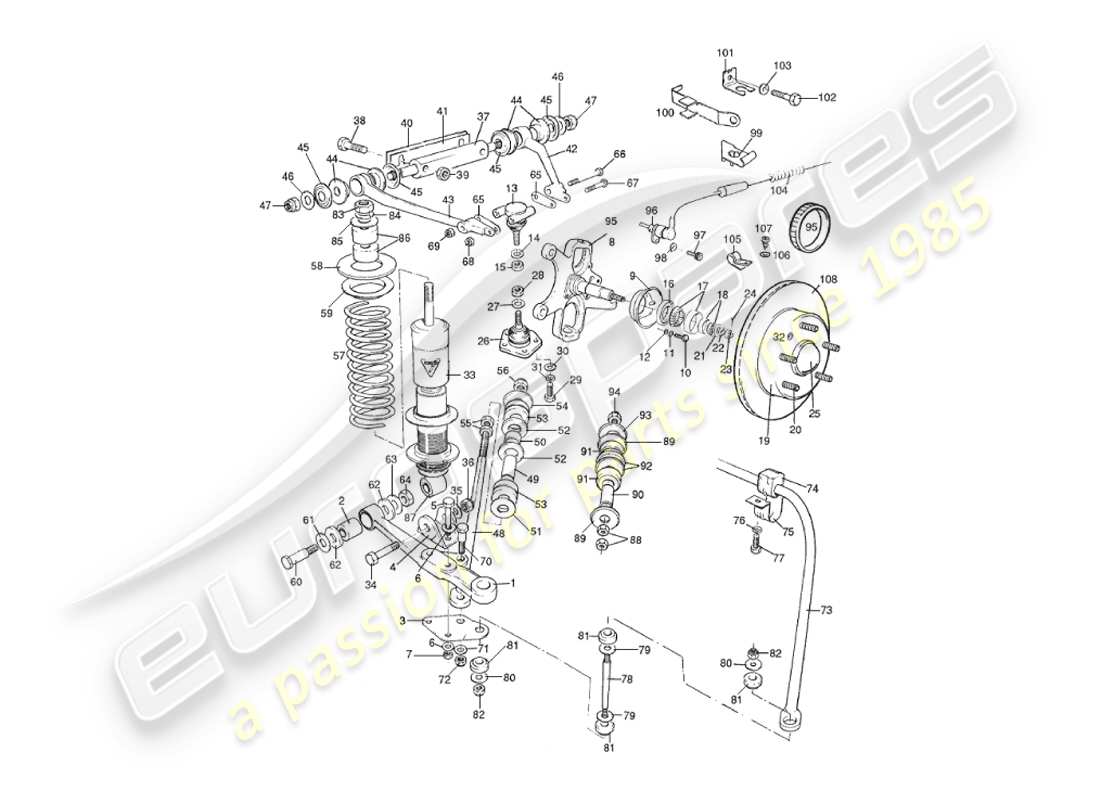

Aston Martin V8 Virage (1999) Front Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 23-54608
LOWER WISHBONE ARM, RH
from £432.12
from £432.12
# 1
MPN: 23-54609
LOWER WISHBONE ARM, LH
from £432.12
from £432.12
# 2
MPN: 23-14431
METALASTIC BUSH
# 3
MPN: 23-13039
MOUNTING BRACKET, ANTI-ROLL BAR, RH
from £20.78
from £20.78
# 3
MPN: 23-13040
MOUNTING BRACKET, ANTI-ROLL BAR, LH
from £20.73
from £20.73
# 4
MPN: 23-54627
LOWER DAMPER MOUNTING ASSEMBLY
from £71.04
from £71.04
# 5
MPN: 692187
BOLT, M10 X 60
ARB and damper brackets to w/bone
from £2.12
from £2.12
# 6
MPN: 692058
WASHER, PLAIN, M10
ARB and damper brackets to w/bone
from £0.47
from £0.47
# 7
MPN: 692034
NUT, NYLOC, M10
ARB and damper brackets to w/bone
from £0.47
from £0.47
# 8
MPN: 23-54610
VERTICAL LINK AND STUB AXLE ASSEMBLY, RH
Virage
from £1,734.56
from £1,734.56
# 8
MPN: 23-55674
VERTICAL LINK AND STUB AXLE ASSEMBLY, RH
Volante
from £1,536.27
from £1,536.27
# 8
MPN: 23-54611
VERTICAL LINK AND STUB AXLE ASSEMBLY, LH
Virage
from £1,386.41
from £1,386.41
# 8
MPN: 23-55675
VERTICAL LINK AND STUB AXLE ASSEMBLY, LH
Volante
from £1,536.27
from £1,536.27
# -
-
VERTICAL LINK, RH
Virage
# -
-
VERTICAL LINK, RH
Volante
# -
-
VERTICAL LINK, LH
Virage
# -
-
VERTICAL LINK, LH
Volante
# -
-
FRONT STUB AXLE
# 9
MPN: 23-50442
WATER SHIELD, RH
from £7.32
from £7.32
# 9
MPN: 23-51049
WATER SHIELD, LH
from £7.80
from £7.80
# 10
MPN: 692262
SCREW, M6 X 12
Water shield attachment
from £0.47
from £0.47
# 11
MPN: 692046
WASHER, SPRING, M6
Water shield attachment
from £0.47
from £0.47
# 12
MPN: 692056
WASHER, PLAIN, M6
Water shield attachment
from £0.47
from £0.47
# 13
MPN: 23-26003
UPPER BALL JOINT ASSEMBLY
from £145.22
from £145.22
# 14
MPN: 119474
WASHER, PLAIN, 1/2
from £0.47
from £0.47
# 15
MPN: 691147
NUT, L/2 UNF, HEX HEAD
from £0.52
from £0.52
# 16
MPN: 23-50445
OIL SEAL, FRONT HUB
from £21.59
from £21.59
# 17
MPN: 23-50443
Front wheel bearing, inner
from £37.34
from £37.34
# 18
MPN: 23-50444
Front wheel bearing, outer
from £34.12
from £34.12
# 19
MPN: 23-50296
FRONT HUB
from £377.31
from £377.31
# 20
MPN: 23-55228
WHEEL STUD, FRONT HUB
from £22.92
from £22.92
# 21
MPN: 23-10672
D' WASHER
from £9.09
from £9.09
# 22
MPN: 694377
Nut, plain, M16
from £2.48
from £2.48
# 23
MPN: 694378
NUT RETAINER
from £6.64
from £6.64
# 24
MPN: 119537
Split pin, 1/8 X l 1/8
from £34.44
from £34.44
# 25
MPN: 23-51524
GREASE CAP
from £5.53
from £5.53
# 26
MPN: 23-26004
LOWER BALL JOINT ASSEMBLY
Supersession
Supersession
# 27
MPN: 692141
WASHER, PLAIN, 9/16
from £0.47
from £0.47
# 28
MPN: 123114
NUT, NYLOC, 9/16 UNF
from £2.73
from £2.73
# 29
MPN: 530508
SCREW, 5/16 UNF X L
from £0.92
from £0.92
This part replaces part number 697350
# 30
MPN: 119471
WASHER, PLAIN, 5/16
# 31
MPN: 119481
WASHER, SPRING, 5/16
# 32
MPN: 692297
SCREW, M8 X 16 COUNTERSUNK HEAD
Disc retaining
from £0.63
from £0.63
# 33
MPN: 23-54420
Shock absorber, front
Virage saloon
# 33
MPN: 23-55587
Shock absorber, front
Volante convertible
# 34
MPN: 23-11108
BOLT, 9/16 UNF X 3 3/4
from £51.13
from £51.13
# 35
MPN: 692141
WASHER, PLAIN, 9/16
from £0.47
from £0.47
# 36
MPN: 123114
NUT, NYLOC, 9/16 UNF
from £2.73
from £2.73
# 37
MPN: 23-54364
SPINDLE, UPPER WISHBONE
from £142.52
from £142.52
# 38
MPN: 695213
BOLT, M12 X 70
from £2.20
from £2.20
# 39
MPN: 692508
NUT, CONLOC, M12
from £1.83
from £1.83
# 40
MPN: 23-54747
SHIM, CAMBER, 0.8 MM THICK
from £8.22
from £8.22
# 41
MPN: 23-13979
SPACER, 1.6 MM THICK
from £17.57
from £17.57
# 42
MPN: 23-54370
Upper wishbone arm, front
from £634.75
from £634.75
# 43
MPN: 23-10544
UPPER WISHBONE ARM
from £141.43
from £141.43
# 44
MPN: 095-023-0113
SLIPFLEX BUSH
from £45.58
from £45.58
# 45
MPN: 095-023-0112
Washer, upper wishbone bush
from £35.09
from £35.09
# 46
MPN: 095-023-0115
WASHER, SPECIAL, 1/2
from £4.27
from £4.27
# 47
MPN: 690156
NUT, NYLOC, 1/2 UNF
from £3.15
from £3.15
# 48
MPN: 23-10491
BRAKE REACTION STRUT
from £271.49
from £271.49
# 49
MPN: 23-16504
SPACER TUBE
from £34.34
from £34.34
# 50
MPN: 23-16506
TUBE, BRAKE REACTION STRUT
from £78.86
from £78.86
# 51
MPN: 23-10620
WASHER, BRAKE REACTION STRUT
from £14.04
from £14.04
# 52
MPN: 23-16507
PRESCOLAN WASHER
from £57.58
from £57.58
# 53
MPN: 23-17549
Bush, rubber, brake reaction strut
# 54
MPN: 23-14600
SHAPED WASHER
from £74.42
from £74.42
# 55
MPN: 691269
LOCKNUT, 3/4 UNF
from £1.88
from £1.88
# 56
MPN: 690805
NUT, NYLOC, 3/4 UNF
from £2.24
from £2.24
# 57
MPN: 23-54422
ROAD SPRING, FRONT
from £453.19
from £453.19
# 58
MPN: 23-10958
Insulation rubber, front spring
from £32.16
from £32.16
# 59
MPN: 23-52735
COVER PLATE, SPRING
from £84.52
from £84.52
# 60
MPN: 23-10547
BOLT, LOWER WISHBONE
from £251.38
from £251.38
# 61
MPN: 23-10546
WASHER
from £16.27
from £16.27
# 62
MPN: 23-14335
THRUST WASHER
from £41.71
from £41.71
# 63
MPN: 119475
WASHER, PLAIN, 5/8
from £0.61
from £0.61
# 64
MPN: 123117
NUT, NYLOC, 5/8 UNF
from £2.66
from £2.66
# 65
MPN: 23-10678
Shim, upper wishbone
from £5.64
from £5.64
# 66
MPN: 520648
BOLT, 3/8 UNF X 6
from £9.31
from £9.31
# 67
MPN: 23-26552
BOLT, SPECIAL, 3/8 UNF X 2 3/4 DOMED HEAD
Upper wishbone to ball joint
from £24.17
from £24.17
# 68
MPN: 542006
NUT, 3/8 UNF, HEX LOCK
Upper wishbone to ball joint
from £0.92
from £0.92
# 69
MPN: 123113
NUT, NYLOC, 3/8 UNF
from £1.05
from £1.05
# 70
MPN: 521018
BOLT, 5/8 UNF X 2 1/4
from £6.93
from £6.93
# 71
MPN: 119475
WASHER, PLAIN, 5/8
from £0.61
from £0.61
# 72
MPN: 123117
NUT, 5/8 UNF
from £2.66
from £2.66
# 73
MPN: 23-10788
ANTI-ROLL BAR, FRONT
Virage saloon
from £318.64
from £318.64
# 73
MPN: 23-55610
ANTI-ROLL BAR, FRONT
Volante convertible
from £826.17
from £826.17
# 74
MPN: 23-16508
MOUNTING RUBBER, ANTI-ROLL BAR
from £32.31
from £32.31
# 75
MPN: 23-16509
CLAMP, ANTI-ROLL BAR
from £12.33
from £12.33
# 76
MPN: 692047
WASHER, SPRING, M8
from £0.47
from £0.47
# -
-
WASHER, PLAIN, 5/16
# 77
MPN: 692129
SCREW, M8
from £0.62
from £0.62
# 78
MPN: 23-10930
LINK, ANTI-ROLL BAR
from £184.71
from £184.71
# 79
MPN: 020-023-0150
Washer, inner, anti-roll bar
from £5.43
from £5.43
# 80
MPN: 020-023-0149
WASHER, PLAIN, 5/16
# 81
MPN: 020-023-0148
Bush, anti-roll bar link
from £12.76
from £12.76
# 82
MPN: 692135
NUT, NYLOC, M8
from £0.99
from £0.99
# 83
MPN: 23-55744
NUT, TOP, M12
from £0.99
from £0.99
# 84
MPN: 96-15919
WASHER, SPRING
Parts of front shock absorbers
from £0.79
from £0.79
# 85
MPN: 96-15920
WASHER, FLAT
Parts of front shock absorbers
from £2.98
from £2.98
# 86
MPN: 96-15921
BUSH, TOP
Parts of front shock absorbers
from £13.16
from £13.16
# 87
MPN: 23-55745
BUSH, EYE
from £16.79
from £16.79
# 88
MPN: 691269
LOCKNUT, 3/4 UNF
Volante from (V) 60082 & 60074/8/9
from £1.88
from £1.88
# 89
MPN: 23-71935
SHAPED WASHER
Volante from (V) 60082 & 60074/8/9
from £48.50
from £48.50
# 90
MPN: 23-16504
SPACER TUBE
Volante from (V) 60082 & 60074/8/9
from £34.34
from £34.34
# 91
MPN: 23-71934
Bush, rubber, brake reaction strut
Volante from (V) 60082 & 60074/8/9
from £64.67
from £64.67
# 92
MPN: 17-71777
SHAPED WASHER. WELDED TO FRONT CROSS-MEMBER
Volante from (V) 60082 & 60074/8/9
from £48.74
from £48.74
# 93
MPN: 23-14600
SHAPED WASHER
Volante from (V) 60082 & 60074/8/9
from £74.42
from £74.42
# 94
MPN: 690805
NUT, NYLOC, 3/4 UNF
Volante from (V) 60082 & 60074/8/9
from £2.24
from £2.24
# 95
MPN: 26-51630
SENSOR RING
Cars with ABS from (V) 60006
from £19.62
from £19.62
# 96
MPN: 90-54140
SPEED SENSOR, RH
Cars with ABS from (V) 60006
from £173.53
from £173.53
# 96
MPN: 90-54141
SPEEDSENSOR, LH
Cars with ABS from (V) 60006
from £173.53
from £173.53
# 97
MPN: 694211
CAPSCREW, M6 X 16, SENSOR ATTACH TO VERTICAL LINK
Cars with ABS from (V) 60006
from £0.93
from £0.93
# 98
MPN: 692046
WASHER, SPRING, M6, SENSOR ATTACH TO VERTICAL LINK
Cars with ABS from (V) 60006
from £0.47
from £0.47
# 99
MPN: 90-54578
BRACKET, UPPER BALL JOINT, RH, SENSOR CABLE SUPPORT
Cars with ABS from (V) 60006
# 99
MPN: 90-54579
BRACKET, UPPER BALL JOINT, LH, SENSOR CABLE SUPPORT
Cars with ABS from (V) 60006
from £37.34
from £37.34
# 100
MPN: 90-53913
Bracket, upper wishbone arm, sensor cable support
Cars with ABS from (V) 60006
from £67.95
from £67.95
# 101
MPN: 90-53905
BRACKET, SENSOR CABLE SUPPORT
Cars with ABS from (V) 60006
from £4.44
from £4.44
# 102
MPN: 692262
SCREW, M6 X 12, BRACKET TO CHASSIS
Cars with ABS from (V) 60006
from £0.47
from £0.47
# 103
MPN: 692046
Washer, spring, M6, bracket to chassis
Cars with ABS from (V) 60006
from £0.47
from £0.47
# 104
MPN: 693212
SPIRAP, 1/2 OD, FRONT SENSOR CABLE
Cars with ABS from (V) 60006
from £8.83
from £8.83
# 105
MPN: 695047
P'CLIP, FRONT SENSOR CABLE
Cars with ABS from (V) 60006
from £2.77
from £2.77
# 106
MPN: 692045
Washer, spring, M5, P clip to chassis
Cars with ABS from (V) 60006
from £0.47
from £0.47
# 107
MPN: 692242
SCREW, M5 X 12, P CLIP TO CHASSIS
Cars with ABS from (V) 60006
from £0.48
from £0.48
# 107
MPN: 696678
CABLE TIE
From March 1994
# 108
-
FRONT BRAKE DISC
See section 5.1
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (1999) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (1999) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (1999) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (1999) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (1999) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (1999) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (1999) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (1999) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (1999) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (1999) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (1999) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (1999) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL, EMISSION CONTROL, EXHAUST PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (1999) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (1999) TROQUE CONVERTOR, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR, GEARBOX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (1999) REAR SUSPENSION PARTS DIAGRAM")
