6.3E - Components & Wiring

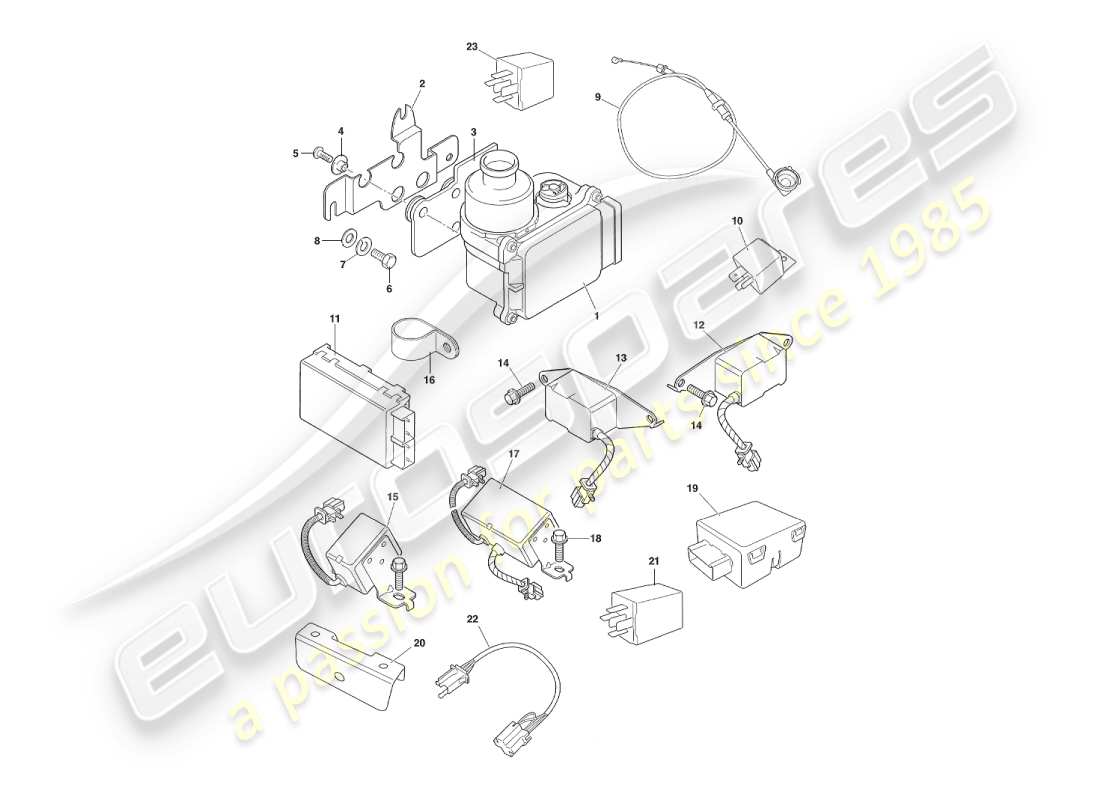

Aston Martin V8 Virage (1999) Components & Wiring Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 37-62684
CRUISE CONTROL UNIT, AUTOMATIC CARS
Up to (V) 60195
# 1
MPN: 37-64871
CRUISE CONTROL UNIT, AUTOMATIC CARS
From (V) 60196 Up to (V) 60224
from £511.62
from £511.62
# 1
MPN: 37-65223
CRUISE CONTROL UNIT, AUTOMATIC CARS
From (V) 60225
# 2
MPN: 37-62685
MOUNTING BRACKET
from £13.68
from £13.68
# 3
MPN: 37-64047
ISOLATOR PAD, CRUISE CONTROL UNIT TO BRACKET
from £48.24
from £48.24
# 4
MPN: 37-64048
EYELET BUSH, CRUISE CONTROL UNIT TO BRACKET
from £4.62
from £4.62
# 5
MPN: 37-64049
SCREW, M6 X 20, CRUISE CONTROL UNIT TO BRACKET
from £1.24
from £1.24
# 6
MPN: 692262
SCREW, M6 X 12, BRACKET TO WHEELARCH
from £0.47
from £0.47
# 7
MPN: 692046
WASHER, SPRING, M6, BRACKET TO WHEELARCH
from £0.47
from £0.47
# 8
MPN: 692056
WASHER, PLAIN, M6, BRACKET TO WHEELARCH
from £0.47
from £0.47
# 9
MPN: 08-62683
CABLE, CRUISE CONTROL
See also Section 2.1
from £124.61
from £124.61
# 10
MPN: 37-62989
RELAY, ELECTRIC FANS
from £40.28
from £40.28
# -
-
SCREW, NYLON, M5 X 12
# -
-
WASHER, NYLON, M5
# 11
MPN: 37-64157
Diagnostic module electronic control unit
Driver's air-bag
# -
-
NYLON NUT
Driver's air-bag
# -
-
SCREW, M5 X 12
Driver's air-bag
# 12
MPN: 37-63028
SENSOR, OUTER, RH
Driver's air-bag
from £109.60
from £109.60
# 13
MPN: 37-63029
SENSOR, OUTER, LH
Driver's air-bag
from £109.60
from £109.60
# 14
MPN: 696296
SCREW, M6 X 20, DURLOC SENSORS TO BUMPER TUBES
Driver's air-bag
from £2.39
from £2.39
# 15
MPN: 37-62276
SENSOR, CENTRE FRONT
Driver's air-bag
from £188.69
from £188.69
# 16
MPN: 693363
CABLE CLAMP, NYLON, SENSOR TO FAN COWL
Driver's air-bag
from £0.47
from £0.47
# -
-
SPACER, SENSOR TO FAN COWL
Driver's air-bag
# -
-
SCREW, PK, NO.8 X 5/8, SENSOR TO FAN COWL
Driver's air-bag
# -
-
SCREW, M6 X 12, DURLOC SENSOR TO RADIATOR TOP PANEL
Driver's air-bag
# 17
MPN: 37-62277
SENSOR, TUNNEL
Driver's air-bag
from £462.34
from £462.34
# 18
MPN: 696296
SCREW, M6 X 20, DURLOC SENSOR TO TUNNEL
Driver's air-bag
from £2.39
from £2.39
# -
-
LABEL, AIR BAG WARNING UNDER BONNET
Driver's air-bag
# -
-
LABEL, AIR BAG WARNING DRIVER'S SUNVISOR
Driver's air-bag
# -
-
WIPER DELAY UNIT
# 19
MPN: 37-74078
WIPER DELAY UNIT
From May 1995
from £495.15
from £495.15
# 20
MPN: 37-62680
MOUNTING BRACKET, WIPER DELAY UNIT
from £7.44
from £7.44
# -
-
DELAY UNIT, HOT RESTART
From July 1994
# 21
MPN: 37-56365
DELAY UNIT, HOT RESTART
From (V) 60230
from £26.72
from £26.72
# 22
MPN: 37-56364
LEAD
From (V) 60230
from £61.71
from £61.71
# 23
MPN: 37-64692
RELAY, CHANGE OVER, AC CLUTCH DELAY
From July 1994
# -
-
SCREW, M5 X 12, DELAY AND RELAY ATTACH
From July 1994
# -
-
WASHER, SPRF, M5, DELAY AND RELAY ATTACH
From July 1994
# -
-
WASHER, PLAIN, M5, DELAY AND RELAY ATTACH
From July 1994
# -
-
NUT, M5, DELAY AND RELAY ATTACH
From July 1994
