7.1 - Chassis Frame

Aston Martin V8 Virage (1999) Chassis Frame Parts Diagram

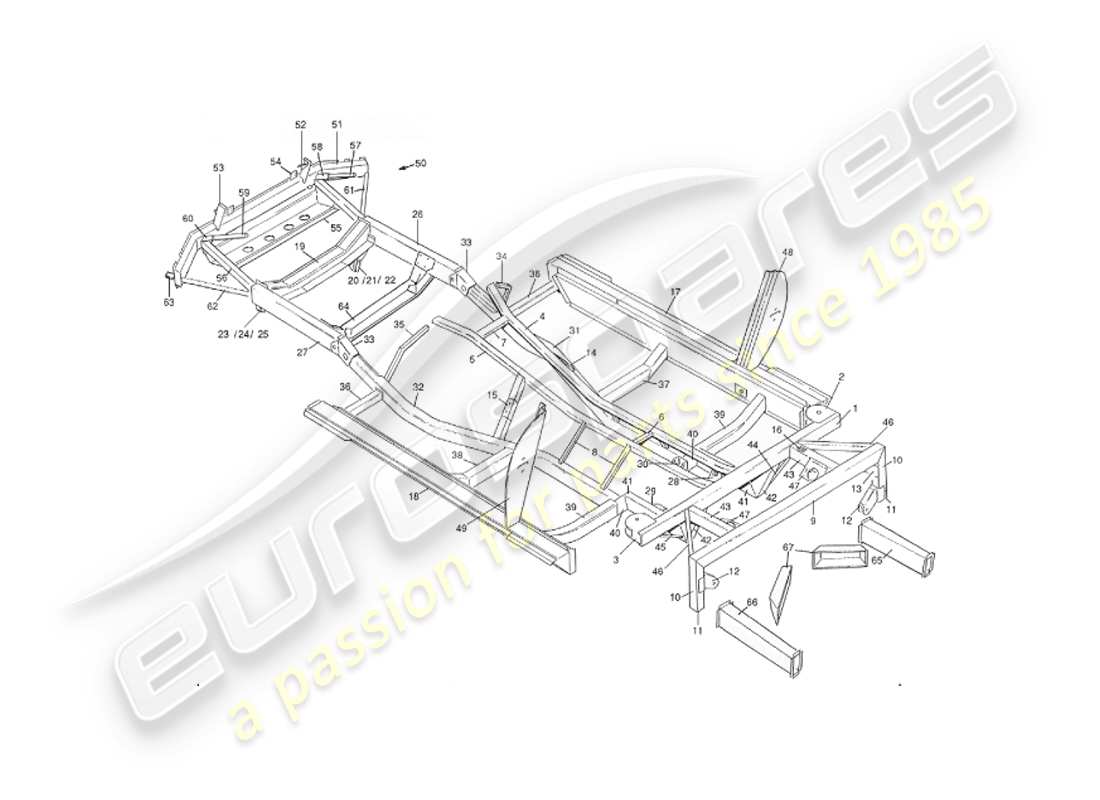

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# -
MPN: 21-50031
Centre frame assembly
Centre frame assembly Genuine Aston Martin - New (to order)
# -
MPN: 21-60504
Centre frame assembly
Volante
Centre frame assembly Genuine Aston Martin - New (to order)
# 1
MPN: 21-51356
Rear spring cross member assembly
Rear spring cross member assembly Genuine Aston Martin - New (to order)
# 2
MPN: 21-50061
Bracket, reinforcing plate assembly - RH
Bracket, reinforcing plate assembly - RH Genuine Aston Martin - New (to order)
# 3
MPN: 21-50062
Bracket, reinforcing plate assembly - LH
Bracket, reinforcing plate assembly - LH Genuine Aston Martin - New (to order)
# 4
MPN: 21-50360
UPPER TUNNEL RAIL - RH
from £144.16
from £144.16
UPPER TUNNEL RAIL RH Genuine Aston Martin - New (to order)
# 5
MPN: 21-50361
UPPER TUNNEL RAIL - LH
from £115.77
from £115.77
UPPER TUNNEL RAIL LH Genuine Aston Martin - New (to order)
# -
-
Brace, upper tunnel, rear
# 6
MPN: 21-50008
Brace, upper tunnel, centre
Brace, upper tunnel, centre Genuine Aston Martin - New (to order)
# 7
MPN: 21-50009
BRACE, UPPER TUNNEL, GEARBOX
from £21.40
from £21.40
BRACE-UPP TNNL G/BOX Genuine Aston Martin - New (to order)
# 8
MPN: 21-50018
Tie bar, upper/lower rail
Tie bar, upper/lower rail Genuine Aston Martin - New (to order)
# -
-
Watts link support assembly
# 9
MPN: 21-50205
LONGITUDINAL, WATTS LINK SUPPORT
from £77.51
from £77.51
LONGIT-WATTS LINK SUP Genuine Aston Martin - New (to order)
# 10
MPN: 21-50206
UPRIGHT, WATTS LINK SUPPORT
from £34.55
from £34.55
LONGIT - UPRIGHT Genuine Aston Martin - New (to order)
# 11
MPN: 21-51364
CAP, UPRIGHT
from £1.00
from £1.00
CAP-WATTS LINK UPRGHT Genuine Aston Martin - New (to order)
# 12
MPN: 21-50209
BRACKET, WATTS LINK SUPPORT
from £20.02
from £20.02
BRKT-WATTS LINK SUPPT Genuine Aston Martin - New (to order)
# 13
MPN: 21-50211
BRACE, WATTS LINK SUPPORT
from £23.91
from £23.91
BRCE-LNG WTS LINK SPT Genuine Aston Martin - New (to order)
# 14
MPN: 21-51924
Gearbox mounting bracket - RH
Inc. Volante
Gearbox mounting bracket - RH Genuine Aston Martin - New (to order)
# 15
MPN: 21-51925
GEARBOX MOUNTING BRACKET - LH
Inc. Volante
GEARBOX MOUNTING BRACKET - LH Genuine Aston Martin - New (to order)
# -
-
gearbox mounting
Volante Only
# -
-
gearbox mounting
Volante Only
# -
-
gearbox mounting
Volante Only
# -
-
gearbox mounting
Volante Only
# -
-
CROSS BRACE
Volante Only
# 16
MPN: 21-53611
Fuel pipe support bracket
Fuel pipe support bracket Genuine Aston Martin - New (to order)
# 17
MPN: 21-51394
Sill assembly - RH
Saloon only
Sill assembly - RH Genuine Aston Martin - New (to order)
# 17
MPN: 21-61086
Sill assembly - RH
Volante Only
Sill assembly RH M/F Genuine Aston Martin - New (to order)
# 18
MPN: 21-51395
Sill assembly - LH
Saloon only
Sill assembly - LH Genuine Aston Martin - New (to order)
# 18
MPN: 21-61087
Sill assembly - LH
Volante Only
Sill assembly LH M/F Genuine Aston Martin - New (to order)
# 19
MPN: 21-55251
FRONT CROSS MEMBER ASSEMBLY
from £664.06
from £664.06
ASSEMBLY FRONT XMEMBER Genuine Aston Martin - New (to order)
# 20
MPN: 21-14682
BASE, BRACKET BRACE REACTION STRUT - RH
from £28.00
from £28.00
BASE BRAKE REACT BAR Genuine Aston Martin - New (to order)
# 21
MPN: 21-52508
MOUNTING PLATE FRONT - RH
from £7.02
from £7.02
MOUNTING PLT-FRNT SECT RH Genuine Aston Martin - New (to order)
# 22
MPN: 21-52510
MOUNTING PLATE REAR - RH
from £35.99
from £35.99
MOUNTING PLT-REAR SECT RH Genuine Aston Martin - New (to order)
# 23
MPN: 21-14683
BASE, BRACKET BRAKE REACTION STRUT - LH
from £28.00
from £28.00
BASE BRAKE REACT BAR Genuine Aston Martin - New (to order)
# 24
MPN: 21-52509
MOUNTING PLATE FRONT - LH
from £7.02
from £7.02
MOUNTING PLT-FRNT SECT LH Genuine Aston Martin - New (to order)
# 25
MPN: 21-52511
MOUNTING PLATE REAR - LH
from £35.99
from £35.99
MOUNTING PLT-REAR SECT LH Genuine Aston Martin - New (to order)
# 26
MPN: 21-53812
Front longitudinal member assembly - RH
Front longitudinal member assembly - RH Genuine Aston Martin - New (to order)
# 27
MPN: 21-53813
FRONT LONGITUDINAL MEMBER ASSEMBLY - LH
ASSEMBLY FRONT LONGT MBR LH Genuine Aston Martin - New (to order)
# 28
MPN: 21-50088
Bracket, differential mounting, front - RH
Bracket, differential mounting, front - RH Genuine Aston Martin - New (to order)
# 29
MPN: 21-50089
Bracket, differential mounting, front - LH
Bracket, differential mounting, front - LH Genuine Aston Martin - New (to order)
# 30
MPN: 21-50093
MOUNTING BRACKET ASSEMBLY
from £10.63
from £10.63
ASSEMBLY MOUNTING BRACKET Genuine Aston Martin - New (to order)
# 31
MPN: 21-51666
CENTRE LONGITUDINAL ASSEMBLY - RH
from £318.88
from £318.88
ASSEMBLY LNGT CTR SECT RH Genuine Aston Martin - New (to order)
# 32
MPN: 21-51667
CENTRE LONGITUDINAL ASSEMBLY - LH
from £614.06
from £614.06
ASSEMBLY LNGT CTR SECT LH Genuine Aston Martin - New (to order)
# 33
MPN: 21-50032
REINFORCEMENT PLATE
from £37.78
from £37.78
REINFORCEMENT PLATE Genuine Aston Martin - New (to order)
# 34
MPN: 21-51352
Brace, bulkhead tunnel - RH
Brace, bulkhead tunnel - RH Genuine Aston Martin - New (to order)
# 35
MPN: 21-51353
Brace, bulkhead tunnel - LH
Brace, bulkhead tunnel - LH Genuine Aston Martin - New (to order)
# 36
MPN: 21-50026
BRACE, SILL FRONT
from £75.66
from £75.66
BRACE - SILL FRONT Genuine Aston Martin - New (to order)
# 37
MPN: 21-51608
OUTRIGGER ASSEMBLY, FRONT - RH
OUTRGGR FRONT S/ASY RH Genuine Aston Martin - New (to order)
# 38
MPN: 21-51609
OUTRIGGER ASSEMBLY, FRONT - LH
OUTRGGR FRONT S/ASY LH Genuine Aston Martin - New (to order)
# 39
MPN: 21-51249
REAR OUTRIGGER
from £86.27
from £86.27
REAR OUTRIGGER Genuine Aston Martin - New (to order)
# 40
MPN: 21-50011
LONGITUDINAL, REAR SEAT, FRONT
from £23.96
from £23.96
LONGIT-RR SEAT-FRONT Genuine Aston Martin - New (to order)
# 41
MPN: 21-50010
LONGITUDINAL, REAR SEAT, REAR
from £34.27
from £34.27
LONGIT-RR SEAT-REAR Genuine Aston Martin - New (to order)
# 42
MPN: 21-50003
Longitudinal, rear spring
Longitudinal, rear spring Genuine Aston Martin - New (to order)
# -
-
Cap, longitudinal, rear spring
# 43
MPN: 21-50002
Longitudinal, differential carrier
Longitudinal, differential carrier Genuine Aston Martin - New (to order)
# 44
MPN: 21-50004
Brace, rear spring crossmember - RH
Brace, rear spring crossmember - RH Genuine Aston Martin - New (to order)
# 45
MPN: 21-50005
Brace, rear spring crossmember - LH
Brace, rear spring crossmember - LH Genuine Aston Martin - New (to order)
# -
-
Cap, brace, rear spring crossmember
# 46
MPN: 21-50207
BRACE, WATTS LINKAGE SUPPORT LONGITUDINAL
from £25.71
from £25.71
BRCE W/LNK SUPPORT LNGT Genuine Aston Martin - New (to order)
# 47
MPN: 21-50052
MOUNTING BRACKET DIFFERENTIAL SUPPORT
from £22.84
from £22.84
MOUNTING BRACKET DIFF SUPPT Genuine Aston Martin - New (to order)
# 48
MPN: 21-50644
B' post lower assembly - RH
B' post lower assembly - RH Genuine Aston Martin - New (to order)
# 48
MPN: 21-60530
B' post lower assembly - RH
Volante
ASSEMBLY B POST LOWER RH Genuine Aston Martin - New (to order)
# 49
MPN: 21-50645
B' post lower assembly - LH
B' post lower assembly - LH Genuine Aston Martin - New (to order)
# 49
MPN: 21-60531
B' post lower assembly - LH
Volante
ASSEMBLY B POST LOWER LH Genuine Aston Martin - New (to order)
# 50
MPN: 19-53089
FRONT BUMPER MOUNTING ASSEMBLY
from £3,775.70
from £3,775.70
ASSEMBLY BUMPER SUPPORT COMPLETE Genuine Aston Martin - New (to order)
# 51
MPN: 19-50499
Front bumper mounting, c/w radiator brackets
from £906.17
from £906.17
ASSEMBLY BUMPER MOUNTING Genuine Aston Martin - New (to order)
# 52
MPN: 19-54308
Bracket, radiator and condenser, RH
from £6.67
from £6.67
ASSEMBLY BRACKET COND/RAD RH Genuine Aston Martin - New (to order)
# 53
MPN: 19-54309
Bracket, radiator and condenser, LH
from £6.67
from £6.67
ASSEMBLY BRACKET COND/RAD LH Genuine Aston Martin - New (to order)
# 54
MPN: 19-51599
Hinge support bracket
Hinge support bracket Genuine Aston Martin - New (to order)
# 55
MPN: 19-51793
Radiator mounting panel
Radiator mounting panel Genuine Aston Martin - New (to order)
# 56
MPN: 19-51020
Bumper support tube, lower, Inner
from £90.19
from £90.19
SUPPORT TBE LOWER INN Genuine Aston Martin - New (to order)
# 57
MPN: 19-51024
BUMPER SUPPORT TUBE, UPPER, RH
from £73.42
from £73.42
SUPPORT TUBE UPPER RH Genuine Aston Martin - New (to order)
# 58
MPN: 19-51026
BUMPER SUPPORT TUBE GUSSET, RH
from £52.18
from £52.18
GUSST REIN TBE UP RH Genuine Aston Martin - New (to order)
# 59
MPN: 19-51025
BUMPER SUPPORT TUBE, UPPER, LH
from £73.42
from £73.42
SUPPORT TUBE UPPER LH Genuine Aston Martin - New (to order)
# 60
MPN: 19-51027
BUMPER SUPPORT TUBE GUSSET, LH
from £52.18
from £52.18
GUSST REIN TBE UP LH Genuine Aston Martin - New (to order)
# 61
MPN: 19-51644
BUMPER SUPPORT TUBE, LOWER, OUTER, RH
ASSEMBLY BUMPER SUPPORT TUBE Genuine Aston Martin - New (to order)
# 62
MPN: 19-51023
BUMPER SUPPORT TUBE, LOWER, OUTER, LH
from £74.24
from £74.24
BMP SPT TB LW OUT LH Genuine Aston Martin - New (to order)
# -
-
Mounting bracket, headlamp, outer RH
# 63
MPN: 19-51095
Mounting bracket, headlamp, outer LH
Mounting bracket, headlamp, outer LH Genuine Aston Martin - New (to order)
# 64
MPN: 18-52744
REAR CROSSMEMBER ASSEMBLY
Supports steering unit
from £799.75
from £799.75
ASSEMBLY FRONT SUSP XMBR Genuine Aston Martin - New (to order)
# 65
MPN: 22-51676
Boot floor chassis support, RH
Boot floor chassis support, RH Genuine Aston Martin - New (to order)
# 66
MPN: 22-51677
BOOT FLOOR CHASSIS SUPPORT, LH
from £158.44
from £158.44
ASSEMBLY BOOT FLR LNGT LH Genuine Aston Martin - New (to order)
# 67
MPN: 22-50285
Brace, boot floor chassis support
from £15.52
from £15.52
GUSSET Genuine Aston Martin - New (to order)
# -
-
Stamping plate, chassis
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
