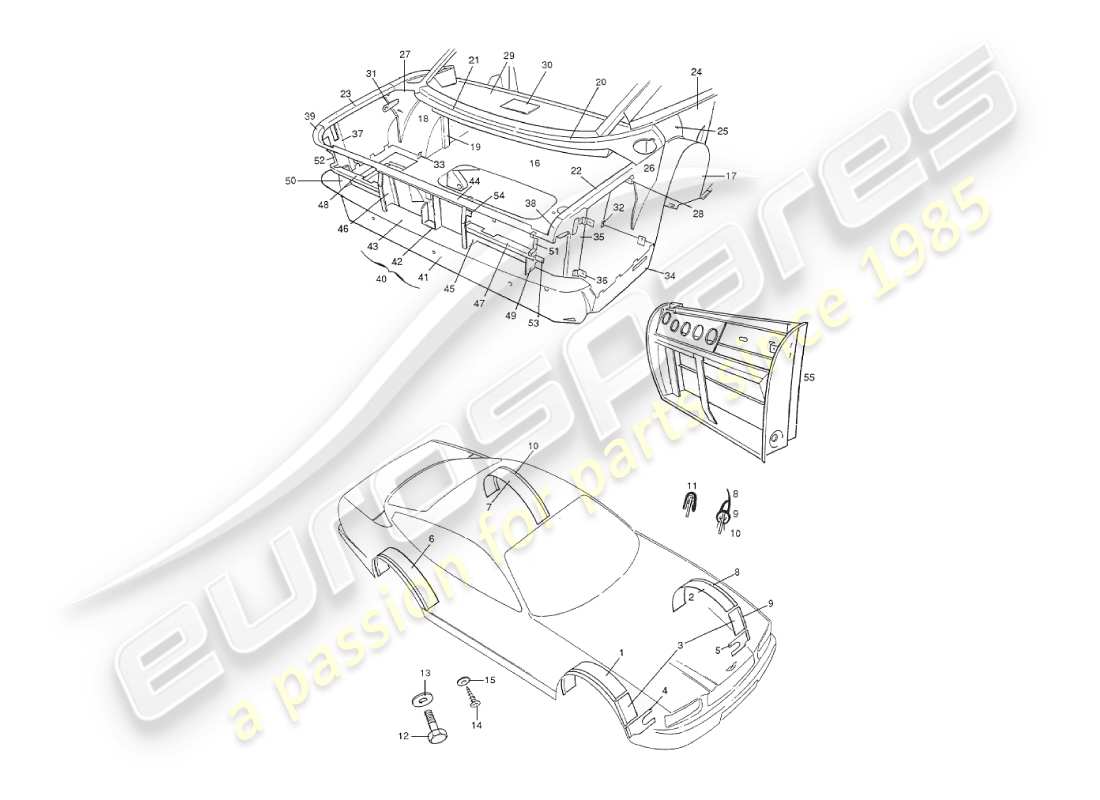

7.2B - Chassis Superstructure, Rear
Aston Martin V8 Virage (1999) Chassis Superstructure, Rear Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 77-50304
STONEGUARD FRONT, RH
Plastic from Feb 1995, was alloy, also Volante
from £55.96
from £55.96
# 2
MPN: 77-50305
STONEGUARD FRONT, LH
Plastic from Feb 1995, was alloy, also Volante
from £55.79
from £55.79
# 3
MPN: 77-50306
STONEGUARD FRONT, LOWER
Plastic from Feb 1995, was alloy, also Volante
from £55.79
from £55.79
# 4
MPN: 77-54034
STONEGUARD FRONT, SPOILER, RH
from £14.29
from £14.29
# 4
MPN: 77-64804
STONEGUARD FRONT, SPOILER, RH
Volante
from £43.71
from £43.71
# 5
MPN: 77-54035
STONEGUARD FRONT, SPOILER, LH
from £25.99
from £25.99
# 5
MPN: 77-64805
STONEGUARD FRONT, SPOILER, LH
Volante
from £43.71
from £43.71
# 6
MPN: 77-53704
Stoneguard rear, RH
# 7
MPN: 77-53705
Stoneguard rear, LH
from £63.92
from £63.92
# 7
MPN: 77-61236
Stoneguard rear, RH
Volante from Feb 1995
# 7
MPN: 77-61237
Stoneguard rear, LH
Volante from Feb 1995
# 8
MPN: 692369
SEAL, FRONT STONEGUARD, 1300 MM LONG
from £22.12
from £22.12
# 9
MPN: 692369
SEAL, FRONT LOWER STONEGUARD, 350 MM
from £22.12
from £22.12
# 10
MPN: 692369
SEAL, REAR STONEGUARD, 1500 MM
from £22.12
from £22.12
# 11
MPN: 77-14017
EDGE SEAL, SPOILER STONEGUARD
from £18.74
from £18.74
# 12
MPN: 692088
SCREW, M6 X 16 STONEGUARD ATTACH
from £0.47
from £0.47
# 12
MPN: 696513
SCREW, M6 X 16, NYLON STONEGUARD ATTACH
Volante from Feb 1995
from £1.78
from £1.78
# 12
MPN: 692146
SCREW, M6 X 20 STONEGUARD ATTACH
from £1.16
from £1.16
# 13
MPN: 124383
WASHER, PLAIN, LARGE STONEGUARD ATTACH
from £0.47
from £0.47
# 13
MPN: 692056
WASHER, PLAIN, M6 STONEGUARD ATTACH
from £0.47
from £0.47
# 13
MPN: 77-72743
WASHER, PLAIN, NYLON, M6 X 25.4 OD, STONEGUARD ATTACH
Volante from Feb 1995
from £3.75
from £3.75
# 13
MPN: 692580
WASHER, SPRING, M6 STONEGUARD ATTACH
from £0.47
from £0.47
# 14
MPN: 691020
SCREW, NO.8 X 1/2 STONEGUARD ATTACH
from £0.47
from £0.47
# 15
MPN: 692055
WASHER, PLAIN, M5 STONEGUARD ATTACH
from £0.47
from £0.47
# 15
MPN: 692065
WASHER, SHAKEPROOF, M5 STONEGUARD ATTACH
from £0.47
from £0.47
# -
-
SEALER STONEGUARD ATTACH
# -
-
HANKBUSH, M6 STONEGUARD ATTACH
# -
-
RIVNUT, M6 STONEGUARD ATTACH
# 16
MPN: 22-50051
BOOT FLOOR PANEL ASSEMBLY
from £132.94
from £132.94
# -
-
GROMMET, 19 MM
Fuel pump harness/boot floor
# -
-
AMPLIFIER MOUNTING BRACKET
# 17
MPN: 22-51230
REAR WHEELARCH, RH
from £155.14
from £155.14
# 17
MPN: 22-60438
REAR WHEELARCH, RH
Volante
# 18
MPN: 22-51231
Rear wheelarch, LH
from £155.14
from £155.14
# 18
MPN: 22-60439
Rear wheelarch, LH
Volante
# -
-
RH CARRIER INERTIA
# -
-
LH CARRIER INERTIA
# -
-
Panel, curved, rear spring turret, RH
Incl. Volante
# -
-
PANEL, CURVED, REAR SPRING TURRET, LH
Incl. Volante
# -
-
Panel, inner wheelarch, RH
# -
-
Panel, inner wheelarch, RH
Volante
# -
-
PANEL, INNER WHEELARCH, LH
# -
-
PANEL, INNER WHEELARCH, LH
Volante
# -
-
Panel inner, rear wheelarch, RH
# -
-
Panel inner, rear wheelarch, RH
Volante
# -
-
PANEL INNER, REAR WHEELARCH, LH
# -
-
PANEL INNER, REAR WHEELARCH, LH
Volante
# -
-
HOOP RAIL SUPPORT, RH
# 19
MPN: 22-50985
HOOP RAIL SUPPORT, LH
from £34.04
from £34.04
# 20
MPN: 61-51852
HOOP RAIL ASSEMBLY, RH
Side hinged fuel flaps
# 20
MPN: 61-61069
Hoop rail assembly
# 21
MPN: 61-51853
HOOP RAIL ASSEMBLY, LH
Side hinged fuel flaps
# 21
MPN: 61-55174
HOOP RAIL ASSEMBLY, RH
Rear hinged fuel flaps
from £15.59
from £15.59
# 21
MPN: 61-55175
HOOP RAIL ASSEMBLY, LH
Rear hinged fuel flaps
from £15.59
from £15.59
# 22
MPN: 22-53594
Drain channel, rear wing, RH
# -
-
Drain channel, rear wing, RH
# 23
MPN: 22-53593
DRAIN CHANNEL, REAR WING, LH
# -
-
DRAIN CHANNEL, REAR WING, LH
# 24
MPN: 22-53488
CLOSING PANEL, 'B' POST SPLASH PANEL, RH
from £0.76
from £0.76
# 24
MPN: 22-53489
CLOSING PANEL, 'B' POST SPLASH PANEL, LH
from £0.76
from £0.76
# 25
MPN: 22-51193
CLOSING PANEL, HOOP RAIL SUPPORT, RH
from £11.99
from £11.99
# 25
MPN: 22-51194
CLOSING PANEL, HOOP RAIL SUPPORT, LH
from £11.99
from £11.99
# 26
MPN: 22-51092
CLOSING PANEL, FUEL FILLER, RH
# 27
MPN: 22-53076
Closing panel, fuel filler, LH
# 28
MPN: 22-52590
BRACKET, BOOT TRIM
# 29
MPN: 22-51179
REAR PARCEL SHELF ASSEMBLY
# 30
MPN: 22-51182
COVER PLATE, REAR PARCEL SHELF
from £5.03
from £5.03
# -
-
SCREW, M5 X 12
Cover plate to parcel shelf
# -
-
SKIRT, REAR PARCEL SHELF
# -
-
RETAINING BRACKET, REAR PARCEL SHELF
# -
-
Bracket, boot trim, RH
# -
-
Bracket, boot trim, LH
# 31
MPN: 37-52585
BRACKET, BATTERY MASTER SWITCH
See also Section 6.3B
from £15.99
from £15.99
# -
-
SCREW, M8 X 20
Bracket to panel - see also Section 6.3B
# -
-
WASHER, SPRING, M8
Bracket to panel- see also Section 6.3B
# -
-
WASHER, PLAIN, M8
Bracket to panel- see also Section 6.3B
# 32
MPN: 22-52078
GAS STRUT BRACKET, RH
from £0.76
from £0.76
# 33
MPN: 22-52079
GAS STRUT BRACKET, LH
from £0.76
from £0.76
# 34
MPN: 22-50671
BOOT FLOOR SIDE PANEL, RH
Incl. Volante
from £36.00
from £36.00
# -
-
HOOD RAM SUPPORT RH
Volante
# -
-
BOOT FLOOR SIDE PANEL, LH
Incl. Volante
# -
-
Hood ram support, LH
Volante
# 35
MPN: 22-51036
REAR CLOSING PANEL, RH
# 36
MPN: 22-52592
BRACKET, BOOT TRIM
# 37
MPN: 22-51037
Rear closing panel, LH
# -
-
BRACKET, BOOT TRIM
# 38
MPN: 22-53636
CORNER ASSEMBLY, DRAIN CHANNEL, RH
# 39
MPN: 22-53637
CORNER ASSEMBLY, DRAIN CHANNEL, LH
# 40
MPN: 22-53692
REAR LAMP MOUNTING FRAME AND BUMPER SUPPORT ASSY
from £525.71
from £525.71
# 40
MPN: 22-60408
REAR LAMP MOUNTING FRAME AND BUMPER SUPPORT ASSY
Volante
# 41
MPN: 22-51842
REAR BUMPER MOUNTING
Incl. Volante
# 42
MPN: 22-53595
BOOT LOCK MOUNTING BRACKET
Incl. Volante
from £35.21
from £35.21
# 43
MPN: 22-53693
Rear lamp mounting frame assembly
# 43
MPN: 22-60228
Rear lamp mounting frame assembly
Volante
# 44
MPN: 22-53599
TOP RAIL
# 44
MPN: 22-60015
TOP RAIL
Volante
# 45
MPN: 22-53598
Main support, RH
# -
-
UPPER BRACKET - BOOT TRIM
Volante
# 46
MPN: 22-53597
MAIN SUPPORT, LH
# -
-
UPPER BRACKET - BOOT TRIM
Volante
# 47
MPN: 22-50944
LAMP RAIL, RH
# -
-
LOWER BRACKET - BOOT TRIM
Volante
# 48
MPN: 22-50943
LAMP RAIL, LH
# 48
MPN: 22-62580
LAMP RAIL, LH
Volante
from £4.36
from £4.36
# 49
MPN: 22-50948
LAMP SUPPORT, RH
# 49
MPN: 22-62581
LAMP RAIL, RH
Volante
from £4.36
from £4.36
# 50
MPN: 22-50949
LAMP SUPPORT, LH
# 50
MPN: 22-62525
LAMP SUPPORT, LH
Volante
from £1.57
from £1.57
# 50
MPN: 22-62526
LAMP SUPPORT, LH
Volante
from £1.57
from £1.57
# 51
MPN: 22-53600
LAMP RETAINING STRAP, RH
# 52
MPN: 22-53601
LAMP RETAINING STRAP, LH
# 53
MPN: 22-52594
Bracket, boot trim, small
# 54
MPN: 22-52596
BRACKET, BOOT TRIM, LARGE
# -
-
DOOR FRAME, RH
See also Section 7.4A
# 55
MPN: 65-50633
DOOR FRAME, LH
from £721.02
from £721.02
# -
-
DOOR FRAME, RH
Volante
# -
-
DOOR FRAME, LH
Volante
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (1999) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (1999) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (1999) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (1999) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (1999) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (1999) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (1999) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (1999) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (1999) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (1999) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL, EMISSION CONTROL, EXHAUST PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (1999) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (1999) TROQUE CONVERTOR, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR, GEARBOX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (1999) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (1999) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
