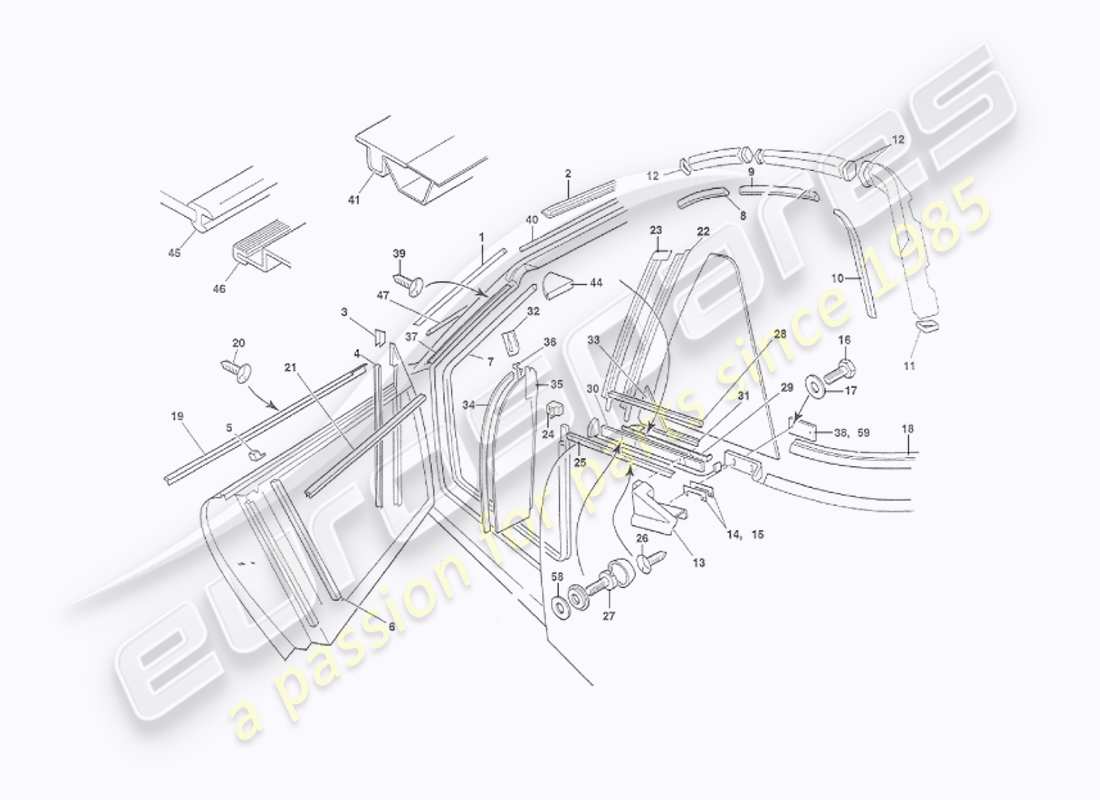

7.4D - Weather Seals, Volante
Aston Martin V8 Virage (1999) Weather Seals, Volante Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 77-62784
Seal 'A' post, RH
Made from 77-60351
# 1
MPN: 77-62875
Seal 'A' post, LH
Made from 77-60351
# 2
MPN: 77-60065
SEAL, HEADER RAIL
Made from 77-62815
# 3
MPN: 77-63014
MOULDING INSERT, CHEATER PANEL, RH
from £147.80
from £147.80
# 3
MPN: 77-63015
MOULDING INSERT, CHEATER PANEL, LH
from £147.80
from £147.80
# -
-
SEAL SUPPORT RUBBER, 10 X 290 LONG
Made from 691886
# 4
MPN: 77-61238
GLASS RUN CHANNEL, FORWARD
Made from 694093
# 5
MPN: 77-61262
MOULDING, DOOR WAIST END CAPPING, RH
from £136.92
from £136.92
# 5
MPN: 77-61263
MOULDING, DOOR WAIST END CAPPING, LH
from £134.26
from £134.26
# 6
MPN: 77-61239
GLASS RUN CHANNEL, REAR
Made from 694093
# 7
MPN: 77-62063
WEATHER SEAL, DOOR
Made from 77-62064
# 8
MPN: 77-60058
SEAL, CANTRAIL FRONT, RH
# 8
MPN: 77-60059
Seal, cantrail front, LH
# -
-
SEAL, CANTRAIL REAR, RH
# 9
MPN: 77-62064
SEAL, CANTRAIL REAR, LH
from £30.45
from £30.45
# 10
MPN: 77-60094
Seal, 'C' post, RH
# 10
MPN: 77-60095
Seal, 'C' post, LH
# 11
MPN: 77-62031
CAPPING SEAL END
from £1.57
from £1.57
# 12
MPN: 77-62028
MOULDING, 'C' POST ASSY, RH
from £644.40
from £644.40
# 13
MPN: 77-62029
MOULDING, 'C' POST ASSY, LH
from £644.40
from £644.40
# 14
MPN: 77-61822
PACKER, 'C' POST MOULDING
from £25.85
from £25.85
# -
-
CLAMP PLATE
# 15
MPN: 77-61823
PACKER, 'C' POST MOULDING
from £25.85
from £25.85
# 16
MPN: 696789
SCREW, M5 X 20
from £2.39
from £2.39
# 17
MPN: 696784
WASHER PLAIN, M5
from £0.47
from £0.47
# 18
MPN: 77-61240
SEAL, REAR DECK
Made from 77-64005
# 19
MPN: 77-61715
OUTER WAIST BELT FINISHER, DOOR GLASS, RH
from £18.08
from £18.08
# 19
MPN: 77-61715
OUTER WAIST BELT FINISHER, DOOR GLASS, LH
from £18.08
from £18.08
# 20
MPN: 696338
SCREW, NO 4 X 1/2
Or rivet 582-000-2829
from £0.47
from £0.47
# 21
MPN: 694871
INNER WAIST BELT FINISHER, DOOR GLASS
from £19.31
from £19.31
# 22
MPN: 77-62006
Seal carrier, door glass/quarter glass, RH
Made from 77-61246
from £73.10
from £73.10
# 22
MPN: 77-62007
Seal carrier, door glass/quarter glass, LH
Made from 77-61247
from £58.44
from £58.44
# 23
MPN: 77-61248
Seal, door glass/quarter glass, RH
Made from 77-66108
from £161.31
from £161.31
# 23
MPN: 77-61249
Seal, door glass/quarter glass, LH
Made from 77-66109
from £128.93
from £128.93
# 24
MPN: 77-61258
MOULDING, 'B' POST CAPPING, RH
from £203.75
from £203.75
# 24
MPN: 77-61259
MOULDING, 'B' POST CAPPING, LH
from £203.75
from £203.75
# 25
MPN: 77-61715
OUTER WAIST BELT FINISHER, QUARTER GLASS, RH
from £18.08
from £18.08
# 25
MPN: 77-61715
OUTER WAIST BELT FINISHER, QUARTER GLASS, LH
from £18.08
from £18.08
# 26
MPN: 696338
SCREW, NO 4 X 1/2
from £0.47
from £0.47
# 27
MPN: 696923
SCREW, M4 X 20, BLACK NYLON
from £1.11
from £1.11
# -
-
CAP, SCREW PROTECTION
# -
-
WASHER, SCREW PROTECTION
# 28
MPN: 77-65714
INNER WAIST BELT FINISHER, QUARTER GLASS, RH
Made from 77-62001
# 28
MPN: 77-65715
INNER WAIST BELT FINISHER, QUARTER GLASS, LH
Made from 77-62001
# 29
MPN: 94-61526
RAIL, SEAL CARRIER, QUARTER GLASS, RH
from £8.92
from £8.92
# 29
MPN: 94-61527
RAIL, SEAL CARRIER, QUARTER GLASS, LH
from £8.92
from £8.92
# 30
MPN: 94-61528
SEAL CARRIER, RH
# 30
MPN: 94-61529
SEAL CARRIER, LH
# 31
MPN: 94-62312
SUPPORT, UPPER TRIM, QUARTER LIGHT, RH
from £14.35
from £14.35
# 31
MPN: 94-62313
SUPPORT, UPPER TRIM, QUARTER LIGHT, LH
from £14.35
from £14.35
# 32
MPN: 77-62164
SEAL, INFILL PANEL, 'B' POST
from £186.49
from £186.49
# 33
MPN: 77-66108
BLANKING PLATE, QUARTER LIGHT GLASS, RH
from £3.60
from £3.60
# 33
MPN: 77-66109
BLANKING PLATE, QUARTER LIGHT GLASS, LH
from £3.60
from £3.60
# 34
MPN: 696093
EDGE FINISHER RUBBER
from £18.84
from £18.84
# 35
MPN: 77-62564
Panel assy, 'B' post finisher, RH
# 35
MPN: 77-62565
Panel assy, 'B' post finisher, LH
# 36
MPN: 77-62536
RUBBER, EDGE FINISHER
Made from 693770
# 37
MPN: 77-63072
FINISHER, SCREEN PILLAR, RH
Made from 77-62743
from £90.00
from £90.00
# 37
MPN: 77-63073
Finisher, screen pillar, LH
Made from 77-62743
# 38
MPN: 77-62816
SPACER, CLAMP PLATE
from £12.75
from £12.75
# 39
MPN: 692359
SCREW, CSK, NO 4 X 5/16
from £0.47
from £0.47
# 40
MPN: 77-62346
SEAL, HEADER FINISHER
Made from 77-62599
# 41
MPN: 77-64084
SEAL, HEADER POKE
Made from 77-62064
from £45.73
from £45.73
# -
-
CAPPING, 'A' POST, RH
# 44
MPN: 78-63085
CAPPING 'A' POST, LH
from £9.03
from £9.03
# -
-
DOUBLE SIDED ADHESIVE TAPE
# 45
MPN: 77-65668
SEAL, WINDSCREEN FINISHER
# 46
MPN: 77-52043
MASTIC RETENTION DAM
# 47
MPN: 77-52045
Damming strip, lower screen rail
# 59
MPN: 77-62699
CLAMP PLATE
from £48.41
from £48.41
# -
-
EDGE TRIM, BLACK RUBBER
# -
-
STONEGUARD, SPOILER, RH
# -
-
STONEGUARD, SPOILER, LH
# -
-
STONEGUARD, QUARTER LIGHT RECESS COVER
# -
-
SEAL STRIP, REAR SCREEN
# -
-
CHANNEL, GLASS RUN
# -
-
WEATHER STRIP
# -
-
OUTER W/BELT FINISHER, DOOR
# -
-
H SECTION, REAR GLASS
# -
-
MASTIC RETENTION DAM
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (1999) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (1999) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (1999) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (1999) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (1999) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (1999) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (1999) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (1999) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (1999) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (1999) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (1999) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (1999) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (1999) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (1999) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL, EMISSION CONTROL, EXHAUST PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (1999) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (1999) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (1999) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (1999) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (1999) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (1999) TROQUE CONVERTOR, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (1999) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED SELECTOR, GEARBOX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (1999) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (1999) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (1999) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (1999) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (1999) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (1999) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (1999) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (1999) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (1999) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (1999) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (1999) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (1999) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (1999) CHASSIS SUPERSTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (1999) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (1999) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (1999) DOOR LOCKING PARTS DIAGRAM")
