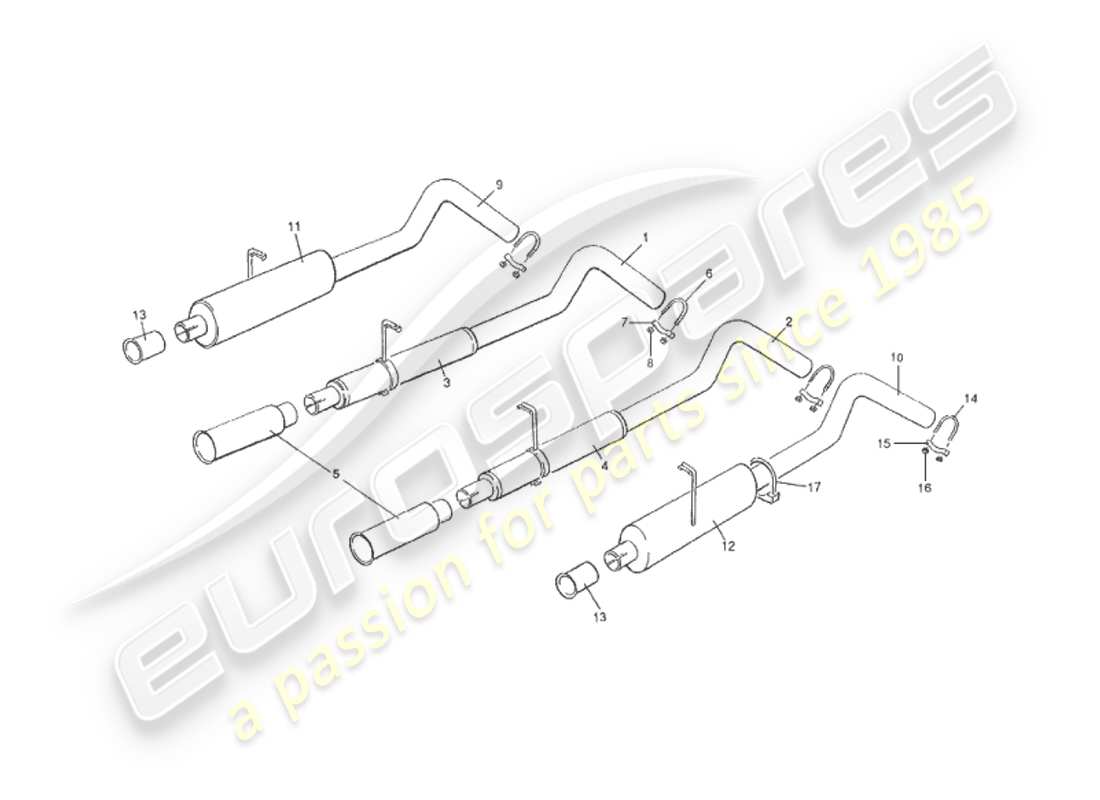

9.1 - Optional Equipment
Aston Martin V8 Virage (1999) Optional Equipment Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
1
MPN:
35-26796
CONNECTING PIPE, LH
Up to to (V)50027
from
£122.41
from
£122.41
#
2
MPN:
35-26797
CONNECTING PIPE, RH
Up to to (V)50027
from
£149.85
from
£149.85
#
2
MPN:
35-26802
CONNECTING PIPE, LH
From (V)50028
from
£157.81
from
£157.81
#
2
MPN:
35-26803
CONNECTING PIPE, RH
From (V)50028
from
£157.81
from
£157.81
#
3
MPN:
35-26798
REAR SILENCER, LH, EARLY VIRAGE
from
£282.41
from
£282.41
#
4
MPN:
35-26799
REAR SILENCER, RH, EARLY VIRAGE
from
£258.32
from
£258.32
#
5
MPN:
35-26800
TAIL PIPE TRIM
from
£117.10
from
£117.10
#
6
MPN:
35-55015
U' bolt
#
7
MPN:
35-55016
CLAMP
#
8
MPN:
35-55017
NUT, M10
from
£0.47
from
£0.47
#
9
MPN:
35-26810
CONNECTING PIPE, LH
from
£99.98
from
£99.98
#
10
MPN:
35-26811
CONNECTING PIPE, RH
from
£80.30
from
£80.30
#
11
MPN:
35-26812
REAR SILENCER, LH
from
£242.23
from
£242.23
#
12
MPN:
35-26813
REAR SILENCER, RH
from
£237.47
from
£237.47
#
13
MPN:
35-52360
TAIL PIPE TRIM, LATER VIRAGE
from
£110.46
from
£110.46
#
14
MPN:
35-55015
U' bolt
#
15
MPN:
35-55016
CLAMP
#
16
MPN:
35-55017
NUT, M10
from
£0.47
from
£0.47
#
17
MPN:
095-035-0116
U' BOLT AND CLAMP
from
£8.65
from
£8.65
