aston martin v8 virage (2000) generator parts diagram

1.9B - GENERATOR

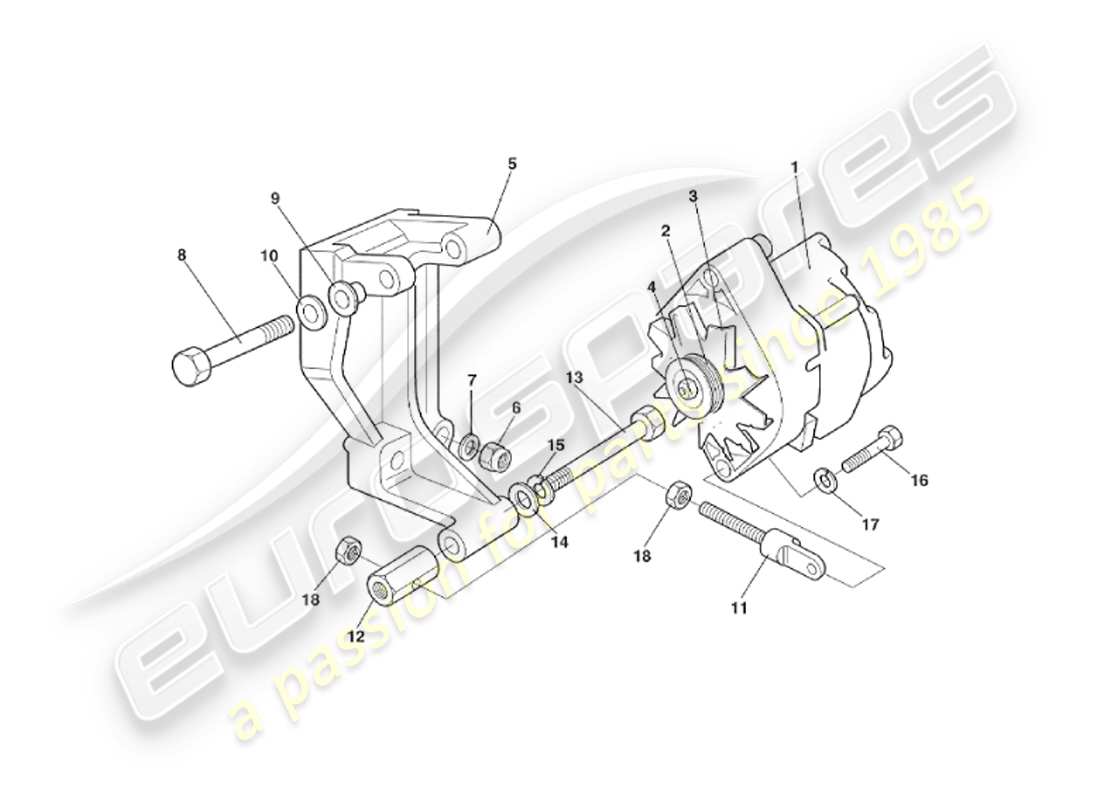

Aston Martin V8 Virage (2000) Generator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 09-26764
                GENERATOR AND PULLEY ASSEMBLY
                from £639.66
                from £639.66
                ASSEMBLY ALTRNTR & PULLEY Genuine Aston Martin - New (to order)
                # 2
                MPN: 09-21777
                GENERATOR PULLEY, 4 GROOVE
                from £57.69
                from £57.69
                PULLEY-ALT-4 groove Genuine Aston Martin - New (to order)
                # 3
                -
                GENERATOR FAN
                # 4
                -
                GENERATOR PULLEY NUT
                # -
                -
                SUPPRESSOR
                # 5
                MPN: 09-26225
                MOUNTING BRACKET, GENERATOR
                from £243.88
                from £243.88
                ASSEMBLY BRACKET ALTERNATOR Genuine Aston Martin - New (to order)
                # 6
                MPN: 123115
                NUT, NYLOC, 5/16IN UNF
                Generator bracket to cylinder block
                from £3.58
                from £3.58
                Nut, Nyloc,5/16UNF Timing case to block Genuine Aston Martin - New (to order)
                SPACER Genuine Ferrari Part - New (to order)
                # 7
                MPN: 119471
                WASHER, PLAIN, 5/16IN
                Generator bracket to cylinder block
                WASHER, PLAIN, 5/16IN Genuine Aston Martin - New (to order)
                # 8
                MPN: 694501
                BOLT, M10 X 90
                Generator to bracket
                from £0.96
                from £0.96
                BOLT M10 X 90 HEX HD Genuine Aston Martin - New (to order)
                # 9
                MPN: 07-21077
                BUSH
                Generator to bracket
                from £22.14
                from £22.14
                BUSH Genuine Aston Martin - New (to order)
                # 10
                MPN: 692058
                WASHER, PLAIN, M10
                Generator to bracket
                from £0.47
                from £0.47
                WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                # 11
                MPN: 09-25874
                ADJUSTER ROD
                from £88.41
                from £88.41
                ASSEMBLY EYEBOLT ADJUST Genuine Aston Martin - New (to order)
                # 12
                MPN: 09-25873
                ADJUSTER TRUNNION
                from £32.53
                from £32.53
                TRUNNION ADJUST Genuine Aston Martin - New (to order)
                # 13
                MPN: 694218
                BOLT, M10 X 55
                Adjuster trunnion to generator brkt
                from £1.13
                from £1.13
                BOLT M10 X 55 HEX HD Genuine Aston Martin - New (to order)
                # 14
                MPN: 692058
                WASHER, PLAIN, M10
                Adjuster trunnion to generator brkt
                from £0.47
                from £0.47
                WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                # 15
                MPN: 692048
                WASHER, SPRING, M10
                Adjuster trunnion to generator brkt
                from £0.47
                from £0.47
                WASHER M10 SPRING Genuine Aston Martin - New (to order)
                # 16
                MPN: 692202
                SETSCREW, M10 X 30
                Adjuster to generator
                from £0.94
                from £0.94
                SCREW M10 X 30 HEX Genuine Aston Martin - New (to order)
                # 17
                MPN: 692048
                WASHER, SPRING, M10
                Adjuster to generator
                from £0.47
                from £0.47
                WASHER M10 SPRING Genuine Aston Martin - New (to order)
                # 18
                MPN: 692078
                NUT, M10
                Eyebolt to trunnion
                from £0.71
                from £0.71
                NUT M10 HEX Genuine Aston Martin - New (to order)
                # 18
                MPN: 692076
                NUT, M6
                from £0.47
                from £0.47
                NUT M6 HEX Genuine Aston Martin - New (to order)
                # -
                -
                WASHER, PLAIN, M6
                Feed cable to Generator
                # -
                -
                WASHER, SHAKEPROOF, M6
                # -
                -
                SCREW, M10 X 20
                # -
                -
                WASHER, PLAIN, M10
                Earth cable to Generator
                # -
                -
                WASHER, SHAKEPROOF, M10
