aston martin v8 virage (2000) secondary air injection system parts diagram

2.3 - Secondary Air Injection System

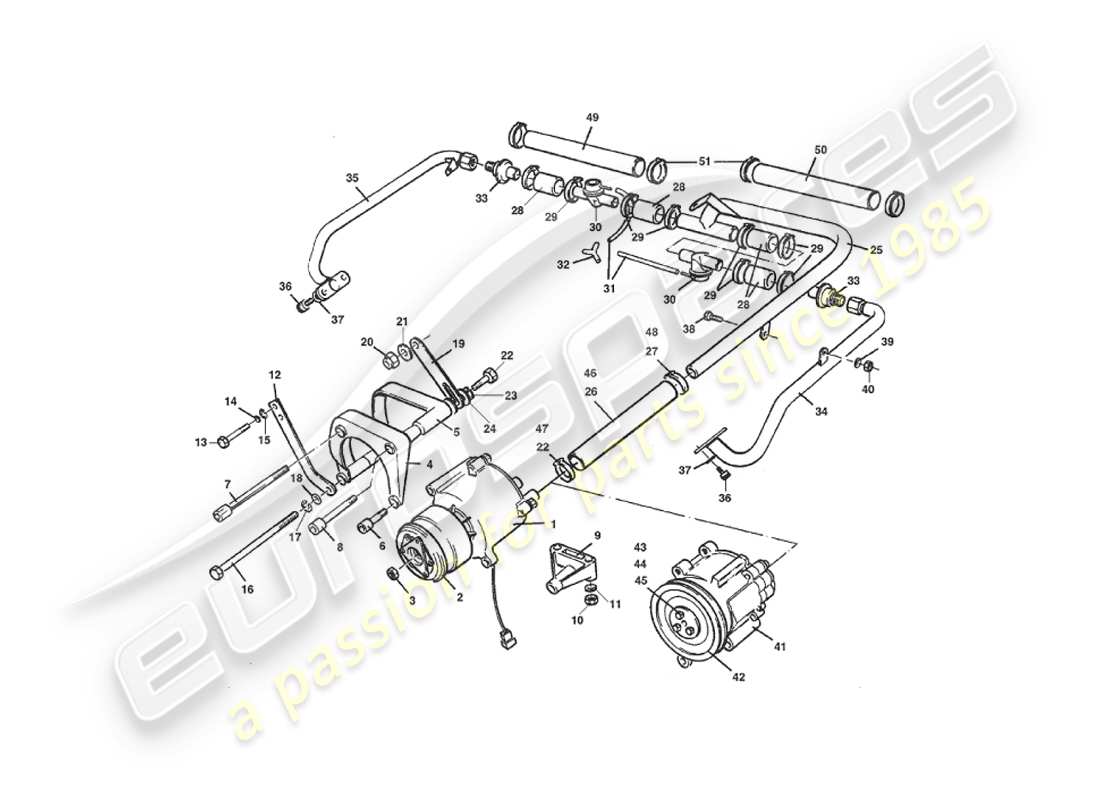

Aston Martin V8 Virage (2000) Secondary Air Injection System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 07-26472
                    AIR PUMP
                    Unleaded fuel engine
                    from £650.78
                    from £650.78
                    AIR PUMP-NIPPONDENSO Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 07-26471
                    clutch
                    Unleaded fuel engine
                    from £434.71
                    from £434.71
                    clutch Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 692232
                    LOCKNUT, M14, THIN
                    Unleaded fuel engine
                    from £2.21
                    from £2.21
                    NUT M14 PLN THIN HEX Genuine Aston Martin - New (to order)
                    # -
                    -
                    LOCTITE, NUTLOCK 242, BLUE
                    Unleaded fuel engine
                    # 4
                    MPN: 07-26460
                    HOUSING OUTER, AIR PUMP
                    from £221.13
                    from £221.13
                    HSG OUTER-AIR PUMP Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 07-26462
                    HOUSING ASSEMBLY INNER, AIR PUMP
                    from £107.40
                    from £107.40
                    ASSEMBLY HSG INNR-AIR PMP Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 693782
                    CAPSCREW, M8 X 20
                    from £0.55
                    from £0.55
                    SCREW M8 X20 SOCKET CAP Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 694261
                    CAPSCREW, M8 X 100
                    from £2.59
                    from £2.59
                    SCREW M8 X100 SOCKET CP Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 694480
                    CAPSCREW, M8 X 70
                    from £0.88
                    from £0.88
                    SCREW M8 X70 SOCKET CAP Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 07-26223
                    AIR PUMP MOUNTING BRACKET ASSEMBLY
                    from £92.20
                    from £92.20
                    ASSEMBLY BRACKET MOUNTING Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 123115
                    NUT, NYLOC, 5/16 UNF
                    Mounting bracket to cylinder head
                    from £3.58
                    from £3.58
                    Nut, Nyloc,5/16UNF Timing case to block Genuine Aston Martin - New (to order)
                    SPACER Genuine Ferrari Part - New (to order)
                    # 11
                    MPN: 119471
                    WASHER, PLAIN, 5/16
                    Mounting bracket to cylinder head
                    WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 07-25872
                    PLATE, PIVOT, AIR PUMP
                    from £32.65
                    from £32.65
                    PLATE - PIVOT Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 692087
                    SCREW, M8 X 20
                    Pivot plate to front cover
                    Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 692047
                    WASHER, SPRING, M8
                    Pivot plate to front cover
                    from £0.47
                    from £0.47
                    WASHER M8 SPRING Genuine Aston Martin - New (to order)
                    # 15
                    MPN: 692057
                    WASHER, PLAIN, M8
                    Pivot plate to front cover
                    from £0.47
                    from £0.47
                    WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                    # 16
                    MPN: 693217
                    BOLT, M10 X 160
                    AIR pump to bracket
                    from £11.21
                    from £11.21
                    BOLT M10 X 160 HEX Genuine Aston Martin - New (to order)
                    # 17
                    MPN: 692068
                    WASHER, SHAKEPROOF, M10
                    AIR pump to bracket
                    from £0.47
                    from £0.47
                    WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 692058
                    WASHER, PLAIN, M10
                    AIR pump to bracket
                    from £0.47
                    from £0.47
                    WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                    # 19
                    MPN: 07-25871
                    ADJUSTMENT LINK, AIR PUMP
                    from £31.72
                    from £31.72
                    LINK ADJUSTMENT Genuine Aston Martin - New (to order)
                    # 20
                    MPN: 692034
                    NUT, NYLOC, M10
                    Adjustment link to stud
                    from £0.47
                    from £0.47
                    NUT M10 HEX SLK Genuine Aston Martin - New (to order)
                    # 21
                    MPN: 692058
                    WASHER, PLAIN, M10
                    Adjustment link to stud
                    from £0.47
                    from £0.47
                    WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                    # 22
                    MPN: 692185
                    SETSCREW, M10 X 25
                    Adjustment link to AIR pump
                    from £1.00
                    from £1.00
                    SCREW M10 X25 HEX HD Genuine Aston Martin - New (to order)
                    # 23
                    MPN: 692048
                    WASHER, SPRING, M10
                    Adjustment link to AIR pump
                    from £0.47
                    from £0.47
                    WASHER M10 SPRING Genuine Aston Martin - New (to order)
                    # 24
                    MPN: 692058
                    WASHER, PLAIN, M10
                    Adjustment link to AIR pump
                    from £0.47
                    from £0.47
                    WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                    # 25
                    MPN: 07-26641
                    PRIMARY AIR INJECTION PIPE
                    Virage. Volante up to (V) 60224
                    from £160.56
                    from £160.56
                    ASSEMBLY AIR INJ PIPE-PRM Genuine Aston Martin - New (to order)
                    # 25
                    MPN: 07-72927
                    PRIMARY AIR INJECTION PIPE
                    Volante From (V) 69225
                    from £459.96
                    from £459.96
                    AIR INJ PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                    # -
                    -
                    PIPE CLIP
                    Primary pipe to AIR pump intake pipe
                    # -
                    -
                    SCREW, M5 X 16
                    Primary pipe to AIR pump intake pipe
                    # -
                    -
                    WASHER, PLAIN, 3/16 ID
                    Primary pipe to AIR pump intake pipe
                    # -
                    -
                    NUT, M5
                    Primary pipe to AIR pump intake pipe
                    # -
                    -
                    WASHER, SPRING, 1/4
                    Primary pipe to cylinder head stud
                    # -
                    -
                    WASHER, PLAIN, 1/4
                    Primary pipe to cylinder head stud
                    # -
                    -
                    LOCKNUT, 1/4
                    Primary pipe to cylinder head stud
                    # 26
                    MPN: 694790
                    HOSE, AIR PUMP TO PRIMARY PIPE, 180MM
                    Unleaded fuel engine
                    from £69.41
                    from £69.41
                    HOSE - SILICONE Genuine Aston Martin - New (to order)
                    # 27
                    MPN: 694620
                    CLIP, OETIKER 316 - HOSE ATTACHMENT
                    Unleaded fuel engine
                    from £1.22
                    from £1.22
                    CLIP OETIKER 316 Genuine Aston Martin - New (to order)
                    # 28
                    MPN: 696337
                    HOSE, AIR INJECTION, 50MM
                    Unleaded fuel engine
                    from £61.10
                    from £61.10
                    HOSE.SILIC.27MMX19MM Genuine Aston Martin - New (to order)
                    # 29
                    MPN: 692723
                    EAR CLAMP - HOSE ATTACHMENT
                    Unleaded fuel engine
                    from £2.09
                    from £2.09
                    CLAMP - EAR NO286 Genuine Aston Martin - New (to order)
                    # 30
                    MPN: 07-26602
                    AIR switching valve
                    Unleaded fuel engine
                    from £75.76
                    from £75.76
                    AIR switching valve Genuine Aston Martin - New (to order)
                    # 31
                    MPN: 692546
                    TUBE, POLYVON, 1/8 DIA.
                    AIR switching valve
                    from £8.13
                    from £8.13
                    TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
                    # 32
                    MPN: 08-21068
                    Y' connection
                    AIR switching valve
                    Y' connection Genuine Aston Martin - New (to order)
                    # 33
                    MPN: 07-26655
                    CHECK VALVE
                    from £66.86
                    from £66.86
                    CHECK VALVE Genuine Aston Martin - New (to order)
                    # 34
                    MPN: 07-26649
                    SECONDARY AIR INJECTION PIPE ASSEMBLY, LH BANK
                    Virage. Volante up to (V) 60224
                    from £451.45
                    from £451.45
                    ASSEMBLY AIR INJ PIPE Genuine Aston Martin - New (to order)
                    # 34
                    MPN: 07-73668
                    SECONDARY AIR INJECTION PIPE ASSEMBLY, LH BANK
                    Volante From (V) 69225
                    from £619.88
                    from £619.88
                    ASSEMBLY AIR INJ PIPE Genuine Aston Martin - New (to order)
                    # 35
                    MPN: 07-26645
                    SECONDARY AIR INJECTION PIPE ASSEMBLY, RH BANK
                    Virage. Volante up to (V) 60224
                    from £466.10
                    from £466.10
                    ASSEMBLY AIR INJ PIPE Genuine Aston Martin - New (to order)
                    # 35
                    MPN: 07-73666
                    SECONDARY AIR INJECTION PIPE ASSEMBLY, RH BANK
                    Volante From (V) 69225
                    from £619.88
                    from £619.88
                    ASSY-AIR INJ PIPE Genuine Aston Martin - New (to order)
                    # -
                    -
                    WASHER, SPRING, 1/4
                    Secondary AIR pipe RH to head stud
                    # -
                    -
                    WASHER, PLAIN, 1/4
                    Secondary AIR pipe RH to head stud
                    # -
                    -
                    LOCKNUT, 1/4
                    Secondary AIR pipe RH to head stud
                    # 36
                    MPN: 694211
                    CAPSCREW, M6 X 16
                    Secondary AIR pipes attach
                    from £0.89
                    from £0.89
                    SCREW M6 X16 SOCKET CAP Genuine Aston Martin - New (to order)
                    # 37
                    MPN: 692046
                    WASHER, SPRING, M6
                    Secondary AIR pipes attach
                    from £0.47
                    from £0.47
                    WASHER M6 SPRING Genuine Aston Martin - New (to order)
                    # 38
                    MPN: 692262
                    SCREW, M6 X 12
                    Primary pipe to LH secondary pipe
                    from £0.47
                    from £0.47
                    SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
                    # 39
                    MPN: 692056
                    WASHER, PLAIN, M6
                    Primary pipe to LH secondary pipe
                    from £0.47
                    from £0.47
                    WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                    # 40
                    MPN: 692151
                    NUT, NYLOC, M6
                    Primary pipe to LH secondary pipe
                    from £0.55
                    from £0.55
                    NUT M6 HEX SLK Genuine Aston Martin - New (to order)
                    # 41
                    MPN: 07-22769
                    AIR PUMP
                    Leaded fuel engine
                    AIR PUMP Genuine Aston Martin - New (to order)
                    # 42
                    MPN: 07-22741
                    Pulley, AIR pump, 4.6 dia
                    Leaded fuel engine
                    from £94.16
                    from £94.16
                    PULLEY - AIR PUMP Genuine Aston Martin - New (to order)
                    # 43
                    MPN: 692129
                    SCREW, M8 X 25 - PULLEY TO AIR PUMP
                    Leaded fuel engine
                    from £0.60
                    from £0.60
                    SCREW M8 X 25 HEX HD Genuine Aston Martin - New (to order)
                    # 44
                    MPN: 692047
                    WASHER, SPRING, M8 - PULLEY TO AIR PUMP
                    Leaded fuel engine
                    from £0.47
                    from £0.47
                    WASHER M8 SPRING Genuine Aston Martin - New (to order)
                    # 45
                    MPN: 692057
                    WASHER, PLAIN, M8 - PULLEY TO AIR PUMP
                    Leaded fuel engine
                    from £0.47
                    from £0.47
                    WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                    # 46
                    MPN: 07-55558
                    Hose, AIR pump to primary pipe
                    Leaded fuel engine
                    Hose, AIR pump to primary pipe Genuine Aston Martin - New (to order)
                    # 47
                    MPN: 692674
                    Hose clip, 20 - 32 mm, hose to AIR pump
                    Leaded fuel engine
                    from £2.32
                    from £2.32
                    HOSE-CLIP 14-32MM Genuine Aston Martin - New (to order)
                    # 48
                    MPN: 694620
                    Hose clip, hose to AIR pipe
                    Leaded fuel engine
                    from £1.22
                    from £1.22
                    CLIP OETIKER 316 Genuine Aston Martin - New (to order)
                    # 49
                    MPN: 696337
                    HOSE, AIR INJECTION SECONDARY RH, 175MM
                    Leaded fuel engine
                    from £61.10
                    from £61.10
                    HOSE.SILIC.27MMX19MM Genuine Aston Martin - New (to order)
                    # 50
                    MPN: 696337
                    HOSE, AIR INJECTION SECONDARY LH, 145MM
                    Leaded fuel engine
                    from £61.10
                    from £61.10
                    HOSE.SILIC.27MMX19MM Genuine Aston Martin - New (to order)
                    # 51
                    MPN: 692723
                    HOSE CLIP
                    Leaded fuel engine
                    from £2.09
                    from £2.09
                    CLAMP - EAR NO286 Genuine Aston Martin - New (to order)
