aston martin v8 virage (2000) hypoid mounting parts diagram

3.11 - Hypoid Mounting

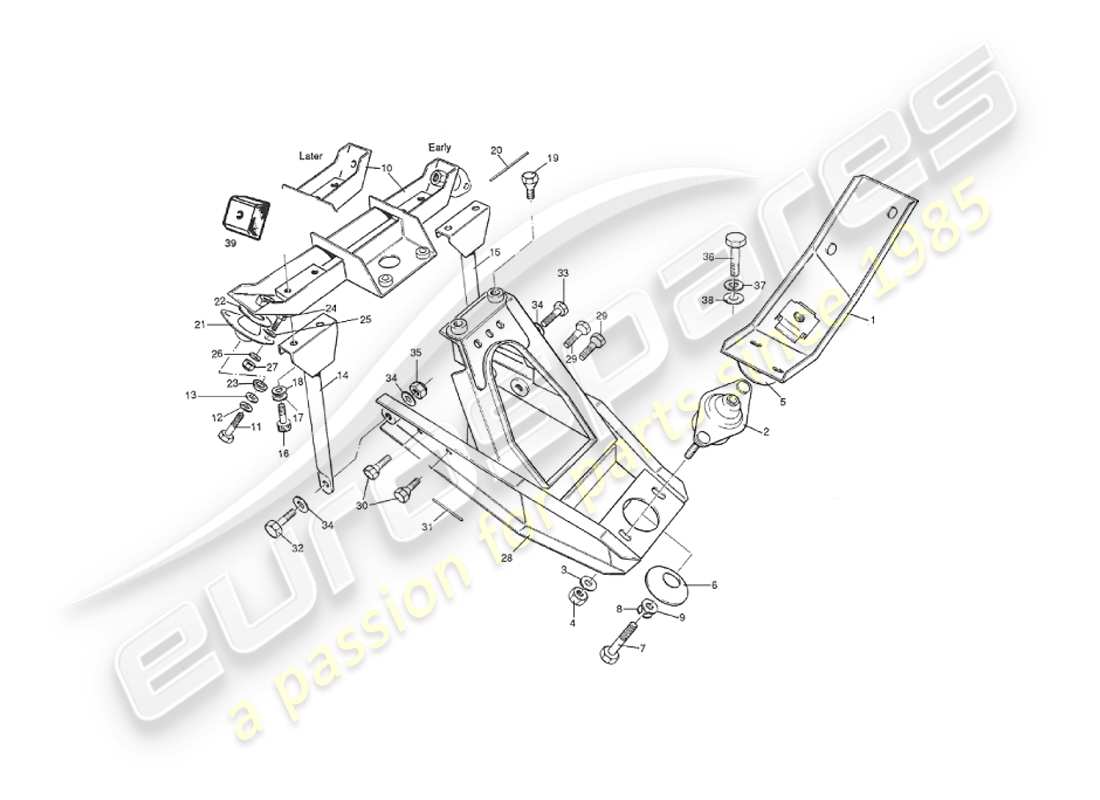

Aston Martin V8 Virage (2000) Hypoid Mounting Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 1
                                                                    MPN: 27-50095
                                                                    DIFFERENTIAL MOUNTING BRACKET ASSEMBLY, FRONT
                                                                    BRKT-FR DIFF MOUNTING ASSEMBLY Genuine Aston Martin - New (to order)
                                                                    # 2
                                                                    MPN: 26-14857
                                                                    MOUNTING ASSEMBLY, FINAL DRIVE
                                                                    from £65.04
                                                                    from £65.04
                                                                    ASSEMBLY MTG-FINAL DRIVE Genuine Aston Martin - New (to order)
                                                                    # 3
                                                                    MPN: 119471
                                                                    WASHER, PLAIN, 5/16
                                                                    Final drive mounting attachment
                                                                    WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                                                                    # 4
                                                                    MPN: 123115
                                                                    NUT, NYLOC, 5/16 UNF
                                                                    Final drive mounting attachment
                                                                    from £3.58
                                                                    from £3.58
                                                                    Nut, Nyloc,5/16UNF Timing case to block Genuine Aston Martin - New (to order)
                                                                    SPACER Genuine Ferrari Part - New (to order)
                                                                    # 5
                                                                    MPN: 068-026-0136
                                                                    BEVELLED WASHER
                                                                    from £36.00
                                                                    from £36.00
                                                                    WASHER - BEVELLED Genuine Aston Martin - New (to order)
                                                                    # 6
                                                                    MPN: 095-026-0141
                                                                    BEVELLED WASHER
                                                                    from £37.60
                                                                    from £37.60
                                                                    WASHER - BEVELLED Genuine Aston Martin - New (to order)
                                                                    # 7
                                                                    MPN: 520724
                                                                    BOLT, 7/16 UNF X 3
                                                                    from £1.28
                                                                    from £1.28
                                                                    BOLT 7/16 UNF X 3 Genuine Aston Martin - New (to order)
                                                                    # 8
                                                                    MPN: 119483
                                                                    WASHER, SPRING, 7/16
                                                                    from £0.89
                                                                    from £0.89
                                                                    WASHER 7/16 SPRING Genuine Aston Martin - New (to order)
                                                                    # 9
                                                                    MPN: 119473
                                                                    WASHER, PLAIN, 7/16
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER 7/16 PLN MED Genuine Aston Martin - New (to order)
                                                                    TOOL KIT 512BBI Genuine Ferrari Part - New (to order)
                                                                    # 10
                                                                    MPN: 27-53804
                                                                    Cross-member assembly, differential mounting, rear
                                                                    Revised bracket fitted to Volante from (V) 60003 Supply 2 off item 39 when fitting to all earlier cars
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Aston Martin (no longer available to order)
                                                                    # 11
                                                                    MPN: 520724
                                                                    BOLT, 7/16 UNF X 3
                                                                    from £1.28
                                                                    from £1.28
                                                                    BOLT 7/16 UNF X 3 Genuine Aston Martin - New (to order)
                                                                    # 12
                                                                    MPN: 119483
                                                                    WASHER, SPRING, 7/16
                                                                    from £0.89
                                                                    from £0.89
                                                                    WASHER 7/16 SPRING Genuine Aston Martin - New (to order)
                                                                    # 13
                                                                    MPN: 119473
                                                                    WASHER, PLAIN, 7/16
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER 7/16 PLN MED Genuine Aston Martin - New (to order)
                                                                    TOOL KIT 512BBI Genuine Ferrari Part - New (to order)
                                                                    # 14
                                                                    MPN: 27-50918
                                                                    SUPPORT TUBE ASSEMBLY, DIFFERENTIAL MOUNTING RH
                                                                    from £190.20
                                                                    from £190.20
                                                                    ASSEMBLY S/TBE DIF MOUNTING RH Genuine Aston Martin - New (to order)
                                                                    # 15
                                                                    MPN: 27-50919
                                                                    SUPPORT TUBE ASSEMBLY, DIFFERENTIAL MOUNTING, LH
                                                                    from £190.20
                                                                    from £190.20
                                                                    ASSEMBLY S/TBE DIF MOUNTING LH Genuine Aston Martin - New (to order)
                                                                    # 16
                                                                    MPN: 694134
                                                                    CAPSCREW, M10 X 25
                                                                    from £1.04
                                                                    from £1.04
                                                                    SCREW M10 X25 SOCKET CP Genuine Aston Martin - New (to order)
                                                                    # 17
                                                                    MPN: 692048
                                                                    WASHER, SPRING, M10
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER M10 SPRING Genuine Aston Martin - New (to order)
                                                                    # 18
                                                                    MPN: 692058
                                                                    WASHER, PLAIN, M10
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                                                                    # 19
                                                                    MPN: 069-026-0132
                                                                    SCREW, HYPOID TO MOUNTING BRACKET
                                                                    from £55.92
                                                                    from £55.92
                                                                    SCREW - HYPD M/BRKT Genuine Aston Martin - New (to order)
                                                                    # 20
                                                                    MPN: 695393
                                                                    LOCKING WIRE, 1 MM
                                                                    from £402.00
                                                                    from £402.00
                                                                    LOCKING WIRE S/S 1MM Genuine Aston Martin - New (to order)
                                                                    # 21
                                                                    MPN: 068-026-0149
                                                                    METALASTIC MOUNTING
                                                                    from £41.90
                                                                    from £41.90
                                                                    METALASTICK MOUNTING Genuine Aston Martin - New (to order)
                                                                    # 22
                                                                    MPN: 068-026-0136
                                                                    BEVELLED WASHER
                                                                    from £36.00
                                                                    from £36.00
                                                                    WASHER - BEVELLED Genuine Aston Martin - New (to order)
                                                                    # 23
                                                                    MPN: 27-52087
                                                                    BEVELLED WASHER
                                                                    from £12.96
                                                                    from £12.96
                                                                    WASHER - BEVELLED Genuine Aston Martin - New (to order)
                                                                    # 24
                                                                    MPN: 692129
                                                                    SCREW, M8 X 25
                                                                    Early cars
                                                                    from £0.62
                                                                    from £0.62
                                                                    SCREW M8 X 25 HEX HD Genuine Aston Martin - New (to order)
                                                                    # 25
                                                                    MPN: 119471
                                                                    WASHER, PLAIN, 5/16
                                                                    Early cars
                                                                    WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                                                                    # -
                                                                    -
                                                                    SCREW, M8 X 20
                                                                    Later cars
                                                                    # 26
                                                                    MPN: 690270
                                                                    WASHER, PLAIN, 11/32 X L O.D.
                                                                    from £1.62
                                                                    from £1.62
                                                                    WASHER 11/32 X 1 OD Genuine Aston Martin - New (to order)
                                                                    # 27
                                                                    MPN: 692135
                                                                    NUT, NYLOC, M8
                                                                    from £0.99
                                                                    from £0.99
                                                                    NUT M8 HEX SLK Genuine Aston Martin - New (to order)
                                                                    # 28
                                                                    MPN: 27-53807
                                                                    CARRIER ASSEMBLY, DIFFERENTIAL MOUNTING
                                                                    from £381.84
                                                                    from £381.84
                                                                    ASSEMBLY CARRIER DIFF MOUNTING Genuine Aston Martin - New (to order)
                                                                    # 29
                                                                    MPN: 069-026-0133
                                                                    SCREW, 7/16 UNF X 1
                                                                    from £22.13
                                                                    from £22.13
                                                                    SCREW-7/16 UNC X 5/8 Genuine Aston Martin - New (to order)
                                                                    # 30
                                                                    MPN: 069-026-0134
                                                                    SCREW, 7/16 UNF X 1 1/2
                                                                    from £18.65
                                                                    from £18.65
                                                                    SCREW 7/16 X 1 3/4 Genuine Aston Martin - New (to order)
                                                                    # 31
                                                                    MPN: 695393
                                                                    LOCKING WIRE, 1 MM
                                                                    from £402.00
                                                                    from £402.00
                                                                    LOCKING WIRE S/S 1MM Genuine Aston Martin - New (to order)
                                                                    # 32
                                                                    MPN: 692229
                                                                    SCREW, M10 X 40
                                                                    from £0.47
                                                                    from £0.47
                                                                    SCREW M10 X 40 HEX Genuine Aston Martin - New (to order)
                                                                    # 33
                                                                    MPN: 692429
                                                                    BOLT, M10 X 50
                                                                    from £1.56
                                                                    from £1.56
                                                                    BOLT M10 X 50 HEX HD Genuine Aston Martin - New (to order)
                                                                    # 34
                                                                    MPN: 692058
                                                                    WASHER, PLAIN, M10
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                                                                    # 35
                                                                    MPN: 692034
                                                                    NUT, NYLOC, M10
                                                                    from £0.47
                                                                    from £0.47
                                                                    NUT M10 HEX SLK Genuine Aston Martin - New (to order)
                                                                    # 36
                                                                    MPN: 692483
                                                                    SCREW, M12 X 25
                                                                    from £1.45
                                                                    from £1.45
                                                                    SCREW M12 X 25 HEX Genuine Aston Martin - New (to order)
                                                                    # 37
                                                                    MPN: 692049
                                                                    WASHER, SPRING, M12
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER M12 SPRING Genuine Aston Martin - New (to order)
                                                                    # 38
                                                                    MPN: 692059
                                                                    WASHER, PLAIN, M12
                                                                    from £0.47
                                                                    from £0.47
                                                                    WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
                                                                    # 39
                                                                    MPN: 27-55489
                                                                    Tapped plate
                                                                    Volante from (V) 60003. Used with revised item 10
                                                                    from £55.74
                                                                    from £55.74
                                                                    Tapped plate Genuine Aston Martin - New (to order)
