aston martin v8 virage (2000) automatic parts diagram

3.1B - Automatic

Aston Martin V8 Virage (2000) Automatic Parts Diagram

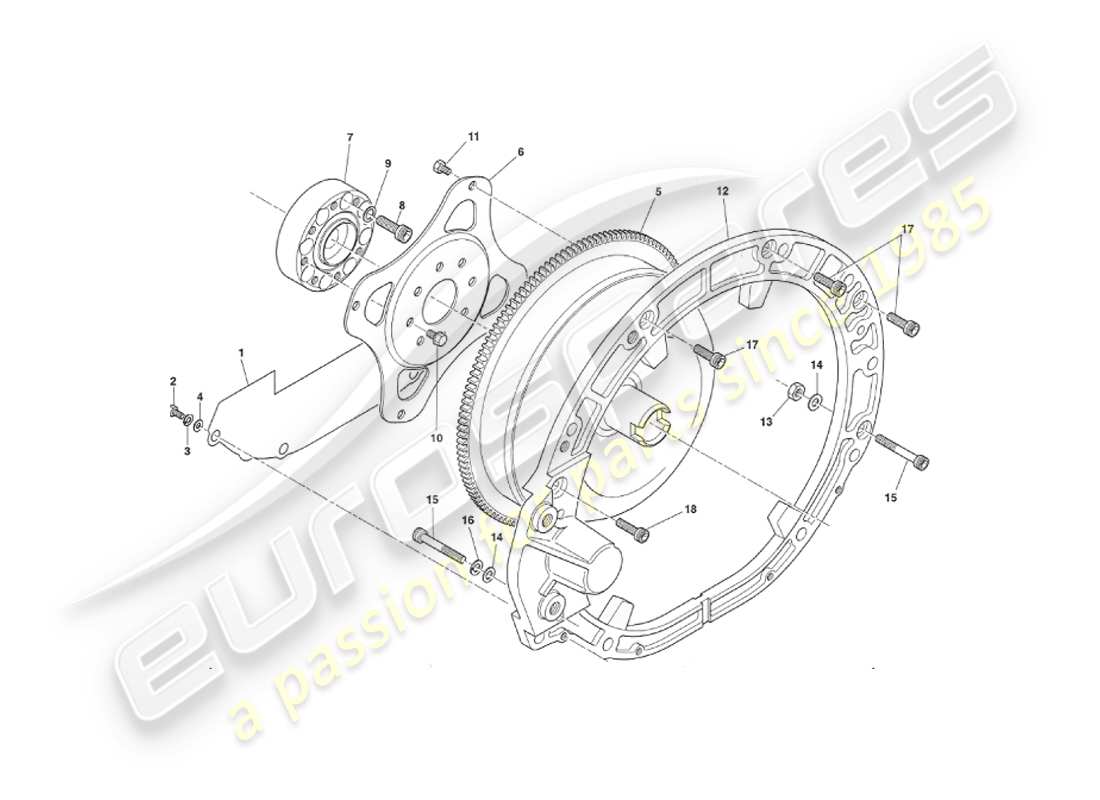

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 0
                    MPN: 42-62811
                    GEAR BOX AND TORQUE CONVERTER ASSY
                    from £5,287.54
                    from £5,287.54
                    A/GBX & T/CONV-MODIF Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 42-62527
                    COVER PLATE, BELL HOUSING
                    Virage. Volante up to Nov 1992
                    from £8.03
                    from £8.03
                    COVER BELL HOUSING Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 42-64278
                    COVER PLATE, BELL HOUSING
                    Volante from November 1992
                    from £86.96
                    from £86.96
                    COVER BELL HOUSING Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 510404
                    SCREW, 1/4 UNC X 1/2
                    Cover plate to gearbox
                    from £0.77
                    from £0.77
                    SCREW 1/4 UNC X 1/2 Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 119480
                    WASHER, SPRING, 1/4
                    Cover plate to gearbox
                    Washer, spring, 1/4, plate to stud Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 119470
                    WASHER, PLAIN, 1/4
                    Cover plate to gearbox
                    Washer, plain, 1/4 Oil seal housing to block Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 42-63030
                    TORQUE CONVERTER
                    Part of 42-62811
                    from £970.03
                    from £970.03
                    TORQUE CONVERTOR Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 42-61643
                    DRIVE PLATE, TORQUE CONVERTER
                    from £360.88
                    from £360.88
                    DRIVE PLATE Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 42-61642
                    ADAPTOR, CRANKSHAFT/DRIVE PLATE
                    Up to approx (V) 60209
                    from £569.97
                    from £569.97
                    ADAPTOR - CRANKSHAFT Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 42-64743
                    ADAPTOR, CRANKSHAFT/DRIVE PLATE
                    From approx (V) 60210
                    from £453.75
                    from £453.75
                    ADAPTOR - CRANKSHAFT Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 095-002-0103
                    BOLT, DURLOC, 3/8 UNF, ADAPTOR TO CRANKSHAFT
                    Up to approx (V) 60209
                    from £11.85
                    from £11.85
                    BOLT 3/8 UNF DURLOK Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 696817
                    CAPSCREW, M12 X 35, ADAPTOR TO CRANKSHAFT
                    From approx(V) 60210
                    from £7.53
                    from £7.53
                    SCREW M12 X 35 SOCKET Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 42-64802
                    WASHER, SPECIAL, M12, ADAPTOR TO CRANKSHAFT
                    From approx(V) 60210
                    from £0.47
                    from £0.47
                    WASHER M12-SPECIAL Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 42-64113
                    SCREW, DURLOK, M10 X 16
                    Drive plate to adaptor
                    from £6.50
                    from £6.50
                    DURLOC BOLT M10X16 Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 696263
                    BOLT, 5/16 UNF
                    Torque converter to drive plate
                    from £4.44
                    from £4.44
                    BOLT 5/16 UNF SPCL Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 42-61547
                    ADAPTOR RING, GEARBOX TO ENGINE
                    from £1,989.06
                    from £1,989.06
                    ADAPTOR - MACHINED Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 696078
                    NUT, NYLOC, 7/16 UNC, ADAPTOR RING TO BLOCK
                    from £0.47
                    from £0.47
                    NUT 7/16 UNC HEX SLK Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 119473
                    WASHER, PLAIN, 7/16 UNC, ADAPTOR RING TO BLOCK
                    from £0.47
                    from £0.47
                    WASHER 7/16 PLN MED Genuine Aston Martin - New (to order)
                    TOOL KIT 512BBI Genuine Ferrari Part - New (to order)
                    # 15
                    MPN: 696046
                    CAPSCREW, 7/16 UNC X 3 5/8, ADAPTOR RING TO BLOCK
                    Up to November 1993
                    CAPSCREW, 7/16 UNC X 3 5/8, ADAPTOR RING TO BLOCK Genuine Aston Martin - New (to order)
                    # 15
                    MPN: 696588
                    CAPSCREW, 7/16 UNC X 2 5/8, ADAPTOR RING TO BLOCK
                    From November 1993
                    from £8.20
                    from £8.20
                    BOLT 7/16 Genuine Aston Martin - New (to order)
                    # 16
                    MPN: 119483
                    WASHER, SPRING, 7/16, ADAPTOR RING TO BLOCK
                    from £0.84
                    from £0.84
                    WASHER 7/16 SPRING Genuine Aston Martin - New (to order)
                    # 17
                    MPN: 696044
                    CAPSCREW, 7/16 UNC X 7/8, ADAPTOR RING TO BLOCK
                    from £3.40
                    from £3.40
                    SCREW 7/16 UNC X7/8 Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 696045
                    CAPSCREW, 7/16 UNC X 1 1/8, ADAPTOR RING TO BLOCK
                    from £4.17
                    from £4.17
                    SCREW 7/16 UNCX1 1/8 Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 696143
                    CAPSCREW, 7/16 UNC X 1 1/2, G/BOX TO ADAPTOR RING
                    from £2.46
                    from £2.46
                    SCREW 7/16 UNCX1 1/2 Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 696043
                    CAPSCREW, 7/16 UNC X 1 1/4, G/BOX TO ADAPTOR RING
                    from £2.83
                    from £2.83
                    SCREW 7/16 UNCX1 1/4 Genuine Aston Martin - New (to order)
                    # -
                    -
                    STEPPED DOWEL, G/BOX TO ADAPTOR RING
