3.7 - Clutch Hydraulics

Aston Martin V8 Virage (2000) Clutch Hydraulics Parts Diagram

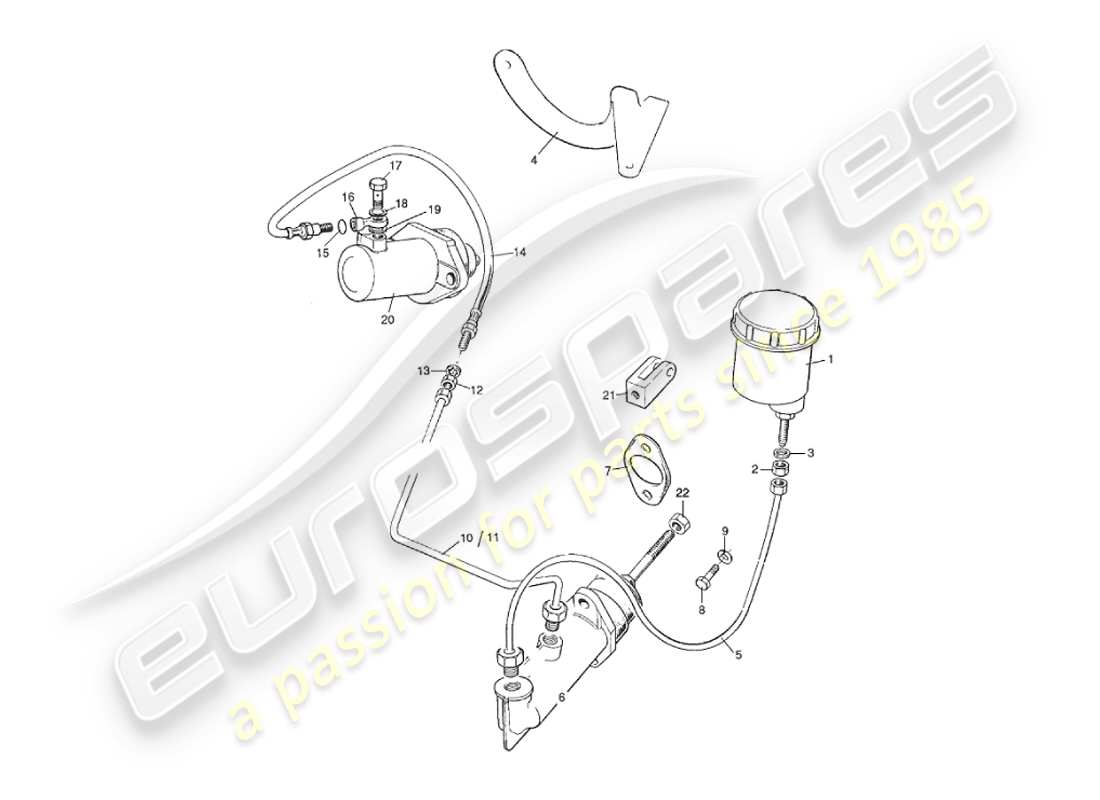

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 095-033-0111
                                      CLUTCH FLUID RESERVOIR
                                      from £96.39
                                      from £96.39
                                      CLUTCH-FLUID RES Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 542007
                                      NUT, LOCKING, 7/16 UNF
                                      from £0.70
                                      from £0.70
                                      NUT 7/16 UNF HEX THN Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 691865
                                      WASHER, PLAIN, 7/16
                                      from £0.47
                                      from £0.47
                                      WASHER 7/16 S/PROOF Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 33-53963
                                      MOUNTING BRACKET, CLUTCH RESERVOIR
                                      from £8.99
                                      from £8.99
                                      MOUNTING BRKT-CLTCH RESRV Genuine Aston Martin - New (to order)
                                      # 5
                                      MPN: 33-51293
                                      PIPE, CLUTCH RESERVOIR TO MASTER CYLINDER
                                      ASSEMBLY PP-CL RES TO M/C Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 33-53928
                                      CLUTCH MASTER CYLINDER
                                      from £167.20
                                      from £167.20
                                      CLUTCH MASTR CYLINDER 5/8 Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 33-50896
                                      Gasket, clutch master cylinder
                                      Early cars
                                      from £9.99
                                      from £9.99
                                      GASKET Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      SEALER, BLACK
                                      Later cars from February 1993
                                      # 8
                                      MPN: 692129
                                      SCREW, M8 X 25
                                      from £0.62
                                      from £0.62
                                      SCREW M8 X 25 HEX HD Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 33-51294
                                      Pipe, clutch master cylinder to hose
                                      RHD
                                      ASSEMBLY PIPE CUTCH Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 33-53959
                                      Pipe, clutch master cylinder to hose
                                      LHD
                                      ASSEMBLY PIPE Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 052-033-0199
                                      BULKHEAD NUT
                                      from £0.48
                                      from £0.48
                                      BULKHEAD NUT Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 069-033-0145
                                      Bulkhead washer
                                      Bulkhead washer Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 048-033-0193
                                      HOSE, HYDRAULIC
                                      from £28.51
                                      from £28.51
                                      HOSE-HYDRAULIC Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 095-033-0161
                                      COPPER WASHER, HOSE TO BANJO
                                      Washer, copper Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 048-033-0294
                                      Banjo, angled, slave cylinder
                                      from £138.46
                                      from £138.46
                                      BANJO - ANGLED Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 048-033-0295
                                      Banjo bolt, Banjo to slave cylinder
                                      from £12.36
                                      from £12.36
                                      BANJO BOLT Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: 021-033-0203
                                      Gasket, Banjo to slave cylinder
                                      from £0.95
                                      from £0.95
                                      WASHER COPPER 7/16 Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 095-033-0161
                                      Copper washer, Banjo to slave cylinder
                                      Washer, copper Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: 020-033-0105
                                      slave cylinder
                                      See also Section 3.6
                                      from £172.23
                                      from £172.23
                                      ASSEMBLY 7/8 SLAVE CYLINDER Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: 693485
                                      CLEVIS, CLUTCH MASTER CYLINDER
                                      from £11.16
                                      from £11.16
                                      CLEVIS Genuine Aston Martin - New (to order)
                                      # 22
                                      MPN: 542005
                                      LOCKNUT, 5/16 UNF, PUSHROD CLEVIS
                                      from £1.28
                                      from £1.28
                                      NUT 5/16 UNF HEX THN Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      Seal kit, slave cylinder
                                      # -
                                      -
                                      SEAL KIT, MASTER CYLINDER
