4.4 - POWER STEERING

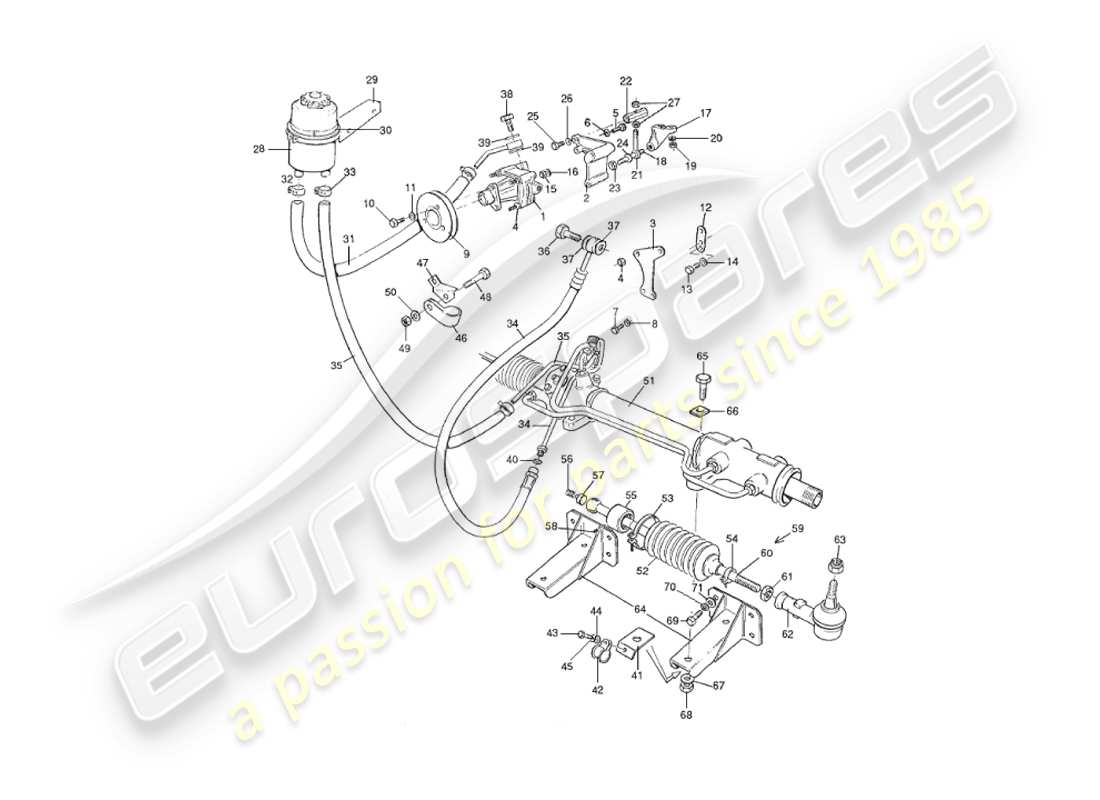

Aston Martin V8 Virage (2000) Power Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 24-50686
STEERING PUMP
from £543.88
from £543.88
# 2
MPN: 24-26089
BRACKET, POWER STEERING PUMP
from £129.69
from £129.69
# 3
MPN: 24-26098
PLATE RETAINING
from £28.76
from £28.76
# 4
MPN: 692077
NUT, HEX, M8, PLATE TO PUMP
Early cars
# 4
MPN: 692135
NUT, NYLOC, M8, PLATE TO PUMP
Later cars
from £0.94
from £0.94
# -
-
LOCTITE', PLATE TO PUMP
# 5
MPN: 694257
BOLT, M8 X 50, BRACKET TO PUMP
from £0.73
from £0.73
# 6
MPN: 692047
WASHER, SPRING, M8, BRACKET TO PUMP
from £0.47
from £0.47
# 6
MPN: 692057
WASHER, PLAIN, M8, BRACKET TO PUMP
from £0.47
from £0.47
# 7
MPN: 692087
SCREW, M8 X 20, PLATE TO BRACKET
# 8
MPN: 692047
WASHER, SPRING, M8, PLATE TO BRACKET
from £0.47
from £0.47
# 8
MPN: 692057
WASHER, PLAIN, M8, PLATE TO BRACKET
from £0.47
from £0.47
# 9
MPN: 24-26077
PULLEY, POWER STEERING PUMP
from £157.61
from £157.61
# 10
MPN: 692089
SCREW, M8 X 16, PULLEY TO PUMP
from £0.47
from £0.47
# 11
MPN: 692047
WASHER, SPRING, M8, PULLEY TO PUMP
from £0.47
from £0.47
# 12
MPN: 24-26097
PLATE-PIVOT
from £5.08
from £5.08
# 13
MPN: 692087
Screw, M8 x 20, plate to front cover
# 14
MPN: 692047
WASHER, SPRING, M8, PLATE TO FRONT COVER
from £0.47
from £0.47
# 15
MPN: 692034
NUT, NYLOC, M10, PUMP PIVOT STUD
from £0.47
from £0.47
# 16
MPN: 692058
WASHER, PLAIN, M10, PUMP PIVOT STUD
from £0.47
from £0.47
# 17
MPN: 24-26090
ADJUSTER BRACKET
from £80.43
from £80.43
# 18
MPN: 694227
STUD, M10/M10, ADJUSTER BRACKET
from £11.03
from £11.03
# 19
MPN: 123115
NUT, NYLOC, 5/16 UNF, BRACKET TO CYLINDER HEAD
from £3.58
from £3.58
# 20
MPN: 119471
WASHER, PLAIN, 5/16, BRACKET TO CYLINDER HEAD
# 21
MPN: 09-25874
EYEBOLT, ADJUSTER
from £88.41
from £88.41
# 22
MPN: 09-25873
TRUNNION, ADJUSTER
from £32.53
from £32.53
# 23
MPN: 692034
NUT, NYLOC, M10, EYEBOLT TO BRACKET
from £0.47
from £0.47
# 24
MPN: 692058
WASHER, PLAIN, M10, EYEBOLT TO BRACKET
from £0.47
from £0.47
# 25
MPN: 692095
BOLT, M10 X 40, TRUNNION TO BRACKET
from £1.81
from £1.81
# 26
MPN: 692048
WASHER, SPRING, M10, TRUNNION TO BRACKET
from £0.47
from £0.47
# 27
MPN: 692078
NUT, HEX, M10, EYEBOLT TO TRUNNION
from £0.71
from £0.71
# 28
MPN: 24-50549
RESERVOIR, STEERING PUMP
from £50.08
from £50.08
# 29
MPN: 24-51613
RESERVOIR MOUNTING BRACKET ASSEMBLY
from £30.95
from £30.95
# -
-
SCREW, M4 X 30, CLAMP RING
# -
-
WASHER, PLAIN, M4, CLAMP RING
# -
-
NUT, HEX, M4, CLAMP RING
# 30
MPN: 693068
REST RUBBER
from £32.62
from £32.62
# 31
MPN: 24-50589
HOSE, RESERVOIR TO PUMP
from £72.14
from £72.14
# 32
MPN: 114679
HOSE CLIP, 16 - 25 MM
from £0.51
from £0.51
# 33
MPN: 692634
HOSE CLIP, 12 - 22 MM
from £1.21
from £1.21
# 34
MPN: 24-50592
HOSE ASSEMBLY, PUMP TO RACK
RHD
from £217.76
from £217.76
# 34
MPN: 24-50590
HOSE ASSEMBLY, PUMP TO RACK
LHD
from £440.53
from £440.53
# 35
MPN: 24-50593
HOSE ASSEMBLY, RACK TO RESERVOIR
RHD
from £84.39
from £84.39
# 35
MPN: 695130
HOSE, 1220 MM, TO RESERVOIR
LHD
from £46.42
from £46.42
# -
-
PIPE ASSEMBLY, RACK TO HOSE
LHD
# -
-
HOSE CLIP, 12 - 22 MM
LHD
# 36
MPN: 696079
BANJO BOLT
# 37
MPN: 696082
BONDED SEAL
from £3.25
from £3.25
# 38
MPN: 696080
BANJO BOLT
# 39
MPN: 696083
BONDED SEAL
from £3.64
from £3.64
# 40
MPN: 24-51417
SEAL PIPE
from £1.49
from £1.49
# 41
MPN: 24-55212
BRACKET ASSEMBLY, STEERING PIPE
LHD
from £5.54
from £5.54
# 42
MPN: 694891
P' CLIP
LHD
from £2.31
from £2.31
# 43
MPN: 692005
SCREW, M5 X 16
LHD
from £0.47
from £0.47
# 44
MPN: 692055
WASHER, PLAIN, M5
LHD
from £0.47
from £0.47
# 45
MPN: 692045
WASHER, SPRING, M5
LHD
from £0.47
from £0.47
# 46
MPN: 694923
P' CLIP
LHD
from £5.84
from £5.84
# 47
MPN: 24-54556
BRACKET, STEERING HOSE
LHD
from £31.42
from £31.42
# 48
MPN: 692138
SCREW, M10 X 20, 'P' CLIP TO BRACKET
LHD
from £1.32
from £1.32
# 49
MPN: 692034
NUT, NYLOC, M10, 'P' CLIP TO BRACKET
LHD
from £0.47
from £0.47
# 50
MPN: 692058
WASHER, PLAIN, M10, 'P' CLIP TO BRACKET
LHD
from £0.47
from £0.47
# 51
MPN: 24-52340
Steering Rack
RHD Virage saloon
# 51
MPN: 24-52341
Steering Rack
LHD Virage saloon
# 51
MPN: 24-55614
Steering Rack
RHD Volante convertible
# 51
MPN: 24-55615
Steering Rack
LHD Volante convertible
# 52
MPN: 24-11253
BELLOWS
# 53
MPN: 24-11254
CLIP, SPRING, LARGE
from £3.88
from £3.88
# 54
MPN: 24-11255
CLIP, SPRING, SMALL
# 55
MPN: 24-11249
BALL HOUSING
from £82.03
from £82.03
# 56
MPN: 24-11250
SPRING
from £19.84
from £19.84
# 57
MPN: 24-11251
PAD
from £20.34
from £20.34
# 58
MPN: 24-11252
LOCKING PIN
from £0.47
from £0.47
# -
-
MOLYBDENUM DISULPHIDE GREASE
# 59
MPN: 24-52337
TRACK ROD ARM AND BALL JOINT ASSEMBLY
# 60
MPN: 24-52338
TRACK ROD
# 61
MPN: 24-19459
LOCKNUT, M14
# 62
MPN: 24-21346
BALL JOINT
Virage. Volante up to February 1993
from £25.38
from £25.38
# 63
MPN: 693192
NUT, NYLOC, M10
Virage. Volante up to February 1993
from £1.17
from £1.17
# -
-
BALL JOINT
Volante from February 1993
# -
-
NUT, NYLOC, 7/16 UNF
Volante from February 1993
# -
-
LOCTITE'
# 64
MPN: 24-22641
RACK MOUNTING BRACKET ASSEMBLY
from £58.19
from £58.19
# 65
MPN: 24-22098
BOLT, 3/8 UNF X 1 1/2
Rack to mounting bracket
# 66
MPN: 24-26226
WASHER, SPECIAL, SQUARE
Rack to mounting bracket
from £4.88
from £4.88
# 67
MPN: 696241
WASHER, PLAIN, 3/8
Rack to mounting bracket
from £0.47
from £0.47
# 68
MPN: 123113
NUT, NYLOC, 3/8 UNF
Rack to mounting bracket
from £1.00
from £1.00
# 69
MPN: 692087
SCREW, M8 X 20
# 70
MPN: 692047
WASHER, SPRING, M8
from £0.47
from £0.47
# 71
MPN: 692057
WASHER, PLAIN, M8
from £0.47
from £0.47
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (2000) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (2000) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (2000) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (2000) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (2000) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (2000) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (2000) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (2000) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (2000) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (2000) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (2000) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INLET MANIFOLDS & PLENUM PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (2000) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (2000) TORQUE CONVERTER, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043 TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR, GEAROX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
