5.1A - Front Brakes

Aston Martin V8 Virage (2000) Front Brakes Parts Diagram

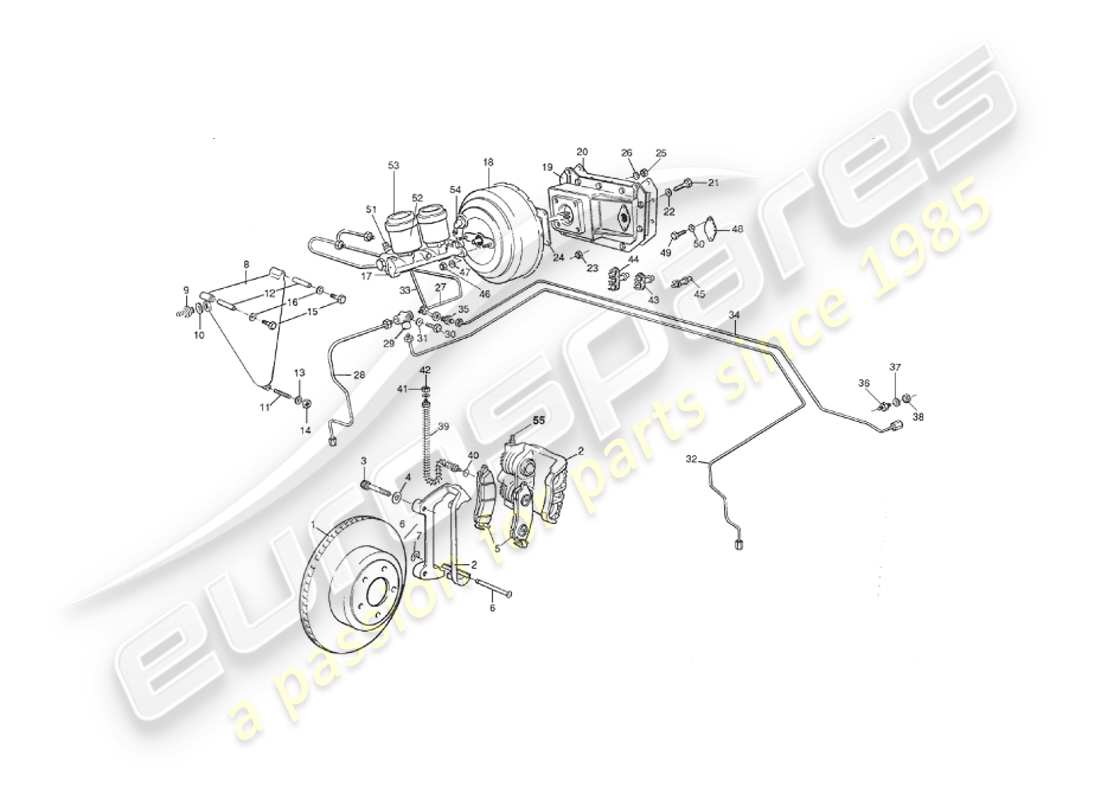

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 28-50269
FRONT DISC, VENTILATED
from £436.54
from £436.54
FRONT DISC VENTILATED Genuine Aston Martin - New (to order)
# 2
MPN: 28-50149
Caliper, front, RH
from £317.65
from £317.65
ASSEMBLY CALIPER-RH FRONT Genuine Aston Martin - New (to order)
# 2
MPN: 28-50150
Caliper, front, LH
from £311.42
from £311.42
ASSEMBLY CALIPER-LH FRONT Genuine Aston Martin - New (to order)
# 3
MPN: 28-53259
CAPSCREW, M14, CALIPER ATTACHMENT
from £6.62
from £6.62
SCREW M14 M/C CAP HD Genuine Aston Martin - New (to order)
# 4
MPN: 692060
WASHER, PLAIN, M14, CALIPER ATTACHMENT
from £0.47
from £0.47
WASHER M14 PLAIN Genuine Aston Martin - New (to order)
# -
-
LOCKWIRE, STAINLESS STEEL, 1 MM, CALIPER ATTACHMENT
# 5
MPN: 28-51261
FRONT BRAKE PAD SET
FRONT BRAKE PAD SET Genuine Aston Martin - New (to order)
# 5
MPN: 28-63061
FRONT BRAKE PAD SET
From: TBA
FRONT BRAKE PAD SET Genuine Aston Martin - New (to order)
# 6
MPN: 28-54402
PIN AND 'E' CLIP KIT, FRONT BRAKE CALIPER
from £43.10
from £43.10
PIN KIT-FT BR/CALIPR Genuine Aston Martin - New (to order)
# 7
MPN: 28-52006
E' CLIP, PAD RETAINING
Also part of 28-54401 seal kit
from £3.49
from £3.49
`E' CIRCLIP -PAD RET Genuine Aston Martin - New (to order)
# 8
MPN: 28-51773
VACUUM TANK
from £170.47
from £170.47
ASSEMBLY VACUUM TANK Genuine Aston Martin - New (to order)
# 9
-
CONNECTOR VACUUM TANK
# 10
-
WASHER, VACUUM TANK CONNECTOR
# 11
MPN: 28-53428
STUD, SPECIAL VACUUM TANK ATTACH
from £3.94
from £3.94
STUD-SPECIAL-VAC TNK Genuine Aston Martin - New (to order)
# 12
MPN: 28-54784
STUD, SPECIAL VACUUM TANK ATTACH
from £12.69
from £12.69
STUD-SPECIAL-VAC TNK Genuine Aston Martin - New (to order)
# 13
MPN: 122422
WASHER, 2BA VACUUM TANK ATTACH
from £0.47
from £0.47
WASHER 2BA PLAIN Genuine Aston Martin - New (to order)
AIR CONDITIONING ELECTROMAGNETIC CLUTCH UNIT Genuine Ferrari Part - New (to order)
# 14
MPN: 692800
NUT, M5 VACUUM TANK ATTACH
from £0.47
from £0.47
NUT M5 HEX SLK Genuine Aston Martin - New (to order)
# 15
MPN: 692090
SCREW, M5 X 12 VACUUM TANK ATTACH
from £0.47
from £0.47
SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
# 16
MPN: 692045
WASHER, SPRING, M5 VACUUM TANK ATTACH
from £0.47
from £0.47
WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
# 17
MPN: 33-51940
BRAKE SERVO AND MASTER CYLINDER ASSEMBLY
from £711.10
from £711.10
ASSEMBLY BRK SRVO & M/CYL Genuine Aston Martin - New (to order)
# 17
MPN: 33-50898
brake master cylinder
brake master cylinder Genuine Aston Martin - New (to order)
# 18
MPN: 33-50977
BRAKE SERVO
BRAKE SERVO Genuine Aston Martin - New (to order)
# 19
MPN: 33-50255
SERVO MOUNTING BRACKET
from £346.70
from £346.70
M/BRKT SERVO & M/CYL Genuine Aston Martin - New (to order)
# 20
MPN: 33-50782
GASKET, SERVO BRACKET TO BULKHEAD
from £10.52
from £10.52
GASKET Genuine Aston Martin - New (to order)
# 21
MPN: 692129
SCREW, M8 X 25, MOUNTING BRACKET TO BULKHEAD
from £0.59
from £0.59
SCREW M8 X 25 HEX HD Genuine Aston Martin - New (to order)
# 22
MPN: 692047
WASHER, SPRING, M8, MOUNTING BRACKET TO BULKHEAD
from £0.47
from £0.47
WASHER M8 SPRING Genuine Aston Martin - New (to order)
# 23
MPN: 692077
NUT, HEX, M8, MOUNTING BRACKET TO BULKHEAD
Nut, plain, M8 Genuine Aston Martin - New (to order)
# 24
MPN: 33-50897
GASKET, SERVO TO MOUNTING BRACKET
from £6.26
from £6.26
GASKET Genuine Aston Martin - New (to order)
# 25
MPN: 692135
NUT, NYLOC, M8, SERVO TO MOUNTING BRACKET
from £0.94
from £0.94
NUT M8 HEX SLK Genuine Aston Martin - New (to order)
# 26
MPN: 692057
WASHER, PLAIN, M8, SERVO TO MOUNTING BRACKET
from £0.47
from £0.47
WASHER M8 PLAIN Genuine Aston Martin - New (to order)
# 27
MPN: 33-53949
BRAKE PIPE, MASTER CYLINDER TO TEE PIECE
RHD
ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
# 27
MPN: 33-53950
BRAKE PIPE, MASTER CYLINDER TO TEE PIECE
LHD
BRAKE PIPE, MASTER CYLINDER TO TEE PIECE Genuine Aston Martin - New (to order)
# 28
MPN: 33-53951
Brake pipe, tee piece to front flex, RH
RHD
ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
# 28
MPN: 33-53956
Brake pipe, tee piece to front flex, RH
LHD
Brake pipe, tee piece to front flex, RH Genuine Aston Martin - New (to order)
# 29
MPN: 33-11493
TEE PIECE, FRONT BRAKE PIPES
from £12.35
from £12.35
TEE PIECE Genuine Aston Martin - New (to order)
# 30
MPN: 692241
BOLT, M6 X 35, TEE PIECE TO CHASSIS
from £0.47
from £0.47
BOLT M6 X 35 HEX Genuine Aston Martin - New (to order)
# 31
MPN: 692046
WASHER, SPRING, M6, TEE PIECE TO CHASSIS
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 32
MPN: 33-53952
Brake pipe, Tee to front flex, LH
RHD
ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
# 32
MPN: 33-53957
Brake pipe, Tee to front flex, LH
LHD
Brake pipe, Tee to front flex, LH Genuine Aston Martin - New (to order)
# 33
MPN: 33-53953
BRAKE PIPE, MASTER CYLINDER TO CONNECTOR
RHD
ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
# 33
MPN: 33-53954
BRAKE PIPE, MASTER CYLINDER TO CONNECTOR
LHD
BRAKE PIPE, MASTER CYLINDER TO CONNECTOR Genuine Aston Martin - New (to order)
# 34
MPN: 33-54038
BRAKE PIPE, CONNECTOR TO UNION
RHD
ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
# 35
MPN: 694933
CONNECTOR, MALE/MALE
RHD
from £18.95
from £18.95
CONNECTOR MALE/MALE Genuine Aston Martin - New (to order)
# 36
MPN: 33-11492
DOUBLE-ENDED UNION, FRONT BULKHEAD
from £6.16
from £6.16
D.E. UNION Genuine Aston Martin - New (to order)
# 37
MPN: 692068
WASHER, SHAKEPROOF, M10, UNION TO BULKHEAD
from £0.47
from £0.47
WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
# 38
MPN: 33-11490
Nut, M10, union to bulkhead
Nut, M10, union to bulkhead Genuine Aston Martin - New (to order)
# 39
MPN: 33-53865
FLEXIBLE HOSE
from £49.32
from £49.32
BRAKE HOSE-FLEX FRONT Genuine Aston Martin - New (to order)
# 40
MPN: 695174
GASKET WASHER, ALUMINIUM, HOSE TO CALIPER
from £4.50
from £4.50
WASHER - GASKET-ALUM Genuine Aston Martin - New (to order)
# 41
MPN: 692068
WASHER, SHAKEPROOF, M10, HOSE ATTACH
from £0.47
from £0.47
WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
# 42
MPN: 33-11490
NUT, M10, HOSE ATTACH
Nut, M10, union to bulkhead Genuine Aston Martin - New (to order)
# 43
MPN: 080-033-0139
PIPE CLIP, DOUBLE, BRAKE PIPES ATTACH
from £4.77
from £4.77
CLIP - PIPE - DOUBLE Genuine Aston Martin - New (to order)
# 44
MPN: 080-033-0140
PIPE CLIP, TREBLE, BRAKE PIPES ATTACH
from £3.00
from £3.00
CLIP - PIPE - TREBLE Genuine Aston Martin - New (to order)
# 45
MPN: 080-033-0138
PIPE CLIP, SINGLE, BRAKE PIPES ATTACH
from £0.94
from £0.94
CLIP-PIPE-SINGLE-BLK Genuine Aston Martin - New (to order)
# 46
MPN: 692077
NUT, HEX, M8, MASTER CYLINDER TO SERVO
Nut, plain, M8 Genuine Aston Martin - New (to order)
# 47
MPN: 692047
WASHER, SPRING, M8, MASTER CYLINDER TO SERVO
from £0.47
from £0.47
WASHER M8 SPRING Genuine Aston Martin - New (to order)
# -
-
BLANKING PLATE, BULKHEAD
Opposite side to servo assy.
# -
-
SCREW, M8 X 12, PLATE TO BULKHEAD
# -
-
WASHER, SPRING, M8, PLATE TO BULKHEAD
# 48
MPN: 33-50900
BLANKING PLATE, BLANKS OFF CLUTCH MASTER CYL POSITION
Automatic cars
from £3.29
from £3.29
BLANKING PLATE Genuine Aston Martin - New (to order)
# 49
MPN: 692087
SCREW, M8 X 20, BLANKS OFF CLUTCH MASTER CYL POSITION
Automatic cars
Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
# 50
MPN: 119481
WASHER, SPRING, 5/16, BLANKS OFF CLUTCH MASTER CYL POSITION
Automatic cars
Washer, spring, 5/16, Slave cylinder attach Genuine Aston Martin - New (to order)
# -
-
SEAL KIT, FRONT BRAKE CALIPER
# -
-
SERVICE KIT - MASTER CYLINDER
# 51
MPN: 33-54622
P.D.W.A. SWITCH
Part of item 17
from £9.50
from £9.50
BR.M/CYL PDWA SWITCH Genuine Aston Martin - New (to order)
# 52
MPN: 33-54623
RESERVOIR BODY
Part of item 17
RESERVOIR BODY Genuine Aston Martin - New (to order)
# 53
MPN: 33-54624
RESERVOIR CAP
Part of item 17
from £11.41
from £11.41
BR.M/CYL RESV.CAP Genuine Aston Martin - New (to order)
# 54
MPN: 33-54626
SERVO CHECK VALVE KIT
Part of item 18
from £11.09
from £11.09
B/SERVO CHECK VLV KT Genuine Aston Martin - New (to order)
# -
-
SERVICE KIT - SERVO
# 55
MPN: 28-56379
BLEED SCREW
from £1.82
from £1.82
BLEED SCREW-FT B/CAL Genuine Aston Martin - New (to order)
# -
-
LABEL, BRAKE FLUID WARNING
