aston martin v8 virage (2000) rear brakes parts diagram

5.2 - Rear Brakes

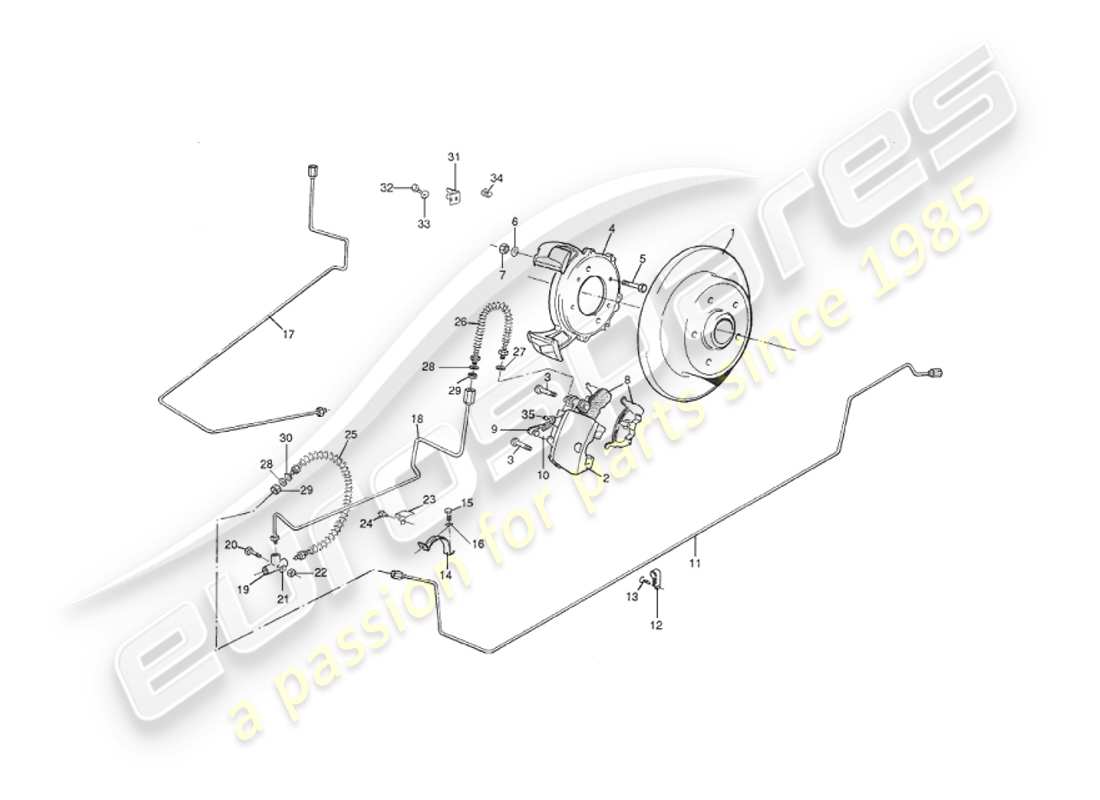

Aston Martin V8 Virage (2000) Rear Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 28-50270
                                                              REAR DISC
                                                              Virage saloons & early Volante
                                                              REAR DISC Genuine Aston Martin - New (to order)
                                                              # 1
                                                              MPN: 28-55377
                                                              REAR DISC AND WHEELSPACER ASSEMBLY
                                                              Volante from (V) 60052 + 44/46/7/9
                                                              from £839.23
                                                              from £839.23
                                                              DISC REAR BRAKE (M/C) Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: 28-50163
                                                              Caliper, rear, RH
                                                              Caliper, rear, RH Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: 28-50164
                                                              Caliper, rear, LH
                                                              Caliper, rear, LH Genuine Aston Martin - New (to order)
                                                              # 3
                                                              MPN: 28-50165
                                                              BOLT, CALIPER ATTACHING
                                                              from £6.84
                                                              from £6.84
                                                              BOLT - SLEEVE Genuine Aston Martin - New (to order)
                                                              # 4
                                                              MPN: 28-50170
                                                              BRACKET CALIPER MOUNTING
                                                              from £58.72
                                                              from £58.72
                                                              ASSEMBLY BRACKET & WEAR STRP Genuine Aston Martin - New (to order)
                                                              # 5
                                                              MPN: 694261
                                                              SCREW, M8 X 100, CALIPER MOUNTING TO DE-DION BEAM
                                                              from £2.53
                                                              from £2.53
                                                              SCREW M8 X100 SOCKET CP Genuine Aston Martin - New (to order)
                                                              # 6
                                                              MPN: 692057
                                                              WASHER, PLAIN, M8, CALIPER MOUNTING TO DE-DION BEAM
                                                              from £0.47
                                                              from £0.47
                                                              WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                                              # 7
                                                              MPN: 692135
                                                              NUT, NYLOC, M8, CALIPER MOUNTING TO DE-DION BEAM
                                                              from £0.94
                                                              from £0.94
                                                              NUT M8 HEX SLK Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: 28-50169
                                                              REAR BRAKE PAD SET
                                                              REAR BRAKE PAD SET Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: 28-63062
                                                              REAR BRAKE PAD SET
                                                              From October 1993
                                                              REAR BRAKE PAD SET Genuine Aston Martin - New (to order)
                                                              # 9
                                                              MPN: 28-51999
                                                              SPRING, RETURN
                                                              from £0.99
                                                              from £0.99
                                                              SPRING - RETURN Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: 30-53312
                                                              HANDBRAKE ACTUATOR, RH
                                                              HANDBRAKE ACTUATOR, RH Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: 30-53313
                                                              Handbrake actuator, LH
                                                              Handbrake actuator, LH Genuine Aston Martin - New (to order)
                                                              # -
                                                              -
                                                              BOLT, 5/16 UNF X 5/8, ACTUATORS TO CALIPERS
                                                              # 11
                                                              MPN: 33-53948
                                                              BRAKE PIPE, FRONT TO REAR
                                                              ASSEMBLY BRAKE PIPE Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 691910
                                                              P' CLIP, FRONT TO REAR PIPE
                                                              from £0.47
                                                              from £0.47
                                                              P-CLIP PLASTIC 5MM Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: 627-000-0604
                                                              SCREW, NO.6 X 1/2, CLIP TO CHASSIS
                                                              from £0.47
                                                              from £0.47
                                                              SCREW NO6 X 1/2 Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: 33-53955
                                                              SHIELD, BRAKE PIPE
                                                              Not fitted to Volante
                                                              from £3.82
                                                              from £3.82
                                                              SHIELD - BRAKE PIPE Genuine Aston Martin - New (to order)
                                                              # 15
                                                              MPN: 692090
                                                              SCREW M5 X 12, SHIELD ATTACH
                                                              Not fitted to Volante
                                                              from £0.47
                                                              from £0.47
                                                              SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
                                                              # 16
                                                              MPN: 692045
                                                              WASHER, SPRING, M5, SHIELD ATTACH
                                                              Not fitted to Volante
                                                              from £0.47
                                                              from £0.47
                                                              WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
                                                              # 17
                                                              MPN: 33-53946
                                                              BRAKE PIPE, REAR, TEE PIECE TO CALIPER, RH
                                                              BRAKE PIPE, REAR, TEE PIECE TO CALIPER, RH Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: 33-53947
                                                              Brake pipe, rear, tee piece to caliper, LH
                                                              Brake pipe, rear, tee piece to caliper, LH Genuine Aston Martin - New (to order)
                                                              # 19
                                                              MPN: 33-11493
                                                              TEE PIECE, REAR BRAKE PIPES
                                                              from £12.35
                                                              from £12.35
                                                              TEE PIECE Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: 692267
                                                              BOLT, M6 X 30
                                                              from £0.66
                                                              from £0.66
                                                              BOLT M6 X 30 HEX Genuine Aston Martin - New (to order)
                                                              # 21
                                                              MPN: 692056
                                                              WASHER, PLAIN, M6
                                                              from £0.47
                                                              from £0.47
                                                              WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                              # 22
                                                              MPN: 692151
                                                              NUT, NYLOC, M6
                                                              from £0.54
                                                              from £0.54
                                                              NUT M6 HEX SLK Genuine Aston Martin - New (to order)
                                                              # -
                                                              -
                                                              BRACKET, BRAKE PIPE CLIP, FRONT MOUNT, REAR SUSPENSION
                                                              # 23
                                                              MPN: 694262
                                                              CLIP, EDGE TYPE
                                                              from £1.07
                                                              from £1.07
                                                              CLIP - EDGE TYPE Genuine Aston Martin - New (to order)
                                                              # 24
                                                              MPN: 080-033-0138
                                                              PIPE CLIP, SINGLE
                                                              from £0.94
                                                              from £0.94
                                                              CLIP-PIPE-SINGLE-BLK Genuine Aston Martin - New (to order)
                                                              # 25
                                                              MPN: 33-53866
                                                              BRAKE HOSE, FLEXIBLE, REAR
                                                              from £42.36
                                                              from £42.36
                                                              BRAKE HOSE-FLEX REAR Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: 33-10826
                                                              BRAKE HOSE, REAR, PIPE TO CALIPER
                                                              from £61.02
                                                              from £61.02
                                                              HOSE-REAR BRAKES Genuine Aston Martin - New (to order)
                                                              # 27
                                                              MPN: 695174
                                                              GASKET WASHER, ALUMINIUM, REAR HOSES TO CALIPERS
                                                              from £4.50
                                                              from £4.50
                                                              WASHER - GASKET-ALUM Genuine Aston Martin - New (to order)
                                                              # 28
                                                              MPN: 692068
                                                              WASHER, SHAKEPROOF, M10, HOSE ATTACHMENT
                                                              from £0.47
                                                              from £0.47
                                                              WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
                                                              # 29
                                                              MPN: 33-11490
                                                              NUT, M10, HOSE ATTACHMENT
                                                              Nut, M10, union to bulkhead Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 692058
                                                              WASHER, PLAIN, M10, HOSE ATTACHMENT
                                                              from £0.47
                                                              from £0.47
                                                              WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                                                              # 31
                                                              MPN: 90-53905
                                                              BRACKET, 'ABS' SPEED SENSOR CABLE SUPPORT
                                                              from £4.18
                                                              from £4.18
                                                              BRKT-CABLE SUPPORT Genuine Aston Martin - New (to order)
                                                              # 32
                                                              MPN: 692262
                                                              SCREW, M6 X 12, SENSOR BRACKET ATTACH
                                                              from £0.47
                                                              from £0.47
                                                              SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
                                                              # 33
                                                              MPN: 692046
                                                              WASHER, SPRING, M6
                                                              from £0.47
                                                              from £0.47
                                                              WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                              # 34
                                                              MPN: 695030
                                                              CABLE CLIP, DOUBLE, SENSOR CABLES TO BRAKE PIPES
                                                              from £2.39
                                                              from £2.39
                                                              CBL-CLIP DOUBLE Genuine Aston Martin - New (to order)
                                                              # -
                                                              -
                                                              BRACKET, CABLE SUPPORT
                                                              From May 1994
                                                              # -
                                                              -
                                                              CABLE TIE
                                                              From March 1994
                                                              # -
                                                              -
                                                              SEAL KIT, REAR BRAKE CALIPER
                                                              # 35
                                                              MPN: 28-56380
                                                              BLEED SCREW
                                                              from £2.14
                                                              from £2.14
                                                              BLEED SCREW-RR B/CAL Genuine Aston Martin - New (to order)
