5.4 - Pedal Gear

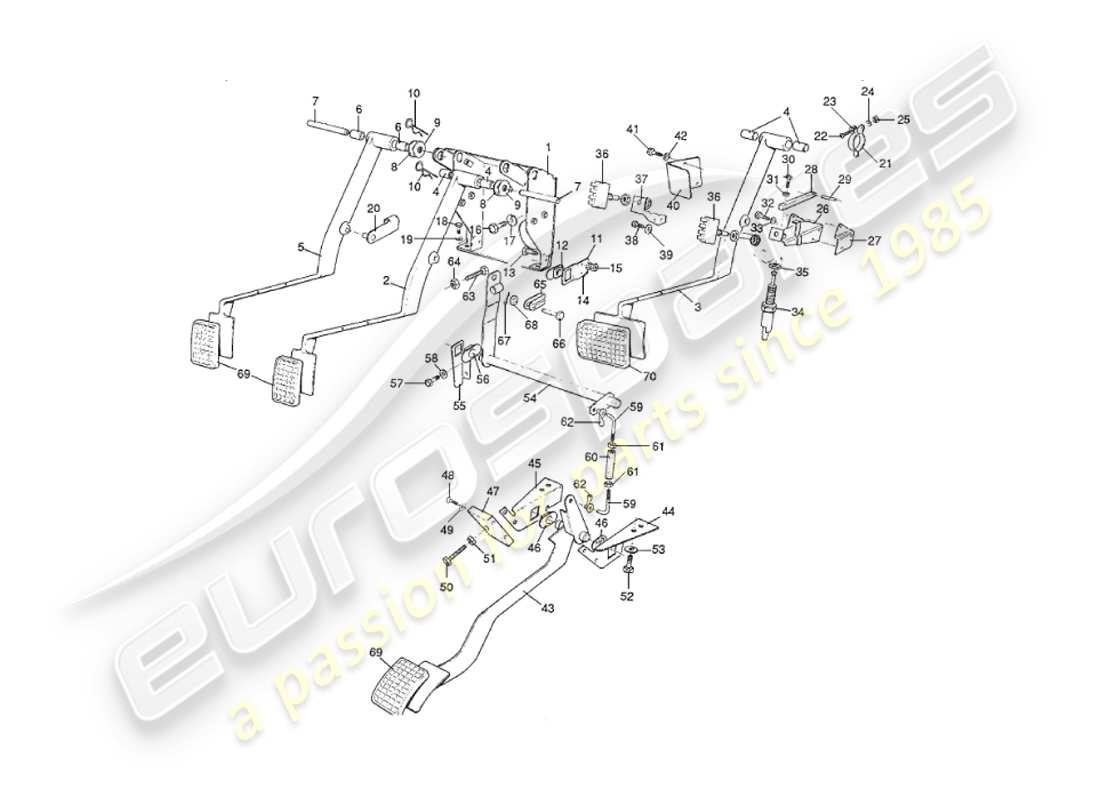

Aston Martin V8 Virage (2000) Pedal Gear Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 29-50865
PEDAL BRACKET ASSEMBLY
from £146.36
from £146.36
# 2
MPN: 29-50866
BRAKE PEDAL ASSEMBLY, MANUAL GEARBOX
RHD
from £142.45
from £142.45
# 2
MPN: 29-50867
BRAKE PEDAL ASSEMBLY, MANUAL GEARBOX
LHD
from £114.41
from £114.41
# 3
MPN: 29-50870
BRAKE PEDAL ASSEMBLY, AUTOMATIC GEARBOX
RHD
from £142.45
from £142.45
# 3
MPN: 29-50871
BRAKE PEDAL ASSEMBLY, AUTOMATIC GEARBOX
LHD
from £339.78
from £339.78
# 4
MPN: 692827
BEARING
from £7.60
from £7.60
# 5
MPN: 29-50868
CLUTCH PEDAL ASSEMBLY
RHD
from £142.45
from £142.45
# 5
MPN: 29-50869
CLUTCH PEDAL ASSEMBLY
LHD
from £116.71
from £116.71
# 6
MPN: 692827
BEARING
from £7.60
from £7.60
# 7
MPN: 29-55725
PIVOT PIN
One only used on autos
from £15.69
from £15.69
# 8
MPN: 29-50890
THRUST WASHER
One only used on autos
from £7.43
from £7.43
# 9
MPN: 692826
WASHER FINGER, SPRING
One only used on autos
from £6.75
from £6.75
# 10
MPN: 692825
R' CLIP
One only used on autos
from £1.71
from £1.71
# 11
MPN: 29-50853
PLATE, CROSS SHAFT BUSH
from £13.20
from £13.20
# 12
MPN: 692768
BEARING BUSH
from £2.05
from £2.05
# 13
MPN: 692262
SCREW, M6 X 12
Plate to pedal bracket
from £0.47
from £0.47
# 14
MPN: 692066
WASHER, SHAKEPROOF, M6
Plate to pedal bracket
from £0.47
from £0.47
# 15
MPN: 692076
NUT, M6
Plate to pedal bracket
from £0.47
from £0.47
# 16
MPN: 692129
SCREW, M8 X 25
Pedal bracket to servo bracket
from £0.59
from £0.59
# 17
MPN: 692047
WASHER, SPRING, M8
Pedal bracket to servo bracket
from £0.47
from £0.47
# 18
MPN: 692087
SCREW, M8 X 20
Pedal bracket to crossmember
# 19
MPN: 692047
WASHER, SPRING, M8
Pedal bracket to crossmember
from £0.47
from £0.47
# 20
MPN: 693486
SPRING PIN
One on autos
from £4.90
from £4.90
# 21
MPN: 29-52775
STRIKER ASSEMBLY
All Autos-Volante up to (V) 60042
from £38.94
from £38.94
# 22
MPN: 693416
SCREW, M4 X 10, STRIKER ATTACH
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 23
MPN: 692054
WASHER, PLAIN, M4, STRIKER ATTACH
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 24
MPN: 692064
WASHER, SHAKEPROOF, M4, STRIKER ATTACH
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 25
MPN: 692074
NUT, M4, STRIKER ATTACH
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 26
MPN: 37-52781
SWITCH BRACKET ASSEMBLY
All Autos-Volante up to (V) 60042
from £34.21
from £34.21
# 27
MPN: 37-52780
Bracket inner, vacuum switch rocker
All Autos-Volante up to (V) 60042
from £10.80
from £10.80
# 28
MPN: 37-52779
Rocker arm, vacuum switch bracket
All Autos-Volante up to (V) 60042
from £5.59
from £5.59
# 29
MPN: 694625
TENSION PIN
All Autos-Volante up to (V) 60042
from £1.72
from £1.72
# 30
MPN: 693046
SCREW, M4 X 20 ROCKER ARM
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 31
MPN: 692074
NUT, M4
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 32
MPN: 692090
Screw, M5 X 12, Bracket to pedal bracket
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 33
MPN: 692065
Washer, shakeproof, M5, Bracket to pedal bracket
All Autos-Volante up to (V) 60042
from £0.47
from £0.47
# 34
MPN: 37-21591
VACUUM DUMP SWITCH
All Autos-Volante up to (V) 60042
from £15.90
from £15.90
# 35
MPN: 37-21724
LOCKNUT, M12
All Autos-Volante up to (V) 60042
from £2.50
from £2.50
# 36
MPN: 37-15429
STOP LIGHT SWITCH
All Autos-Volante up to (V) 60042
from £95.94
from £95.94
# 37
MPN: 37-53509
BRACKET, STOP LIGHT SWITCH
All manuals - Volante, up to(V)60042
from £148.12
from £148.12
# 38
MPN: 692090
SCREW, M5 X 12
All manuals - Volante, up to(V)60042
from £0.47
from £0.47
# 39
MPN: 692065
WASHER, SHAKEPROOF, M5
All manuals - Volante, up to(V)60042
from £0.47
from £0.47
# 40
MPN: 37-53522
SUPPORT BRACKET ASSEMBLY
from £5.98
from £5.98
# 41
MPN: 692090
Screw, M5 X 12, Supt bracket attach to pedal bracket
from £0.47
from £0.47
# 42
MPN: 692065
Washer, shakeproof, M5, Supt bracket attach to pedal bracket
from £0.47
from £0.47
# 43
MPN: 29-54347
ACCELERATOR PEDAL ASSEMBLY
RHD
from £99.74
from £99.74
# 43
MPN: 29-52688
ACCELERATOR PEDAL ASSEMBLY
LHD
from £104.72
from £104.72
# 44
MPN: 29-52686
PIVOT BRACKET, RH
from £27.40
from £27.40
# 45
MPN: 29-52687
PIVOT BRACKET, LH
from £46.60
from £46.60
# 46
MPN: 692768
BEARING BUSH
from £2.05
from £2.05
# 47
MPN: 29-52685
Stop block
from £33.43
from £33.43
# 48
MPN: 693416
SCREW, M4 X 10
Stop block to brackets
from £0.47
from £0.47
# 49
MPN: 692064
WASHER, SHAKEPROOF, M4
Stop block to brackets
from £0.47
from £0.47
# 50
MPN: 694596
SCREW, M6 X 30
Stop block
from £0.60
from £0.60
# 51
MPN: 692076
NUT, M6
Stop block
from £0.47
from £0.47
# 52
MPN: 692088
SCREW, M6 X 16
Brackets to crossmember
from £0.47
from £0.47
# 53
MPN: 692046
WASHER, SPRING, M6
Brackets to crossmember
from £0.47
from £0.47
# 54
MPN: 29-52682
CROSS-SHAFT AND LEVERS ASSEMBLY
RHD
from £78.40
from £78.40
# 54
MPN: 29-53844
CROSS-SHAFT AND LEVERS ASSEMBLY
LHD
from £89.98
from £89.98
# 55
MPN: 29-50854
BRACKET, ACCELERATOR PEDAL BUSH
from £8.33
from £8.33
# 56
MPN: 692768
BEARING BUSH
from £2.05
from £2.05
# 57
MPN: 692088
SCREW, M6 X 16
Bracket to crossmember
from £0.47
from £0.47
# 58
MPN: 692046
WASHER, SPRING, M6
Bracket to crossmember
from £0.47
from £0.47
# 59
MPN: 29-53298
ADJUSTABLE LINK, ACCELERATOR PEDAL
from £43.14
from £43.14
# 60
MPN: 29-53299
ADJUSTMENT NUT, ACCELERATOR PEDAL LINK
from £13.81
from £13.81
# 61
MPN: 694771
Nut, plain, M4
# 62
MPN: 694174
CLIP AND BUSH ASSEMBLY
# 63
MPN: 694191
SCREW, M6 X 50
Stop lug
from £0.68
from £0.68
# 64
MPN: 692076
NUT, HEX, M6
Stop lug
from £0.47
from £0.47
# 65
MPN: 29-22040
ANCHORAGE BRACKET, THROTTLE CABLE
from £6.99
from £6.99
# 66
MPN: 020-030-0130
PIVOT PIN, THROTTLE CABLE
from £13.09
from £13.09
# 67
MPN: 692212
Split pin, 3/32 X 3/4
from £0.54
from £0.54
# 68
MPN: 119470
WASHER, PLAIN, 1/4
# 69
MPN: 29-50891
RUBBER PAD, PEDALS
1 fitted to automatic cars
from £13.20
from £13.20
# 70
MPN: 29-50892
RUBBER PAD, BRAKE PEDAL
Automatic cars
from £14.58
from £14.58
# -
-
Driver's footrest bracket assembly
RHD
# -
-
Driver's footrest bracket assembly
LHD
# -
-
DRIVER'S FOOTREST BRACKET
LHD
# -
-
DRIVER'S PEDAL PAD ASSEMBLY
LHD
# -
-
SCREW, M5 X 16, PEDAL PAD ASSY TO FOOTREST BRKT
LHD
# -
-
WASHER, PLAIN, M5, PEDAL PAD ASSY TO FOOTREST BRKT
LHD
# -
-
SCREW, M6 X 20, FOOTREST BRACKET TO CHASSIS
# -
-
WASHER, PLAIN, M6, FOOTREST BRACKET TO CHASSIS
# -
-
RUBBER PAD
# -
-
ADHESIVE PAD TO BRACKET
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (2000) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (2000) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (2000) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (2000) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (2000) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (2000) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (2000) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (2000) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (2000) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (2000) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (2000) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INLET MANIFOLDS & PLENUM PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (2000) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (2000) TORQUE CONVERTER, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043 TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR, GEAROX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (2000) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (2000) HANDBRAKE PARTS DIAGRAM")
