aston martin v8 virage (2000) components & wiring parts diagram

6.3E - Components & Wiring

Aston Martin V8 Virage (2000) Components & Wiring Parts Diagram

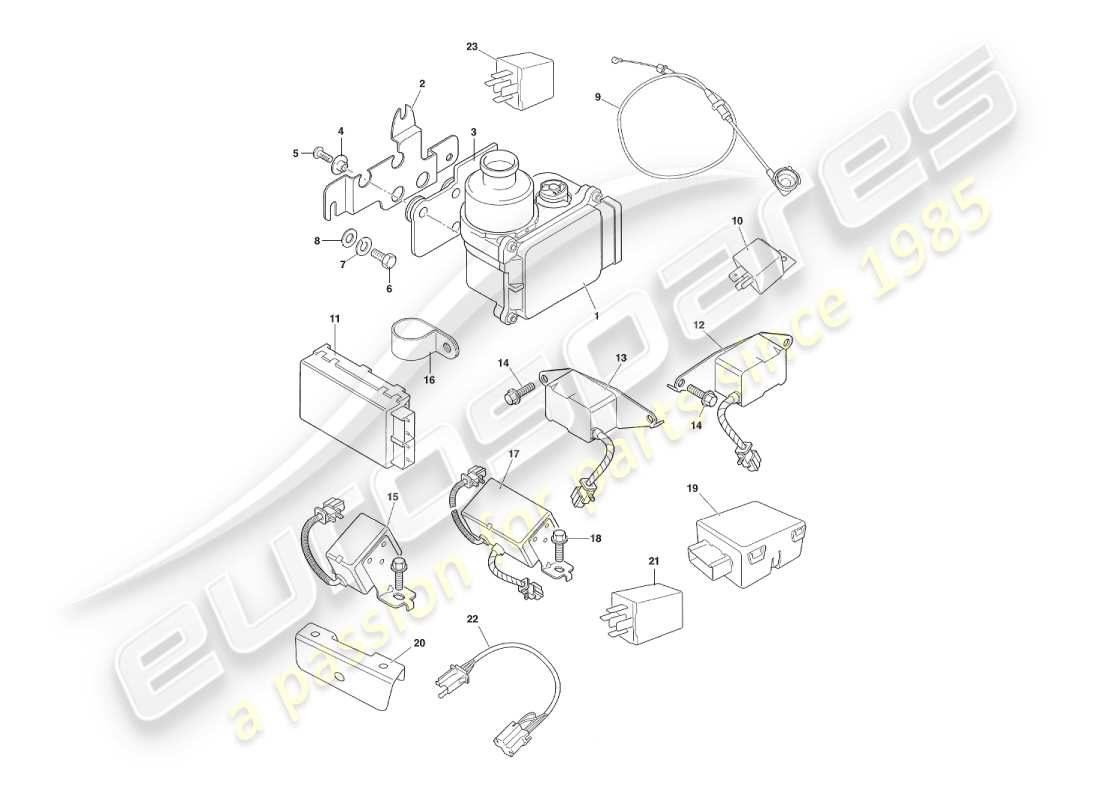

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 37-62684
                    CRUISE CONTROL UNIT, AUTOMATIC CARS
                    Up to (V) 60195
                    CRUISE CONTROL UNIT, AUTOMATIC CARS Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 37-64871
                    CRUISE CONTROL UNIT, AUTOMATIC CARS
                    From (V) 60196 Up to (V) 60224
                    from £482.27
                    from £482.27
                    CRUISE CONTROL UNIT Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 37-65223
                    CRUISE CONTROL UNIT, AUTOMATIC CARS
                    From (V) 60225
                    CRUISE CONTROL UNIT, AUTOMATIC CARS Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 37-62685
                    MOUNTING BRACKET
                    from £12.90
                    from £12.90
                    MOUNTING BRKT-C/CNTRL UNT Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 37-64047
                    ISOLATOR PAD, CRUISE CONTROL UNIT TO BRACKET
                    from £45.47
                    from £45.47
                    ISOLATOR PAD Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 37-64048
                    EYELET BUSH, CRUISE CONTROL UNIT TO BRACKET
                    from £4.36
                    from £4.36
                    EYELET Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 37-64049
                    SCREW, M6 X 20, CRUISE CONTROL UNIT TO BRACKET
                    from £1.17
                    from £1.17
                    SCREW Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 692262
                    SCREW, M6 X 12, BRACKET TO WHEELARCH
                    from £0.47
                    from £0.47
                    SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 692046
                    WASHER, SPRING, M6, BRACKET TO WHEELARCH
                    from £0.47
                    from £0.47
                    WASHER M6 SPRING Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 692056
                    WASHER, PLAIN, M6, BRACKET TO WHEELARCH
                    from £0.47
                    from £0.47
                    WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 08-62683
                    CABLE, CRUISE CONTROL
                    See also Section 2.1
                    from £120.40
                    from £120.40
                    CBL CRUISE CONTROL Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 37-62989
                    RELAY, ELECTRIC FANS
                    from £37.98
                    from £37.98
                    RELAY Genuine Aston Martin - New (to order)
                    # -
                    -
                    SCREW, NYLON, M5 X 12
                    # -
                    -
                    WASHER, NYLON, M5
                    # 11
                    MPN: 37-64157
                    Diagnostic module electronic control unit
                    Driver's air-bag
                    Diagnostic module electronic control unit Genuine Aston Martin - New (to order)
                    # -
                    -
                    NYLON NUT
                    Driver's air-bag
                    # -
                    -
                    SCREW, M5 X 12
                    Driver's air-bag
                    # 12
                    MPN: 37-63028
                    SENSOR, OUTER, RH
                    Driver's air-bag
                    from £103.32
                    from £103.32
                    SENSOR OUTER RH Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 37-63029
                    SENSOR, OUTER, LH
                    Driver's air-bag
                    from £103.32
                    from £103.32
                    SENSOR OUTER LH Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 696296
                    SCREW, M6 X 20, DURLOC SENSORS TO BUMPER TUBES
                    Driver's air-bag
                    from £2.26
                    from £2.26
                    SCREW M6 X20 DURLOCK Genuine Aston Martin - New (to order)
                    # 15
                    MPN: 37-62276
                    SENSOR, CENTRE FRONT
                    Driver's air-bag
                    from £177.85
                    from £177.85
                    SENSOR A/BAG CTR FRONT Genuine Aston Martin - New (to order)
                    # 16
                    MPN: 693363
                    CABLE CLAMP, NYLON, SENSOR TO FAN COWL
                    Driver's air-bag
                    from £0.47
                    from £0.47
                    CBL-CLAMP 19.0 NYLON Genuine Aston Martin - New (to order)
                    # -
                    -
                    SPACER, SENSOR TO FAN COWL
                    Driver's air-bag
                    # -
                    -
                    SCREW, PK, NO.8 X 5/8, SENSOR TO FAN COWL
                    Driver's air-bag
                    # -
                    -
                    SCREW, M6 X 12, DURLOC SENSOR TO RADIATOR TOP PANEL
                    Driver's air-bag
                    # 17
                    MPN: 37-62277
                    SENSOR, TUNNEL
                    Driver's air-bag
                    from £446.70
                    from £446.70
                    SENSOR AIRBAG-TUNNEL Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 696296
                    SCREW, M6 X 20, DURLOC SENSOR TO TUNNEL
                    Driver's air-bag
                    from £2.26
                    from £2.26
                    SCREW M6 X20 DURLOCK Genuine Aston Martin - New (to order)
                    # -
                    -
                    LABEL, AIR BAG WARNING UNDER BONNET
                    Driver's air-bag
                    # -
                    -
                    LABEL, AIR BAG WARNING DRIVER'S SUNVISOR
                    Driver's air-bag
                    # -
                    -
                    WIPER DELAY UNIT
                    # 19
                    MPN: 37-74078
                    WIPER DELAY UNIT
                    From May 1995
                    from £466.74
                    from £466.74
                    WIPER CONTROL MODULE Genuine Aston Martin - New (to order)
                    # 20
                    MPN: 37-62680
                    MOUNTING BRACKET, WIPER DELAY UNIT
                    from £7.02
                    from £7.02
                    MOUNTING BRACKET WPR DLY UNT Genuine Aston Martin - New (to order)
                    # 21
                    MPN: 37-64697
                    DELAY UNIT, HOT RESTART
                    From July 1994
                    DELAY UNIT, HOT RESTART Genuine Aston Martin - New (to order)
                    # 21
                    MPN: 37-56365
                    DELAY UNIT, HOT RESTART
                    From (V) 60230
                    from £25.19
                    from £25.19
                    DELAY UNIT MODIFIED Genuine Aston Martin - New (to order)
                    # 22
                    MPN: 37-56364
                    LEAD
                    From (V) 60230
                    from £58.17
                    from £58.17
                    DELAY UNIT LINK Genuine Aston Martin - New (to order)
                    # 23
                    MPN: 37-64692
                    RELAY, CHANGE OVER, AC CLUTCH DELAY
                    From July 1994
                    Relay, change over, hot start Genuine Aston Martin - New (to order)
                    # -
                    -
                    SCREW, M5 X 12, DELAY AND RELAY ATTACH
                    From July 1994
                    # -
                    -
                    WASHER, SPRF, M5, DELAY AND RELAY ATTACH
                    From July 1994
                    # -
                    -
                    WASHER, PLAIN, M5, DELAY AND RELAY ATTACH
                    From July 1994
                    # -
                    -
                    NUT, M5, DELAY AND RELAY ATTACH
                    From July 1994
