7.4A - Doors, Saloon

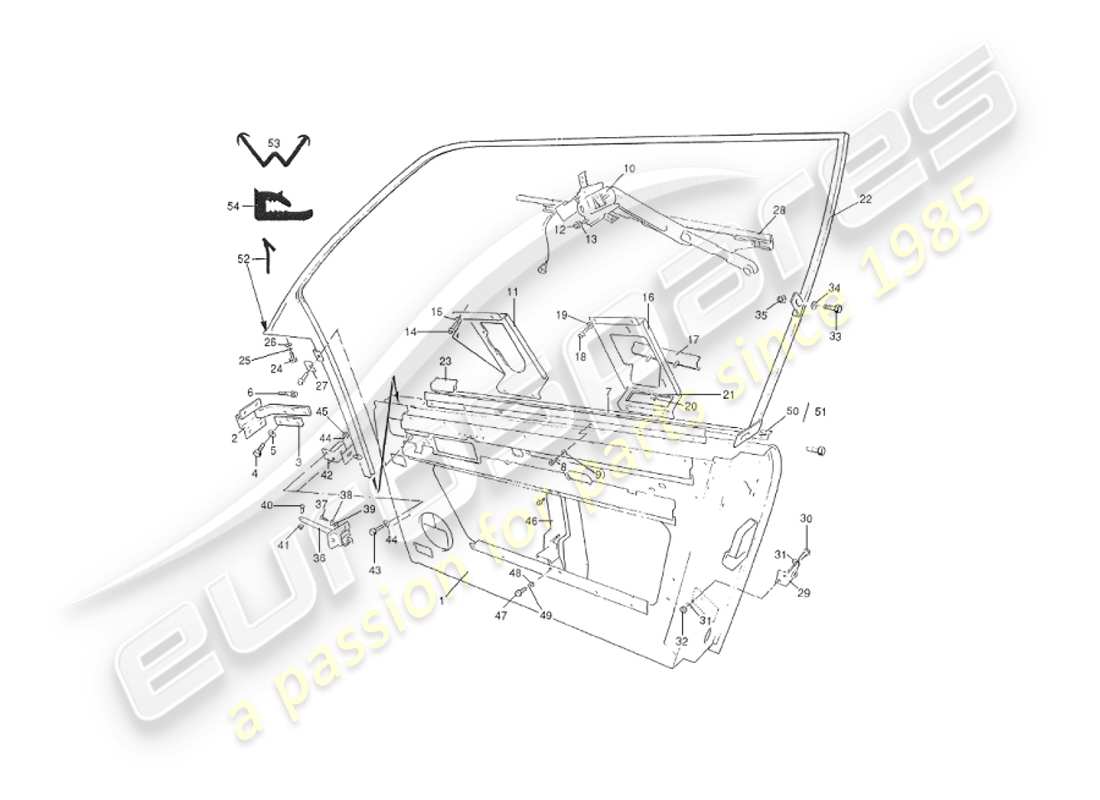

Aston Martin V8 Virage (2000) Doors, Saloon Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 65-50632
DOOR STRUCTURE ASSEMBLY - RH
from £721.02
from £721.02
# 1
MPN: 65-50633
DOOR STRUCTURE ASSEMBLY - LH
from £721.02
from £721.02
# 2
MPN: 65-22136
Door hinge assembly - RH
Early cars
# 2
MPN: 65-22137
Door hinge assembly - LH
Early cars
# 2
MPN: 65-55496
Door hinge assembly - RH
Later cars
from £239.66
from £239.66
# 2
MPN: 65-55497
Door hinge assembly - LH
Later cars
from £239.66
from £239.66
# 3
MPN: 65-11309
REINFORCEMENT, HINGE PLATE
from £2.05
from £2.05
# 4
MPN: 575-000-0507
BOLT, 5/16 UNF X 7/8, HINGES TO DOORS
Early cars
from £8.47
from £8.47
# 5
MPN: 591-000-0205
WASHER, SPRING, 5/16, HINGES TO DOORS
Early cars
from £0.47
from £0.47
# 6
MPN: 694033
SCREW, M8 X 20 - FLANGED HEAD, HINGES TO DOORS
Later cars
from £3.94
from £3.94
# 6
MPN: 694033
SCREW, M8 X 20 - FLANGED HEAD, HINGES TO 'A' POSTS
from £3.94
from £3.94
# -
-
SPACER, DOOR HINGE, 3 MM THICK, HINGES TO 'A' POSTS
# 7
MPN: 65-53754
MOUNTING STRIP, INNER WEATHER SEAL - RH
# 7
MPN: 65-53755
MOUNTING STRIP, INNER WEATHER SEAL - LH
# 8
MPN: 692242
SCREW, M5 X 12
from £0.47
from £0.47
# 9
MPN: 692045
WASHER, SPRING, M5
from £0.47
from £0.47
# 10
MPN: 65-53708
Window regulator - RH
from £695.01
from £695.01
# 10
MPN: 65-53709
Window regulator - LH
from £695.01
from £695.01
# 11
MPN: 65-50466
BRACKET ASSEMBLY, WINDOW MOTOR - RH
from £82.28
from £82.28
# 11
MPN: 65-50465
BRACKET ASSEMBLY, WINDOW MOTOR - LH
from £82.28
from £82.28
# 12
MPN: 692076
NUT, M6
Regulator to bracket
from £0.47
from £0.47
# 13
MPN: 692046
WASHER, SPRING, M6
Regulator to bracket
from £0.47
from £0.47
# 14
MPN: 692242
SCREW, M5 X 12
Regulator to Door
from £0.47
from £0.47
# 15
MPN: 692045
WASHER, SPRING, M5
Regulator to Door
from £0.47
from £0.47
# 16
MPN: 65-50730
MOUNTING BRACKET, GUIDE CHANNEL - RH
from £42.43
from £42.43
# 16
MPN: 65-50731
MOUNTING BRACKET, GUIDE CHANNEL - LH
from £42.43
from £42.43
# 17
MPN: 65-50605
GUIDE CHANNEL
from £94.40
from £94.40
# 18
MPN: 692090
SCREW, M5 X 12
Bracket to door
from £0.47
from £0.47
# 19
MPN: 692045
WASHER, SPRING, M5
from £0.47
from £0.47
# 20
MPN: 692800
NUT, NYLOC, M5
Guide channel to bracket
from £0.47
from £0.47
# 21
MPN: 692055
WASHER, PLAIN, M5
from £0.47
from £0.47
# 22
MPN: 65-50728
DOOR GLASS FRAME - RH
from £1,014.11
from £1,014.11
# 22
MPN: 65-50729
DOOR GLASS FRAME - LH
from £1,014.11
from £1,014.11
# 22
MPN: 76-50140
DOOR GLASS, TINTED - RH
from £313.69
from £313.69
# 22
MPN: 76-50141
DOOR GLASS, TINTED - LH
from £313.69
from £313.69
# -
-
GLAZING STRIP
# 23
MPN: 694871
WAIST SEAL, DOOR GLASS, INNER
from £18.84
from £18.84
# 24
MPN: 692088
SCREW, M6 X 16
from £0.47
from £0.47
# 25
MPN: 692046
WASHER, SPRING, M6
from £0.47
from £0.47
# 26
MPN: 692056
WASHER, PLAIN, M6
from £0.47
from £0.47
# 27
MPN: 66-19150
PACKING SPACER - 10G
from £2.05
from £2.05
# 27
MPN: 66-19151
PACKING SPACER - 16G
from £2.05
from £2.05
# 28
MPN: 65-50606
LIFT CHANNEL, DOOR GLASS - RH
from £77.10
from £77.10
# 28
MPN: 65-50607
LIFT CHANNEL, DOOR GLASS - LH
from £77.10
from £77.10
# 29
MPN: 65-50717
SUPPORT BRACKET, WINDOW FRAME - REAR
# 30
MPN: 692242
SCREW M5 X 12
from £0.47
from £0.47
# 31
MPN: 692055
WASHER, PLAIN, M5
from £0.47
from £0.47
# 32
MPN: 692800
NUT, NYLOC, M5
from £0.47
from £0.47
# 33
MPN: 692089
SCREW, M8 X 16
from £0.47
from £0.47
# 34
MPN: 692057
WASHER, PLAIN, M8
from £0.47
from £0.47
# 35
MPN: 692135
NUT, M8
from £0.94
from £0.94
# 36
MPN: 66-11897
DOOR CHECK STRAP
# -
-
PACKING, CHECK STRAP
Check strap to door
# 37
MPN: 692215
SCREW, M5 X 20
Check strap to door
from £0.47
from £0.47
# 38
MPN: 692065
WASHER, SHAKEPROOF, M5
Check strap to door
from £0.47
from £0.47
# 39
MPN: 122422
WASHER, PLAIN, 2BA
Check strap to door
from £0.47
from £0.47
# 40
MPN: 695336
CLEVIS PIN
from £1.15
from £1.15
# 41
MPN: 692300
SPIRE NUT
Clevis pin retaining
from £2.53
from £2.53
# 42
MPN: 65-52424
SUPPORT BRACKET, WINDOW - RH
from £1.83
from £1.83
# 42
MPN: 65-52425
SUPPORT BRACKET, WINDOW - LH
from £1.83
from £1.83
# 43
MPN: 692213
SCREW, M8 X 12
Window support bracket
from £0.79
from £0.79
# 44
MPN: 692057
WASHER, PLAIN M8
Window support bracket
from £0.47
from £0.47
# 45
MPN: 692135
NUT, NYLOC, M8
Window support bracket
from £0.94
from £0.94
# -
-
SCREW, M8 X 16
Window support bracket
# -
-
WASHER, PLAIN, M8
Window support bracket
# -
-
NUT, NYLOC, M8
Window support bracket
# 46
MPN: 65-54157
BRACKET, DOOR PULL
from £73.64
from £73.64
# 47
MPN: 692287
BOLT, M5 X 30
from £0.94
from £0.94
# 48
MPN: 692055
WASHER, PLAIN, M5
from £0.47
from £0.47
# 49
MPN: 692065
WASHER, SHAKEPROOF, M5
from £0.47
from £0.47
# 50
MPN: 65-50738
SEALING BLOCK, SIDE RH
Make from 694349
from £0.47
from £0.47
# 50
MPN: 65-50739
SEALING BLOCK, SIDE LH
Make from 694349
from £0.47
from £0.47
# 50
MPN: 65-50740
SEALING BLOCK, REAR RH
Make from 694349
from £0.47
from £0.47
# 50
MPN: 65-50741
SEALING BLOCK, REAR LH
Make from 694349
from £14.27
from £14.27
# 51
MPN: 65-11313
WEATHERSTRIP
from £16.70
from £16.70
# 52
MPN: 77-18300
WAIST SEAL, DOOR GLASS
from £38.61
from £38.61
# 53
MPN: 694093
CHANNEL, DOOR GLASS RUN
2 metre rear, 4 metre forward
from £22.02
from £22.02
# 54
MPN: 77-52036
WAIST SEAL
from £14.69
from £14.69
# -
-
DOOR PAD CLIPS - MALE
# -
-
DOOR PAD CLIPS - FEMALE
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (2000) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (2000) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (2000) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (2000) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (2000) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (2000) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (2000) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (2000) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (2000) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (2000) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INLET MANIFOLDS & PLENUM PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (2000) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (2000) TORQUE CONVERTER, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043 TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR, GEAROX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (2000) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (2000) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
