aston martin v8 virage (2000) weather seals, volante parts diagram

7.4D - Weather Seals, Volante

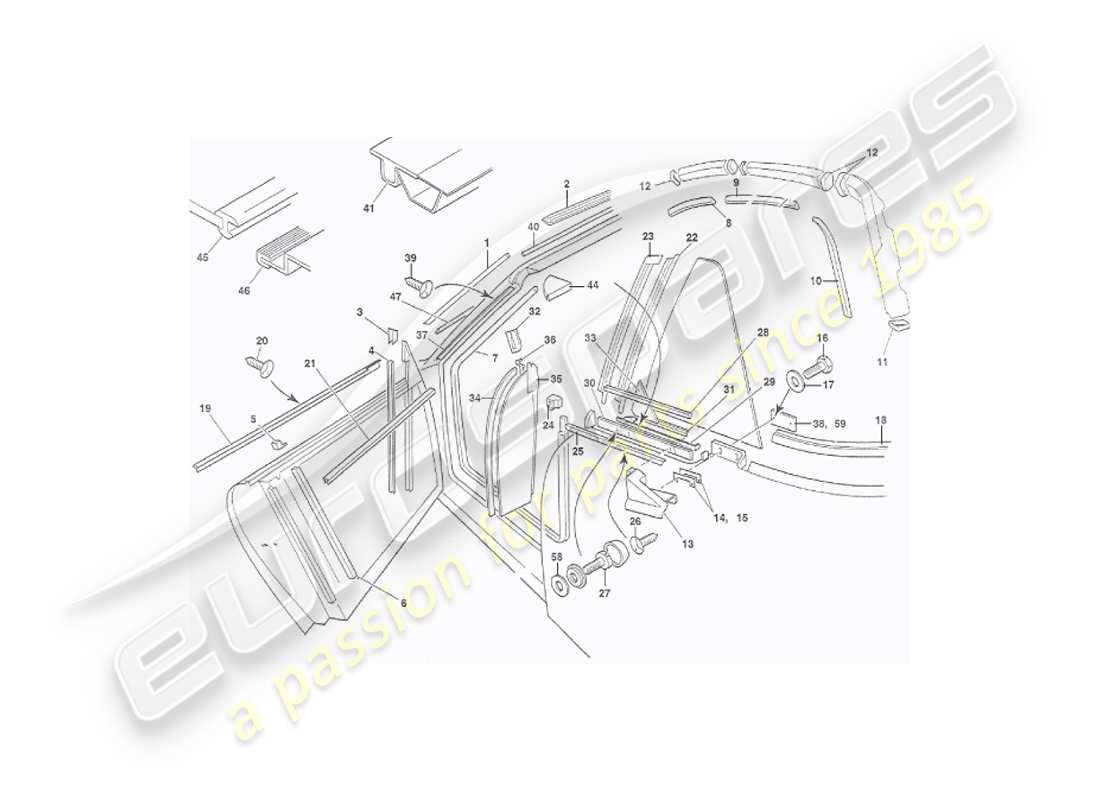

Aston Martin V8 Virage (2000) Weather Seals, Volante Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 77-62784
Seal 'A' post, RH
Made from 77-60351
Seal 'A' post, RH Genuine Aston Martin - New (to order)
# 1
MPN: 77-62875
Seal 'A' post, LH
Made from 77-60351
Seal 'A' post, LH Genuine Aston Martin - New (to order)
# 2
MPN: 77-60065
SEAL, HEADER RAIL
Made from 77-62815
SEAL, HEADER RAIL Genuine Aston Martin - New (to order)
# 3
MPN: 77-63014
MOULDING INSERT, CHEATER PANEL, RH
from £144.19
from £144.19
MOULDING INSERT-RH Genuine Aston Martin - New (to order)
# 3
MPN: 77-63015
MOULDING INSERT, CHEATER PANEL, LH
from £144.19
from £144.19
MOULDING INSERT-LH Genuine Aston Martin - New (to order)
# -
-
SEAL SUPPORT RUBBER, 10 X 290 LONG
Made from 691886
# 4
MPN: 77-61238
GLASS RUN CHANNEL, FORWARD
Made from 694093
GLASS RUN CHNNL FWD Genuine Aston Martin - New (to order)
# 5
MPN: 77-61262
MOULDING, DOOR WAIST END CAPPING, RH
from £133.58
from £133.58
MOULDING Genuine Aston Martin - New (to order)
# 5
MPN: 77-61263
MOULDING, DOOR WAIST END CAPPING, LH
from £130.98
from £130.98
MOULDING Genuine Aston Martin - New (to order)
# 6
MPN: 77-61239
GLASS RUN CHANNEL, REAR
Made from 694093
GLASS RUN CHNNL-REAR Genuine Aston Martin - New (to order)
# -
-
WEATHER SEAL, DOOR
Made from 77-62064
# 7
MPN: 77-60058
SEAL, CANTRAIL FRONT, RH
SEAL, CANTRAIL FRONT, RH Genuine Aston Martin - New (to order)
# 7
MPN: 77-60059
Seal, cantrail front, LH
Seal, cantrail front, LH Genuine Aston Martin - New (to order)
# 8
MPN: 77-62064
SEAL, CANTRAIL REAR, RH
from £29.71
from £29.71
SEAL Genuine Aston Martin - New (to order)
# 8
MPN: 77-62064
SEAL, CANTRAIL REAR, LH
from £29.71
from £29.71
SEAL Genuine Aston Martin - New (to order)
# 9
MPN: 77-60094
Seal, 'C' post, RH
Seal, 'C' post, RH Genuine Aston Martin - New (to order)
# 10
MPN: 77-60095
Seal, 'C' post, LH
Seal, 'C' post, LH Genuine Aston Martin - New (to order)
# 11
MPN: 77-62031
CAPPING SEAL END
from £1.57
from £1.57
CAPPING-END CANTRAIL Genuine Aston Martin - New (to order)
# 12
MPN: 77-62028
MOULDING, 'C' POST ASSY, RH
from £511.16
from £511.16
MLDNG `C' PST ASSEMBLY RH Genuine Aston Martin - New (to order)
# 13
MPN: 77-62029
MOULDING, 'C' POST ASSY, LH
from £511.16
from £511.16
MLDNG `C' PST ASSEMBLY LH Genuine Aston Martin - New (to order)
# 14
MPN: 77-61822
PACKER, 'C' POST MOULDING
from £25.22
from £25.22
PACKER `C PST MLDNG Genuine Aston Martin - New (to order)
# -
-
CLAMP PLATE
# 15
MPN: 77-61823
PACKER, 'C' POST MOULDING
from £25.22
from £25.22
PACKER `C PST MLDNG Genuine Aston Martin - New (to order)
# 16
MPN: 696789
SCREW, M5 X 20
from £2.32
from £2.32
SCREW M5 X 20 HEX HD Genuine Aston Martin - New (to order)
# 17
MPN: 696784
WASHER PLAIN, M5
from £0.47
from £0.47
WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
# 18
MPN: 77-61240
SEAL, REAR DECK
Made from 77-64005
SEAL - REAR DECK Genuine Aston Martin - New (to order)
# 19
MPN: 77-61715
OUTER WAIST BELT FINISHER, DOOR GLASS, RH
from £17.63
from £17.63
OUTER W/BLT FNR-DR 1.2 Genuine Aston Martin - New (to order)
# 19
MPN: 77-61715
OUTER WAIST BELT FINISHER, DOOR GLASS, LH
from £17.63
from £17.63
OUTER W/BLT FNR-DR 1.2 Genuine Aston Martin - New (to order)
# 20
MPN: 696338
SCREW, NO 4 X 1/2
Or rivet 582-000-2829
from £0.47
from £0.47
SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
# 21
MPN: 694871
INNER WAIST BELT FINISHER, DOOR GLASS
from £18.84
from £18.84
DRAFTX STRIP 21-3227 Genuine Aston Martin - New (to order)
# 22
MPN: 77-62006
Seal carrier, door glass/quarter glass, RH
Made from 77-61246
from £71.31
from £71.31
CARR SEAL-DOOR GLASS Genuine Aston Martin - New (to order)
# 22
MPN: 77-62007
Seal carrier, door glass/quarter glass, LH
Made from 77-61247
from £58.44
from £58.44
CARR SEAL-DOOR GLASS Genuine Aston Martin - New (to order)
# 23
MPN: 77-61248
Seal, door glass/quarter glass, RH
Made from 77-66108
from £157.38
from £157.38
SEAL-DR GLS/QTR GLS Genuine Aston Martin - New (to order)
# 23
MPN: 77-61249
Seal, door glass/quarter glass, LH
Made from 77-66109
from £128.93
from £128.93
SEAL-DR GLS/QTR GLS Genuine Aston Martin - New (to order)
# 24
MPN: 77-61258
MOULDING, 'B' POST CAPPING, RH
from £198.79
from £198.79
MLDNG `B' PST CAP RH Genuine Aston Martin - New (to order)
# 24
MPN: 77-61259
MOULDING, 'B' POST CAPPING, LH
from £198.79
from £198.79
MLDNG `B' PST CAP LH Genuine Aston Martin - New (to order)
# 25
MPN: 77-61715
OUTER WAIST BELT FINISHER, QUARTER GLASS, RH
from £17.63
from £17.63
OUTER W/BLT FNR-DR 1.2 Genuine Aston Martin - New (to order)
# 25
MPN: 77-61715
OUTER WAIST BELT FINISHER, QUARTER GLASS, LH
from £17.63
from £17.63
OUTER W/BLT FNR-DR 1.2 Genuine Aston Martin - New (to order)
# 26
MPN: 696338
SCREW, NO 4 X 1/2
from £0.47
from £0.47
SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
# 27
MPN: 696923
SCREW, M4 X 20, BLACK NYLON
from £1.07
from £1.07
SCREW M4X20 BLACK Genuine Aston Martin - New (to order)
# -
-
CAP, SCREW PROTECTION
# -
-
WASHER, SCREW PROTECTION
# -
-
INNER WAIST BELT FINISHER, QUARTER GLASS, RH
Made from 77-62001
# -
-
INNER WAIST BELT FINISHER, QUARTER GLASS, LH
Made from 77-62001
# 28
MPN: 94-61526
RAIL, SEAL CARRIER, QUARTER GLASS, RH
from £8.70
from £8.70
RAIL SEAL CARRIER RH Genuine Aston Martin - New (to order)
# 29
MPN: 94-61527
RAIL, SEAL CARRIER, QUARTER GLASS, LH
from £8.70
from £8.70
RAIL SEAL CARRIER LH Genuine Aston Martin - New (to order)
# 30
MPN: 94-61528
SEAL CARRIER, RH
SEAL CARRIER, RH Genuine Aston Martin - New (to order)
# 30
MPN: 94-61529
SEAL CARRIER, LH
SEAL CARRIER, LH Genuine Aston Martin - New (to order)
# 31
MPN: 94-62312
SUPPORT, UPPER TRIM, QUARTER LIGHT, RH
from £13.99
from £13.99
SPT UPPER TRIM RH Q/LGT Genuine Aston Martin - New (to order)
# 31
MPN: 94-62313
SUPPORT, UPPER TRIM, QUARTER LIGHT, LH
from £13.99
from £13.99
SPT UPPER TRIM LH Q/LGT Genuine Aston Martin - New (to order)
# -
-
SEAL, INFILL PANEL, 'B' POST
# 32
MPN: 77-66108
BLANKING PLATE, QUARTER LIGHT GLASS, RH
from £3.51
from £3.51
BLANKING PLATE Genuine Aston Martin - New (to order)
# 33
MPN: 77-66109
BLANKING PLATE, QUARTER LIGHT GLASS, LH
from £3.51
from £3.51
BLANKING PLATE Genuine Aston Martin - New (to order)
# 34
MPN: 696093
EDGE FINISHER RUBBER
from £18.37
from £18.37
RUBBER -EDGE FINISHR Genuine Aston Martin - New (to order)
# 35
MPN: 77-62564
Panel assy, 'B' post finisher, RH
PANEL ASSEMBLY 'B' POST FINISHER, RH Genuine Aston Martin - New (to order)
# 35
MPN: 77-62565
Panel assy, 'B' post finisher, LH
PANEL ASSEMBLY 'B' POST FINISHER, LH Genuine Aston Martin - New (to order)
# 36
MPN: 77-62536
RUBBER, EDGE FINISHER
Made from 693770
RUBBER, EDGE FINISHER Genuine Aston Martin - New (to order)
# 37
MPN: 77-63072
FINISHER, SCREEN PILLAR, RH
Made from 77-62743
from £90.00
from £90.00
SCRN PILLAR FINISHER Genuine Aston Martin - New (to order)
# 37
MPN: 77-63073
Finisher, screen pillar, LH
Made from 77-62743
Finisher, screen pillar, LH Genuine Aston Martin - New (to order)
# 38
MPN: 77-62816
SPACER, CLAMP PLATE
from £12.43
from £12.43
SPACER - CLAMP PLATE Genuine Aston Martin - New (to order)
# 39
MPN: 692359
SCREW, CSK, NO 4 X 5/16
from £0.47
from £0.47
SCREW NO4 X 5/16 Genuine Aston Martin - New (to order)
# 40
MPN: 77-62346
SEAL, HEADER FINISHER
Made from 77-62599
SEAL, HEADER FINISHER Genuine Aston Martin - New (to order)
# 40
MPN: 77-64084
SEAL, HEADER POKE
Made from 77-62064
from £44.60
from £44.60
SEAL-HEADER POKE Genuine Aston Martin - New (to order)
# 41
MPN: 78-63084
CAPPING, 'A' POST, RH
from £9.03
from £9.03
CAPPING `A' POST RH Genuine Aston Martin - New (to order)
# 41
MPN: 78-63085
CAPPING 'A' POST, LH
from £9.03
from £9.03
CAPPING-`A' POST LH Genuine Aston Martin - New (to order)
# 44
MPN: 694579
DOUBLE SIDED ADHESIVE TAPE
ADHESIVE TAPE Genuine Aston Martin - New (to order)
# 45
MPN: 77-65668
SEAL, WINDSCREEN FINISHER
SEAL, WINDSCREEN FINISHER Genuine Aston Martin - New (to order)
# 46
MPN: 77-52043
MASTIC RETENTION DAM
MASTIC RETENTION DAM Genuine Aston Martin - New (to order)
# 47
MPN: 77-52045
Damming strip, lower screen rail
Damming strip, lower screen rail Genuine Aston Martin - New (to order)
# 59
MPN: 77-62699
CLAMP PLATE
from £47.23
from £47.23
CLAMP PLATE Genuine Aston Martin - New (to order)
# -
-
EDGE TRIM, BLACK RUBBER
# -
-
STONEGUARD, SPOILER, RH
# -
-
STONEGUARD, SPOILER, LH
# -
-
STONEGUARD, QUARTER LIGHT RECESS COVER
# -
-
SEAL STRIP, REAR SCREEN
# -
-
CHANNEL, GLASS RUN
# -
-
WEATHER STRIP
# -
-
OUTER W/BELT FINISHER, DOOR
# -
-
H SECTION, REAR GLASS
# -
-
MASTIC RETENTION DAM
