aston martin v8 virage (2000) body, bonnet parts diagram

7.6 - Body, Bonnet

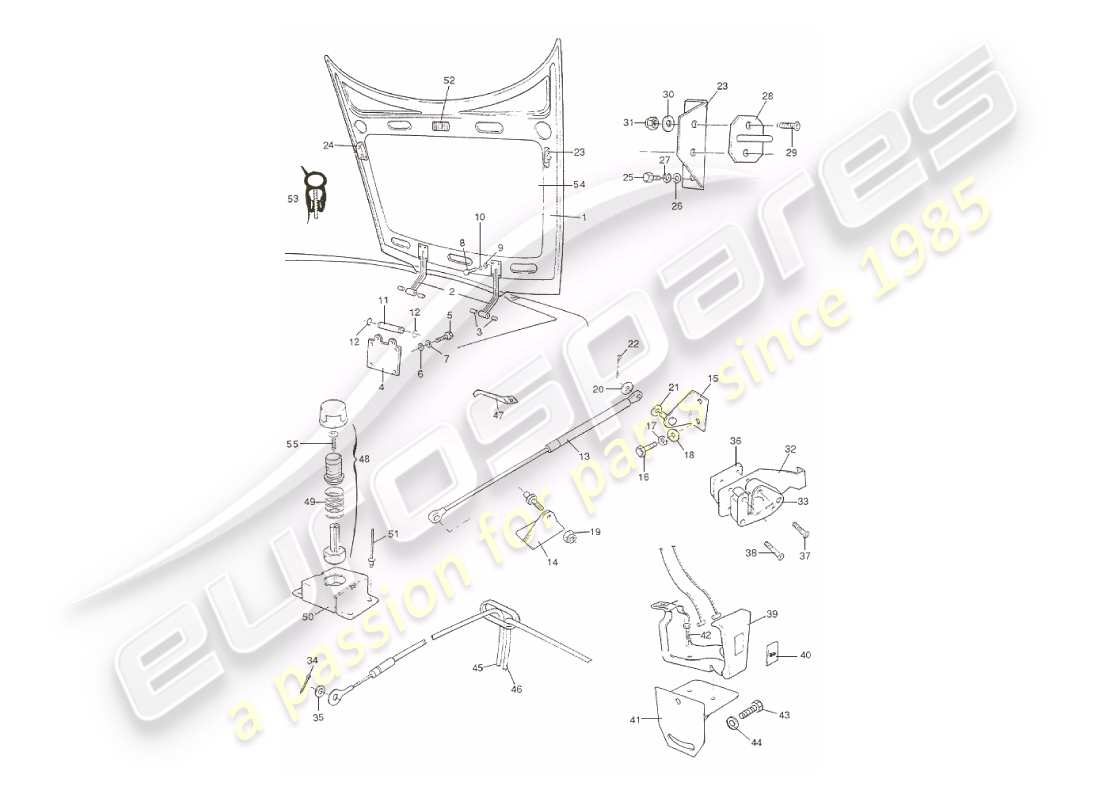

Aston Martin V8 Virage (2000) Body, Bonnet Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 64-54696
BONNET ASSEMBLY
from £9,183.64
from £9,183.64
ASSY-BONNET IN WHITE Genuine Aston Martin - New (to order)
# -
-
INSULATION PAD
# 2
MPN: 64-53483
PIVOT ARM ASSEMBLY, BONNET
from £133.83
from £133.83
ASSEMBLY PIVOT ARM-BONNET Genuine Aston Martin - New (to order)
# 3
MPN: 64-51563
BEARING INSERT
from £11.81
from £11.81
BRG INSERT-HINGE ASSEMBLY Genuine Aston Martin - New (to order)
# 4
MPN: 64-51600
Hinge pivot bracket assembly
Hinge pivot bracket assembly Genuine Aston Martin - New (to order)
# 5
MPN: 692091
CAPSCREW, M6 X 20
from £0.96
from £0.96
SCREW M6X20 SOCKET CAP Genuine Aston Martin - New (to order)
# 6
MPN: 692056
WASHER, PLAIN M6
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 7
MPN: 692046
WASHER, SPRING M6
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 8
MPN: 692129
SCREW, M8 X 25
Pivot arm to bonnet
from £0.59
from £0.59
SCREW M8 X 25 HEX HD Genuine Aston Martin - New (to order)
# 9
MPN: 692057
WASHER, PLAIN M8
Pivot arm to bonnet
from £0.47
from £0.47
WASHER M8 PLAIN Genuine Aston Martin - New (to order)
# 10
MPN: 692047
WASHER, SPRING M8
Pivot arm to bonnet
from £0.47
from £0.47
WASHER M8 SPRING Genuine Aston Martin - New (to order)
# 11
MPN: 64-51564
PIVOT PIN
from £8.70
from £8.70
PIVOT PIN-HINGE ASSEMBLY Genuine Aston Martin - New (to order)
# 12
MPN: 694304
CIRCLIP
Pivot pin retaining
from £0.47
from £0.47
CIRCLIP M8 EXT Genuine Aston Martin - New (to order)
# 13
MPN: 64-51574
GAS STRUT
GAS STRUT Genuine Aston Martin - New (to order)
# 13
MPN: 64-64626
GAS STRUT
Volante, from (V) 60167
from £167.68
from £167.68
GAS STRUT-BONNET Genuine Aston Martin - New (to order)
# 14
MPN: 19-51560
Bracket, gas strut (chassis)
from £11.59
from £11.59
G/STRT BRACKET ASSEMBLY CHSS Genuine Aston Martin - New (to order)
# 15
MPN: 64-52562
BRACKET, GAS STRUT (BONNET)
from £46.58
from £46.58
ASSEMBLY BRACKET GAS STRUT Genuine Aston Martin - New (to order)
# 16
MPN: 692088
SCREW, M6 X 16
Bracket to bonnet
from £0.47
from £0.47
SCREW, FIG, M6X16 Genuine Aston Martin - New (to order)
# 17
MPN: 692056
WASHER, PLAIN M6
Bracket to bonnet
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 18
MPN: 692045
WASHER, SPRING M6
Bracket to bonnet
from £0.47
from £0.47
WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
# 19
MPN: 692135
NUT, NYLOC M8
Gas strut to brackets
from £0.94
from £0.94
NUT M8 HEX SLK Genuine Aston Martin - New (to order)
# 20
MPN: 692057
WASHER, PLAIN M8
Gas strut to brackets
from £0.47
from £0.47
WASHER M8 PLAIN Genuine Aston Martin - New (to order)
# 21
MPN: 690217
WASHER, WAVY 5/16
Gas strut to brackets
from £0.94
from £0.94
WASHER 5/16 WAVY Genuine Aston Martin - New (to order)
# 22
MPN: 119520
SPLIT PIN 1/16 X 1/2
Gas strut to brackets
from £2,055.07
from £2,055.07
Split pin, 1/16 x 1/2 Genuine Aston Martin - New (to order)
VALVE Genuine Ferrari Part - New (to order)
# 23
MPN: 64-51552
STRIKER BRACKET, RH
STRIKER BRACKET, RH Genuine Aston Martin - New (to order)
# 23
MPN: 64-65060
STRIKER BRACKET, RH
Volante
STRIKER BRACKET, RH Genuine Aston Martin - New (to order)
# 24
MPN: 64-51553
STRIKER BRACKET, LH
STRIKER BRACKET, LH Genuine Aston Martin - New (to order)
# 24
MPN: 64-65061
STRIKER BRACKET, LH
Volante
STRIKER BRACKET, LH Genuine Aston Martin - New (to order)
# 25
MPN: 692088
SCREW, M6 X 16
from £0.47
from £0.47
SCREW, FIG, M6X16 Genuine Aston Martin - New (to order)
# 26
MPN: 692056
WASHER, PLAIN M6
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 27
MPN: 692046
WASHER, SPRING M6
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 28
MPN: 64-25926
STRIKER, BONNET
from £10.31
from £10.31
STRIKER BONNET Genuine Aston Martin - New (to order)
# 29
MPN: 694040
SCREW, M6 X 16
Striker to bracket
SCREW, M6 X 16 Genuine Aston Martin - New (to order)
# 30
MPN: 692056
WASHER, PLAIN M6
Striker to bracket
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 31
MPN: 692151
NUT, NYLOC M6
Striker to bracket
from £0.54
from £0.54
NUT M6 HEX SLK Genuine Aston Martin - New (to order)
# 32
MPN: 64-52958
BRACKET, BONNET RELEASE CABLE, RH
from £9.98
from £9.98
BRACKET CABLE RH Genuine Aston Martin - New (to order)
# 32
MPN: 64-52959
BRACKET, BONNET RELEASE CABLE, LH
from £15.99
from £15.99
BRACKET CABLE LH Genuine Aston Martin - New (to order)
# 33
MPN: 64-54906
BONNET LATCH, RH
from £68.77
from £68.77
DISC LATCH MOD'FD-RH Genuine Aston Martin - New (to order)
# 33
MPN: 64-54907
BONNET LATCH, LH
from £75.43
from £75.43
DISC LATCH MOD FD-LH Genuine Aston Martin - New (to order)
# 33
MPN: 64-55208
BONNET LATCH, RH
From (V) 50277
from £87.13
from £87.13
BONNET LATCH(MOD) RH Genuine Aston Martin - New (to order)
# 33
MPN: 64-55209
BONNET LATCH, LH
From (V) 50277
from £87.13
from £87.13
BONNET LATCH(MOD) LH Genuine Aston Martin - New (to order)
# 34
MPN: 690352
SPLIT PIN 1/16 X 3/8
BONNET LATCH
from £0.47
from £0.47
SPLIT-PIN 1/16 X 3/8 Genuine Aston Martin - New (to order)
# 35
MPN: 122422
WASHER, PLAIN 2BA
from £0.47
from £0.47
WASHER 2BA PLAIN Genuine Aston Martin - New (to order)
AIR CONDITIONING ELECTROMAGNETIC CLUTCH UNIT Genuine Ferrari Part - New (to order)
# 36
MPN: 64-11715
FIXING PLATE, BONNET RELEASE CATCH
from £27.93
from £27.93
FIXING PLATE Genuine Aston Martin - New (to order)
# 37
MPN: 692296
SCREW, M6 X 30
Latch to fixing plate
from £0.47
from £0.47
SCREW M6 X 30 COUNTERSUNK Genuine Aston Martin - New (to order)
# 38
MPN: 692766
SCREW, M6 X 35
Latch to fixing plate
from £1.15
from £1.15
SCREW M6 X 35 COUNTERSUNK HD Genuine Aston Martin - New (to order)
# 39
MPN: 64-52962
LEVER, BONNET RELEASE
from £77.90
from £77.90
LEVER-BONNET RELEASE Genuine Aston Martin - New (to order)
# 40
MPN: 64-52963
SELF ADHESIVE LABEL
from £14.87
from £14.87
LABEL-SELF ADHESIVE Genuine Aston Martin - New (to order)
# 41
MPN: 64-54051
MOUNTING BRACKET, BONNET RELEASE
from £59.83
from £59.83
ASSEMBLY M/BRKT BONNT REL Genuine Aston Martin - New (to order)
# 42
MPN: 692262
SCREW, M6 X 12
from £0.47
from £0.47
SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
# 43
MPN: 692090
SCREW, M5 X 12
from £0.47
from £0.47
SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
# 44
MPN: 692065
WASHER, SHAKEPROOF M5
from £0.47
from £0.47
WASHER M5 S/PROOF Genuine Aston Martin - New (to order)
# -
-
COVER, GRP, BONNET RELEASE LEVER, SEE SECT. 7.8A
RHD (Trimmed 83-53696)
# -
-
COVER, GRP, BONNET RELEASE LEVER, SEE SECT. 7.8A
LHD (Trimmed 83-53697)
# -
-
BLANKING COVER, LOWER' A' POST, LH, SEE SECT. 7.8A
RHD
# -
-
BLANKING COVER, LOWER' A ' POST, RH, SEE SECT. 7.8A
LHD
# -
-
SCREW, NO. 6 X 1/2, SEE SECT.7.8A
# -
-
SCREW, NO.8 X 1/2, SEE SECT. 7.8A
# 45
MPN: 64-52621
CABLE, BONNET RELEASE, LONG
Overall length 2430 mm
from £157.61
from £157.61
CBL.BONNT.REL.(LONG) Genuine Aston Martin - New (to order)
# 46
MPN: 64-52622
CABLE, BONNET RELEASE, SHORT
Overall length 1030 mm
from £150.19
from £150.19
CBL.BONNT.REL(SHORT) Genuine Aston Martin - New (to order)
# -
-
GROMMET 3/8 BORE
# 47
MPN: 069-064-0046
SPRING, BONNET LIFTER
Early cars
from £63.46
from £63.46
SPRING-BONNET LIFT Genuine Aston Martin - New (to order)
# -
-
SCREW, M5 X 12 SPRING TO BODY
Early cars
# -
-
WASHER, PLAIN, M5 SPRING TO BODY
Early cars
# -
-
NUT, NYLOC, M5 SPRING TO BODY
Early cars
# 48
MPN: 64-55197
BONNET LIFTER ASSY, DISCARD SPRING & USE ITEM 49
Later cars and Volante
from £39.85
from £39.85
BONNET LIFTER Genuine Aston Martin - New (to order)
# 49
MPN: 695380
SPRING, BONNET LIFTER
Later cars and Volante
from £8.16
from £8.16
SPRING KIT Genuine Aston Martin - New (to order)
# 50
MPN: 64-55386
HOUSING, BONNET LIFTER
Later cars and Volante
from £10.00
from £10.00
HSG - BONET LIFTER Genuine Aston Martin - New (to order)
# 50
MPN: 64-64472
HOUSING, BONNET LIFTER
From (V) 60104
from £7.71
from £7.71
HSG - BONNET LIFTER Genuine Aston Martin - New (to order)
# -
-
PLUG FLANGED, PLASTIC
Later cars
# 51
MPN: 691401
POP RIVET
Later cars
from £0.47
from £0.47
POP-RIVET 1/8 DIAMETER Genuine Aston Martin - New (to order)
# 52
MPN: 069-037-0151
BONNET LAMP
from £146.05
from £146.05
LAMP-BONNET &REVERSE Genuine Aston Martin - New (to order)
# 53
MPN: 698098
BONNET SEAL
5 mtr
Boot aperture seal Genuine Aston Martin - New (to order)
# 54
MPN: 85-51763
INSULATION PAD, BONNET
From (V) 60148
from £262.19
from £262.19
ACOUSTIC B/FM-BNTPNL Genuine Aston Martin - New (to order)
# 55
MPN: 696516
SCREW, M5 X 20, POZI
From (V) 60090
from £0.47
from £0.47
SCREW 5 X 20 POZI Genuine Aston Martin - New (to order)
