7.7A - Body, Rear

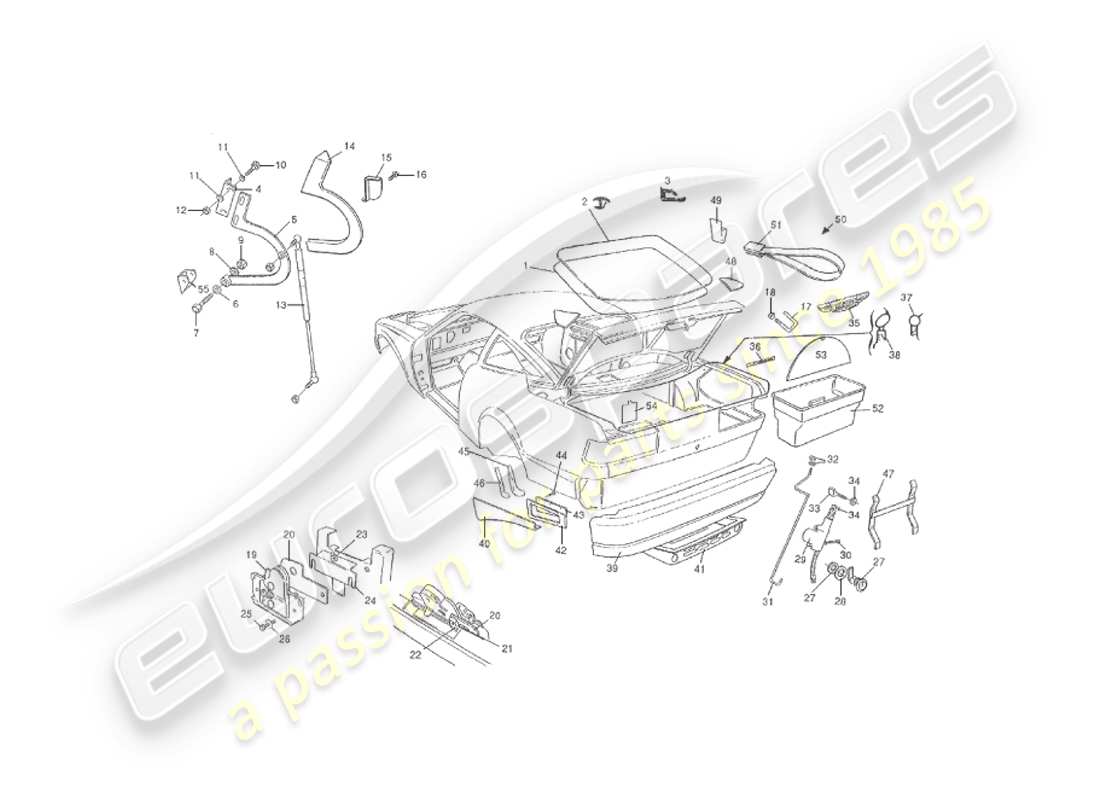

Aston Martin V8 Virage (2000) Body, Rear Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 76-50257
REAR SCREEN, HEATED, TINTED
from £1,967.09
from £1,967.09
# 1
MPN: 76-60001
REAR SCREEN
Volante
from £1,789.07
from £1,789.07
# 2
MPN: 77-52031
REAR SCREEN SEAL OUTER, 'T' SECTION
4 mtr
from £19.36
from £19.36
# 3
MPN: 77-52036
REAR SCREEN SEAL INNER
4 mtr
from £15.59
from £15.59
# -
-
ADHESIVE, RUBBER ATTACH
# -
-
PRIMER, RUBBER ATTACH
# 4
MPN: 67-52742
ANGLE BRACKET, BOOT LID PIVOT ARM, RH
from £62.26
from £62.26
# 4
MPN: 67-52743
ANGLE BRACKET, BOOT LID PIVOT ARM, LH
from £62.26
from £62.26
# -
-
WASHER, SPRING, M8
Angle brackets to boot lid frame
# -
-
WASHER, PLAIN M8
Angle brackets to boot lid frame
# -
-
Nut, plain, M8
Angle brackets to boot lid frame
# 5
MPN: 67-51430
PIVOT ARM, BOOT LID, RH
from £44.35
from £44.35
# 5
MPN: 67-51431
PIVOT ARM, BOOT LID, LH
from £44.35
from £44.35
# 6
MPN: 67-51435
PIVOT BUSH
from £6.70
from £6.70
# 7
MPN: 67-51434
SHOULDER BOLT
from £16.03
from £16.03
# 8
MPN: 692057
WASHER, PLAIN M8
from £0.47
from £0.47
# 9
MPN: 692135
NUT, NYLOC M8
from £0.99
from £0.99
# 10
MPN: 692087
SCREW, M8 X 20
Pivot arms to boot lid brackets
# 11
MPN: 692057
WASHER, PLAIN M8
Pivot arms to boot lid brackets
from £0.47
from £0.47
# 12
MPN: 692135
NUT, NYLOC M8
Pivot arms to boot lid brackets
from £0.99
from £0.99
# 13
MPN: 67-51439
GAS STRUT
from £94.28
from £94.28
# -
-
Chassis bracket, gas strut, RH
# -
-
Chassis bracket, gas strut, LH
# 14
MPN: 83-52738
COVER, PIVOT ARM, RH
Untrimmed
from £21.34
from £21.34
# 14
MPN: 83-52739
COVER, PIVOT ARM, LH
Untrimmed
from £21.34
from £21.34
# -
-
SCREW, 2BA X 5/8
Covers to pivot arms
# -
-
CUP WASHER, NO.8
Covers to pivot arms
# 15
MPN: 83-52740
Cover, gas strut, RH
Untrimmed
from £11.87
from £11.87
# 15
MPN: 83-52741
Cover, gas strut, LH
Untrimmed
from £11.87
from £11.87
# 16
MPN: 694686
SCREW, M5 X 35
Covers to pivot arm covers
# -
-
WASHER, PLAIN, M5
Covers to pivot arm covers
# -
-
SPACER
Covers to pivot arm covers
# -
-
NUT, NYLOC M5
Covers to pivot arm covers
# 17
MPN: 67-52444
STRIKER, BOOT LID LOCK
from £22.77
from £22.77
# 18
MPN: 692077
NUT, PLAIN M8
Striker to boot lid
# 19
MPN: 80-51964
BOOT LID LATCH
from £82.06
from £82.06
# 20
MPN: 61-22092
SECURITY PLATE, BOOT LID LATCH
from £10.94
from £10.94
# 21
MPN: 37-23828
MICRO SWITCH
from £19.19
from £19.19
# 22
MPN: 693773
SCREW, 8BA X 1/2, MICRO SWITCH TO SECURITY PLATE
Early cars
from £0.47
from £0.47
# -
-
Loctite', Micro switch to security plate
Early cars
# 23
MPN: 37-15429
SWITCH, BOOT LIGHT
Later cars
from £148.97
from £148.97
# 24
MPN: 37-54802
SWITCH BRACKET
from £6.54
from £6.54
# 25
MPN: 692005
SCREW, M5 X 16, BOOT LATCH, PLATE & SW BRACKET TO CHASSIS
from £0.47
from £0.47
# 26
MPN: 692045
WASHER, SPRING, M5 BOOT LATCH, PLATE & SW BRACKET TO CHASSIS
from £0.47
from £0.47
# 27
MPN: 67-23509
Boot lock and key
from £196.73
from £196.73
# 28
MPN: 61-20897
Washer, boot lock retaining
from £4.05
from £4.05
# 29
MPN: 37-52023
Motor, boot lock/unlock
from £166.93
from £166.93
# 30
MPN: 694173
SCREW, M4 X 35
Motor attach
from £0.47
from £0.47
# 31
MPN: 80-51449
ACTUATOR ROD
Boot lock to latch
from £72.93
from £72.93
# 32
MPN: 691579
NUT, M4 BRASS
Rod to latch
from £0.47
from £0.47
# 33
MPN: 80-51448
ACTUATOR ROD, MOTOR
from £23.62
from £23.62
# 34
MPN: 692074
NUT, M4
Rod to motor
from £0.47
from £0.47
# 35
MPN: 78-19336
Boot lid badge, Aston Martin
from £183.43
from £183.43
# -
-
FIXER, 3/16
Badge to boot lid
# -
-
ADHESIVE
Badge to boot lid
# -
-
NUT, 2BA
Badge to boot lid - Later cars
# 36
MPN: 78-52437
Boot lid badge, Virage
from £121.04
from £121.04
# -
-
FIXER
Badge to boot lid
# -
-
ADHESIVE
# 37
MPN: 698098
Boot aperture seal
4 mtr
# 38
MPN: 695781
Boot aperture seal
4 mtr
from £23.68
from £23.68
# 39
MPN: 72-52878
REAR BUMPER
# 39
MPN: 72-55428
REAR BUMPER
From September 1991
from £2,034.63
from £2,034.63
# -
-
BOLT, M8 X 35, REAR BUMPER ATTACH
Early cars
# -
-
WASHER, PLAIN, M8 REAR BUMPER ATTACH
8 used on later cars
# -
-
WASHER, SPRING M8 REAR BUMPER ATTACH
# -
-
WASHER, PLAIN M6 REAR BUMPER ATTACH
2 used on later cars
# -
-
NUT, NYLOC M6 REAR BUMPER ATTACH
2 used on later cars
# -
-
BOLT, M8 X 50 REAR BUMPER ATTACH
Later cars
# -
-
SPACER, 12 MM THICK REAR BUMPER ATTACH
Later cars
# 40
MPN: 78-51216
REAR QUARTER, GRP, RH
from £219.42
from £219.42
# 40
MPN: 78-51217
REAR QUARTER, GRP, LH
from £219.42
from £219.42
# 41
MPN: 78-51233
CENTRE SECTION, GRP
from £703.64
from £703.64
# 41
MPN: 78-62532
CENTRE SECTION, GRP
Volante
from £341.81
from £341.81
# -
-
SCREW, NO. 10 X 3/4
# 42
MPN: 78-55318
CLOSING PANEL, RH
from £4.71
from £4.71
# 42
MPN: 78-55319
CLOSING PANEL, LH
from £7.83
from £7.83
# 43
MPN: 78-53388
ACCESS FLAP
from £13.83
from £13.83
# -
-
SEAL STRIP
2 mtr
# 44
MPN: 692228
SCREW, M4 X 10
Access flaps to closing panels
from £0.47
from £0.47
# -
-
WASHER, SHAKEPROOF, M4
Access flaps to closing panels
# -
-
WASHER, PLAIN, M4
Access flaps to closing panels
# -
-
SCREW, NO.6 X 1/2
Closing panels attach
# -
-
POP RIVET, 1/8
Closing panels attach
# 45
MPN: 78-55304
SMALL MUDFLAP, REAR WHEEL ARCH
Swiss cars
from £93.23
from £93.23
# 46
MPN: 78-55305
SUPPORT STRIP
Swiss cars
from £8.27
from £8.27
# -
-
POP RIVET, 1/8
Swiss cars
# -
-
WASHER, PLAIN, CHROME, NO.6
Swiss cars
# 47
MPN: 78-55135
BRACKET, REAR NUMBER PLATE SUPPORT
USA, Canadian & Mid. East cars
from £17.39
from £17.39
# -
-
RIVNUT, M5 BRACKET TO BOOT LID
USA, Canadian & Mid. East cars
# -
-
SCREW, M5 X 10 BRACKET TO BOOT LID
USA, Canadian & Mid. East cars
# -
-
SCREW, M5 X 16 BRACKET TO BOOT LID (VOLANTE)
USA, Canadian & Mid. East cars
# -
-
SCREW, M5 X 10 NUMBER PLATE ATTACH
# 48
-
Fuel Filler Flaps
See section 7.7B
# 49
MPN: 83-18564
COAT HOOK
Untrimmed
from £2.18
from £2.18
# -
-
REINFORCING PLATE, COAT HOOK
# -
-
SCREW, NO.8 X 1/2
# 50
MPN: 83-52162
REAR INTERIOR GRAB HANDLE, TRIMMED, RH
Advise trim colour required
from £90.82
from £90.82
# 50
MPN: 83-52163
REAR INTERIOR GRAB HANDLE, TRIMMED, LH
Advise trim colour required
from £122.22
from £122.22
# 51
MPN: 83-52164
GRAB HANDLE BODY, RH
from £39.24
from £39.24
# 51
MPN: 83-52165
GRAB HANDLE BODY, LH
from £40.28
from £40.28
# -
-
SCREW, M6 X 16, COUNTERSUNK HEAD
Grab handle to body
# 52
MPN: 80-51946
SPARE WHEEL TRAY AND MOUNTING BRACKETS ASSEMBLY
from £340.43
from £340.43
# -
-
SPIRE CLIP, NO.6
Tray to boot floor
# -
-
SCREW, NO.8 X 1/2
Tray to boot floor
# -
-
SEALER
# -
-
TRAY SPARE WHEEL
Volante
# -
-
FOAM SPARE WHEEL
Volante
# -
-
CLAMP PLATE
Volante
# -
-
NUT M5
Volante
# 53
MPN: 83-53147
Spare wheel cover panel, trimmed
Advise trim colour required
# 53
MPN: 83-52414
SPARE WHEEL COVER PANEL, UNTRIMMED
from £79.75
from £79.75
# 54
MPN: 83-53154
Flap assembly, first-aid kit, trimmed
Advise trim colour required
# -
-
STRIKER PLATE
# -
-
SCREW, M3 X 6
Striker plate to flap
# -
-
SCREW, M4 X 12
Flap hinge to rear panel
# -
-
WASHER, PLAIN M4
Flap hinge to rear panel
# -
-
NUT, M4
Flap hinge to rear panel
# -
-
Rear panel, trimmed
Advise trim colour required
# -
-
REAR PANEL, UNTRIMMED
# -
-
THUMBSCREW, M6
# -
-
WASHER
# -
-
MAGNET, FIRST-AID FLAP RETAINING
# -
-
FIRST-AID KIT
# 55
MPN: 22-51038
Chassis bracket, pivot arm, RH
# 55
MPN: 22-51039
Chassis bracket, pivot arm, LH
# -
-
COVER, NUT, BLACK PLASTIC, M8
Volante
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (2000) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (2000) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (2000) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (2000) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (2000) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (2000) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (2000) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (2000) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INLET MANIFOLDS & PLENUM PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (2000) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (2000) TORQUE CONVERTER, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043 TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR, GEAROX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (2000) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (2000) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (2000) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (2000) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, BONNET PARTS DIAGRAM")
