7.7B1 - Fuel Filler Flaps

Aston Martin V8 Virage (2000) Fuel Filler Flaps Parts Diagram

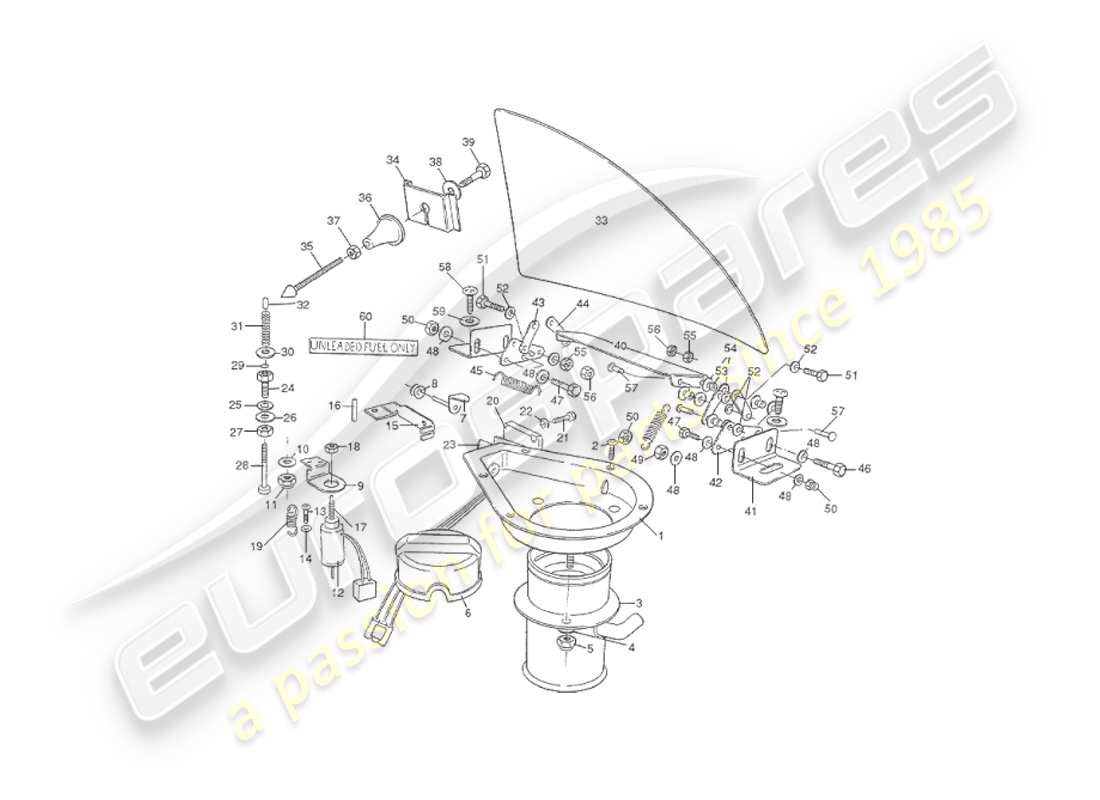

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 61-53642
FUEL FILLER PANEL ASSEMBLY, RH
Part of chassis frame
FUEL FILLER PANEL ASSEMBLY, RH Genuine Aston Martin - New (to order)
# 1
MPN: 61-53643
FUEL FILLER PANEL ASSEMBLY, LH
Part of chassis frame
FUEL FILLER PANEL ASSEMBLY, LH Genuine Aston Martin - New (to order)
# 1
MPN: 68-51542
FUEL FILLER TRAY, RH
from £123.65
from £123.65
ASSY-FUEL FILLER RH Genuine Aston Martin - New (to order)
# 1
MPN: 68-51543
FUEL FILLER TRAY, LH
from £123.65
from £123.65
ASSY-FUEL FILLER LH Genuine Aston Martin - New (to order)
# -
-
SEALER
Filler trays to body
# -
-
SEALER
Filler trays to body
# 2
MPN: 692620
SCREW, M4 X 8, COUNTERSUNK HEAD
Filler trays to body
from £0.99
from £0.99
SCREW M4 X8 COUNTERSUNK Genuine Aston Martin - New (to order)
# -
-
HOSE, 3/8 ID
Filler tray drain
# -
-
HOSE CLIP, 8 -16MM
# 3
MPN: 68-51906
FUEL FILLER NECK ASSEMBLY, RH
Unleaded
from £148.86
from £148.86
ASSEMBLY F/FILLR RH COMP Genuine Aston Martin - New (to order)
# 3
MPN: 68-51907
FUEL FILLER NECK ASSEMBLY, LH
Unleaded
from £148.86
from £148.86
ASSEMBLY F/FILLR LH COMP Genuine Aston Martin - New (to order)
# 3
MPN: 68-55344
FUEL FILLER NECK ASSEMBLY, RH
Leaded
from £181.68
from £181.68
ASSEMBLY F/FILLER RH COMP Genuine Aston Martin - New (to order)
# 3
MPN: 68-55345
FUEL FILLER NECK ASSEMBLY, LH
Leaded
from £181.68
from £181.68
ASSEMBLY F/FILLER LH COMP Genuine Aston Martin - New (to order)
# 4
MPN: 692056
WASHER, PLAIN, M6
Filler necks to tray
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# 5
MPN: 692151
NUT, NYLOC, M6
Filler necks to tray
from £0.54
from £0.54
NUT M6 HEX SLK Genuine Aston Martin - New (to order)
# 6
MPN: 68-24064
FUEL FILLER CAP
from £82.48
from £82.48
FUEL FILLER CAP SCRW Genuine Aston Martin - New (to order)
# 7
MPN: 68-23680
CATCH, RH
from £44.63
from £44.63
ASSEMBLY CTCH F/FILLER RH Genuine Aston Martin - New (to order)
# 7
MPN: 68-23681
CATCH, LH
from £44.63
from £44.63
ASSEMBLY CTCH F/FILLER LH Genuine Aston Martin - New (to order)
# 8
MPN: 693762
SEAL
from £0.87
from £0.87
SEAL Genuine Aston Martin - New (to order)
# 9
MPN: 68-51538
MOUNTING BRACKET, RH
from £7.09
from £7.09
BRACKET SOLENOID MOUNTING RH Genuine Aston Martin - New (to order)
# 9
MPN: 68-51539
MOUNTING BRACKET, LH
from £7.09
from £7.09
BRACKET SOLENOID MOUNTING LH Genuine Aston Martin - New (to order)
# 10
MPN: 692055
WASHER, PLAIN, M5
Mounting brackets to filler tray
from £0.47
from £0.47
WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
# 11
MPN: 692800
NUT, NYLOC, M5
Mounting brackets to filler tray
from £0.47
from £0.47
NUT M5 HEX SLK Genuine Aston Martin - New (to order)
# 12
MPN: 37-52024
SOLENOID
SOLENOID Genuine Aston Martin - New (to order)
# 12
MPN: 37-64311
SOLENOID
From May 1993
from £301.18
from £301.18
ASSEMBLY FUEL FLAP SOLEND Genuine Aston Martin - New (to order)
# 13
MPN: 693765
SCREW, M3 X 6
Solenoid to bracket
from £0.47
from £0.47
SCREW M3 X6 POZI PN Genuine Aston Martin - New (to order)
# 14
MPN: 692043
WASHER, SPRING, M3
Solenoid to bracket
from £0.47
from £0.47
WASHER M3 SPRING Genuine Aston Martin - New (to order)
# 15
MPN: 68-23698
OPERATING LEVER, RH
OPERATING LEVER, RH Genuine Aston Martin - New (to order)
# 15
MPN: 68-23697
Operating lever, LH
Operating lever, LH Genuine Aston Martin - New (to order)
# 16
MPN: 693763
PIN
from £0.47
from £0.47
PIN 1.5 X15.0LG ROLL Genuine Aston Martin - New (to order)
# 17
MPN: 693764
SPRING
Solenoid to operating lever
from £1.37
from £1.37
SPRING - COMPRESSION Genuine Aston Martin - New (to order)
# 18
MPN: 692314
NUT, NYLOC, M4
Solenoid to operating lever
from £0.47
from £0.47
NUT, NYLOC, M4 Genuine Aston Martin - New (to order)
# 19
MPN: 693869
SPRING
from £2.64
from £2.64
SPRING - EXTENSION Genuine Aston Martin - New (to order)
# 20
MPN: 37-24196
MICROSWITCH
from £56.17
from £56.17
SWTCH ASSEMBLY Genuine Aston Martin - New (to order)
# 21
MPN: 693773
SCREW, 8BA X 1/2
Microswitch to Fuel Filler Tray
from £0.47
from £0.47
SCREW 8BA X 1/2 LONG Genuine Aston Martin - New (to order)
# 22
MPN: 691128
WASHER, SHAKEPROOF, 8BA
Microswitch to Fuel Filler Tray
WASHER, SHAKEPROOF, 8BA Genuine Aston Martin - New (to order)
# 23
MPN: 68-25809
CLAMP PLATE
Microswitch to Fuel Filler Tray
from £4.27
from £4.27
CLAMP PLT-MICRO SW Genuine Aston Martin - New (to order)
# 24
MPN: 68-23687
HOUSING, MICROSWITCH PLUNGER
from £8.02
from £8.02
HSG-SWTCH PLUNGER Genuine Aston Martin - New (to order)
# 25
MPN: 692067
WASHER, SHAKEPROOF, M8
Housing attach to fuel filler panel
from £0.47
from £0.47
WASHER M8 S/PROOF Genuine Aston Martin - New (to order)
# 26
MPN: 692057
WASHER, PLAIN, M8
Housing attach to fuel filler panel
from £0.47
from £0.47
WASHER M8 PLAIN Genuine Aston Martin - New (to order)
# 27
MPN: 692482
Nut, plain, M8
Housing attach to fuel filler panel
from £0.81
from £0.81
NUT M8 X1.25 PLN HEX Genuine Aston Martin - New (to order)
# 28
MPN: 68-23686
PLUNGER
from £4.44
from £4.44
PLUNGER-F/FLP SWTCH Genuine Aston Martin - New (to order)
# 29
MPN: 693760
O' ring
from £0.47
from £0.47
O-RING Genuine Aston Martin - New (to order)
# 30
MPN: 692053
WASHER, PLAIN, M3
from £0.47
from £0.47
WASHER M3 PLAIN Genuine Aston Martin - New (to order)
# 31
MPN: 693759
SPRING
Cut to length required
from £8.27
from £8.27
SPRING - COMPRESSION Genuine Aston Martin - New (to order)
# 32
MPN: 68-26161
BLIND NUT
from £10.07
from £10.07
BLIND NUT Genuine Aston Martin - New (to order)
# -
-
ADHESIVE, NUT TO PLUNGER
# 33
MPN: 68-50202
FUEL FILLER FLAP, RH
FUEL FLAP RH Genuine Aston Martin - New (to order)
# 33
MPN: 68-50203
FUEL FILLER FLAP, LH
FUEL FLAP LH Genuine Aston Martin - New (to order)
# 34
MPN: 68-51584
CAGE
CAGE Genuine Aston Martin - New (to order)
# -
-
ADHESIVE
Cage to filler flap
# 35
MPN: 68-23678
CATCH PEG
from £7.80
from £7.80
CATCH PEG-F/FIL FLAP Genuine Aston Martin - New (to order)
# 36
MPN: 68-23677
CATCH MOUNTING BOSS
from £6.19
from £6.19
CATCH MOUNTING BOSS Genuine Aston Martin - New (to order)
# 37
MPN: 692075
Nut, plain, M5
from £0.47
from £0.47
NUT M5 HEX Genuine Aston Martin - New (to order)
# 38
MPN: 690257
WASHER, PLAIN, 3/16 ID X 3/4 OD
from £1.39
from £1.39
WASHER-3/16 X 3/4 Genuine Aston Martin - New (to order)
# 39
MPN: 692736
SCREW, M5 X 10
from £0.54
from £0.54
SCREW M5 X10 HEX Genuine Aston Martin - New (to order)
# 40
MPN: 68-52082
MOUNTING PLATE
from £4.18
from £4.18
MOUNTING PLT-F/FILL. FLAPS Genuine Aston Martin - New (to order)
# -
-
ADHESIVE
Plate to filler flap
# 41
MPN: 68-52083
MOUNTING BRACKET
from £3.84
from £3.84
MOUNTING BRKT-FILLR FLAPS Genuine Aston Martin - New (to order)
# 42
MPN: 68-52084
MOUNTING PLATE
from £15.04
from £15.04
MOUNTING PLT-FILL FLP HNG Genuine Aston Martin - New (to order)
# 43
MPN: 68-52085
LINK
With spring anchor
from £4.44
from £4.44
LINK-F/FILL. FLP.HNGE Genuine Aston Martin - New (to order)
# 44
MPN: 68-52086
LINK
from £15.04
from £15.04
LINK-F/FILL. FLP.HNGE Genuine Aston Martin - New (to order)
# 45
MPN: 694468
SPRING
from £3.40
from £3.40
SPRING Genuine Aston Martin - New (to order)
# 46
MPN: 692315
SETSCREW, M4 X 16
from £0.47
from £0.47
SCREW M4 X 16 HEX HD Genuine Aston Martin - New (to order)
# 47
MPN: 692353
SETSCREW, M4 X 8
from £0.47
from £0.47
SCREW M4X8 Genuine Aston Martin - New (to order)
# 48
MPN: 692054
WASHER, PLAIN, M4
from £0.47
from £0.47
WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
# 49
MPN: 692074
NUT, M4
from £0.47
from £0.47
NUT M4 HEX Genuine Aston Martin - New (to order)
# 50
MPN: 692314
NUT, NYLOC, M4
from £0.47
from £0.47
NUT, NYLOC, M4 Genuine Aston Martin - New (to order)
# 51
MPN: 694527
SETSCREW, M3 X 16
from £0.73
from £0.73
SCREW M3 X 16 HEX HD Genuine Aston Martin - New (to order)
# 52
MPN: 692053
WASHER, PLAIN, M3
from £0.47
from £0.47
WASHER M3 PLAIN Genuine Aston Martin - New (to order)
# 53
MPN: 68-52336
SPACER
from £2.00
from £2.00
SPACER-FIL. FLAP.HNGE Genuine Aston Martin - New (to order)
# 54
MPN: 694526
WASHER, COPPER, M5
from £0.52
from £0.52
WASHER M5 COPPER Genuine Aston Martin - New (to order)
# 55
MPN: 692073
NUT, M3
from £0.47
from £0.47
NUT M3 HEX Genuine Aston Martin - New (to order)
# 56
MPN: 692313
NUT, NYLOC, M3
from £0.79
from £0.79
NUT M3 SLK HEX HD Genuine Aston Martin - New (to order)
# 57
MPN: 110858
Rivet, 1/8 X 5/16
Rivet, 1/8 X 5/16 Genuine Aston Martin - New (to order)
# -
-
GREASE
For hinge pivots
# 58
MPN: 692242
SCREW, M5 X 12
from £0.47
from £0.47
SCREW M5 X 12 PAN Genuine Aston Martin - New (to order)
# 59
MPN: 692045
WASHER, PLAIN, M5
from £0.47
from £0.47
WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
# 60
MPN: 97-53653
label, 'Unleaded fuel only'. English only
label, 'Unleaded fuel only'. English only Genuine Aston Martin - New (to order)
# 60
MPN: 97-55183
LABEL, 'UNLEADED FUEL ONLY'. ENGLISH/FRENCH
France, Canada, Netherlands, Belgium
from £5.09
from £5.09
LABEL-UNLEADED FUEL Genuine Aston Martin - New (to order)
# 60
MPN: 97-55307
LABEL, 'UNLEADED FUEL ONLY'. ENGLISH/SWEDISH
Sweden, Denmark
from £3.36
from £3.36
LBL-UNLEADED FUEL Genuine Aston Martin - New (to order)
