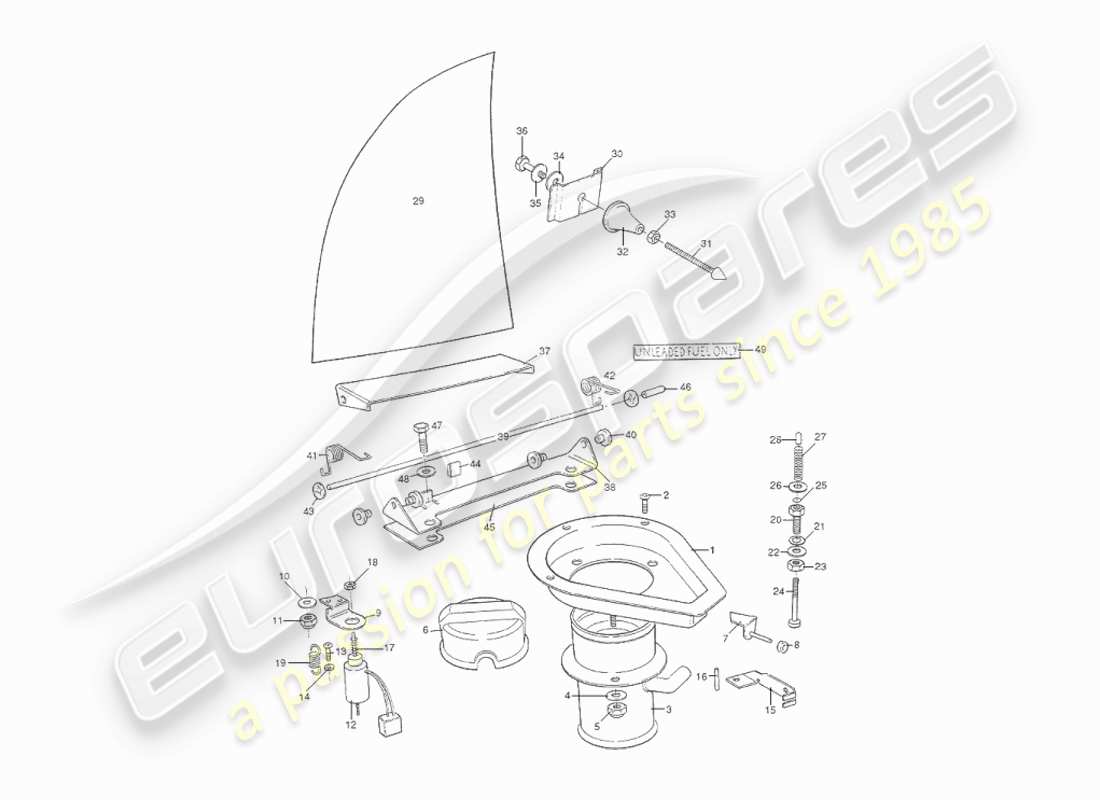

7.7B2 - Fuel Filler Flaps
Aston Martin V8 Virage (2000) Fuel Filler Flaps Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 61-55102
FUEL FILLER PANEL ASSEMBLY, RH
Part of chassis frame
# -
MPN: 61-55103
FUEL FILLER PANEL ASSEMBLY, LH
Part of chassis frame
# 1
MPN: 68-55136
FUEL FILLER TRAY, RH
from £73.14
from £73.14
# 1
MPN: 68-55137
FUEL FILLER TRAY, LH
from £73.14
from £73.14
# -
-
SEALER
Filler trays to body
# -
-
SEALER
Filler trays to body
# 2
MPN: 695862
SCREW, M4 X 12, COUNTERSUNK HEAD
Filler trays to body
from £0.47
from £0.47
# -
-
HOSE, 3/8 ID
Filler tray drain
# -
-
HOSE CLIP, 8 - 16MM
# 3
MPN: 68-51906
FUEL FILLER NECK ASSEMBLY, RH
Unleaded
from £148.86
from £148.86
# 3
MPN: 68-51907
FUEL FILLER NECK ASSEMBLY, LH
Unleaded
from £148.86
from £148.86
# 3
MPN: 68-55344
FUEL FILLER NECK ASSEMBLY, RH
Leaded
from £186.22
from £186.22
# 3
MPN: 68-55345
FUEL FILLER NECK ASSEMBLY, LH
Leaded
from £186.22
from £186.22
# 4
MPN: 692056
WASHER, PLAIN, M6
Filler necks to tray
from £0.47
from £0.47
# 5
MPN: 692151
NUT, NYLOC, M6
Filler necks to tray
from £0.55
from £0.55
# 6
MPN: 68-24064
FUEL FILLER CAP
from £82.48
from £82.48
# 7
MPN: 68-23680
CATCH, RH
from £44.63
from £44.63
# 7
MPN: 68-23681
CATCH, LH
from £44.63
from £44.63
# 8
MPN: 693762
SEAL
from £0.88
from £0.88
# 9
MPN: 68-51538
MOUNTING BRACKET, RH
from £7.27
from £7.27
# 9
MPN: 68-51539
MOUNTING BRACKET, LH
from £7.27
from £7.27
# 10
MPN: 692055
WASHER, PLAIN, M5
Mounting brackets to filler tray
from £0.47
from £0.47
# 11
MPN: 692800
NUT, NYLOC, M5
Mounting brackets to filler tray
from £0.47
from £0.47
# 12
MPN: 37-52024
SOLENOID
# 12
MPN: 37-64311
SOLENOID
From May 1993
from £308.71
from £308.71
# 13
MPN: 693765
SCREW, M3 X 6
Solenoid to bracket
from £0.47
from £0.47
# 14
MPN: 692043
WASHER, SPRING, M3
Solenoid to bracket
from £0.47
from £0.47
# 15
MPN: 68-23698
OPERATING LEVER, RH
# 15
MPN: 68-23697
Operating lever, LH
# 16
MPN: 693763
PIN
from £0.47
from £0.47
# 17
MPN: 693764
SPRING
Solenoid to operating lever
from £1.37
from £1.37
# 18
MPN: 692314
NUT, NYLOC, M4
Solenoid to operating lever
from £0.47
from £0.47
# 19
MPN: 693869
SPRING
from £2.70
from £2.70
# 20
MPN: 68-23687
HOUSING, MICROSWITCH PLUNGER
from £8.21
from £8.21
# 21
MPN: 692067
WASHER, SHAKEPROOF, M8
Housing attach to fuel filler panel
from £0.47
from £0.47
# 22
MPN: 692057
WASHER, PLAIN, M8
Housing attach to fuel filler panel
from £0.47
from £0.47
# 23
MPN: 692482
Nut, plain, M8
Housing attach to fuel filler panel
from £0.83
from £0.83
# 24
MPN: 68-23686
PLUNGER
from £4.55
from £4.55
# 25
MPN: 693760
O' ring
from £0.47
from £0.47
# 26
MPN: 692053
WASHER, PLAIN, M3
from £0.47
from £0.47
# 27
MPN: 693759
SPRING
Cut to length required
from £8.48
from £8.48
# 28
MPN: 68-26161
BLIND NUT
from £10.31
from £10.31
# -
-
ADHESIVE, NUT TO PLUNGER
# 29
MPN: 68-50202
FUEL FILLER FLAP, RH
# 29
MPN: 68-50203
FUEL FILLER FLAP, LH
# 30
MPN: 68-55127
CAGE
from £3.04
from £3.04
# -
-
ADHESIVE
Cage to filler flap
# 31
MPN: 68-23678
CATCH PEG
from £7.99
from £7.99
# 32
MPN: 68-23677
CATCH MOUNTING BOSS
from £6.34
from £6.34
# 33
MPN: 692075
Nut, plain, M5
from £0.47
from £0.47
# 34
MPN: 690257
WASHER, PLAIN, 3/16 ID X 3/4 OD
from £3.17
from £3.17
# 35
MPN: 692065
WASHER, SHAKEPROOF, M5
from £0.47
from £0.47
# 36
MPN: 692736
SCREW, M5 X 10
from £0.55
from £0.55
# 37
MPN: 68-54396
MOUNTING PLATE, RH
from £6.92
from £6.92
# 37
MPN: 68-54397
MOUNTING PLATE, LH
from £6.92
from £6.92
# -
-
ADHESIVE
Plate to filler flap
# 38
MPN: 68-55306
MOUNTING BRACKET
from £2.65
from £2.65
# 39
MPN: 68-54400
HINGE PIN
from £3.44
from £3.44
# 40
MPN: 68-55106
BUSH
from £2.92
from £2.92
# 41
MPN: 68-55120
SPRING, RHW
from £6.45
from £6.45
# 42
MPN: 68-55121
SPRING, LHW
from £10.96
from £10.96
# 43
MPN: 694230
STARLOCK WASHER, 3MM
from £0.47
from £0.47
# 44
MPN: 694656
SEAL, EDGE PROTECTOR
# 45
MPN: 68-54372
SHIM
from £1.83
from £1.83
# 46
MPN: 695146
SCREW COVER, END TIP
from £0.47
from £0.47
# 47
MPN: 692005
SCREW, M5 X 16
Hinges to body
from £0.47
from £0.47
# 48
MPN: 693793
WASHER, PLAIN, M5
Hinges to body
from £0.47
from £0.47
# 49
MPN: 97-53653
label, 'Unleaded fuel only'. English only
# 49
MPN: 97-55183
LABEL, 'UNLEADED FUEL ONLY'. ENGLISH/FRENCH
France, Canada, Netherlands, Belgium
from £5.22
from £5.22
# 49
MPN: 97-55307
LABEL, 'UNLEADED FUEL ONLY'. ENGLISH/SWEDISH
Sweden, Denmark
from £3.44
from £3.44
-part-diagram-7.7b3.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, FASCIA & CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-7.8a1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SALOON PARTS DIAGRAM")
-part-diagram-7.8a2.webp "ASTON MARTIN V8 VIRAGE (2000) DASH HOUSING, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a3.webp "ASTON MARTIN V8 VIRAGE (2000) CENTRE CONSOLE, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a4.webp "ASTON MARTIN V8 VIRAGE (2000) HEADER RAIL, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8a5.webp "ASTON MARTIN V8 VIRAGE (2000) REAR TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, SEAT FITTINGS & EUROPEAN SEATS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS, USA SEAT BELTS PARTS DIAGRAM")
-part-diagram-7.8c.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR FITTINGS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-7.9c1.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9c2.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VIRAGE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VIRAGE (2000) DROPPING REAR QUARTER LIGHT PARTS DIAGRAM")
-part-diagram-8.1.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2b.webp "ASTON MARTIN V8 VIRAGE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VIRAGE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VIRAGE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-9.3.webp "ASTON MARTIN V8 VIRAGE (2000) GASKET SETS PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VIRAGE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3a.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-1.3b.webp "ASTON MARTIN V8 VIRAGE (2000) CYLINDER HEAD, VOLATE FROM VIN 69225 PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VIRAGE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VIRAGE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VIRAGE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6a.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.6b.webp "ASTON MARTIN V8 VIRAGE (2000) OIL COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7a1.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7a2.webp "ASTON MARTIN V8 VIRAGE (2000) WATER COOLING SYSTEM, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-1.7b2.webp "ASTON MARTIN V8 VIRAGE (2000) RADIATOR FAN COWL, VOLANTE, APPROX VIN 60193 ON PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VIRAGE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9a.webp "ASTON MARTIN V8 VIRAGE (2000) IGNITION COIL, DISTRIBUTOR & STARTER MOTOR PARTS DIAGRAM")
-part-diagram-1.9b.webp "ASTON MARTIN V8 VIRAGE (2000) GENERATOR PARTS DIAGRAM")
-part-diagram-2.1a.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.1b.webp "ASTON MARTIN V8 VIRAGE (2000) THROTTLE LINKAGE & CONTROLS, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VIRAGE (2000) INLET MANIFOLDS & PLENUM PARTS DIAGRAM")
-part-diagram-2.2b1.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.2b2.webp "ASTON MARTIN V8 VIRAGE (2000) AIR FILTERS, VOLANTE, VIN 69224 ON PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VIRAGE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VIRAGE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5a.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.5b.webp "ASTON MARTIN V8 VIRAGE (2000) ELECTRONIC FUEL INJECTION, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7a.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, EARLY CARS PARTS DIAGRAM")
-part-diagram-2.7b.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, 1993 TO VIN 60224 PARTS DIAGRAM")
-part-diagram-2.7c.webp "ASTON MARTIN V8 VIRAGE (2000) EXHAUST SYSTEM, VOLANTE, VIN 69225 ON PARTS DIAGRAM")
-part-diagram-3.10.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.11.webp "ASTON MARTIN V8 VIRAGE (2000) HYPOID MOUNTING PARTS DIAGRAM")
-part-diagram-3.12.webp "ASTON MARTIN V8 VIRAGE (2000) DRIVESHAFT & HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-3.1a.webp "ASTON MARTIN V8 VIRAGE (2000) TORQUE CONVERTER, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.1b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC PARTS DIAGRAM")
-part-diagram-3.2a.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.2b.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, APPROX VIN 60043 TO APPROX VIN 60192 PARTS DIAGRAM")
-part-diagram-3.2c.webp "ASTON MARTIN V8 VIRAGE (2000) AUTOMATIC TRANSMISSION, GEARBOX COOLING, FROM APPROX VIN 60193 PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED SELECTOR ASSEMBLY, TO APPROX VIN 60042 PARTS DIAGRAM")
-part-diagram-3.3b1.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR ASSEMBLY, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.3b2.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED SELECTOR, GEAROX LINKAGE, VOLANTE, APPROX VIN 60043 ON PARTS DIAGRAM")
-part-diagram-3.4a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.4b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED GEARCASE & GEARTRAIN PARTS DIAGRAM")
-part-diagram-3.5a.webp "ASTON MARTIN V8 VIRAGE (2000) 3 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5b.webp "ASTON MARTIN V8 VIRAGE (2000) 4 SPEED VALVE BODY, SUMP & PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH & FLYWHEEL PARTS DIAGRAM")
-part-diagram-3.7.webp "ASTON MARTIN V8 VIRAGE (2000) CLUTCH HYDRAULICS PARTS DIAGRAM")
-part-diagram-3.8.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, CASING & SELECTOR PARTS DIAGRAM")
-part-diagram-3.9.webp "ASTON MARTIN V8 VIRAGE (2000) MANUAL GEARBOX, GEARTRAIN & PROPSHAFT PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VIRAGE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3a.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.3a.1.webp "ASTON MARTIN V8 VIRAGE (2000) STEERING COLUMN, 1993 ON PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VIRAGE (2000) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1a.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.1b.webp "ASTON MARTIN V8 VIRAGE (2000) FRONT BRAKES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VIRAGE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VIRAGE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VIRAGE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.5a.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-5.5b.webp "ASTON MARTIN V8 VIRAGE (2000) WHEELS & TYRES, VOLANTE ONLY PARTS DIAGRAM")
-part-diagram-6.1a.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.1b.webp "ASTON MARTIN V8 VIRAGE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.2.webp "ASTON MARTIN V8 VIRAGE (2000) LAMPS & BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3c.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3d.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3e.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.3f.webp "ASTON MARTIN V8 VIRAGE (2000) COMPONENTS & WIRING PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VIRAGE (2000) WINDSCREEN & HEADLAMP WASHERS PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.10a.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, EUROPE, SALOON & VOLANTE PARTS DIAGRAM")
-part-diagram-7.10b.webp "ASTON MARTIN V8 VIRAGE (2000) SEAT BELTS, USA, SALOON PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERSTRUCTURE, FRONT PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VIRAGE (2000) CHASSIS SUPERTRUCTURE, REAR PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.3c.webp "ASTON MARTIN V8 VIRAGE (2000) BODY PANELS, SALOON PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, SALOON PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VIRAGE (2000) DOORS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 VIRAGE (2000) DOOR LOCKING PARTS DIAGRAM")
-part-diagram-7.4d.webp "ASTON MARTIN V8 VIRAGE (2000) WEATHER SEALS, VOLANTE PARTS DIAGRAM")
-part-diagram-7.5.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, FRONT PARTS DIAGRAM")
-part-diagram-7.6.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, BONNET PARTS DIAGRAM")
-part-diagram-7.7a.webp "ASTON MARTIN V8 VIRAGE (2000) BODY, REAR PARTS DIAGRAM")
-part-diagram-7.7b1.webp "ASTON MARTIN V8 VIRAGE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
