7.8A3 - Centre Console, Volante

Aston Martin V8 Virage (2000) Centre Console, Volante Parts Diagram

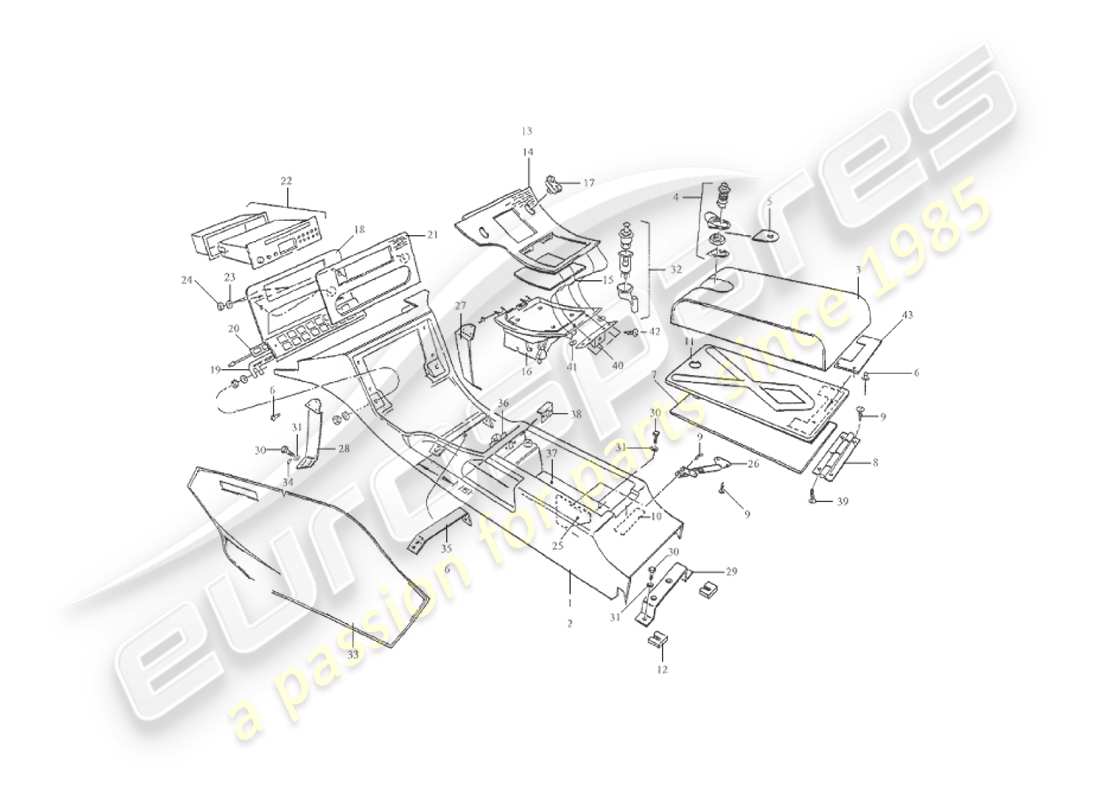

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price
                                                                                # 1
                                                                                MPN: 83-61308
                                                                                Centre console bare GRP, RHD
                                                                                from £410.99
                                                                                from £410.99
                                                                                CNTR CNSL BARE GRP Genuine Aston Martin - New (to order)
                                                                                # 2
                                                                                MPN: 83-61309
                                                                                Centre console bare GRP, LHD
                                                                                from £410.93
                                                                                from £410.93
                                                                                CNTR CNSLE BARE GRP Genuine Aston Martin - New (to order)
                                                                                # 3
                                                                                MPN: 83-61472
                                                                                FOAM CUBBY BOX LID
                                                                                from £15.90
                                                                                from £15.90
                                                                                FOAM - CUBBY LID Genuine Aston Martin - New (to order)
                                                                                # 4
                                                                                MPN: 695840
                                                                                LOCK - CUBBY BOX
                                                                                from £45.23
                                                                                from £45.23
                                                                                LOCK - CUBBY BOX Genuine Aston Martin - New (to order)
                                                                                # 5
                                                                                MPN: 83-61475
                                                                                TRIM PANEL LOCK INFILL
                                                                                from £2.77
                                                                                from £2.77
                                                                                TRIM INFILL LOCK Genuine Aston Martin - New (to order)
                                                                                # 6
                                                                                MPN: 582-000-2829
                                                                                RIVET 1/8
                                                                                from £0.49
                                                                                from £0.49
                                                                                POP-RIVET 3.2MM COUNTERSUNK Genuine Aston Martin - New (to order)
                                                                                # 7
                                                                                MPN: 83-61306
                                                                                INFILL PANEL CUBBY BOX LID
                                                                                from £12.24
                                                                                from £12.24
                                                                                INFILL-CUBBY BOX LID Genuine Aston Martin - New (to order)
                                                                                # 8
                                                                                MPN: 83-53500
                                                                                PIANO HINGE
                                                                                from £20.29
                                                                                from £20.29
                                                                                PIANO HINGE - BLACK Genuine Aston Martin - New (to order)
                                                                                # 9
                                                                                MPN: 695267
                                                                                SCREW 5/8 BLACK
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW NO6 X 5/8 S/T Genuine Aston Martin - New (to order)
                                                                                # 10
                                                                                MPN: 83-53867
                                                                                SPREADER PLATE
                                                                                Hinge attach
                                                                                from £64.20
                                                                                from £64.20
                                                                                SPREADER PLATE-HINGE Genuine Aston Martin - New (to order)
                                                                                # 11
                                                                                MPN: 83-61305
                                                                                CUBBY BOX LID
                                                                                from £72.20
                                                                                from £72.20
                                                                                CUBBY BOX LID Genuine Aston Martin - New (to order)
                                                                                # 12
                                                                                MPN: 66-19150
                                                                                SPACER 3MM
                                                                                from £2.05
                                                                                from £2.05
                                                                                PACKING SPACER 10G Genuine Aston Martin - New (to order)
                                                                                # 12
                                                                                MPN: 66-19151
                                                                                SPACER 1.5MM
                                                                                from £2.05
                                                                                from £2.05
                                                                                PACKING DOOR 16G Genuine Aston Martin - New (to order)
                                                                                # 13
                                                                                MPN: 83-61514
                                                                                GEARSHIFT VENEER, RHD
                                                                                from £460.48
                                                                                from £460.48
                                                                                WOOD PNL-G/SHIFT-RHD Genuine Aston Martin - New (to order)
                                                                                # 14
                                                                                MPN: 83-61515
                                                                                GEARSHIFT VENEER, LHD
                                                                                from £542.38
                                                                                from £542.38
                                                                                WOOD PNL-G/SHIFT-LHD Genuine Aston Martin - New (to order)
                                                                                # 15
                                                                                MPN: 83-61516
                                                                                ASHTRAY VENEER
                                                                                from £151.65
                                                                                from £151.65
                                                                                VENEER PANEL-ASHTRAY Genuine Aston Martin - New (to order)
                                                                                # 16
                                                                                MPN: 83-61355
                                                                                ASHTRAY
                                                                                from £109.91
                                                                                from £109.91
                                                                                ASHTRAY Genuine Aston Martin - New (to order)
                                                                                # 17
                                                                                MPN: 37-50326
                                                                                SWITCH WINDOW
                                                                                from £83.07
                                                                                from £83.07
                                                                                SWITCH ROCKER Genuine Aston Martin - New (to order)
                                                                                # 18
                                                                                MPN: 83-60961
                                                                                MOUNTING PLATE
                                                                                from £47.04
                                                                                from £47.04
                                                                                MOUNTING PLATE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                # 19
                                                                                MPN: 83-60965
                                                                                BACKING PLATE
                                                                                from £3.83
                                                                                from £3.83
                                                                                BACK PLATE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                # 20
                                                                                MPN: 38-51076
                                                                                PANEL ILLUMINATION
                                                                                from £231.71
                                                                                from £231.71
                                                                                PANEL - ILLUMINATED Genuine Aston Martin - New (to order)
                                                                                # 21
                                                                                MPN: 83-61517
                                                                                VENEER, CONSOLE FRONT
                                                                                from £303.26
                                                                                from £303.26
                                                                                VNR PNL-CNSL FRONT RADIATOR Genuine Aston Martin - New (to order)
                                                                                # 22
                                                                                -
                                                                                RADIO/CASSETTE
                                                                                See section 6
                                                                                # 23
                                                                                MPN: 692055
                                                                                WASHER, M5
                                                                                Veneer attach
                                                                                from £0.47
                                                                                from £0.47
                                                                                WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                                # 24
                                                                                MPN: 692800
                                                                                NUT, M5 SLK
                                                                                Veneer attach
                                                                                from £0.47
                                                                                from £0.47
                                                                                NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                                                # 25
                                                                                MPN: 83-54091
                                                                                Plate cubby box support
                                                                                from £2.24
                                                                                from £2.24
                                                                                REINFORCEMENT PLATE-CUBBY BX Genuine Aston Martin - New (to order)
                                                                                # 27
                                                                                MPN: 83-54132
                                                                                BRACKET FRT RH - RHD
                                                                                from £16.02
                                                                                from £16.02
                                                                                BRACKET FIXING FRONT RH Genuine Aston Martin - New (to order)
                                                                                # 27
                                                                                MPN: 83-54134
                                                                                BRACKET FRT RH - LHD
                                                                                from £23.49
                                                                                from £23.49
                                                                                BRACKET FIXING FRONT RH Genuine Aston Martin - New (to order)
                                                                                # 28
                                                                                MPN: 83-54135
                                                                                BRACKET FRT LH - RHD
                                                                                from £3.43
                                                                                from £3.43
                                                                                BRACKET FIXING FRONT LH Genuine Aston Martin - New (to order)
                                                                                # 28
                                                                                MPN: 83-54133
                                                                                BRACKET FRT LH - LHD
                                                                                from £23.49
                                                                                from £23.49
                                                                                BRACKET FIXING FRONT LH Genuine Aston Martin - New (to order)
                                                                                # 29
                                                                                MPN: 83-61644
                                                                                BRACKET REAR
                                                                                from £9.60
                                                                                from £9.60
                                                                                BRACKET ASY-TUNNEL REAR Genuine Aston Martin - New (to order)
                                                                                # 30
                                                                                MPN: 692215
                                                                                SCREW, M5
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M5 X 20 HEX HD Genuine Aston Martin - New (to order)
                                                                                # 31
                                                                                MPN: 693793
                                                                                WASHER, M5
                                                                                from £0.47
                                                                                from £0.47
                                                                                WASHER M5 X 15 PLAIN Genuine Aston Martin - New (to order)
                                                                                # 32
                                                                                MPN: 37-61402
                                                                                CIGAR LIGHTER ASSEMBLY
                                                                                from £133.09
                                                                                from £133.09
                                                                                ASSEMBLY CIGAR LIGHTER Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 83-53683
                                                                                FOOTWELL FINISHER GRP RH - RHD
                                                                                from £115.97
                                                                                from £115.97
                                                                                FOOTWELL FNR RH-GRP Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 83-53684
                                                                                FOOTWELL FINISHER GRP LH - RHD
                                                                                from £115.97
                                                                                from £115.97
                                                                                FOOTWELL FNR LH-GRP Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 83-53685
                                                                                FOOTWELL FINISHER GRP RH - LHD
                                                                                from £41.18
                                                                                from £41.18
                                                                                FOOTWELL FNR RH-GRP Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 83-53686
                                                                                FOOTWELL FINISHER GRP LH - LHD
                                                                                from £41.18
                                                                                from £41.18
                                                                                FOOTWELL FNR LH-GRP Genuine Aston Martin - New (to order)
                                                                                # 34
                                                                                MPN: 692065
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                WASHER M5 S/PROOF Genuine Aston Martin - New (to order)
                                                                                # 35
                                                                                MPN: 83-61864
                                                                                SPREADER BRACKET
                                                                                from £5.89
                                                                                from £5.89
                                                                                SPREADER BRACKET Genuine Aston Martin - New (to order)
                                                                                # 36
                                                                                MPN: 83-61859
                                                                                TOP HAT BRACKET - ASHTRAY
                                                                                from £2.57
                                                                                from £2.57
                                                                                INTEGL TOP HAT BRACKET Genuine Aston Martin - New (to order)
                                                                                # 37
                                                                                MPN: 83-62722
                                                                                CUBBY BOX BOTTOM LINER
                                                                                CUBBY BOX BOTTOM LINER Genuine Aston Martin - New (to order)
                                                                                # 38
                                                                                MPN: 83-61860
                                                                                ESCUTCHEON PLATE
                                                                                from £7.98
                                                                                from £7.98
                                                                                ESCUTCHEON PLATE Genuine Aston Martin - New (to order)
                                                                                # 39
                                                                                MPN: 692517
                                                                                SCREW M4
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW, M4X16 BLACK Genuine Aston Martin - New (to order)
                                                                                # 40
                                                                                MPN: 83-62037
                                                                                RETENTION BRACKET - ASHTRAY
                                                                                from £4.98
                                                                                from £4.98
                                                                                RETENTION BRACKET Genuine Aston Martin - New (to order)
                                                                                # 41
                                                                                MPN: 692056
                                                                                WASHER, M6
                                                                                from £0.47
                                                                                from £0.47
                                                                                WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                                # 42
                                                                                MPN: 693208
                                                                                WOODSCREW NO.4
                                                                                from £0.74
                                                                                from £0.74
                                                                                WDSCRW NO4 X3/8 RSD Genuine Aston Martin - New (to order)
                                                                                # 43
                                                                                MPN: 83-61827
                                                                                SPREADER PLATE
                                                                                from £12.22
                                                                                from £12.22
                                                                                ASSEMBLY SPRDR/TAPPNG PLT Genuine Aston Martin - New (to order)
