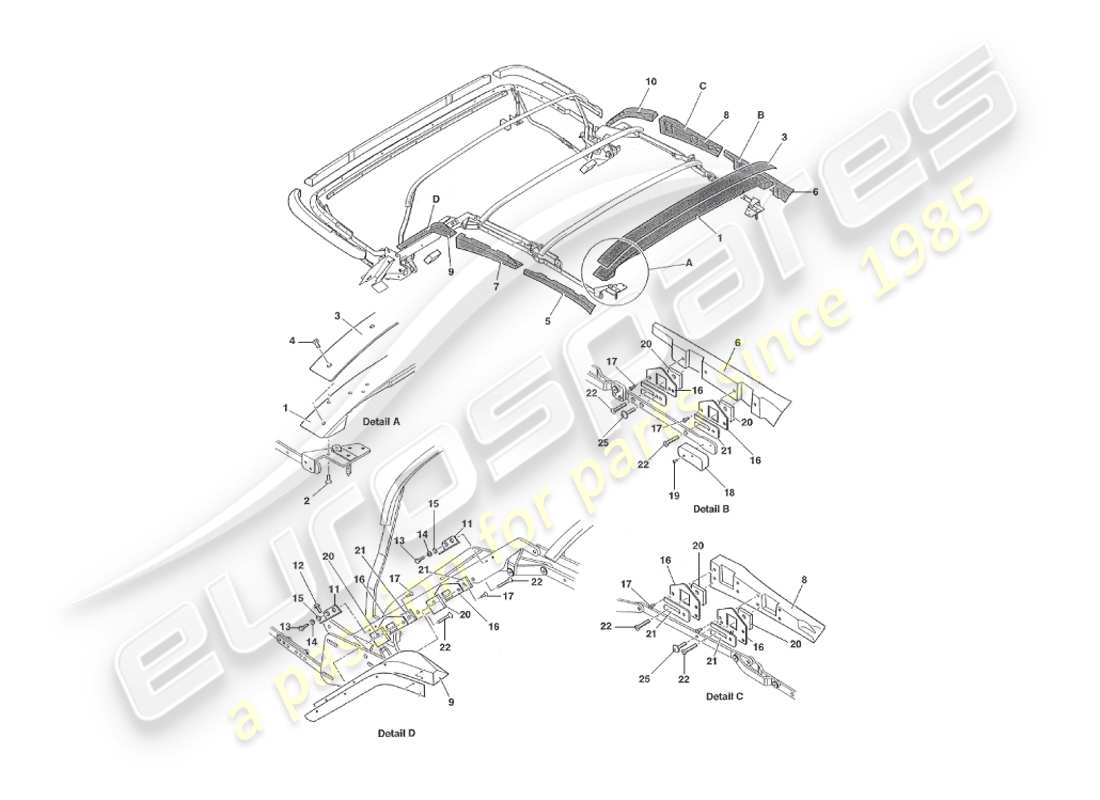

7.9C1 - HOOD ASSEMBLY

Aston Martin V8 Virage (2000) Hood Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 93-61362
                                          WOOD ASSY, FRONT HEADER
                                          from £504.29
                                          from £504.29
                                          FRONT HEADER WOOD Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 696577
                                          SCREW, M6 X 20 CSK
                                          from £0.47
                                          from £0.47
                                          SCREW M6 X 20 COUNTERSUNK Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 692296
                                          SCREW, M6 X 30 CSK
                                          from £0.47
                                          from £0.47
                                          SCREW M6 X 30 COUNTERSUNK Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 93-60067
                                          TRIM PLATE, HEADER
                                          from £24.95
                                          from £24.95
                                          TRIM PLATE - HEADER Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: 696578
                                          SCREW, NO.6 X 1/2 CSK
                                          from £0.47
                                          from £0.47
                                          SCREW NO6 X 1/2INCSK Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 93-61372
                                          Wood assy, cantrail front, RH
                                          WOOD ASSEMBLY CANTRAIL FRONT, RH Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: 93-61373
                                          WOOD ASSY, CANTRAIL FRONT, LH
                                          WOOD ASSEMBLY CANTRAIL FRONT, LH Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: 93-61374
                                          WOOD ASSY, CANTRAIL REAR, RH
                                          WOOD ASSEMBLY CANTRAIL REAR, RH Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 93-61375
                                          Wood assy, cantrail rear, LH
                                          WOOD ASSEMBLY CANTRAIL REAR, LH Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: 93-61368
                                          WOOD ASSY, C POST, RH
                                          WOOD ASSEMBLY C POST, RH Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 93-61369
                                          Wood assy, C post, LH
                                          WOOD ASSEMBLY C POST, LH Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 93-64443
                                          SECURING BRACKET, C POST
                                          from £2.05
                                          from £2.05
                                          C PST SECURING BRACKET Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 692011
                                          SCREW, FLG, NO.10 X 3/4
                                          from £0.47
                                          from £0.47
                                          SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 692228
                                          SCREW, M4 X 10
                                          from £0.47
                                          from £0.47
                                          SCREW M4 X 10 HEX HD Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 692064
                                          WASHER, SPRF, M4
                                          from £0.47
                                          from £0.47
                                          WASHER M4 S/PROOF Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: 692054
                                          WASHER, PLAIN, M4
                                          from £0.47
                                          from £0.47
                                          WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 93-62017
                                          PLATE ATTACH, SHORT, CANTRAIL
                                          Alternatives
                                          from £5.98
                                          from £5.98
                                          PLATE ATTACH -SHORT Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 93-61847
                                          PLATE ATTACH, INTERMEDIATE, CANTRAIL
                                          Alternatives
                                          from £6.14
                                          from £6.14
                                          PLT ATTCH-INT. C/RL Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 93-61987
                                          PLATE ATTACH, INTERMEDIATE, CANTRAIL
                                          Alternatives
                                          from £6.32
                                          from £6.32
                                          PLT ATTCH LONG-C/RL Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: 696578
                                          SCREW, NO.6 X 1/2
                                          from £0.47
                                          from £0.47
                                          SCREW NO6 X 1/2INCSK Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: 93-62310
                                          BLOCK, TACKING, CANTRAIL FRONT, RH
                                          from £5.17
                                          from £5.17
                                          BLOCK - TACKING Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: 93-62311
                                          BLOCK, TACKING, CANTRAIL FRONT, LH
                                          from £5.19
                                          from £5.19
                                          BLOCK - TACKING Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 696127
                                          SCREW, M4 X 25
                                          from £0.47
                                          from £0.47
                                          SCREW M4 X25 COUNTERSUNK HD Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: 93-61902
                                          Tapped plate
                                          Tapped plate Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: 66-19150
                                          SPACER, CANTRAIL WOOD
                                          Alternatives
                                          from £2.05
                                          from £2.05
                                          PACKING SPACER 10G Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: 66-19151
                                          SPACER, CANTRAIL WOOD
                                          Alternatives
                                          from £2.05
                                          from £2.05
                                          PACKING DOOR 16G Genuine Aston Martin - New (to order)
                                          # 22
                                          MPN: 696674
                                          SCREW, M6 X 16
                                          Alternatives
                                          from £0.47
                                          from £0.47
                                          SCREW M6X16 COUNTERSUNK Genuine Aston Martin - New (to order)
                                          # 22
                                          MPN: 696577
                                          SCREW, M6 X 20
                                          Alternatives
                                          from £0.47
                                          from £0.47
                                          SCREW M6 X 20 COUNTERSUNK Genuine Aston Martin - New (to order)
                                          # 25
                                          MPN: 695851
                                          SCREW, FLG, NO.8 X 25
                                          from £0.47
                                          from £0.47
                                          SCREW NO8 X 25 S/T Genuine Aston Martin - New (to order)
