aston martin v8 volante (1997) cylinder block parts diagram

1.1 - CYLINDER BLOCK

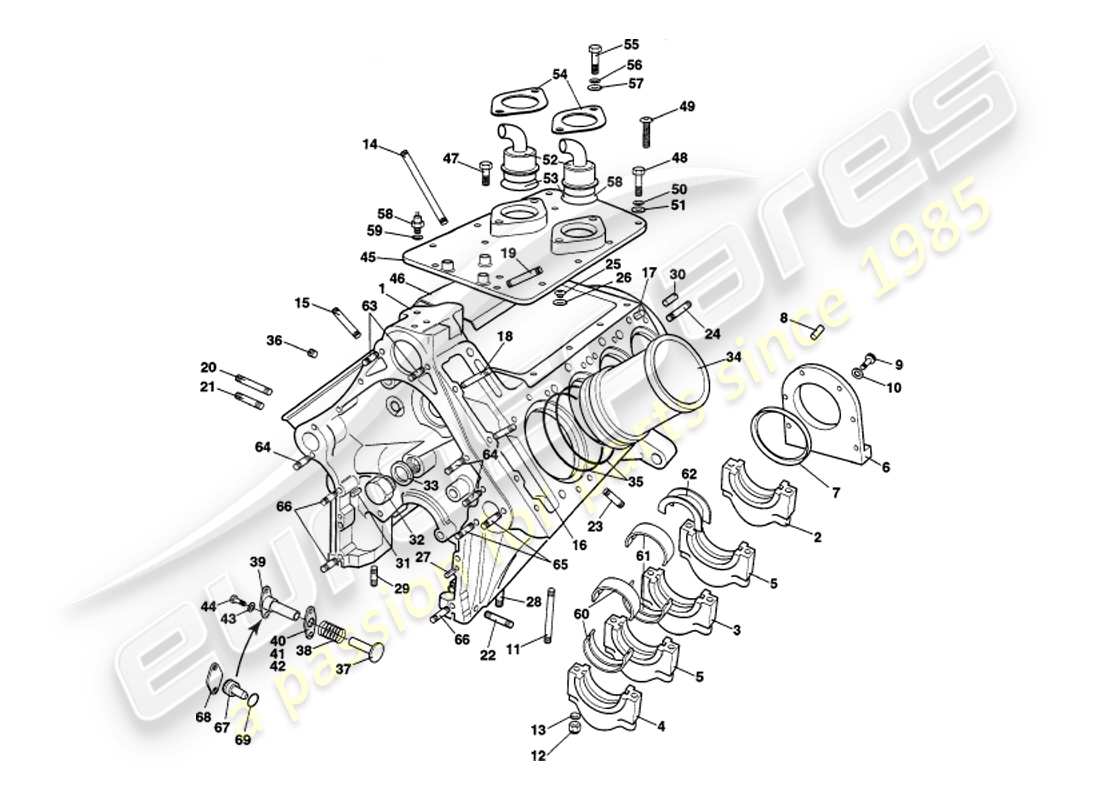

Aston Martin V8 Volante (1997) Cylinder Block Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 01-55831
CYLINDER BLOCK ASSEMBLY, STUDDED
ASSEMBLY CYLINDER BLOCK STUD Genuine Aston Martin - New (to order)
# 2
-
MAIN BEARING CAP, REAR
NOT SOLD SEPARATELY
# 3
-
MAIN BEARING CAP, CENTRE
NOT SOLD SEPARATELY
# 4
-
MAIN BEARING CAP, FRONT
NOT SOLD SEPARATELY
# 5
-
MAIN BEARING CAP, INTERMEDIATE
NOT SOLD SEPARATELY
# 5
MPN: 692576
LOCTITE STUDLOCK 270
from £104.43
from £104.43
LOCTITE 270 STUDLOCK Genuine Aston Martin - New (to order)
# 6
MPN: 01-70684
HOUSING, REAR SEAL
from £246.53
from £246.53
HOUSING - REAR SEAL Genuine Aston Martin - New (to order)
# 7
MPN: 01-70686
OIL SEAL, REAR
from £86.02
from £86.02
OIL SEAL RR-FREUD Genuine Aston Martin - New (to order)
# 8
MPN: 123111
DOWEL, 5/16 X 5/8 SILVER STEEL
Bearing housing to block
from £4.05
from £4.05
DOWEL 5/16 X 5/8 Genuine Aston Martin - New (to order)
HOSE Genuine Ferrari Part - New (to order)
HOSE Genuine Ferrari Part - Used In stock
# 9
MPN: 690332
SCREW, SKT CAP 1/4 UNC X 3/4
Bearing housing to block
from £1.83
from £1.83
SCREW 1/4 UNCX3/4SKT Genuine Aston Martin - New (to order)
# 10
MPN: 119470
WASHER, 1/4 17SWG
Bearing housing to block
Washer, plain, 1/4 Oil seal housing to block Genuine Aston Martin - New (to order)
# -
-
LOCTITE 509
Bearing housing to block
# -
-
LOCTITE ACTIVATOR 7471
Bearing housing to block
# 11
MPN: 080-001-0121
STUD, MAIN BEARING
from £29.21
from £29.21
STUD Genuine Aston Martin - New (to order)
# 12
MPN: 691147
NUT, NYLOC 1/2
from £0.50
from £0.50
NUT 1/2 UNF HEX HD Genuine Aston Martin - New (to order)
# 13
MPN: 119474
WASHER, PLAIN 1/2
from £0.47
from £0.47
WASHER 1/2 SMALL HVY Genuine Aston Martin - New (to order)
Genuine Ferrari Part (no longer available to order)
# 14
MPN: 01-23122
STUD, CYLINDER HEAD
from £30.16
from £30.16
STUD - CYLINDER HEAD 4 VALVE Genuine Aston Martin - New (to order)
# 15
MPN: 694260
STUD, 5/16 UNC/UNF
RH cylinder head
from £8.78
from £8.78
STUD 5/16 UNC/UNF Genuine Aston Martin - New (to order)
# 16
MPN: 691438
STUD, 5/16 UNC/UNF X 2.87
CYLINDER HEAD
from £6.53
from £6.53
STUD 5/16 UNF/CX2.87 Genuine Aston Martin - New (to order)
# 17
MPN: 694870
DOWEL, 1/4 DIA X 1/2
Cylinder Head location
from £3.22
from £3.22
DOWEL 1/4 DIAMETER X 1/2 Genuine Aston Martin - New (to order)
# 18
MPN: 06-26636
STUD, 5/16 X 4.625
LH cylinder head
from £8.78
from £8.78
STUD 5/16 X 4.625 Genuine Aston Martin - New (to order)
# 19
MPN: 694645
STUD, 3/8 UNC/UNF
CYLINDER HEAD
from £7.22
from £7.22
STUD 3/8 UNF/UNC Genuine Aston Martin - New (to order)
# 20
MPN: 694225
STUD, 3/8 UNC/UNF X 2.75
Compression Bracket
from £7.14
from £7.14
STUD 3/8 UNF/C X2.75 Genuine Aston Martin - New (to order)
# 21
MPN: 694224
STUD, 5/16 UNC/UNF
Compression Bracket
from £8.78
from £8.78
STUD 5/16 UNC/UNF Genuine Aston Martin - New (to order)
# 22
MPN: 694222
STUD, 5/16 UNC/UNF
ALTERNATOR BRACKET
from £8.78
from £8.78
STUD 5/16 UNC/UNF Genuine Aston Martin - New (to order)
# 23
MPN: 690999
STUD, 5/16 UNC/UNF X 1.25
Engine Mountings
from £6.87
from £6.87
STUD 5/16 X 1 1/4 Genuine Aston Martin - New (to order)
# 24
MPN: 691413
STUD, 7/16 UNC/UNF X 2.125
BELL HOUSING
from £7.42
from £7.42
STUD 7/16 UNF/CX2.12 Genuine Aston Martin - New (to order)
# 25
MPN: 690834
PLUG, SOCKET, 5/8 BSP
Oil gallery top
from £25.39
from £25.39
PLUG 5/8 BSP Genuine Aston Martin - New (to order)
# 26
MPN: 690835
WASHER, 29/32 X 1 1/4
Oil gallery top
from £2.53
from £2.53
WASHER COPPER Genuine Aston Martin - New (to order)
# 27
MPN: 123111
DOWEL, 5/16 X 5/8 SILVER STEEL
FRONT COVER
from £4.05
from £4.05
DOWEL 5/16 X 5/8 Genuine Aston Martin - New (to order)
HOSE Genuine Ferrari Part - New (to order)
HOSE Genuine Ferrari Part - Used In stock
# 28
MPN: 691596
STUD, 3/8 UNC/UNF X 1.75
oil pump
from £4.66
from £4.66
STUD 5/16 UNC/FX1.75 Genuine Aston Martin - New (to order)
# 29
MPN: 691438
STUD, 3/8 UNC/UNF X 2.87
oil pump
from £6.53
from £6.53
STUD 5/16 UNF/CX2.87 Genuine Aston Martin - New (to order)
# 30
MPN: 691485
DOWEL, 0.490 X1
Block/Bell Housing
from £19.74
from £19.74
DOWEL 4980 X 1 Genuine Aston Martin - New (to order)
# 31
MPN: 691105
RING DOWEL, 0.187 ID
Block/Chain Tensioner
from £10.02
from £10.02
DOWEL-RING .187 ID Genuine Aston Martin - New (to order)
# 32
MPN: 095-001-0107
PLUG, 3/4 BSP
Oil Gallery Ends
from £24.18
from £24.18
PLUG 3/4 BSP Genuine Aston Martin - New (to order)
# 33
MPN: 691564
WASHER, 3/4 COPPER
Plug, Oil Gallery
from £4.27
from £4.27
WASHER 3/4BSP COPPER Genuine Aston Martin - New (to order)
# -
-
LOCTITE SEALANT 542
Gallery plugs
# 34
MPN: 01-26777
Cylinder liner, Grade A
from £337.31
from £337.31
LINER. CYL-GRADE`A` Genuine Aston Martin - New (to order)
# 34
MPN: 01-26834
Cylinder Liner, Grade B
Alternative
from £358.12
from £358.12
LINER CYL-GRADE `B Genuine Aston Martin - New (to order)
# 35
MPN: 080-001-0107
O' ring, cylinder liner
O' ring, cylinder liner Genuine Aston Martin - New (to order)
# 36
MPN: 696055
PLUG, 1/4 BSP
Cylinder Block Drain
from £7.72
from £7.72
PLUG 1/4 BSPT AS BT Genuine Aston Martin - New (to order)
# 37
MPN: 01-72930
OIL PRESSURE RELIEF VALVE
from £420.31
from £420.31
OIL PRESS REL VALVE Genuine Aston Martin - New (to order)
# 38
MPN: 023-001-0133
SPRING, RELIEF VALVE
from £24.79
from £24.79
SPRING-RELIEF VALVE Genuine Aston Martin - New (to order)
# 39
MPN: 01-72929
BUSH, OIL PRESSURE RELIEF VALVE
See item 67
from £75.86
from £75.86
BUSH-OIL PRESS REL V Genuine Aston Martin - New (to order)
# 40
MPN: 020-001-0147
GASKET, OIL RELIEF VALVE
from £3.45
from £3.45
GASKT-OIL PRESS RELF Genuine Aston Martin - New (to order)
# 41
MPN: 023-001-0170
SHIM, RELIEF VALVE
from £15.77
from £15.77
SHIM AS/REQ RELIEF Genuine Aston Martin - New (to order)
# 42
MPN: 080-001-0148
SHIM, RELIEF VALVE
from £2.53
from £2.53
SHIM-OIL PRESS R/VLV Genuine Aston Martin - New (to order)
# 43
MPN: 698543
WASHER, SHAKEPROOF, M5
from £0.47
from £0.47
WASHER S/PROOF S5 Genuine Aston Martin - New (to order)
# 44
MPN: 123122
CAPSCREW, 2BA X 5/8
from £0.79
from £0.79
SCREW 2BA X 5/8 Genuine Aston Martin - New (to order)
# 45
MPN: 01-71648
VALLEY PLATE
VALLEY PLATE Genuine Aston Martin - New (to order)
# 46
MPN: 01-71649
BAFFLE PLATE
from £10.80
from £10.80
BAFFLE PLT-VALLY PLT Genuine Aston Martin - New (to order)
# 47
MPN: 696295
SCREW, DURLOCK M6X12
from £2.81
from £2.81
SCREW M6 X12 DURLOCK Genuine Aston Martin - New (to order)
# -
-
LOCTITE 509
Valley plate to block
# -
-
LOCTITE ACTIVATOR 7471
Valley plate to block
# 48
MPN: 123128
SCREW, 1/4 UNC X 7/8
Valley plate to block
from £1.21
from £1.21
SCREW 1/4 UNC X 7/8 Genuine Aston Martin - New (to order)
5TH SPEED GEAR Genuine Ferrari Part - New (to order)
# 49
MPN: 695813
SCREW, SKT BUTTON HEAD 1/4 UNC X 1
Valley plate to block
from £0.47
from £0.47
SCREW 1/4 UNC X1 SOCKET Genuine Aston Martin - New (to order)
# 50
MPN: 119480
WASHER, SPRING 1/4
Valley plate to block
Washer, spring, 1/4, plate to stud Genuine Aston Martin - New (to order)
# 51
MPN: 119470
WASHER, PLAIN 1/4
Valley plate to block
Washer, plain, 1/4 Oil seal housing to block Genuine Aston Martin - New (to order)
# 52
MPN: 01-26422
BREATHER ASSEMBLY
from £125.29
from £125.29
ASSEMBLY BREATHER Genuine Aston Martin - New (to order)
# 53
MPN: 695291
O' RING, BREATHER
from £0.87
from £0.87
O-RING 2.489 ID X.07 Genuine Aston Martin - New (to order)
# 54
MPN: 01-20468
CLAMP PLATE, BREATHER
from £40.93
from £40.93
CLAMP PLT-BREATHER Genuine Aston Martin - New (to order)
# 58
MPN: 38-56091
SENDER, TEMPERATURE
from £47.31
from £47.31
SENDER UNIT Genuine Aston Martin - New (to order)
# 59
MPN: 022-033-0202
Washer, copper
from £1.85
from £1.85
WASHER-SEALING COPPR Genuine Aston Martin - New (to order)
# 60
MPN: 01-18494
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, BLACK
from £48.23
from £48.23
BRG SHELL-BLACK-STD Genuine Aston Martin - New (to order)
# 60
MPN: 01-18495
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, RED
from £63.76
from £63.76
BRG SHELL-RED-STD Genuine Aston Martin - New (to order)
# 60
MPN: 01-18496
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, GREEN
from £63.76
from £63.76
BRG SHELL-GREEN-STD Genuine Aston Martin - New (to order)
# 60
MPN: 01-18497
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, BLACK
from £50.45
from £50.45
BRG SHELL .010 U/S Genuine Aston Martin - New (to order)
# 60
MPN: 01-18498
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, RED
from £46.90
from £46.90
BRG SHELL .010 U/S Genuine Aston Martin - New (to order)
# 60
MPN: 01-18499
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, GREEN
from £52.09
from £52.09
BRG SHELL.010 U/SGRN Genuine Aston Martin - New (to order)
# 60
MPN: 01-18500
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, BLACK
from £44.05
from £44.05
BRG SHELL .020 U/S Genuine Aston Martin - New (to order)
# 60
MPN: 01-18501
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, RED
from £32.16
from £32.16
BR SHELL FCR RED.020 Genuine Aston Martin - New (to order)
# 60
MPN: 01-18502
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, GREEN
from £46.16
from £46.16
BR SHELL FCR GRN-020 Genuine Aston Martin - New (to order)
# 61
MPN: 01-18503
BEARING SHELL, INTERMEDIATE, STANDARD, BLACK
from £40.04
from £40.04
BEARING SHELL-BLACK Genuine Aston Martin - New (to order)
# 61
MPN: 01-18504
BEARING SHELL, INTERMEDIATE, STANDARD, RED
from £40.04
from £40.04
BEARING SHELL-RED Genuine Aston Martin - New (to order)
# 61
MPN: 01-18505
BEARING SHELL, INTERMEDIATE, STANDARD, GREEN
from £59.55
from £59.55
BEARING SHELL-GREEN Genuine Aston Martin - New (to order)
# 61
MPN: 01-18506
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, BLACK
from £42.05
from £42.05
BRG SHELL .010 U/S Genuine Aston Martin - New (to order)
# 61
MPN: 01-18507
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, RED
from £40.04
from £40.04
BRG SHELL .010 U/S Genuine Aston Martin - New (to order)
# 61
MPN: 01-18508
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, GREEN
from £67.54
from £67.54
BRG SHELL .010 U/S Genuine Aston Martin - New (to order)
# 61
MPN: 01-18509
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, BLACK
from £40.04
from £40.04
BRG SHELL .020 U/S Genuine Aston Martin - New (to order)
# 61
MPN: 01-18510
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, RED
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, RED Genuine Aston Martin - New (to order)
# 61
MPN: 01-18511
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, GREEN
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, GREEN Genuine Aston Martin - New (to order)
# 62
MPN: 01-15883
WASHER, THRUST, UNCODED
WASHER, THRUST, UNCODED Genuine Aston Martin - New (to order)
# 63
MPN: 691597
STUD, 5/16 UNC/UNF X 3.12
Timing Cover to Cylinder Block
from £8.21
from £8.21
STUD 5/16 UNF/CX3.12 Genuine Aston Martin - New (to order)
# 64
MPN: 691113
STUD, 5/16 UNC/UNF X 2.75
Timing Cover to Cylinder Block
from £7.23
from £7.23
STUD 5/16 UNF/CX2.75 Genuine Aston Martin - New (to order)
# 65
MPN: 691438
STUD, 5/16 UNC/UNF X 2.87
Timing Cover to Cylinder Block
from £6.53
from £6.53
STUD 5/16 UNF/CX2.87 Genuine Aston Martin - New (to order)
# 66
MPN: 691048
STUD, 5/16 UNC/UNF X 2.1
Timing Cover to Cylinder Block
from £6.67
from £6.67
STUD-5/16 UNF/C X2.1 Genuine Aston Martin - New (to order)
# 67
MPN: 01-74580
BUSH, OIL PRESSURE RELIEF VALVE
Replaces item 39
from £84.11
from £84.11
BUSH Genuine Aston Martin - New (to order)
# 68
MPN: 01-74581
FLANGE, OIL PRESSURE RELIEF VALVE
Replaces item 39
from £30.83
from £30.83
FLANGE Genuine Aston Martin - New (to order)
# 69
MPN: 698774
O' RING, OIL PRESSURE RELIEF
Replaces item 39
from £1.23
from £1.23
O RING Genuine Aston Martin - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
