1.3 - Cylinder Heads

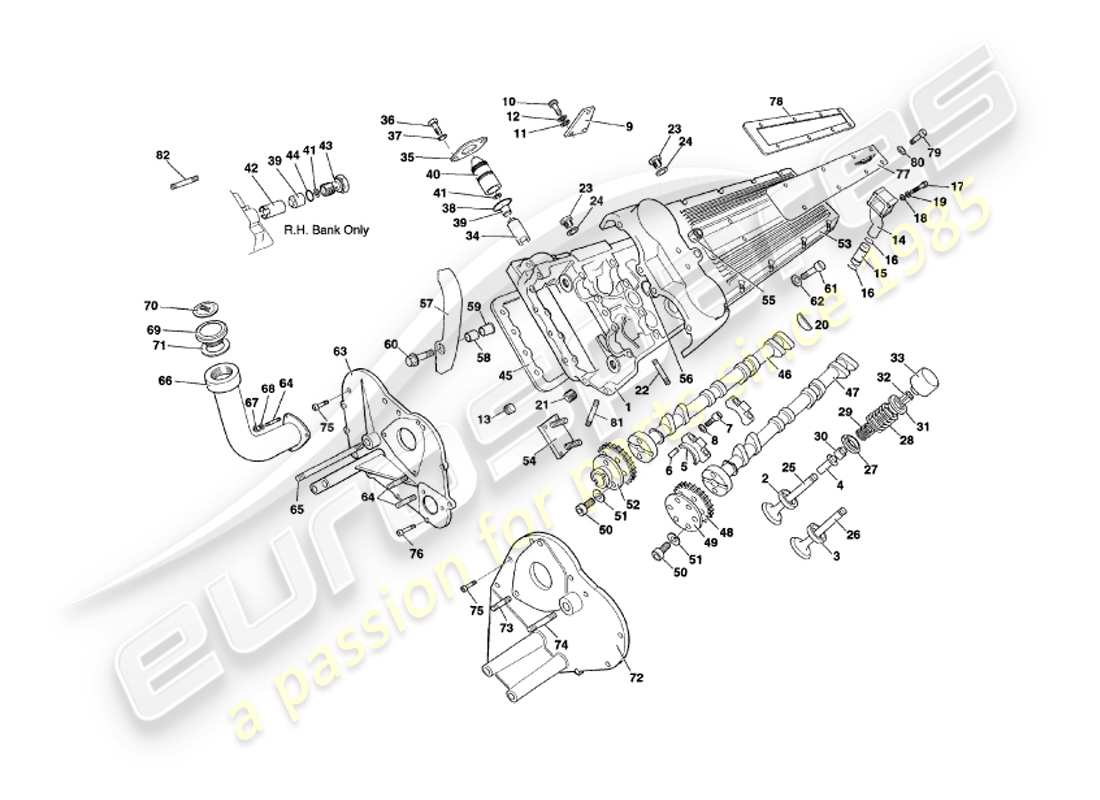

Aston Martin V8 Volante (1997) Cylinder Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 06-70317
CYLINDER HEAD STUDDED - LH
from £10,941.42
from £10,941.42
# 1
MPN: 06-70316
CYLINDER HEAD STUDDED - RH
from £10,941.42
from £10,941.42
# 2
MPN: 06-70306
VALVE SEAT, INLET
from £89.63
from £89.63
# 3
MPN: 06-70307
VALVE SEAT, EXHAUST
from £89.63
from £89.63
# 4
MPN: 06-71440
VALVE GUIDE, INLET
from £68.61
from £68.61
# 4
MPN: 06-71441
VALVE GUIDE, EXHAUST
from £26.36
from £26.36
# 5
MPN: 06-23120
BEARING CAP, FRONT RH
Only available in sets
from £179.36
from £179.36
# 5
MPN: 06-23121
BEARING CAP, FRONT LH
Only available in sets
from £179.36
from £179.36
# 5
MPN: 06-26358
BEARING CAP, INTERMEDIATE, NO 3
Only available in sets
from £29.29
from £29.29
# 5
MPN: 06-26469
BEARING CAP, NO 2,4,5
Only available in sets
from £16.42
from £16.42
# 6
MPN: 06-26127
DOWEL
from £7.92
from £7.92
# 7
MPN: 693364
SCREW, SOCKET HEAD, 5/16 UNC X 1 3/4
Cam bearing cap attach
from £1.39
from £1.39
# 8
MPN: 694208
WASHER, 13MM OD, SPECIAL
Cam bearing cap attach
from £1.46
from £1.46
# 9
MPN: 06-70565
BLANKING PLATE, WATER
from £11.15
from £11.15
# 10
MPN: 690331
SCREW, SOCKET HEAD, 1/4 UNC X 5/8 LONG
Blanking plate to cylinder head
from £1.07
from £1.07
# 11
MPN: 119470
WASHER, PLAIN, 1/4
Blanking plate to cylinder head
# 12
MPN: 119480
WASHER, SPRING, 1/4
Blanking plate to cylinder head
# 13
MPN: 06-26533
PLUG, AIR INJECTION GALLERY
from £5.15
from £5.15
# 14
MPN: 06-70691
ELBOW, REAR DRAIN, LH
from £147.40
from £147.40
# 14
MPN: 06-70690
ELBOW, REAR DRAIN, RH
from £147.40
from £147.40
# 15
MPN: 06-70689
TUBE, JOINER
from £30.11
from £30.11
# 16
MPN: 06-71098
O' ring
from £1.81
from £1.81
# 17
MPN: 500414
BOLT, 1/4 UNC X 1 3/4
Elbow to cylinder head
from £1.16
from £1.16
# 18
MPN: 119470
WASHER, PLAIN, 1/4
Elbow to cylinder head
# 19
MPN: 119480
WASHER, SPRING, 1/4
Elbow to cylinder head
# -
-
LOCTITE 509
Elbow to cylinder head
# -
-
LOCTIE ACTIVATOR 7471
Elbow to cylinder head
# 20
MPN: 080-007-0111
SEAL PLUG, LH CYLINDER HEAD
# 21
MPN: 06-26755
PLUG, 3/8 BSP
from £11.48
from £11.48
# 22
MPN: 690993
STUD, 5/16 UNC/UNF X 1 15/32
EXHAUST MANIFOLD
from £7.10
from £7.10
# 23
MPN: 119591
PLUG, 1/8 BSP, FLANGED
Oilway blanking
from £11.15
from £11.15
# 24
MPN: 095-033-0161
COPPER WASHER
Plug, oilway blanking
# 25
MPN: 06-70308
INLET VALVE
from £89.63
from £89.63
# 26
MPN: 06-70309
EXHAUST VALVE
from £89.63
from £89.63
# 27
MPN: 06-23107
VALVE SPRING SEAT
from £29.98
from £29.98
# 28
MPN: 06-23105
VALVE SPRING, OUTER
from £25.91
from £25.91
# 29
MPN: 06-64355
VALVE SPRING, INNER
from £15.36
from £15.36
# 30
MPN: 06-72260
Seal, valve stem
from £5.82
from £5.82
# 31
MPN: 06-70310
RETAINER, VALVE SPRING
from £28.17
from £28.17
# 32
MPN: 06-70311
VALVE COTTER
from £4.67
from £4.67
# 33
MPN: 06-26843
CAM FOLLOWER, ANTI DRAIN
from £63.95
from £63.95
# 34
MPN: 06-26553
CHAIN ADJUSTER
from £139.73
from £139.73
# 35
MPN: 06-71829
RETAINING PLATE
from £14.70
from £14.70
# 36
MPN: 510405
SETSCREW, 1/4 UNC X 5/8
# 37
MPN: 119470
WASHER, PLAIN, 1/4
# 38
MPN: 696509
O' ring
from £2.22
from £2.22
# -
-
SLEEVE AND VALVE ASSEMBLY
# 39
MPN: 06-26033
SPIGOT, CHECK VALVE
from £17.87
from £17.87
# 40
MPN: 06-74582
SLEEVE PLUNGER, CHAIN TENSIONER
from £232.58
from £232.58
# 41
MPN: 06-74583
WASHER PLUNGER, CHAIN TENSIONER
from £12.58
from £12.58
# 42
MPN: 06-26553
CHAIN ADJUSTER
from £139.73
from £139.73
# -
-
PLUG AND VALVE ASSEMBLY
# 43
MPN: 06-74586
PLUG, CHECK VALVE, CHAIN TENSIONER, RH
from £35.03
from £35.03
# 44
MPN: 06-26696
O' ring
from £0.72
from £0.72
# 45
MPN: 06-26847
CYLINDER HEAD GASKET
from £131.63
from £131.63
# -
-
NUT, CYLINDER HEAD
Cylinder head to block
# -
-
WASHER, CYLINDER HEAD
Cylinder head to block
# -
-
NUT, NYLOC, 5/16 UNF
Cylinder head to block
# -
-
WASHER, PLAIN, 5/16
Cylinder head to block
# -
-
NUT, NYLOC, 3/8 UNF
Cylinder head to block
# -
-
WASHER, PLAIN, 3/8
Cylinder head to block
# 46
MPN: 07-70648
CAMSHAFT, RH
from £902.45
from £902.45
# 47
MPN: 07-70649
CAMSHAFT, LH
from £902.45
from £902.45
# 48
MPN: 07-20291
SPROCKET, CAMSHAFT
from £275.33
from £275.33
# 49
MPN: 080-007-0107
WASHER, SPROCKET
Sprockets to camshafts
from £31.10
from £31.10
# 50
MPN: 693177
SCREW, SOCKET HEAD, 5/16 UNF X 3/4
Sprockets to camshafts
from £1.00
from £1.00
# 51
MPN: 694208
WASHER, 13MM OD
Sprockets to camshafts
from £1.46
from £1.46
# 52
MPN: 07-25803
DISTRIBUTOR DRIVE ADAPTOR, LH
from £179.79
from £179.79
# 52
MPN: 07-25802
DISTRIBUTOR DRIVE ADAPTOR, RH
from £179.79
from £179.79
# 53
MPN: 07-70536
CAMSHAFT COVER
from £526.32
from £526.32
# 54
MPN: 03-71848
CHAIN GUIDE ASSEMBLY, INTERMEDIATE SPROCKET
from £87.57
from £87.57
# 55
MPN: 694310
NUT, 1/4 UNF ST/STL
from £6.44
from £6.44
# -
-
LOCTITE 5699, ULTRA GREY
Chain guide attach
# 56
MPN: 695773
O' RING, SPARK PLUG RECESS
from £0.87
from £0.87
# 57
MPN: 03-72019
CHAIN TENSIONER SHOE, LH
from £458.39
from £458.39
# -
-
LINING, CHAIN TENSIONER, LH
# 57
MPN: 03-26016
CHAIN TENSIONER SHOE, RH
from £458.35
from £458.35
# -
-
LINING, CHAIN TENSIONER, RH
# 58
MPN: 03-26007
BEARING
from £94.32
from £94.32
# 59
MPN: 03-26006
SLEEVE, SPACER
from £11.58
from £11.58
# 60
MPN: 03-26203
SCREW, M8X35 MODIFIED
LH adjuster attachment
from £13.47
from £13.47
# -
-
SCREW, M8 X 35
RH adjuster attachment
# 61
MPN: 690333
SCREW, SOCKET HEAD, 1/4 UNC X 1 1/2
Cam cover attach
from £2.67
from £2.67
# 61
MPN: 690332
SCREW, SOCKET HEAD, 1/4 UNC X 3/4
Cam cover attach
from £1.83
from £1.83
# 61
MPN: 696458
SCREW, SOCKET HEAD, 1/4 UNC X 2 1/2
Cam cover attach
from £2.81
from £2.81
# 62
MPN: 692056
WASHER, PLAIN M6
from £0.47
from £0.47
# 63
MPN: 07-64722
FRONT COVER, CYLINDER HEAD, RH
from £423.30
from £423.30
# 64
MPN: 694253
STUD, M5XM5
Distributor/oil filter
from £6.88
from £6.88
# 65
MPN: 694226
STUD, M10XM10X135
PAS pump to pivot
from £11.83
from £11.83
# 66
MPN: 07-64714
Pipe assembly, oil filter
from £669.63
from £669.63
# 67
MPN: 692800
NUT, NYLOC, M5
Oil filler pipe to front cover
from £0.47
from £0.47
# 68
MPN: 692055
WASHER, PLAIN, M5
Oil filler pipe to front cover
from £0.47
from £0.47
# -
-
LOCTITE 5699, ULTRA GREY
Oil filler pipe to front cover
# -
-
OIL FILLER CAP AND LABEL ASSEMBLY
# 69
MPN: 07-71843
OIL FILLER CAP
from £58.67
from £58.67
# 70
MPN: 07-71981
LABEL, OIL FILLER CAP
# 71
MPN: 095-007-0106
SEAL, OIL FILLER CAP
from £1.79
from £1.79
# 72
MPN: 07-64421
FRONT COVER, CYLINDER HEAD, LH
from £1,125.00
from £1,125.00
# 73
MPN: 694253
STUD, M5XM5
Distributor to front cover
from £6.88
from £6.88
# 74
MPN: 694228
STUD, M10
Pump adjusting link to front cover
from £10.07
from £10.07
# 75
MPN: 691439
SCREW, SOCKET HEAD, 1/4 UNC X 5/8
Front covers to cylinder heads
from £0.81
from £0.81
# -
-
LOCTITE 5699, ULTRA GREY
Front covers to cylinder heads
# 76
MPN: 696790
SCREW, SOCKET HEAD, 1/4 UNC X 1
Front cover and oil filler to cyl head
from £0.67
from £0.67
# 77
MPN: 07-64713
Spark plug cover, LH
from £33.82
from £33.82
# 77
MPN: 07-64712
Spark plug cover, RH
from £43.21
from £43.21
# 78
MPN: 07-64803
Spacer, spark plug cover
# 79
MPN: 693968
SCREW, 1/4 UNC X 1/2 LOW HEAD, ST/STL
Spark plug cover attach
from £11.97
from £11.97
# 80
MPN: 698230
WASHER, SPECIAL, SHAKEPROOF
Spark plug cover attach
from £0.47
from £0.47
# 81
MPN: 694222
STUD, 5/16 UNC/UNF
AIR PUMP BRACKET
from £8.78
from £8.78
# 82
MPN: 694229
STUD, 5/16 UNC/UNF X 1.55
POWER STEERING BRACKET
from £4.84
from £4.84
-part-diagram-1.4a.webp "ASTON MARTIN V8 VOLANTE (1997) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VOLANTE (1997) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VOLANTE (1997) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 VOLANTE (1997) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.webp "ASTON MARTIN V8 VOLANTE (1997) WATER COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 VOLANTE (1997) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 VOLANTE (1997) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 VOLANTE (1997) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VOLANTE (1997) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 VOLANTE (1997) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VOLANTE (1997) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VOLANTE (1997) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 VOLANTE (1997) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VOLANTE (1997) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 VOLANTE (1997) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 VOLANTE (1997) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 VOLANTE (1997) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VOLANTE (1997) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 VOLANTE (1997) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 VOLANTE (1997) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 VOLANTE (1997) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 VOLANTE (1997) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VOLANTE (1997) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VOLANTE (1997) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 VOLANTE (1997) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VOLANTE (1997) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 VOLANTE (1997) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VOLANTE (1997) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VOLANTE (1997) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 VOLANTE (1997) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 VOLANTE (1997) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 VOLANTE (1997) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.webp "ASTON MARTIN V8 VOLANTE (1997) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 VOLANTE (1997) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 VOLANTE (1997) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VOLANTE (1997) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VOLANTE (1997) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VOLANTE (1997) UNDERBONNET COMPONENTS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VOLANTE (1997) UNDERBONNET COMPONENTS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 VOLANTE (1997) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.1.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6a.2.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 VOLANTE (1997) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 VOLANTE (1997) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VOLANTE (1997) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VOLANTE (1997) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 VOLANTE (1997) REAR STRUCTURE, BUMPER & BOOT PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 VOLANTE (1997) FLOOR PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 VOLANTE (1997) SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VOLANTE (1997) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VOLANTE (1997) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VOLANTE (1997) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VOLANTE (1997) DOOR LATCH MECHANISM PARTS DIAGRAM")
-part-diagram-7.4c.1.webp "ASTON MARTIN V8 VOLANTE (1997) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.4c.2.webp "ASTON MARTIN V8 VOLANTE (1997) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 VOLANTE (1997) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 VOLANTE (1997) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 VOLANTE (1997) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 VOLANTE (1997) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.webp "ASTON MARTIN V8 VOLANTE (1997) TRUNK LID PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 VOLANTE (1997) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VOLANTE (1997) GLASS PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VOLANTE (1997) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 VOLANTE (1997) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 VOLANTE (1997) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 VOLANTE (1997) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 VOLANTE (1997) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 VOLANTE (1997) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 VOLANTE (1997) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 VOLANTE (1997) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 VOLANTE (1997) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 VOLANTE (1997) CARPETS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD HYDRAULICS PARTS DIAGRAM")
-part-diagram-7.9c.1.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD FRAME WOODS PARTS DIAGRAM")
-part-diagram-7.9c.2.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD FRAME WOODS PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VOLANTE (1997) DROPPING REAR QUARTERLIGHT PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 VOLANTE (1997) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 VOLANTE (1997) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VOLANTE (1997) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VOLANTE (1997) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VOLANTE (1997) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VOLANTE (1997) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
