2.2A - Inlet Manifolds and Plenum

Aston Martin V8 Volante (1997) Inlet Manifolds and Plenum Parts Diagram

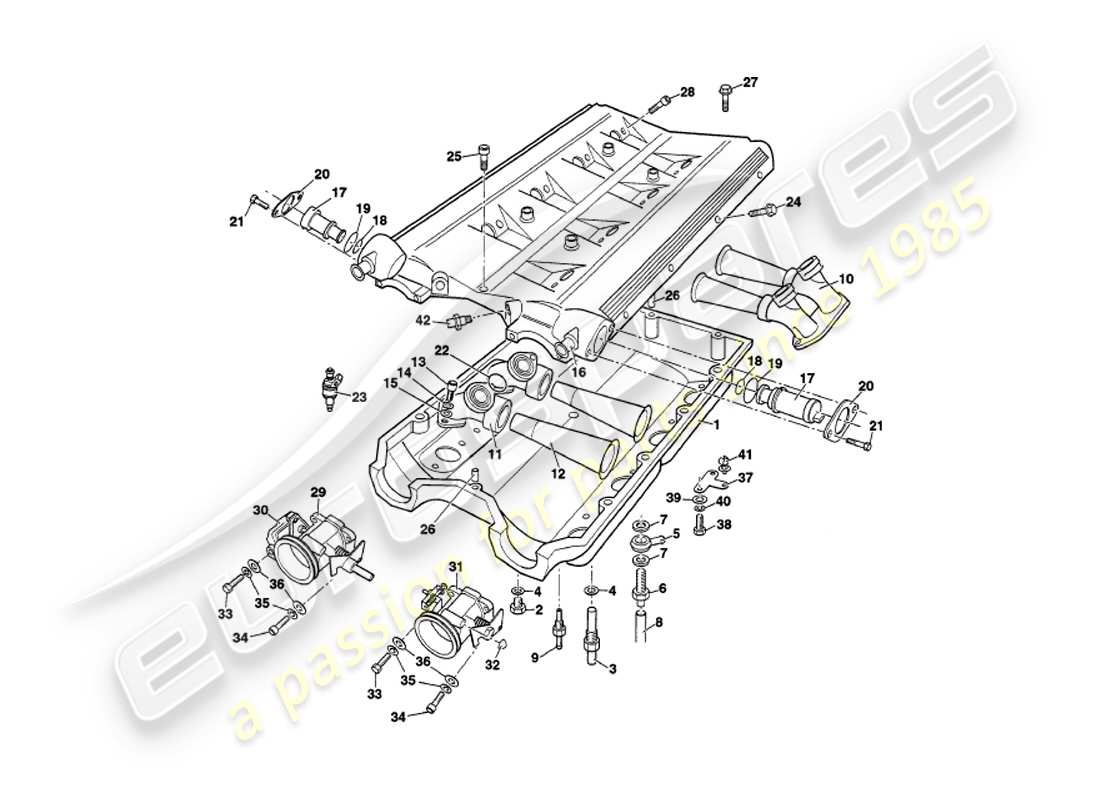

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
-
PLENUM CHAMBER BASE
Part of 08-64960 top and base M/C pr
# -
-
LOCTITE 5699, ULTRA GREY
Plenum chamber top to base
# -
-
SEAL STRIP, 6MM DIA
Plenum chamber top to base
# -
-
O RING, PLENUM BASE TO CYLINDER HEADS
# 2
MPN: 119591
PLUG, 1/8 BSP
from £11.15
from £11.15
PLUG 1/8 BSP FLANGED Genuine Aston Martin - New (to order)
# 3
MPN: 08-21079
CHOKE UNION ASSEMBLY
from £43.43
from £43.43
ASSEMBLY CHOKE UNION Genuine Aston Martin - New (to order)
# 4
MPN: 095-033-0161
COPPER WASHER
Washer, copper Genuine Aston Martin - New (to order)
# 5
MPN: 069-033-0168
BANJO, VACUUM TANK TAKE OFF
from £52.85
from £52.85
BANJO Genuine Aston Martin - New (to order)
# 6
MPN: 08-26434
BANJO BOLT ASSEMBLY
from £46.07
from £46.07
ASSEMBLY BANJO BOLT Genuine Aston Martin - New (to order)
# 7
MPN: 022-033-0202
SEALING WASHER, BANJO
from £1.85
from £1.85
WASHER-SEALING COPPR Genuine Aston Martin - New (to order)
# 8
MPN: 692546
TUBE, POLYVON, 1/8 DIA
from £7.92
from £7.92
TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
# 9
MPN: 08-55718
NIPPLE ASSY, 1/4 BSP
from £20.08
from £20.08
ASSEMBLY NIPPLE 1/4 BSPT Genuine Aston Martin - New (to order)
# 10
MPN: 08-64709
Air inlet manifold assy
Air inlet manifold assembly Genuine Aston Martin - New (to order)
# 11
MPN: 08-64710
Inlet Manifold
Part of item 10
from £391.94
from £391.94
Inlet Manifold Genuine Aston Martin - New (to order)
# 12
MPN: 08-25695
TRUMPET, INLET MANIFOLD
Part of item 10
from £66.75
from £66.75
TRUMPET-INLET MANIF Genuine Aston Martin - New (to order)
# -
-
LOCTITE 648, TRUMPETS TO INLET MANIFOLDS
Part of item 10
# 13
MPN: 694035
CAPSCREW, 1/4 UNC X 1
Plenum base and manifolds to heads
from £0.56
from £0.56
SCREW 1/4 UNC X1 SOCKET Genuine Aston Martin - New (to order)
# 14
MPN: 119480
WASHER, SPRING, 1/4
Plenum base and manifolds to heads
Washer, spring, 1/4, plate to stud Genuine Aston Martin - New (to order)
# 15
MPN: 692056
WASHER, PLAIN, M6
Plenum base and manifolds to heads
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# -
-
PLENUM CHAMBER TOP
Part of 08-64960 top and base M/C pr
# 16
MPN: 08-26578
Bleed stub, air valve
from £4.88
from £4.88
BLEED STUB-AIR VALVE Genuine Aston Martin - New (to order)
# -
-
LOCTITE 648, BLEED STUB TO PLENUM TOP
# 17
MPN: 08-56335
VALVE, IDLE AIR CONTROL
from £480.08
from £480.08
ASSEMBLY IDLE AIR CNT VLV Genuine Aston Martin - New (to order)
# 18
MPN: 08-26152
O RING, SMALL
from £3.64
from £3.64
O RING Genuine Aston Martin - New (to order)
# 19
MPN: 08-26153
O RING, LARGE
from £3.89
from £3.89
O RING Genuine Aston Martin - New (to order)
# 20
MPN: 08-26150
CLAMP RING
from £8.11
from £8.11
CLAMP RING Genuine Aston Martin - New (to order)
# 21
MPN: 08-26151
SCREW, AIR VALVE ATTACH
from £0.83
from £0.83
SCREW-VAE ATTACH Genuine Aston Martin - New (to order)
# 22
MPN: 08-26107
O RING, PLENUM TOP TO MANIFOLDS
O' ring, top to manifold Genuine Aston Martin - New (to order)
# 23
MPN: 08-20006
INJECTOR
from £98.44
from £98.44
INJECTOR Genuine Aston Martin - New (to order)
# -
-
O RING
# 24
MPN: 08-25909
BOLT, PLENUM CHAMBER TOP
from £13.73
from £13.73
BOLT-PLENM CHMBR TOP Genuine Aston Martin - New (to order)
# 25
MPN: 692092
CAPSCREW, M6X35
PLENUM CHAMBER TOP
from £1.13
from £1.13
SCREW M6 X35 SOCKET CAP Genuine Aston Martin - New (to order)
# 26
MPN: 06-26127
DOWEL
Plenum chamber top location
from £7.92
from £7.92
DOWEL Genuine Aston Martin - New (to order)
# 27
MPN: 08-25910
BOLT, PLENUM CHAMBER TOP
from £52.80
from £52.80
BOLT-PLENM CHMBR TOP Genuine Aston Martin - New (to order)
# 28
MPN: 694210
CAPSCREW, M8X16
PLENUM CHAMBER TOP
from £0.67
from £0.67
SCREW M8 X16 SOCKET CAP Genuine Aston Martin - New (to order)
# -
-
Throttle body assembly, RH
Includes potentiometer
# 29
MPN: 08-56172
Throttle body, RH
Throttle body, RH Genuine Aston Martin - New (to order)
# 30
MPN: 08-56705
Throttle potentiometer, replacement kit
Throttle potentiometer, replacement kit Genuine Aston Martin - New (to order)
# 31
MPN: 08-56173
Throttle body, LH
from £857.84
from £857.84
THROTTLE BODY LH Genuine Aston Martin - New (to order)
# 32
MPN: 08-54412
TAMPERPROOF CAP
Idle bypass
from £0.67
from £0.67
TAMPERPROOF CAP Genuine Aston Martin - New (to order)
# 33
MPN: 693236
BOLT, M6X25
Throttle bodies to plenum
from £0.50
from £0.50
BOLT M6 X 25 HEX HD Genuine Aston Martin - New (to order)
# 34
MPN: 692745
CAPSCREW, M6X25
Throttle bodies to plenum
from £0.47
from £0.47
SCREW M6 X25 SOCKET CAP Genuine Aston Martin - New (to order)
# 35
MPN: 692046
WASHER, SPRING, M6
Throttle bodies to plenum
from £0.47
from £0.47
WASHER M6 SPRING Genuine Aston Martin - New (to order)
# 36
MPN: 692056
WASHER, PLAIN, M6
Throttle bodies to plenum
from £0.47
from £0.47
WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
# -
-
LOCTITE 5699, ULTRA GREY
Throttle bodies to plenum
# 37
MPN: 08-26698
BRACKET, CABLE CLIP
from £71.05
from £71.05
BRKT-CBL CLIP/PLEN Genuine Aston Martin - New (to order)
# 38
MPN: 692090
SCREW, M5X12
Bracket, to plenum
from £0.47
from £0.47
SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
# 39
MPN: 692055
WASHER, PLAIN, M5
Bracket, to plenum
from £0.47
from £0.47
WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
# 40
MPN: 692045
WASHER, SPRING, M5
Bracket, to plenum
from £0.47
from £0.47
WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
# 41
MPN: 694900
CABLE CLIP
from £1.21
from £1.21
CBL-CLIP M6 NYLON Genuine Aston Martin - New (to order)
# -
-
Clip, cable to cable
RHD
# -
-
LOCTITE, STUDLOCK 270
# 42
MPN: 08-20003
SENSOR, AIR TEMPERATURE
from £64.88
from £64.88
SENSOR-AIR TEMP Genuine Aston Martin - New (to order)
