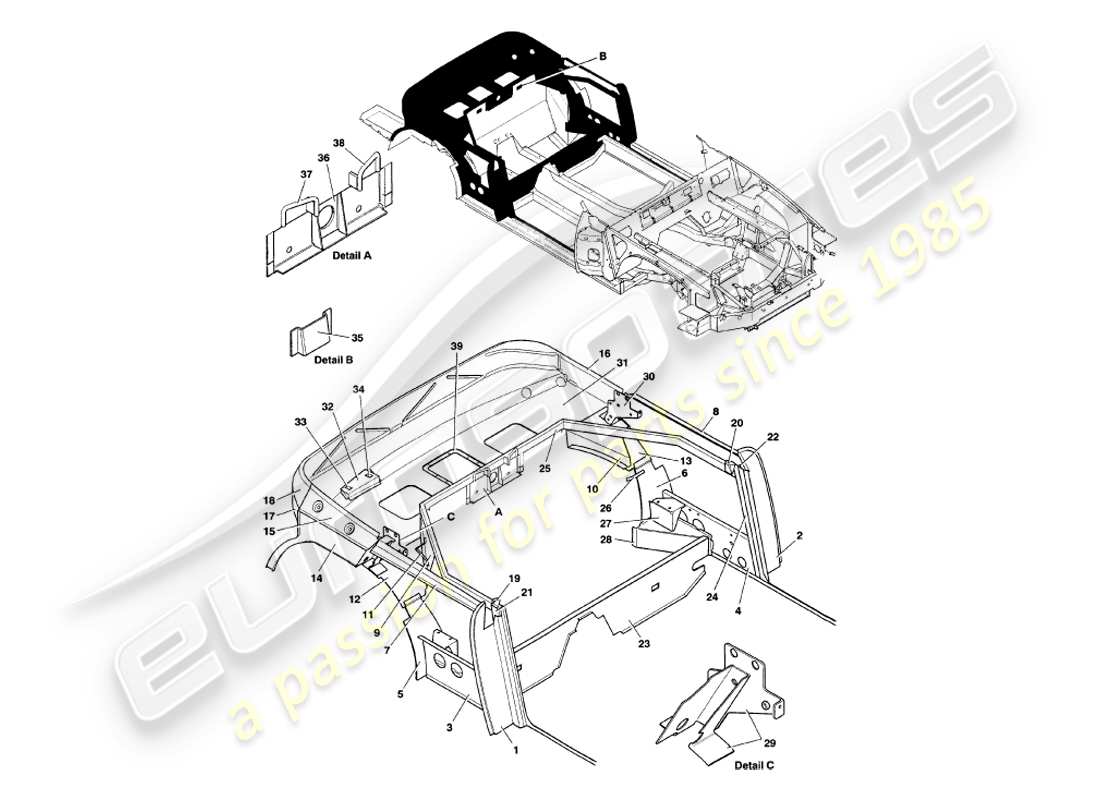

7.2B - rear structure
Aston Martin V8 Volante (1997) Rear Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 61-66038
PANEL ASSY, B POST LOCKFACE, RH
# 2
MPN: 61-66039
PANEL ASSY, B POST LOCKFACE, LH
# 3
MPN: 61-65130
BRACKET ASSY, REEL MOUNTING FRONT, RH
from £21.20
from £21.20
# 4
MPN: 61-65131
BRACKET ASSY, REEL MOUNTING FRONT, LH
from £21.20
from £21.20
# 5
MPN: 18-65096
Reinforcement, splash panel lower, RH
from £18.29
from £18.29
# 6
MPN: 18-65097
Reinforcement, splash panel lower, LH
from £18.29
from £18.29
# 7
MPN: 17-65154
Reinforcement panel, quarter light aperture, RH
from £27.57
from £27.57
# 8
MPN: 17-65155
Reinforcement panel, quarter light aperture, LH
from £27.57
from £27.57
# 9
MPN: 22-60270
PANEL, QUARTER INFILL, RH
# 10
MPN: 22-60271
PANEL, QUARTER INFILL, LH
# 11
MPN: 17-66103
Bracket, back light stay
# 12
MPN: 22-60276
PANEL, SPLASH REINFORCEMENT, RH
from £89.00
from £89.00
# 13
MPN: 22-60277
PANEL, SPLASH REINFORCEMENT, LH
from £89.00
from £89.00
# 14
MPN: 61-65138
Panel assy, rear inner wing, RH
from £25.41
from £25.41
# 14
MPN: 61-65139
Panel assy, rear inner wing, LH
from £25.41
from £25.41
# 15
MPN: 22-60348
PANEL, CLOSING, HOOD TRAY SIDE, RH
from £14.84
from £14.84
# 16
MPN: 22-60349
PANEL, CLOSING, HOOD TRAY SIDE, LH
from £14.84
from £14.84
# 17
MPN: 61-65142
PANEL, CLOSING, HOOD TRAY REAR LOWER
from £21.20
from £21.20
# 18
MPN: 65-65141
PANEL, CLOSING, HOOD TRAY REAR
# 19
MPN: 61-65156
MOUNTING BRACKET ASSY, SEAT BELT UPPER, RH
from £6.34
from £6.34
# 20
MPN: 61-65157
MOUNTING BRACKET ASSY, SEAT BELT UPPER, LH
from £6.34
from £6.34
# 21
MPN: 61-61678
B POST TUBE ASSY, RH
from £254.31
from £254.31
# 22
MPN: 61-61679
B POST TUBE ASSY, LH
from £232.92
from £232.92
# 23
MPN: 61-65134
PANEL ASSY, HEELBOARD
from £519.24
from £519.24
# 24
MPN: 21-60369
PANEL, FURFLEX SUPPORT, B POST, RH
from £25.41
from £25.41
# 24
MPN: 21-60368
PANEL, FURFLEX SUPPORT, B POST, LH
from £25.41
from £25.41
# 25
MPN: 61-65153
HOOP RAIL ASSY
# 26
MPN: 22-61672
RETAINING TAG
# 27
MPN: 17-65439
PLATFORM ASSY, HOOD RAM SUPPORT, LH
from £41.35
from £41.35
# 27
MPN: 17-65438
PLATFORM ASSY, HOOD RAM SUPPORT, RH
from £41.35
from £41.35
# 28
MPN: 61-65145
REINFORCEMENT, B POST LOWER, LH
from £12.71
from £12.71
# 28
MPN: 61-65144
REINFORCEMENT, B POST LOWER, RH
from £12.71
from £12.71
# 29
MPN: 22-60320
MOUNTING BRACKET ASSY, HOODSTICK, RH
from £33.93
from £33.93
# 30
MPN: 22-60321
MOUNTING BRACKET ASSY, HOODSTICK, LH
from £33.93
from £33.93
# 31
MPN: 18-65098
TRAY ASSY, HOOD STOWAGE
from £332.15
from £332.15
# 32
MPN: 18-66104
RECESS PANEL
# 33
MPN: 18-66160
GUIDE BRACKET ASSY, CPS, RH
# 34
MPN: 18-66161
GUIDE BRACKET ASSY, CPS, LH
# 35
MPN: 21-66429
BRACKET, SEAT SQUAB RETAINING
from £80.98
from £80.98
# 36
MPN: 22-61700
CARRIER ASSY, INERTIA REEL
# 37
MPN: 61-61698
GUIDE LOOP ASSY, SEAT BELT, RH
# 38
MPN: 61-61699
Guide loop assy, seat belt, LH
# -
-
WELD ASSY, CHILD RESTRAINT
Australia
# -
-
BRACKET ASSY, CHILD RESTRAINT ATTACHMENT
Australia
