aston martin v8 volante (1997) fuel filler flaps parts diagram

7.3B - Fuel Filler Flaps

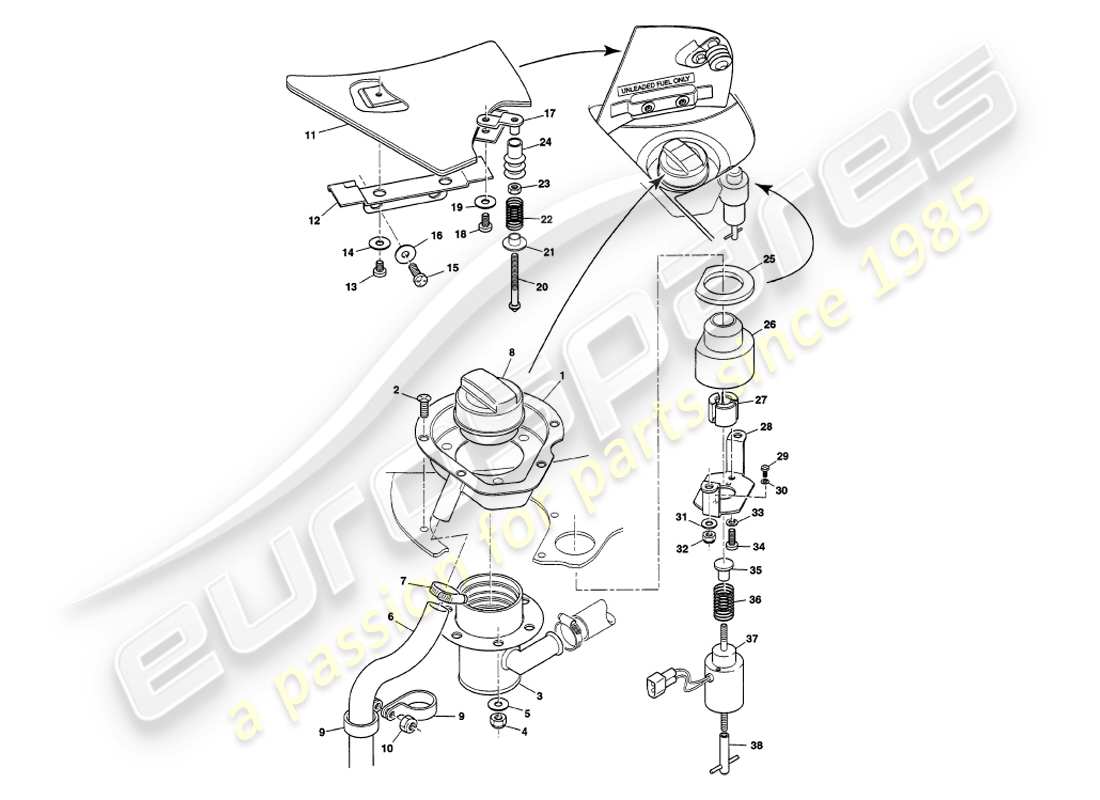

Aston Martin V8 Volante (1997) Fuel Filler Flaps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 1
                                                                          MPN: 68-64269
                                                                          FUEL FILLER CARRIER ASSEMBLY, LH
                                                                          from £87.11
                                                                          from £87.11
                                                                          ASSEMBLY CARR F/FLL NK LH Genuine Aston Martin - New (to order)
                                                                          # 1
                                                                          MPN: 68-64268
                                                                          FUEL FILLER CARRIER ASSEMBLY, RH
                                                                          from £87.64
                                                                          from £87.64
                                                                          ASSEMBLY CARR F/FIL NK RH Genuine Aston Martin - New (to order)
                                                                          # 2
                                                                          MPN: 695862
                                                                          SCREW, M4X12, COUNTERSUNK HEAD
                                                                          from £0.47
                                                                          from £0.47
                                                                          SCREW M4 X12 POZI CK Genuine Aston Martin - New (to order)
                                                                          # 3
                                                                          MPN: 68-51907
                                                                          FUEL FILLER NECK ASSEMBLY, LH
                                                                          from £154.06
                                                                          from £154.06
                                                                          ASSEMBLY F/FILLR LH COMP Genuine Aston Martin - New (to order)
                                                                          # 3
                                                                          MPN: 68-51906
                                                                          FUEL FILLER NECK ASSEMBLY, RH
                                                                          from £154.06
                                                                          from £154.06
                                                                          ASSEMBLY F/FILLR RH COMP Genuine Aston Martin - New (to order)
                                                                          # 4
                                                                          MPN: 692151
                                                                          NUT, NYLOC, M6
                                                                          Filler necks to carriers
                                                                          from £0.57
                                                                          from £0.57
                                                                          NUT M6 HEX SLK Genuine Aston Martin - New (to order)
                                                                          # 5
                                                                          MPN: 692056
                                                                          WASHER, PLAIN, M6
                                                                          Filler necks to carriers
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                          # -
                                                                          -
                                                                          LOCTITE SUPERFLEX
                                                                          # 6
                                                                          MPN: 68-74169
                                                                          HOSE, 7/8 OD X 5/8 ID, FUEL CARRIER DRAIN
                                                                          Cut from 691919
                                                                          HOSE, 7/8 OD X 5/8 ID, FUEL CARRIER DRAIN Genuine Aston Martin - New (to order)
                                                                          # 7
                                                                          MPN: 114679
                                                                          Hose clip, st steel, fuel filler drain hose
                                                                          from £0.54
                                                                          from £0.54
                                                                          HOSE-CLIP S/STEEL Genuine Aston Martin - New In stock
                                                                          # 8
                                                                          MPN: 68-24064
                                                                          CAP, FUEL FILLER
                                                                          from £85.36
                                                                          from £85.36
                                                                          FUEL FILLER CAP SCRW Genuine Aston Martin - New (to order)
                                                                          # 9
                                                                          MPN: 693488
                                                                          CLAMP CABLE, 1 ID NYLON, DRAIN HOSE RETAINING
                                                                          from £0.84
                                                                          from £0.84
                                                                          CBL-CLAMP 1ID NYLON Genuine Aston Martin - New (to order)
                                                                          # 10
                                                                          MPN: 692151
                                                                          NUT, NYLOC, M6, DRAIN HOSE RETAINING
                                                                          from £0.57
                                                                          from £0.57
                                                                          NUT M6 HEX SLK Genuine Aston Martin - New (to order)
                                                                          # -
                                                                          -
                                                                          STRAP, CABLE, DRAIN HOSE RETAINING
                                                                          # 11
                                                                          MPN: 68-61291
                                                                          FLAP ASSY, FUEL FILLER, RH
                                                                          S/ASY F/FIL FLAP LH Genuine Aston Martin - New (to order)
                                                                          # 11
                                                                          MPN: 68-61290
                                                                          FLAP ASSY, FUEL FILLER, LH
                                                                          S/ASY F/FIL FLAP RH Genuine Aston Martin - New (to order)
                                                                          # 12
                                                                          MPN: 68-61218
                                                                          HINGE ASSY, FUEL FILLER FLAP
                                                                          from £75.14
                                                                          from £75.14
                                                                          ASSEMBLY HNG F/FILLER FLP Genuine Aston Martin - New (to order)
                                                                          # -
                                                                          -
                                                                          LOCTITE 341
                                                                          # 13
                                                                          MPN: 695614
                                                                          SCREW, M5X8, HINGE TO FLAP
                                                                          from £0.47
                                                                          from £0.47
                                                                          SCREW M5 X 8 PAN Genuine Aston Martin - New (to order)
                                                                          # 14
                                                                          MPN: 693793
                                                                          WASHER, PLAIN, M5, HINGE TO FLAP
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER M5 X 15 PLAIN Genuine Aston Martin - New (to order)
                                                                          # 15
                                                                          MPN: 692243
                                                                          SCREW, M5X16, HINGE TO DRAIN
                                                                          from £0.47
                                                                          from £0.47
                                                                          SCREW M5 X 16 PAN Genuine Aston Martin - New (to order)
                                                                          # 16
                                                                          MPN: 693793
                                                                          WASHER, PLAIN, M5, HINGE TO DRAIN
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER M5 X 15 PLAIN Genuine Aston Martin - New (to order)
                                                                          # 17
                                                                          MPN: 68-61459
                                                                          MOUNTING BRACKET, CATCH PEG TO FILLER FLAP
                                                                          from £69.77
                                                                          from £69.77
                                                                          S/ASY PLT CTCH MOUNTING Genuine Aston Martin - New (to order)
                                                                          # 18
                                                                          MPN: 695614
                                                                          SCREW, M5X8, MOUNTING BRACKET TO FILLER FLAP
                                                                          from £0.47
                                                                          from £0.47
                                                                          SCREW M5 X 8 PAN Genuine Aston Martin - New (to order)
                                                                          # 19
                                                                          MPN: 693793
                                                                          WASHER, PLAIN, M5, MOUNTING BRACKET TO FILLER FLAP
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER M5 X 15 PLAIN Genuine Aston Martin - New (to order)
                                                                          # 20
                                                                          MPN: 68-62330
                                                                          CATCH PEG ASSY, FUEL FILLER FLAP
                                                                          CATCH PEG ASSEMBLY FUEL FILLER FLAP Genuine Aston Martin - New (to order)
                                                                          # 20
                                                                          MPN: 68-61456
                                                                          CATCH PEG, FUEL FILLER FLAP
                                                                          from £13.27
                                                                          from £13.27
                                                                          CATCH PEG-F/FLLR FLP Genuine Aston Martin - New (to order)
                                                                          # 21
                                                                          MPN: 68-64180
                                                                          RETAINER, SPRING
                                                                          from £13.10
                                                                          from £13.10
                                                                          SPRING RETAINER Genuine Aston Martin - New (to order)
                                                                          # 22
                                                                          MPN: 695934
                                                                          SPRING, COMPRESSION
                                                                          from £5.66
                                                                          from £5.66
                                                                          SPRING - COMPRESSION Genuine Aston Martin - New (to order)
                                                                          # 23
                                                                          MPN: 694202
                                                                          NUT, LOCK, M5
                                                                          from £0.52
                                                                          from £0.52
                                                                          NUT M5 RH - LOCK Genuine Aston Martin - New (to order)
                                                                          # 24
                                                                          MPN: 68-61458
                                                                          GAITER, CATCH PEG
                                                                          from £32.43
                                                                          from £32.43
                                                                          GAITER-CATCH PEG ASSEMBLY Genuine Aston Martin - New (to order)
                                                                          # 25
                                                                          MPN: 68-61299
                                                                          SEAL, FUEL FILLER CATCH
                                                                          from £16.19
                                                                          from £16.19
                                                                          SEAL-FUEL FILL CATCH Genuine Aston Martin - New (to order)
                                                                          # -
                                                                          -
                                                                          CATCH MECHANISM ASSY, FUEL FILLER FLAP
                                                                          # 26
                                                                          MPN: 68-61194
                                                                          HOUSING, FUEL FILLER FLAP CATCH
                                                                          from £73.29
                                                                          from £73.29
                                                                          HSG-F/FLR FLAP CATCH Genuine Aston Martin - New (to order)
                                                                          # 27
                                                                          MPN: 68-61457
                                                                          RETAINER, CATCH PEG
                                                                          from £28.13
                                                                          from £28.13
                                                                          CATCH PEG RETAINER Genuine Aston Martin - New (to order)
                                                                          # 28
                                                                          MPN: 68-61467
                                                                          MOUNTING BRACKET, CATCH MECHANISM TO DRAIN CHANNEL
                                                                          from £6.60
                                                                          from £6.60
                                                                          BRACKET MOUNTING Genuine Aston Martin - New (to order)
                                                                          # 29
                                                                          MPN: 695604
                                                                          SCREW, M3X6, SOLENOID TO BRACKET
                                                                          from £0.47
                                                                          from £0.47
                                                                          SCREW M3 X6 PAN Genuine Aston Martin - New (to order)
                                                                          # 30
                                                                          MPN: 695928
                                                                          WASHER, SPRING, M3, SOLENOID TO BRACKET
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER M3 SPRING Genuine Aston Martin - New (to order)
                                                                          # 31
                                                                          MPN: 692055
                                                                          WASHER, PLAIN, M5, CATCH MECHANISM TO DRAIN CHANNEL
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                          # 32
                                                                          MPN: 692800
                                                                          NUT, NYLOC, M5, CATCH MECHANISM TO DRAIN CHANNEL
                                                                          from £0.47
                                                                          from £0.47
                                                                          NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                                          # 33
                                                                          MPN: 692044
                                                                          WASHER, SPRING, M4
                                                                          from £0.47
                                                                          from £0.47
                                                                          WASHER M4 SPRG Genuine Aston Martin - New (to order)
                                                                          # 34
                                                                          MPN: 695799
                                                                          SCREW, M4X12, MOUNTING BRACKET TO HOUSING
                                                                          from £0.47
                                                                          from £0.47
                                                                          SCREW M4 X12 TAPTITE Genuine Aston Martin - New (to order)
                                                                          # 35
                                                                          MPN: 68-61196
                                                                          ACTUATOR, CATCH PEG
                                                                          from £6.01
                                                                          from £6.01
                                                                          ACTUATOR-CATCH PEG Genuine Aston Martin - New (to order)
                                                                          # 36
                                                                          MPN: 695935
                                                                          SPRING, COMPRESSION
                                                                          from £5.87
                                                                          from £5.87
                                                                          SPRING - COMPRESSION Genuine Aston Martin - New (to order)
                                                                          # 37
                                                                          MPN: 37-64311
                                                                          SOLENOID
                                                                          from £319.51
                                                                          from £319.51
                                                                          ASSEMBLY FUEL FLAP SOLEND Genuine Aston Martin - New (to order)
                                                                          # -
                                                                          -
                                                                          RUBBER BELLOWS
                                                                          # -
                                                                          -
                                                                          PETROLEUM JELLY
                                                                          # 38
                                                                          MPN: 68-61760
                                                                          LATCH, MANUAL OVER-RIDE
                                                                          from £53.58
                                                                          from £53.58
                                                                          LATCH-MAN O/RIDE Genuine Aston Martin - New (to order)
