aston martin v8 volante (1997) doors parts diagram

7.4A - Doors

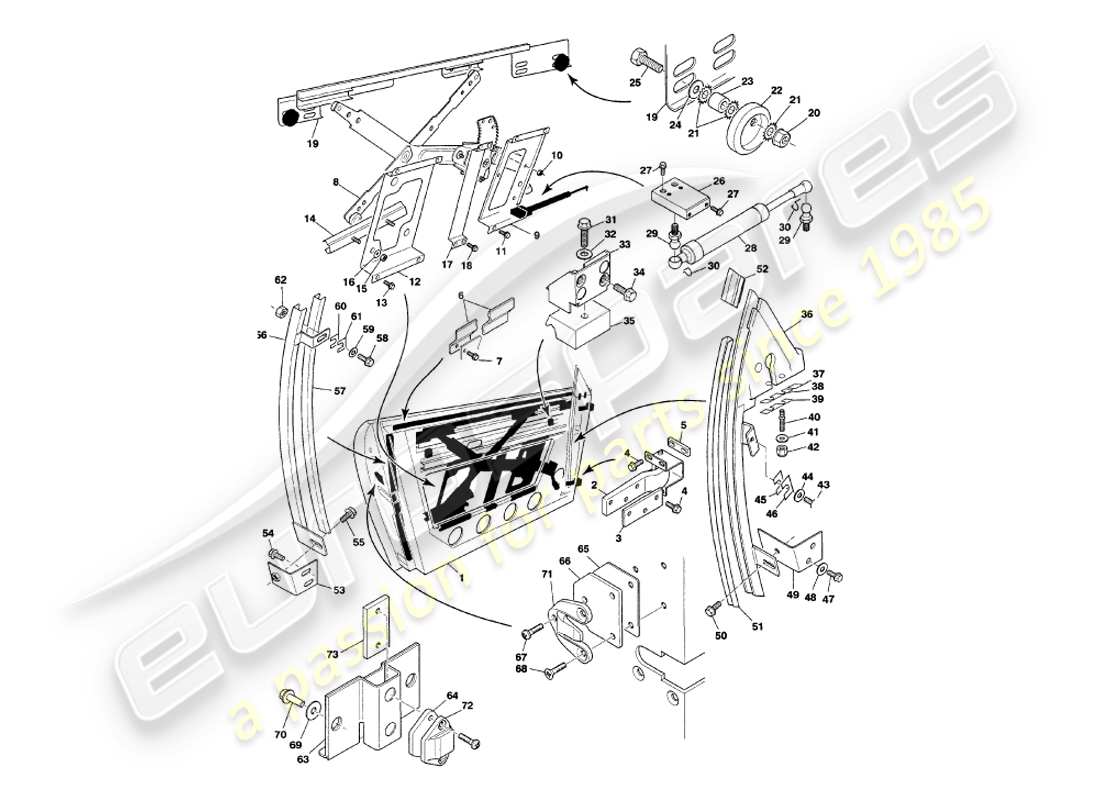

Aston Martin V8 Volante (1997) Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                  #
                                                                                                                                  Part number
                                                                                                                                  Description
                                                                                                                                  Key
                                                                                                                                  Price
                                                                                                                                  # 1
                                                                                                                                  MPN: 65-65206
                                                                                                                                  DOOR STRUCTURE ASSEMBLY, RH
                                                                                                                                  DOOR STRUCTURE ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 1
                                                                                                                                  MPN: 65-65207
                                                                                                                                  DOOR STRUCTURE ASSEMBLY, LH
                                                                                                                                  DOOR STRUCTURE ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 2
                                                                                                                                  MPN: 65-55496
                                                                                                                                  Door hinge assembly, RH
                                                                                                                                  from £239.66
                                                                                                                                  from £239.66
                                                                                                                                  ASSEMBLY HNG FRONT DOOR RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 2
                                                                                                                                  MPN: 65-55497
                                                                                                                                  Door hinge assembly, LH
                                                                                                                                  from £239.66
                                                                                                                                  from £239.66
                                                                                                                                  ASSEMBLY HNG FRONT DOOR LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 3
                                                                                                                                  MPN: 65-11309
                                                                                                                                  REINFORCEMENT, HINGE PLATE
                                                                                                                                  from £2.05
                                                                                                                                  from £2.05
                                                                                                                                  REINFORCEMENT HINGE PLATE Genuine Aston Martin - New (to order)
                                                                                                                                  # 4
                                                                                                                                  MPN: 694033
                                                                                                                                  SCREW, FLG, M8X20
                                                                                                                                  Hinges to doors and A posts
                                                                                                                                  from £3.94
                                                                                                                                  from £3.94
                                                                                                                                  SCREW M8 X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 5
                                                                                                                                  MPN: 65-61352
                                                                                                                                  Spacer, door hinge, 3MM thick
                                                                                                                                  from £7.75
                                                                                                                                  from £7.75
                                                                                                                                  SPACER - DOOR HINGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 6
                                                                                                                                  MPN: 65-61414
                                                                                                                                  MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, RH
                                                                                                                                  from £127.59
                                                                                                                                  from £127.59
                                                                                                                                  ASSEMBLY MOUNTING STRIP RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 6
                                                                                                                                  MPN: 65-61415
                                                                                                                                  MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, LH
                                                                                                                                  from £127.59
                                                                                                                                  from £127.59
                                                                                                                                  ASSEMBLY MOUNTING STRIP LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 7
                                                                                                                                  MPN: 695559
                                                                                                                                  SCREW, FLG, M5X12
                                                                                                                                  Weather seal attach
                                                                                                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                                                                                                  # 8
                                                                                                                                  MPN: 65-50603
                                                                                                                                  Window lift regulator, LH
                                                                                                                                  from £425.37
                                                                                                                                  from £425.37
                                                                                                                                  WNDW LIFT REGULTR LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 8
                                                                                                                                  MPN: 65-50604
                                                                                                                                  Window lift regulator, RH
                                                                                                                                  from £509.02
                                                                                                                                  from £509.02
                                                                                                                                  WNDW LIFT REGULTR RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 8
                                                                                                                                  MPN: 37-66695
                                                                                                                                  WINDOW LIFT MOTOR AND PLUG ASSY, LH
                                                                                                                                  from £131.24
                                                                                                                                  from £131.24
                                                                                                                                  ASSEMBLY WINDOW LIFT Genuine Aston Martin - New (to order)
                                                                                                                                  # 8
                                                                                                                                  MPN: 37-66694
                                                                                                                                  WINDOW LIFT MOTOR AND PLUG ASSY, RH
                                                                                                                                  from £157.04
                                                                                                                                  from £157.04
                                                                                                                                  ASSEMBLY WINDOW LIFT Genuine Aston Martin - New (to order)
                                                                                                                                  # 9
                                                                                                                                  MPN: 65-60687
                                                                                                                                  MOUNTING BRACKET, WINDOW MOTOR, LH
                                                                                                                                  from £13.63
                                                                                                                                  from £13.63
                                                                                                                                  MOUNTING BRACKET MTR SUPPORT LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 9
                                                                                                                                  MPN: 65-60686
                                                                                                                                  MOUNTING BRACKET, WINDOW MOTOR, RH
                                                                                                                                  from £13.63
                                                                                                                                  from £13.63
                                                                                                                                  MOUNTING BRACKET MTR SUPPORT RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 10
                                                                                                                                  MPN: 692076
                                                                                                                                  NUT, M6
                                                                                                                                  Regulator to bracket
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  NUT M6 HEX Genuine Aston Martin - New (to order)
                                                                                                                                  # 11
                                                                                                                                  MPN: 695559
                                                                                                                                  SCREW, FLG, M5X12
                                                                                                                                  Window regulator support
                                                                                                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                                                                                                  # 12
                                                                                                                                  MPN: 65-60689
                                                                                                                                  MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, LH
                                                                                                                                  from £20.07
                                                                                                                                  from £20.07
                                                                                                                                  AY M/BRKT GD CHNL LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 12
                                                                                                                                  MPN: 65-60688
                                                                                                                                  MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, RH
                                                                                                                                  from £20.07
                                                                                                                                  from £20.07
                                                                                                                                  ASSEMBLY M/BRKT GD CHN RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 13
                                                                                                                                  MPN: 695559
                                                                                                                                  SCREW, FLG, M5X12
                                                                                                                                  Bracket to door
                                                                                                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                                                                                                  # 14
                                                                                                                                  MPN: 65-50605
                                                                                                                                  GUIDE CHANNEL
                                                                                                                                  from £94.40
                                                                                                                                  from £94.40
                                                                                                                                  ASSEMBLY GUIDE CHANNEL Genuine Aston Martin - New (to order)
                                                                                                                                  # 15
                                                                                                                                  MPN: 692800
                                                                                                                                  NUT, NYLOC, M5
                                                                                                                                  Guide channel to bracket
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                                                                                                  # 16
                                                                                                                                  MPN: 692055
                                                                                                                                  WASHER, PLAIN, M5
                                                                                                                                  Guide channel to bracket
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                                                                                  # 17
                                                                                                                                  MPN: 65-62903
                                                                                                                                  BRACKET ASSY, DOOR PULL, LH
                                                                                                                                  from £18.40
                                                                                                                                  from £18.40
                                                                                                                                  ASSEMBLY BRACKET DR PULL LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 17
                                                                                                                                  MPN: 65-62902
                                                                                                                                  BRACKET ASSY, DOOR PULL, RH
                                                                                                                                  from £18.40
                                                                                                                                  from £18.40
                                                                                                                                  ASSEMBLY BRACKET DR PULL RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 18
                                                                                                                                  MPN: 695559
                                                                                                                                  SCREW, FLG, M5X12
                                                                                                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                                                                                                  # -
                                                                                                                                  -
                                                                                                                                  Door glass, front door, LH
                                                                                                                                  See section 7.8A
                                                                                                                                  # -
                                                                                                                                  -
                                                                                                                                  Door glass, front door, RH
                                                                                                                                  See section 7.8A
                                                                                                                                  # 19
                                                                                                                                  MPN: 65-61449
                                                                                                                                  LIFT CHANNEL, DOOR GLASS, LH
                                                                                                                                  from £114.50
                                                                                                                                  from £114.50
                                                                                                                                  ASSEMBLY LIFT CHANNEL LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 19
                                                                                                                                  MPN: 65-61448
                                                                                                                                  LIFT CHANNEL, DOOR GLASS, RH
                                                                                                                                  from £114.50
                                                                                                                                  from £114.50
                                                                                                                                  ASSEMBLY LIFT CHANNEL RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 20
                                                                                                                                  MPN: 695514
                                                                                                                                  NUT, FLG, NYLOC, M6, BOBBIN ATTACH
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  NUT M6 HEX FLANGE SLK Genuine Aston Martin - New (to order)
                                                                                                                                  # 21
                                                                                                                                  MPN: 696189
                                                                                                                                  WASHER, SPRF, M6, BOBBIN ATTACH
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER M6 S/PROOF Genuine Aston Martin - New (to order)
                                                                                                                                  # 22
                                                                                                                                  MPN: 65-61440
                                                                                                                                  BOBBIN ADJUSTMENT
                                                                                                                                  from £8.20
                                                                                                                                  from £8.20
                                                                                                                                  BOBBIN ADJUSTMENT Genuine Aston Martin - New (to order)
                                                                                                                                  # 23
                                                                                                                                  MPN: 65-61444
                                                                                                                                  SPACER, BOBBIN
                                                                                                                                  from £2.53
                                                                                                                                  from £2.53
                                                                                                                                  SPACER - BOBBIN Genuine Aston Martin - New (to order)
                                                                                                                                  # 24
                                                                                                                                  MPN: 692056
                                                                                                                                  WASHER, PLAIN, M6, BOBBIN ATTACH
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                                                                                  # 25
                                                                                                                                  MPN: 695437
                                                                                                                                  BOLT, FLG, M6X35, BOBBIN ATTACH
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  BOLT M6 X 35 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 26
                                                                                                                                  MPN: 65-66014
                                                                                                                                  BLOCK, DOORSTOP FIXING
                                                                                                                                  BLOCK, DOORSTOP FIXING Genuine Aston Martin - New (to order)
                                                                                                                                  # 27
                                                                                                                                  MPN: 695559
                                                                                                                                  SCREW, FLG, M5X12
                                                                                                                                  Doorstop attach
                                                                                                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                                                                                                  # 28
                                                                                                                                  MPN: 65-66016
                                                                                                                                  DOORSTOP, STABILUS
                                                                                                                                  from £297.30
                                                                                                                                  from £297.30
                                                                                                                                  DOORSTOP - STABILUS Genuine Aston Martin - New (to order)
                                                                                                                                  # 29
                                                                                                                                  MPN: 65-66018
                                                                                                                                  BALLSTUD, M8
                                                                                                                                  BALLSTUD, M8 Genuine Aston Martin - New (to order)
                                                                                                                                  # 30
                                                                                                                                  MPN: 65-66017
                                                                                                                                  RETAINING CLIP, DOORSTOP
                                                                                                                                  RETAINING CLIP, DOORSTOP Genuine Aston Martin - New (to order)
                                                                                                                                  # 31
                                                                                                                                  MPN: 693962
                                                                                                                                  SCREW, M6X25, STOP BLOCK TO BRACKET
                                                                                                                                  from £1.27
                                                                                                                                  from £1.27
                                                                                                                                  SCREW M6 X 25 HEX Genuine Aston Martin - New (to order)
                                                                                                                                  # 32
                                                                                                                                  MPN: 692056
                                                                                                                                  WASHER, PLAIN, M6, STOP BLOCK TO BRACKET
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                                                                                  # 33
                                                                                                                                  MPN: 65-61407
                                                                                                                                  MOUNTING BRACKET ASSY, STOP BLOCK, LH
                                                                                                                                  from £19.56
                                                                                                                                  from £19.56
                                                                                                                                  ASSEMBLY MOUNTING BRACKET LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 33
                                                                                                                                  MPN: 65-61406
                                                                                                                                  MOUNTING BRACKET ASSY, STOP BLOCK, RH
                                                                                                                                  from £19.56
                                                                                                                                  from £19.56
                                                                                                                                  ASSEMBLY MOUNTING BRACKET RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 34
                                                                                                                                  MPN: 695158
                                                                                                                                  SCREW, FLG, M6X12
                                                                                                                                  from £0.78
                                                                                                                                  from £0.78
                                                                                                                                  SCREW M6 X12 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 35
                                                                                                                                  MPN: 65-61416
                                                                                                                                  STOP BLOCK ASSY, WINDOW
                                                                                                                                  from £49.93
                                                                                                                                  from £49.93
                                                                                                                                  ASSEMBLY STOP BLOCK WNDW Genuine Aston Martin - New (to order)
                                                                                                                                  # 36
                                                                                                                                  MPN: 65-65637
                                                                                                                                  SASH AND GLASS CHANNEL ASSY, FRONT LH
                                                                                                                                  SASH AND GLASS CHANNEL ASSEMBLY FRONT LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 36
                                                                                                                                  MPN: 65-65636
                                                                                                                                  SASH AND GLASS CHANNEL ASSY, FRONT RH
                                                                                                                                  from £639.29
                                                                                                                                  from £639.29
                                                                                                                                  SASH & GLASS CH FRONT Genuine Aston Martin - New (to order)
                                                                                                                                  # 37
                                                                                                                                  MPN: 65-61710
                                                                                                                                  PACKING PIECE, RUBBER, CHEATER PANEL END TO DOOR
                                                                                                                                  from £2.45
                                                                                                                                  from £2.45
                                                                                                                                  PACKING PIECE Genuine Aston Martin - New (to order)
                                                                                                                                  # 38
                                                                                                                                  MPN: 65-61681
                                                                                                                                  PACKING PIECE, CHEATER PANEL TO DOOR
                                                                                                                                  from £1.15
                                                                                                                                  from £1.15
                                                                                                                                  PACKING PIECE Genuine Aston Martin - New (to order)
                                                                                                                                  # 39
                                                                                                                                  MPN: 65-64073
                                                                                                                                  CLAMP PLATE, CHEATER
                                                                                                                                  from £1.62
                                                                                                                                  from £1.62
                                                                                                                                  PLATE CLAMP CHEATER Genuine Aston Martin - New (to order)
                                                                                                                                  # 40
                                                                                                                                  MPN: 696153
                                                                                                                                  STUD, M6X30
                                                                                                                                  from £2.00
                                                                                                                                  from £2.00
                                                                                                                                  STUD M6 X1 6G X 30 Genuine Aston Martin - New (to order)
                                                                                                                                  # 41
                                                                                                                                  MPN: 124383
                                                                                                                                  WASHER, PLAIN, 1/4 X 1
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, 1/4 Genuine Aston Martin - New (to order)
                                                                                                                                  # 42
                                                                                                                                  MPN: 695526
                                                                                                                                  NUT, M6, CHEATER PANEL FIXING
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 43
                                                                                                                                  MPN: 695526
                                                                                                                                  SCREW, FLG, M6X20
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 44
                                                                                                                                  MPN: 124383
                                                                                                                                  WASHER, PLAIN, 1/4 X 1
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, 1/4 Genuine Aston Martin - New (to order)
                                                                                                                                  # 45
                                                                                                                                  MPN: 66-19151
                                                                                                                                  PACKING DOOR, 16G
                                                                                                                                  from £2.05
                                                                                                                                  from £2.05
                                                                                                                                  PACKING DOOR 16G Genuine Aston Martin - New (to order)
                                                                                                                                  # 46
                                                                                                                                  MPN: 66-19150
                                                                                                                                  PACKING SPACER, 10G
                                                                                                                                  from £2.05
                                                                                                                                  from £2.05
                                                                                                                                  PACKING SPACER 10G Genuine Aston Martin - New (to order)
                                                                                                                                  # 47
                                                                                                                                  MPN: 695158
                                                                                                                                  SCREW, FLG, M6X12
                                                                                                                                  from £0.78
                                                                                                                                  from £0.78
                                                                                                                                  SCREW M6 X12 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 48
                                                                                                                                  MPN: 124383
                                                                                                                                  WASHER, PLAIN, 1/4 X 1
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, 1/4 Genuine Aston Martin - New (to order)
                                                                                                                                  # 49
                                                                                                                                  MPN: 65-61391
                                                                                                                                  SUPPORT BRACKET ASSY, SASH LOWER FRONT, LH
                                                                                                                                  from £10.26
                                                                                                                                  from £10.26
                                                                                                                                  ASSEMBLY SUPPORT BRACKET Genuine Aston Martin - New (to order)
                                                                                                                                  # 49
                                                                                                                                  MPN: 65-61390
                                                                                                                                  SUPPORT BRACKET ASSY, SASH LOWER FRONT, RH
                                                                                                                                  from £11.00
                                                                                                                                  from £11.00
                                                                                                                                  ASSEMBLY SPT BRACKET LOWER Genuine Aston Martin - New (to order)
                                                                                                                                  # 50
                                                                                                                                  MPN: 695563
                                                                                                                                  SCREW, FLG, M6X16, LOWER FIXING REAR
                                                                                                                                  SCREW, M6 X 16, HEATER UNIT TO FACIA Genuine Aston Martin - New (to order)
                                                                                                                                  # 51
                                                                                                                                  MPN: 77-61238
                                                                                                                                  GLASS RUN CHANNEL, FORWARD
                                                                                                                                  GLASS RUN CHNNL FWD Genuine Aston Martin - New (to order)
                                                                                                                                  # 52
                                                                                                                                  MPN: 77-63015
                                                                                                                                  Moulding, insert, cheater panel, LH
                                                                                                                                  from £144.19
                                                                                                                                  from £144.19
                                                                                                                                  MOULDING INSERT-LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 52
                                                                                                                                  MPN: 77-63014
                                                                                                                                  Moulding, insert, cheater panel, RH
                                                                                                                                  from £144.19
                                                                                                                                  from £144.19
                                                                                                                                  MOULDING INSERT-RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 53
                                                                                                                                  MPN: 65-61397
                                                                                                                                  SUPPORT BRACKET ASSY, SASH LOWER REAR, LH
                                                                                                                                  from £10.66
                                                                                                                                  from £10.66
                                                                                                                                  ASSEMBLY SPT BRACKET LOWER Genuine Aston Martin - New (to order)
                                                                                                                                  # 53
                                                                                                                                  MPN: 65-61396
                                                                                                                                  SUPPORT BRACKET ASSY, SASH LOWER REAR, RH
                                                                                                                                  from £0.54
                                                                                                                                  from £0.54
                                                                                                                                  ASSEMBLY UPT BRACKET LOWER Genuine Aston Martin - New (to order)
                                                                                                                                  # 54
                                                                                                                                  MPN: 695158
                                                                                                                                  SCREW, FLG, M6X12
                                                                                                                                  from £0.78
                                                                                                                                  from £0.78
                                                                                                                                  SCREW M6 X12 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 56
                                                                                                                                  MPN: 65-60495
                                                                                                                                  SASH AND GLASS RUN CHANNEL ASSY, REAR LH
                                                                                                                                  from £245.09
                                                                                                                                  from £245.09
                                                                                                                                  ASSEMBLY SASH REAR LH Genuine Aston Martin - New (to order)
                                                                                                                                  # 56
                                                                                                                                  MPN: 65-60494
                                                                                                                                  SASH AND GLASS RUN CHANNEL ASSY, REAR RH
                                                                                                                                  from £220.48
                                                                                                                                  from £220.48
                                                                                                                                  ASSEMBLY SASH REAR RH Genuine Aston Martin - New (to order)
                                                                                                                                  # 57
                                                                                                                                  MPN: 77-61239
                                                                                                                                  GLASS RUN CHANNEL, REAR
                                                                                                                                  GLASS RUN CHNNL-REAR Genuine Aston Martin - New (to order)
                                                                                                                                  # 58
                                                                                                                                  MPN: 693962
                                                                                                                                  SCREW, M6X25
                                                                                                                                  from £1.27
                                                                                                                                  from £1.27
                                                                                                                                  SCREW M6 X 25 HEX Genuine Aston Martin - New (to order)
                                                                                                                                  # 59
                                                                                                                                  MPN: 692056
                                                                                                                                  WASHER, PLAIN, M6
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                                                                                  # 60
                                                                                                                                  MPN: 66-19150
                                                                                                                                  PACKING SPACER, 10G
                                                                                                                                  from £2.05
                                                                                                                                  from £2.05
                                                                                                                                  PACKING SPACER 10G Genuine Aston Martin - New (to order)
                                                                                                                                  # 61
                                                                                                                                  MPN: 66-19151
                                                                                                                                  PACKING SPACER, 16G
                                                                                                                                  from £2.05
                                                                                                                                  from £2.05
                                                                                                                                  PACKING DOOR 16G Genuine Aston Martin - New (to order)
                                                                                                                                  # 62
                                                                                                                                  MPN: 695515
                                                                                                                                  NUT, FLG, NYLOC, M6
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  NUT M8 HEX FLANGE SLK Genuine Aston Martin - New (to order)
                                                                                                                                  # -
                                                                                                                                  -
                                                                                                                                  GREASE, MOBILTEMP 100
                                                                                                                                  # 63
                                                                                                                                  MPN: 65-66710
                                                                                                                                  CAPTIVE FIXING ASSY, DOOR WEDGE
                                                                                                                                  from £528.16
                                                                                                                                  from £528.16
                                                                                                                                  ASSEMBLY CAPTIVE FIXING Genuine Aston Martin - New (to order)
                                                                                                                                  # 64
                                                                                                                                  MPN: 65-66590
                                                                                                                                  SPACER, DOOR WEDGE
                                                                                                                                  from £11.69
                                                                                                                                  from £11.69
                                                                                                                                  SPACER DOOR WEDGE Genuine Aston Martin - New (to order)
                                                                                                                                  # 65
                                                                                                                                  MPN: 65-66614
                                                                                                                                  SPACER SHIM, DOOR WEDGE, 1MM
                                                                                                                                  from £3.11
                                                                                                                                  from £3.11
                                                                                                                                  SPACER SHIM 1MM Genuine Aston Martin - New (to order)
                                                                                                                                  # 66
                                                                                                                                  MPN: 65-66615
                                                                                                                                  SPACER SHIM, DOOR WEDGE, 2MM
                                                                                                                                  from £3.11
                                                                                                                                  from £3.11
                                                                                                                                  SPACER SHIM 2MM Genuine Aston Martin - New (to order)
                                                                                                                                  # 67
                                                                                                                                  MPN: 695976
                                                                                                                                  SCREW, M6X25 PAN HD
                                                                                                                                  from £0.60
                                                                                                                                  from £0.60
                                                                                                                                  SCREW M6 X 25 PAN Genuine Aston Martin - New (to order)
                                                                                                                                  # 68
                                                                                                                                  MPN: 695975
                                                                                                                                  SCREW, M6X25 CSK
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  SCREW M6 X 25 COUNTERSUNK Genuine Aston Martin - New (to order)
                                                                                                                                  # 69
                                                                                                                                  MPN: 124383
                                                                                                                                  WASHER, PLAIN, 1/4 X 1
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  WASHER, PLAIN, 1/4 Genuine Aston Martin - New (to order)
                                                                                                                                  # 70
                                                                                                                                  MPN: 692146
                                                                                                                                  SCREW, M6X20
                                                                                                                                  from £1.16
                                                                                                                                  from £1.16
                                                                                                                                  SCREW M6 X 20 HEX HD Genuine Aston Martin - New (to order)
                                                                                                                                  # 71
                                                                                                                                  MPN: 695803
                                                                                                                                  WEDGE, DOOR
                                                                                                                                  from £2.83
                                                                                                                                  from £2.83
                                                                                                                                  WEDGE - DOOR Genuine Aston Martin - New (to order)
                                                                                                                                  # 72
                                                                                                                                  MPN: 65-66715
                                                                                                                                  WEDGE KEEP, MODIFIED
                                                                                                                                  Made from 695802
                                                                                                                                  WEDGE KEEP, MODIFIED Genuine Aston Martin - New (to order)
                                                                                                                                  # 73
                                                                                                                                  MPN: 65-66713
                                                                                                                                  TAPPED PLATE, CAPTIVE FIXING DOOR WEDGE
                                                                                                                                  TAPPED PLATE, CAPTIVE FIXING DOOR WEDGE Genuine Aston Martin - New (to order)
                                                                                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
