7.4C.1 - Weather Seals

Aston Martin V8 Volante (1997) Weather Seals Parts Diagram

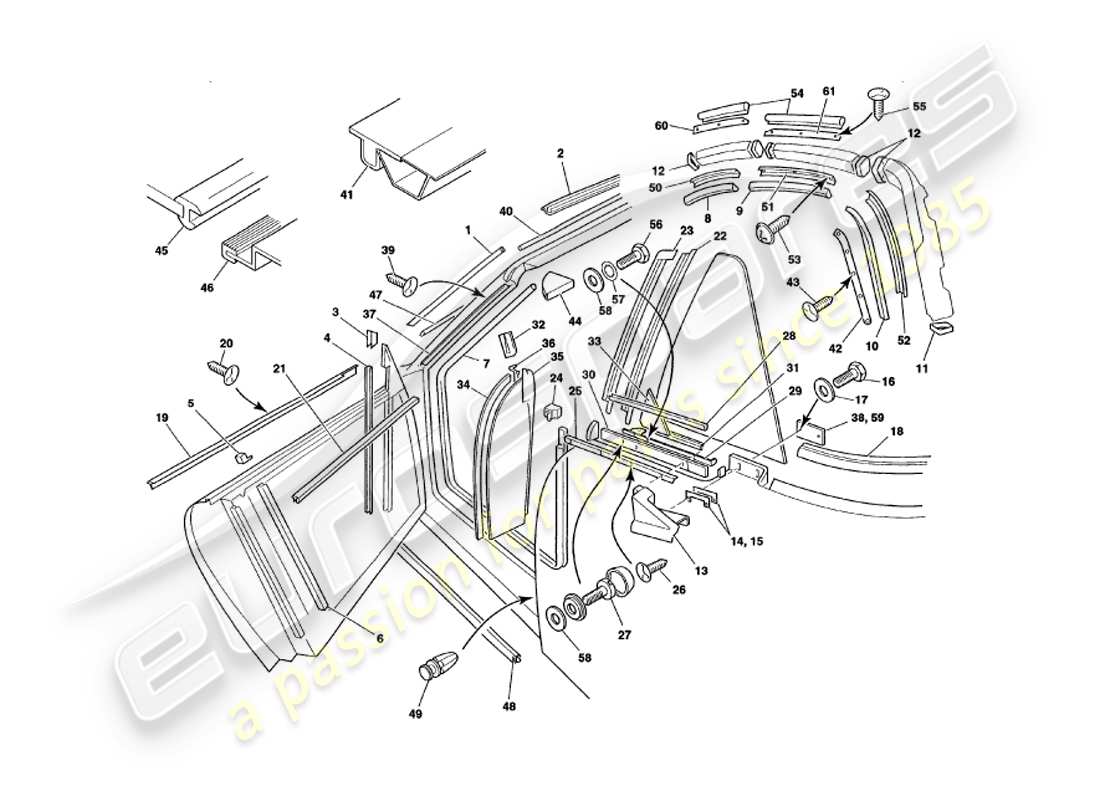

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 77-62875
SEAL, A POST, LH
Made from 77-60351. Early cars
Seal 'A' post, LH Genuine Aston Martin - New (to order)
# 1
MPN: 77-62784
SEAL, A POST, RH
Made from 77-60351. Early cars
Seal 'A' post, RH Genuine Aston Martin - New (to order)
# 2
MPN: 77-60065
SEAL, HEADER RAIL
Made from 77-62815
SEAL, HEADER RAIL Genuine Aston Martin - New (to order)
# 3
MPN: 77-63015
MOULDING INSERT, CHEATER PANEL, LH
from £144.19
from £144.19
MOULDING INSERT-LH Genuine Aston Martin - New (to order)
# 3
MPN: 77-63014
MOULDING INSERT, CHEATER PANEL, RH
from £144.19
from £144.19
MOULDING INSERT-RH Genuine Aston Martin - New (to order)
# -
-
SEAL SUPPORT RUBBER, 10X290 LONG
Made from 691886
# 4
MPN: 77-61238
GLASS RUN CHANNEL, FORWARD
GLASS RUN CHNNL FWD Genuine Aston Martin - New (to order)
# 5
MPN: 77-61263
MOULDING, DOOR WAIST END CAPPING, LH
from £130.98
from £130.98
MOULDING Genuine Aston Martin - New (to order)
# 5
MPN: 77-61262
MOULDING, DOOR WAIST END CAPPING, RH
from £133.58
from £133.58
MOULDING Genuine Aston Martin - New (to order)
# 6
MPN: 77-61239
GLASS RUN CHANNEL, REAR
GLASS RUN CHNNL-REAR Genuine Aston Martin - New (to order)
# 7
MPN: 77-62063
WEATHER SEAL, DOOR
Made from 77-62064
WEATHER SEAL, DOOR Genuine Aston Martin - New (to order)
# 8
MPN: 77-65719
SEAL CANTRAIL FRONT, LH
from £128.08
from £128.08
SEAL CANTRAIL FRONT LH Genuine Aston Martin - New (to order)
# 8
MPN: 77-65718
SEAL CANTRAIL FRONT, RH
from £128.08
from £128.08
SEAL CANTRAIL FRONT RH Genuine Aston Martin - New (to order)
# 9
MPN: 77-65717
SEAL CANTRAIL REAR, LH
from £128.08
from £128.08
SEAL CANTRAIL REAR LH Genuine Aston Martin - New (to order)
# 9
MPN: 77-65716
SEAL CANTRAIL REAR, RH
from £145.84
from £145.84
SEAL CANTRAIL REAR RH Genuine Aston Martin - New (to order)
# 10
MPN: 77-65721
SEAL, C POST, LH
from £148.74
from £148.74
SEAL C POST LH Genuine Aston Martin - New (to order)
# 10
MPN: 77-65720
SEAL, C POST, RH
from £148.74
from £148.74
SEAL C POST RH Genuine Aston Martin - New (to order)
# 11
MPN: 77-65740
CAPPING SEAL END
CAPPING SEAL END Genuine Aston Martin - New (to order)
# 12
MPN: 77-66457
CAPPING SEAL END
CAPPING SEAL END Genuine Aston Martin - New (to order)
# 13
MPN: 77-66209
MOULDING, C POST ASSY, LH
from £515.05
from £515.05
MOULDING C POST Genuine Aston Martin - New (to order)
MOULDING C POST Genuine Ferrari Part - New (to order)
# 13
MPN: 77-66208
MOULDING, C POST ASSY, RH
from £515.05
from £515.05
MOULDING C POST Genuine Aston Martin - New (to order)
MOULDING C POST Genuine Ferrari Part - New (to order)
# 14
MPN: 77-61822
PACKER, C POST MOULDING
from £25.22
from £25.22
PACKER `C PST MLDNG Genuine Aston Martin - New (to order)
# 15
MPN: 77-61823
PACKER, C POST MOULDING
from £25.22
from £25.22
PACKER `C PST MLDNG Genuine Aston Martin - New (to order)
# 16
MPN: 696789
SCREW, M5X20
from £2.32
from £2.32
SCREW M5 X 20 HEX HD Genuine Aston Martin - New (to order)
# 17
MPN: 696784
WASHER, PLAIN, M5
from £0.47
from £0.47
WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
# 18
MPN: 77-61240
SEAL, REAR DECK
Made from 77-64005
SEAL - REAR DECK Genuine Aston Martin - New (to order)
# 19
MPN: 77-61717
OUTER WAIST BELT FINISHER, DOOR GLASS, LH
OUTER W/BELT FINSHR LH Genuine Aston Martin - New (to order)
# 19
MPN: 77-61716
OUTER WAIST BELT FINISHER, DOOR GLASS, RH
OUTER W/BELT FINSHR RH Genuine Aston Martin - New (to order)
# 20
MPN: 696338
SCREW, NO.4 X 1/2
from £0.47
from £0.47
SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
# 21
MPN: 77-72298
INNER WAIST BELT FINISHER, DOOR GLASS
INNER W/BLT FNR-DOOR Genuine Aston Martin - New (to order)
# 22
MPN: 77-62007
Seal carrier, door glass/quarter glass, LH
Made from 77-61247
from £58.44
from £58.44
CARR SEAL-DOOR GLASS Genuine Aston Martin - New (to order)
# 22
MPN: 77-62006
Seal carrier, door glass/quarter glass, RH
Made from 77-61246
from £71.31
from £71.31
CARR SEAL-DOOR GLASS Genuine Aston Martin - New (to order)
# 23
MPN: 77-61249
Seal, door glass/quarter glass, LH
Made from 77-66109
from £128.93
from £128.93
SEAL-DR GLS/QTR GLS Genuine Aston Martin - New (to order)
# 23
MPN: 77-61248
Seal, door glass/quarter glass, RH
Made from 77-66108
from £157.38
from £157.38
SEAL-DR GLS/QTR GLS Genuine Aston Martin - New (to order)
# 24
MPN: 77-61259
MOULDING, B POST CAPPING, LH
from £198.79
from £198.79
MLDNG `B' PST CAP LH Genuine Aston Martin - New (to order)
# 24
MPN: 77-61258
MOULDING, B POST CAPPING, RH
from £198.79
from £198.79
MLDNG `B' PST CAP RH Genuine Aston Martin - New (to order)
# 25
MPN: 77-65713
OUTER WAIST BELT FINISHER, QUARTER GLASS, LH
Made from 77-61715
OUTER WAISTBELT Genuine Aston Martin - New (to order)
# 25
MPN: 77-65712
OUTER WAIST BELT FINISHER, QUARTER GLASS, RH
Made from 77-61715
OUTER WAISTBELT Genuine Aston Martin - New (to order)
# 26
MPN: 696338
SCREW, NO.4 X 1/2
from £0.47
from £0.47
SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
# 27
MPN: 696923
SCREW, M4X20, BLACK NYLON
from £1.07
from £1.07
SCREW M4X20 BLACK Genuine Aston Martin - New (to order)
# -
-
CAP, SCREW PROTECTION
# -
-
WASHER, SCREW PROTECTION
# 28
MPN: 77-65715
INNER WAIST BELT FINISHER, QUARTER GLASS, LH
Made from 77-62001
INNR W/BELT FINISHER LH Genuine Aston Martin - New (to order)
# 28
MPN: 77-65714
INNER WAIST BELT FINISHER, QUARTER GLASS, RH
Made from 77-62001
INNR W/BELT FINISHER RH Genuine Aston Martin - New (to order)
# 29
MPN: 94-61527
RAIL, SEAL CARRIER, QUARTER GLASS, LH
from £8.70
from £8.70
RAIL SEAL CARRIER LH Genuine Aston Martin - New (to order)
# 29
MPN: 94-61526
RAIL, SEAL CARRIER, QUARTER GLASS, RH
from £8.70
from £8.70
RAIL SEAL CARRIER RH Genuine Aston Martin - New (to order)
# 30
MPN: 77-65739
SEAL CARRIER, LH
SEAL CARRIER, LH Genuine Aston Martin - New (to order)
# 30
MPN: 77-65738
SEAL CARRIER, RH
SEAL CARRIER, RH Genuine Aston Martin - New (to order)
# 31
MPN: 94-62313
SUPPORT, UPPER TRIM, QUARTER LIGHT, LH
from £13.99
from £13.99
SPT UPPER TRIM LH Q/LGT Genuine Aston Martin - New (to order)
# 31
MPN: 94-62312
SUPPORT, UPPER TRIM, QUARTER LIGHT, RH
from £13.99
from £13.99
SPT UPPER TRIM RH Q/LGT Genuine Aston Martin - New (to order)
# 32
MPN: 77-62164
SEAL, INFILL PANEL, B POST
from £181.93
from £181.93
SEAL-PNL INFLL B/PST Genuine Aston Martin - New (to order)
# 33
MPN: 77-66109
BLANKING PLATE, QUARTER LIGHT GLASS, LH
from £3.51
from £3.51
BLANKING PLATE Genuine Aston Martin - New (to order)
# 33
MPN: 77-66108
BLANKING PLATE, QUARTER LIGHT GLASS, RH
from £3.51
from £3.51
BLANKING PLATE Genuine Aston Martin - New (to order)
# 34
MPN: 696093
EDGE FINISHER RUBBER
from £18.37
from £18.37
RUBBER -EDGE FINISHR Genuine Aston Martin - New (to order)
# 35
MPN: 77-65733
PANEL ASSY, B POST FINISHER, LH
PANEL ASSEMBLY B POST FINISHER, LH Genuine Aston Martin - New (to order)
# 35
MPN: 77-65732
PANEL ASSY, B POST FINISHER, RH
PANEL ASSEMBLY B POST FINISHER, RH Genuine Aston Martin - New (to order)
# 36
MPN: 696093
RUBBER, EDGE FINISHER
Made from 693770
from £18.37
from £18.37
RUBBER -EDGE FINISHR Genuine Aston Martin - New (to order)
# 37
MPN: 77-63073
Finisher, screen pillar, LH
Made from 77-62743
Finisher, screen pillar, LH Genuine Aston Martin - New (to order)
# 37
MPN: 77-63072
FINISHER, SCREEN PILLAR, RH
Made from 77-62743
from £90.00
from £90.00
SCRN PILLAR FINISHER Genuine Aston Martin - New (to order)
# 38
MPN: 77-62816
SPACER, CLAMP PLATE
from £12.43
from £12.43
SPACER - CLAMP PLATE Genuine Aston Martin - New (to order)
# 39
MPN: 692359
SCREW, CSK, NO.4 X 5/16
from £0.47
from £0.47
SCREW NO4 X 5/16 Genuine Aston Martin - New (to order)
# 40
MPN: 77-62346
SEAL, HEADER FINISHER
SEAL, HEADER FINISHER Genuine Aston Martin - New (to order)
# 41
MPN: 77-64084
SEAL, HEADER POKE
Made from 77-62064
from £44.60
from £44.60
SEAL-HEADER POKE Genuine Aston Martin - New (to order)
# 42
MPN: 93-66092
PLATE, C POST SEAL RETAINER
from £6.93
from £6.93
PLATE C POST SEAL Genuine Aston Martin - New (to order)
# 43
MPN: 696260
SCREW, CSK, NO.6 X 5/8
from £0.47
from £0.47
SCREW NO6 X5/8 S/T Genuine Aston Martin - New (to order)
# 44
MPN: 78-63085
CAPPING, A POST, LH
from £9.03
from £9.03
CAPPING-`A' POST LH Genuine Aston Martin - New (to order)
# 44
MPN: 78-63084
CAPPING, A POST, RH
from £9.03
from £9.03
CAPPING `A' POST RH Genuine Aston Martin - New (to order)
# -
-
DOUBLE SIDED ADHESIVE TAPE
# 45
MPN: 77-65668
SEAL, WINDSCREEN FINISHER
SEAL, WINDSCREEN FINISHER Genuine Aston Martin - New (to order)
# 46
MPN: 77-52043
MASTIC RETENSION DAM
MASTIC RETENTION DAM Genuine Aston Martin - New (to order)
# 47
MPN: 77-52045
Damming strip, lower screen rail
Damming strip, lower screen rail Genuine Aston Martin - New (to order)
# 48
MPN: 77-65663
SEAL, DOOR SILL
from £70.67
from £70.67
SEAL - DOOR SILL Genuine Aston Martin - New (to order)
# 49
MPN: 77-65664
PIN, WEATHERSTRIP FIXING
from £2.45
from £2.45
PIN - WEATHER Genuine Aston Martin - New (to order)
# 50
MPN: 77-65723
SEAL CARRIER, FRONT CANTRAIL, LH
Made from 698231
SEAL CARRIER, FRONT CANTRAIL, LH Genuine Aston Martin - New (to order)
# 50
MPN: 77-65722
SEAL CARRIER, FRONT CANTRAIL, RH
Made from 698231
from £24.51
from £24.51
SEAL CARRIER FRONT Genuine Aston Martin - New (to order)
# 51
MPN: 77-65725
SEAL CARRIER, REAR CANTRAIL, LH
Made from 698231
SEAL CARRIER, REAR CANTRAIL, LH Genuine Aston Martin - New (to order)
# 51
MPN: 77-65724
SEAL CARRIER, REAR CANTRAIL, RH
Made from 698231
SEAL CARRIER, REAR CANTRAIL, RH Genuine Aston Martin - New (to order)
# 52
MPN: 77-65727
SEAL CARRIER, C POST, LH
Made from 698231
seal carrier Genuine Aston Martin - New (to order)
# 52
MPN: 77-65726
SEAL CARRIER, C POST, RH
Made from 698231
seal carrier Genuine Aston Martin - New (to order)
# 53
MPN: 695991
SCREW, NO.8 X 3/4 POSI FLG HD
from £0.52
from £0.52
SCREW NO8 X 3/4 POZI Genuine Aston Martin - New (to order)
# 54
MPN: 030-017-0019
SEALING SECTION
from £18.17
from £18.17
SEALING SECTION-1MTR Genuine Aston Martin - New (to order)
# 55
MPN: 696338
SCREW, NO.4 X 1/2 POSI CSK
from £0.47
from £0.47
SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
# 56
MPN: 692228
SCREW, M4X10
from £0.47
from £0.47
SCREW M4 X 10 HEX HD Genuine Aston Martin - New (to order)
# 57
MPN: 692064
WASHER, SPRF, M4
from £0.47
from £0.47
WASHER M4 S/PROOF Genuine Aston Martin - New (to order)
# 58
MPN: 692054
WASHER, PLAIN, M4
from £0.47
from £0.47
WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
# 59
MPN: 77-62699
CLAMP PLATE
from £47.23
from £47.23
CLAMP PLATE Genuine Aston Martin - New (to order)
# 60
MPN: 77-66138
PLATE, SEAL RETAINER, FRONT
from £5.19
from £5.19
PLT SEAL RETN FRONT Genuine Aston Martin - New (to order)
# 61
MPN: 77-66139
PLATE, SEAL RETAINER, CENTRE
from £5.17
from £5.17
PLT SEAL RETN CTR Genuine Aston Martin - New (to order)
# -
-
LOCTITE 270 STUDLOCK, RED
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
