aston martin v8 volante (1998) inlet manifolds and plenum parts diagram

2.2A - Inlet Manifolds and Plenum

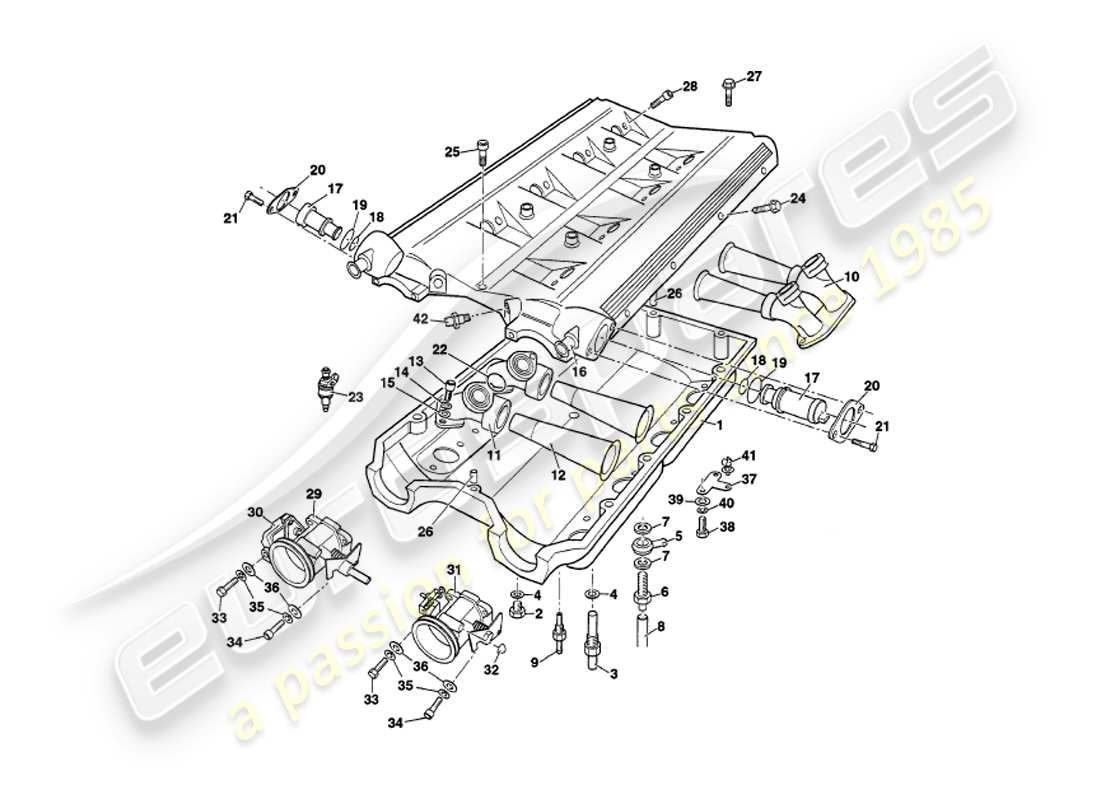

Aston Martin V8 Volante (1998) Inlet Manifolds and Plenum Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  -
                                                  PLENUM CHAMBER BASE
                                                  Part of 08-64960 top and base M/C pr
                                                  # -
                                                  -
                                                  LOCTITE 5699, ULTRA GREY
                                                  Plenum chamber top to base
                                                  # -
                                                  -
                                                  SEAL STRIP, 6MM DIA
                                                  Plenum chamber top to base
                                                  # -
                                                  -
                                                  O RING, PLENUM BASE TO CYLINDER HEADS
                                                  # 2
                                                  MPN: 119591
                                                  PLUG, 1/8 BSP
                                                  from £11.43
                                                  from £11.43
                                                  PLUG 1/8 BSP FLANGED Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: 08-21079
                                                  CHOKE UNION ASSEMBLY
                                                  from £44.52
                                                  from £44.52
                                                  ASSEMBLY CHOKE UNION Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 095-033-0161
                                                  COPPER WASHER
                                                  Washer, copper Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 069-033-0168
                                                  BANJO, VACUUM TANK TAKE OFF
                                                  from £54.17
                                                  from £54.17
                                                  BANJO Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 08-26434
                                                  BANJO BOLT ASSEMBLY
                                                  from £47.21
                                                  from £47.21
                                                  ASSEMBLY BANJO BOLT Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: 022-033-0202
                                                  SEALING WASHER, BANJO
                                                  from £1.90
                                                  from £1.90
                                                  WASHER-SEALING COPPR Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 692546
                                                  TUBE, POLYVON, 1/8 DIA
                                                  from £8.13
                                                  from £8.13
                                                  TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 08-55718
                                                  NIPPLE ASSY, 1/4 BSP
                                                  from £20.58
                                                  from £20.58
                                                  ASSEMBLY NIPPLE 1/4 BSPT Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 08-64709
                                                  Air inlet manifold assy
                                                  Air inlet manifold assembly Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 08-64710
                                                  Inlet Manifold
                                                  Part of item 10
                                                  from £401.73
                                                  from £401.73
                                                  Inlet Manifold Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 08-25695
                                                  TRUMPET, INLET MANIFOLD
                                                  Part of item 10
                                                  from £68.41
                                                  from £68.41
                                                  TRUMPET-INLET MANIF Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  LOCTITE 648, TRUMPETS TO INLET MANIFOLDS
                                                  Part of item 10
                                                  # 13
                                                  MPN: 694035
                                                  CAPSCREW, 1/4 UNC X 1
                                                  Plenum base and manifolds to heads
                                                  from £0.57
                                                  from £0.57
                                                  SCREW 1/4 UNC X1 SOCKET Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 119480
                                                  WASHER, SPRING, 1/4
                                                  Plenum base and manifolds to heads
                                                  Washer, spring, 1/4, plate to stud Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 692056
                                                  WASHER, PLAIN, M6
                                                  Plenum base and manifolds to heads
                                                  from £0.47
                                                  from £0.47
                                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  PLENUM CHAMBER TOP
                                                  Part of 08-64960 top and base M/C pr
                                                  # 16
                                                  MPN: 08-26578
                                                  Bleed stub, air valve
                                                  from £5.01
                                                  from £5.01
                                                  BLEED STUB-AIR VALVE Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 694858
                                                  LOCTITE 648, BLEED STUB TO PLENUM TOP
                                                  from £61.39
                                                  from £61.39
                                                  LOCTITE 648 Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 08-56335
                                                  VALVE, IDLE AIR CONTROL
                                                  from £480.08
                                                  from £480.08
                                                  ASSEMBLY IDLE AIR CNT VLV Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 08-26152
                                                  O RING, SMALL
                                                  from £3.73
                                                  from £3.73
                                                  O RING Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 08-26153
                                                  O RING, LARGE
                                                  from £3.98
                                                  from £3.98
                                                  O RING Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 08-26150
                                                  CLAMP RING
                                                  from £8.32
                                                  from £8.32
                                                  CLAMP RING Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 08-26151
                                                  SCREW, AIR VALVE ATTACH
                                                  from £0.85
                                                  from £0.85
                                                  SCREW-VAE ATTACH Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 08-26107
                                                  O RING, PLENUM TOP TO MANIFOLDS
                                                  O' ring, top to manifold Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 08-20006
                                                  INJECTOR
                                                  from £147.66
                                                  from £147.66
                                                  INJECTOR Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  O RING
                                                  # 24
                                                  MPN: 08-25909
                                                  BOLT, PLENUM CHAMBER TOP
                                                  from £14.07
                                                  from £14.07
                                                  BOLT-PLENM CHMBR TOP Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 692092
                                                  CAPSCREW, M6X35
                                                  PLENUM CHAMBER TOP
                                                  from £1.16
                                                  from £1.16
                                                  SCREW M6 X35 SOCKET CAP Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 06-26127
                                                  DOWEL
                                                  Plenum chamber top location
                                                  from £8.13
                                                  from £8.13
                                                  DOWEL Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 08-25910
                                                  BOLT, PLENUM CHAMBER TOP
                                                  from £54.12
                                                  from £54.12
                                                  BOLT-PLENM CHMBR TOP Genuine Aston Martin - New (to order)
                                                  # 28
                                                  MPN: 694210
                                                  CAPSCREW, M8X16
                                                  PLENUM CHAMBER TOP
                                                  from £0.70
                                                  from £0.70
                                                  SCREW M8 X16 SOCKET CAP Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  Throttle body assembly, RH
                                                  Includes potentiometer
                                                  # 29
                                                  MPN: 08-56172
                                                  Throttle body, RH
                                                  Throttle body, RH Genuine Aston Martin - New (to order)
                                                  # 30
                                                  MPN: 08-56705
                                                  Throttle potentiometer, replacement kit
                                                  Throttle potentiometer, replacement kit Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: 08-56173
                                                  Throttle body, LH
                                                  from £857.84
                                                  from £857.84
                                                  THROTTLE BODY LH Genuine Aston Martin - New (to order)
                                                  # 32
                                                  MPN: 08-54412
                                                  TAMPERPROOF CAP
                                                  Idle bypass
                                                  from £0.70
                                                  from £0.70
                                                  TAMPERPROOF CAP Genuine Aston Martin - New (to order)
                                                  # 33
                                                  MPN: 693236
                                                  BOLT, M6X25
                                                  Throttle bodies to plenum
                                                  from £0.51
                                                  from £0.51
                                                  BOLT M6 X 25 HEX HD Genuine Aston Martin - New (to order)
                                                  # 34
                                                  MPN: 692745
                                                  CAPSCREW, M6X25
                                                  Throttle bodies to plenum
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M6 X25 SOCKET CAP Genuine Aston Martin - New (to order)
                                                  # 35
                                                  MPN: 692046
                                                  WASHER, SPRING, M6
                                                  Throttle bodies to plenum
                                                  from £0.47
                                                  from £0.47
                                                  WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                  # 36
                                                  MPN: 692056
                                                  WASHER, PLAIN, M6
                                                  Throttle bodies to plenum
                                                  from £0.47
                                                  from £0.47
                                                  WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  LOCTITE 5699, ULTRA GREY
                                                  Throttle bodies to plenum
                                                  # 37
                                                  MPN: 08-26698
                                                  BRACKET, CABLE CLIP
                                                  from £72.83
                                                  from £72.83
                                                  BRKT-CBL CLIP/PLEN Genuine Aston Martin - New (to order)
                                                  # 38
                                                  MPN: 692090
                                                  SCREW, M5X12
                                                  Bracket, to plenum
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
                                                  # 39
                                                  MPN: 692055
                                                  WASHER, PLAIN, M5
                                                  Bracket, to plenum
                                                  from £0.47
                                                  from £0.47
                                                  WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                  # 40
                                                  MPN: 692045
                                                  WASHER, SPRING, M5
                                                  Bracket, to plenum
                                                  from £0.47
                                                  from £0.47
                                                  WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
                                                  # 41
                                                  MPN: 694900
                                                  CABLE CLIP
                                                  from £1.21
                                                  from £1.21
                                                  CBL-CLIP M6 NYLON Genuine Aston Martin - New (to order)
                                                  # 41
                                                  MPN: 694904
                                                  Clip, cable to cable
                                                  RHD
                                                  from £0.99
                                                  from £0.99
                                                  CBL-CLIP CBL TO CBL Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  LOCTITE, STUDLOCK 270
                                                  # 42
                                                  MPN: 08-20003
                                                  SENSOR, AIR TEMPERATURE
                                                  from £66.50
                                                  from £66.50
                                                  SENSOR-AIR TEMP Genuine Aston Martin - New (to order)
