aston martin v8 volante (1998) vacuum system parts diagram

2.4 - VACUUM SYSTEM

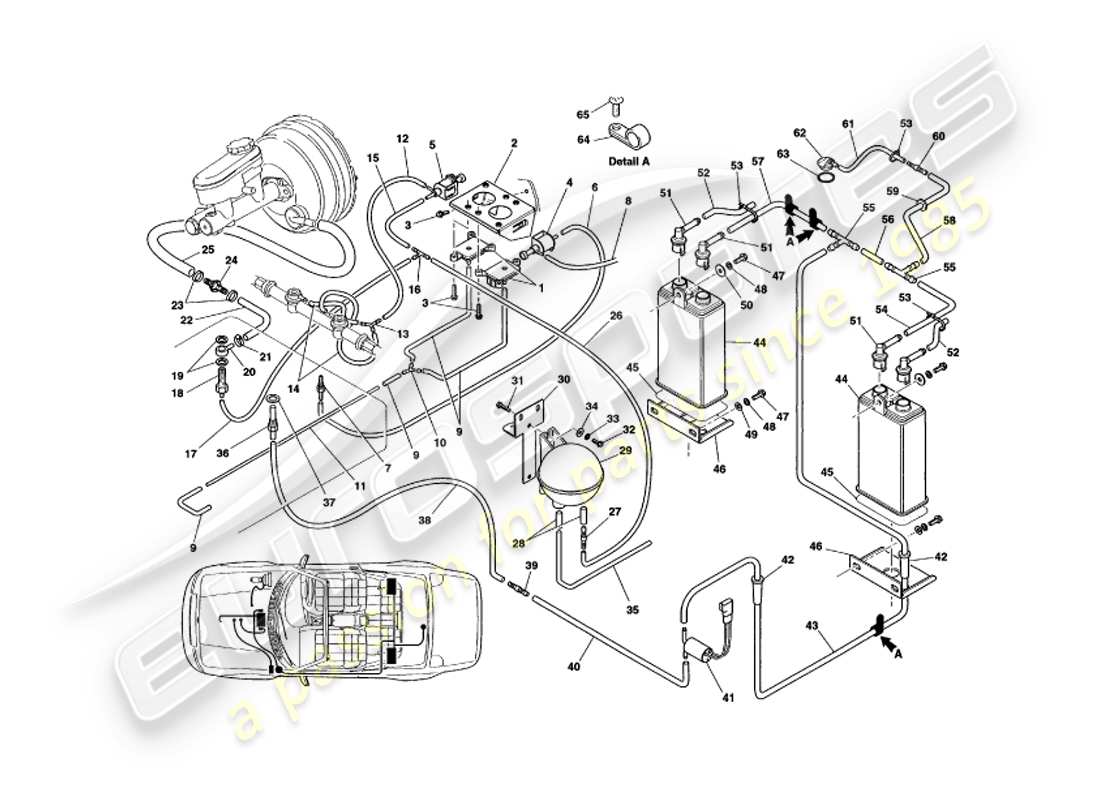

Aston Martin V8 Volante (1998) Vacuum System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: 39-56170
                                                        ABSOLUTE PRESSURE SENSOR
                                                        from £234.84
                                                        from £234.84
                                                        ABSOLUTE PRESS SENSR Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: 08-64899
                                                        MOUNTING BRACKET ASSY, ABSOLUTE PRESSURE SENSOR
                                                        from £24.94
                                                        from £24.94
                                                        ASSEMBLY MOUNTING BRACKET Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: 695560
                                                        SCREW, M5X16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M5 X 16 HEX Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: 08-56325
                                                        Vacuum valve, reworked
                                                        Vacuum valve, reworked Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: 89-26545
                                                        VACUUM VALVE, AIR CONDITIONING
                                                        from £13.62
                                                        from £13.62
                                                        VACUUM VLV-AIR COND Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: 08-56232
                                                        TUBE, WHITE POLYVON, MODIFIED VACUUM VALVE
                                                        Made from 691504 (530mm)
                                                        TUBE WHITE PLVN Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: 08-21079
                                                        CHOKE UNION ASSEMBLY
                                                        Plenum base
                                                        from £44.52
                                                        from £44.52
                                                        ASSEMBLY CHOKE UNION Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: 08-56219
                                                        Tube, polyvon, vacuum valve to Y connector
                                                        Made from 692546 (400mm)
                                                        Tube, polyvon, vacuum valve to Y connector Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: 08-56217
                                                        TUBE, POLYVON, APS - Y CONN - PLENUM
                                                        Made form 692546 (400mm)
                                                        TUBE POLYVON 200MM Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: 08-21068
                                                        Y CONNECTION
                                                        Y' connection Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: 08-56218
                                                        TUBE, NYLON, Y CONN TO FIBREGLASS PLENUM
                                                        Made from 691507 (1000mm)
                                                        TUBE, NYLON, Y CONN TO FIBREGLASS PLENUM Genuine Aston Martin - New (to order)
                                                        # 12
                                                        MPN: 08-56219
                                                        Tube, polyvon, vacuum valve to Y connector
                                                        Made from 692546 (400mm)
                                                        Tube, polyvon, vacuum valve to Y connector Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: 08-21068
                                                        Y CONNECTION
                                                        Y' connection Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: 08-56217
                                                        TUBE, POLYVON, Y CONN - SWITCHING VALVES
                                                        Made from 692546 (200mm)
                                                        TUBE POLYVON 200MM Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 08-56217
                                                        TUBE, POLYVON, TEE - VACUUM VALVE
                                                        Made from 692546 (200mm)
                                                        TUBE POLYVON 200MM Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: 08-21067
                                                        TEE PIECE, PLENUM - VACUUM VALVE
                                                        from £2.55
                                                        from £2.55
                                                        TEE PIECE Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: 08-56217
                                                        TUBE, POLYVON, BANJO - TEE
                                                        Made from 692546 (200mm)
                                                        TUBE POLYVON 200MM Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: 08-26434
                                                        BANJO BOLT ASSY
                                                        from £47.21
                                                        from £47.21
                                                        ASSEMBLY BANJO BOLT Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: 022-033-0202
                                                        Washer, copper
                                                        from £1.90
                                                        from £1.90
                                                        WASHER-SEALING COPPR Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: 069-033-0168
                                                        BANJO
                                                        from £54.17
                                                        from £54.17
                                                        BANJO Genuine Aston Martin - New (to order)
                                                        # 21
                                                        MPN: 692645
                                                        CLIP, OETIKER
                                                        from £1.26
                                                        from £1.26
                                                        HOSE-CLIP - `O TYPE Genuine Aston Martin - New (to order)
                                                        # 22
                                                        MPN: 692643
                                                        VACUUM HOSE
                                                        from £36.54
                                                        from £36.54
                                                        HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
                                                        # 23
                                                        MPN: 693168
                                                        CLIP, OETIKER
                                                        from £0.92
                                                        from £0.92
                                                        CLIP OETIKER 157 Genuine Aston Martin - New (to order)
                                                        # 24
                                                        MPN: 33-16743
                                                        NON RETURN VALVE
                                                        from £85.60
                                                        from £85.60
                                                        NON RETURN VALVE Genuine Aston Martin - New (to order)
                                                        # 25
                                                        MPN: 692643
                                                        HOSE, 11/32 ID
                                                        Non return valve to servo
                                                        from £36.54
                                                        from £36.54
                                                        HOSE VAC 9.5MM ID Genuine Aston Martin - New (to order)
                                                        # 26
                                                        MPN: 08-56222
                                                        TUBE, POLYVON, TEE - AIR CONDITIONING VACUUM RESVR
                                                        Made from 692546 (1200mm)
                                                        TUBE POLYVON 1200MM Genuine Aston Martin - New (to order)
                                                        # 27
                                                        MPN: 692732
                                                        CONNECTOR, 6MM STRAIGHT
                                                        from £4.39
                                                        from £4.39
                                                        SOCKET -STRGT REDUCE Genuine Aston Martin - New (to order)
                                                        # 28
                                                        MPN: 08-56226
                                                        LOCKING SLEEVE
                                                        Made from 693280 (10mm)
                                                        LOCKING SLEEVE Genuine Aston Martin - New (to order)
                                                        # 29
                                                        MPN: 693060
                                                        VACUUM RESERVOIR
                                                        from £115.94
                                                        from £115.94
                                                        RESERVOIR - VACUUM Genuine Aston Martin - New (to order)
                                                        # 30
                                                        MPN: 32-73301
                                                        BRACKET, VACUUM RESERVOIR
                                                        RHD
                                                        from £19.62
                                                        from £19.62
                                                        ASSEMBLY BRACKET MTG-EXP TANK Genuine Aston Martin - New (to order)
                                                        # 30
                                                        MPN: 33-73585
                                                        BRACKET, VACUUM RESERVOIR
                                                        LHD
                                                        from £14.43
                                                        from £14.43
                                                        ASSEMBLY S/BRKT VAC RES Genuine Aston Martin - New (to order)
                                                        # 31
                                                        MPN: 695158
                                                        SCREW, FLG, M6X12
                                                        from £0.79
                                                        from £0.79
                                                        SCREW M6 X12 HEX FLANGE Genuine Aston Martin - New (to order)
                                                        # 32
                                                        MPN: 695559
                                                        SCREW, FLG, M5X12
                                                        SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                        # 33
                                                        MPN: 692045
                                                        WASHER, SPRING, M5
                                                        from £0.47
                                                        from £0.47
                                                        WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
                                                        # 34
                                                        MPN: 692055
                                                        WASHER, PLAIN, M5
                                                        from £0.47
                                                        from £0.47
                                                        WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                        # 35
                                                        MPN: 08-56220
                                                        TUBE, POLYVON, A/C RESERVOIR TO A/C
                                                        Made from 692546
                                                        TUBE, POLYVON, A/C RESERVOIR TO A/C Genuine Aston Martin - New (to order)
                                                        # 36
                                                        MPN: 08-55718
                                                        NIPPLE ASSY, 1/4 BSP
                                                        Plenum base
                                                        from £20.58
                                                        from £20.58
                                                        ASSEMBLY NIPPLE 1/4 BSPT Genuine Aston Martin - New (to order)
                                                        # 37
                                                        MPN: 095-033-0161
                                                        COPPER WASHER
                                                        Plenum base
                                                        Washer, copper Genuine Aston Martin - New (to order)
                                                        # 38
                                                        MPN: 08-65038
                                                        TUBE, POLYVON, CONNECTOR TO PLENUM BASE PURGE
                                                        Made from 693280 (700mm)
                                                        TUBE - PLVN 700MM Genuine Aston Martin - New (to order)
                                                        # 39
                                                        MPN: 697840
                                                        CONNECTOR, 6MM STRAIGHT
                                                        Purge valve to plenumbase purge
                                                        from £2.05
                                                        from £2.05
                                                        CONN. 6MM STRAIGHT Genuine Aston Martin - New (to order)
                                                        # 40
                                                        MPN: 08-65037
                                                        TUBE, POLYVON, PURGE VALVE TO CONNECTOR
                                                        Made from 693280 (850mm)
                                                        TUBE, POLYVON, PURGE VALVE TO CONNECTOR Genuine Aston Martin - New (to order)
                                                        # 40
                                                        MPN: 08-72203
                                                        CONNECTOR, CARBON CANISTER
                                                        from £16.18
                                                        from £16.18
                                                        CONNECTOR CARBON CAN Genuine Aston Martin - New (to order)
                                                        # 41
                                                        MPN: 39-70587
                                                        PURGE VALVE
                                                        from £670.35
                                                        from £670.35
                                                        C/CANN PURGE VALVE Genuine Aston Martin - New (to order)
                                                        # 41
                                                        MPN: 08-72204
                                                        Double connector, carbon canister
                                                        from £10.99
                                                        from £10.99
                                                        CONNECTOR CARBON CAN Genuine Aston Martin - New (to order)
                                                        # 42
                                                        MPN: 696725
                                                        GROMMET, SLEEVED
                                                        from £0.47
                                                        from £0.47
                                                        GROMMET SLEEVED Genuine Aston Martin - New (to order)
                                                        # 42
                                                        MPN: 693280
                                                        TUBE, 6MM ID POLYVON
                                                        Canister to canister
                                                        from £26.66
                                                        from £26.66
                                                        TUBE 6MM ID POLYVON Genuine Aston Martin - New (to order)
                                                        # 43
                                                        MPN: 693280
                                                        TUBE, 6MM ID POLYVON
                                                        Carbon canister to purge valve
                                                        from £26.66
                                                        from £26.66
                                                        TUBE 6MM ID POLYVON Genuine Aston Martin - New (to order)
                                                        # 44
                                                        MPN: 08-70589
                                                        CARBON CANISTER
                                                        from £406.05
                                                        from £406.05
                                                        CARBON CANNISTER Genuine Aston Martin - New (to order)
                                                        # 44
                                                        MPN: 696725
                                                        GROMMET, SLEEVED
                                                        Carbon can tube thru sill plate
                                                        from £0.47
                                                        from £0.47
                                                        GROMMET SLEEVED Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: 069-065-0043
                                                        STRIP, LOWER SUPPORT, CARBON CANISTER
                                                        STRIP DR GLS GLZG Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: 692209
                                                        P CLIP, 3/8 NYLON
                                                        from £0.50
                                                        from £0.50
                                                        P-CLIP 3/8 - NYLON Genuine Aston Martin - New (to order)
                                                        # 46
                                                        MPN: 08-65582
                                                        BRACKET, LOWER SUPPORT, CARBON CANISTER
                                                        from £24.56
                                                        from £24.56
                                                        BRACKET LOWER SUPPRT Genuine Aston Martin - New (to order)
                                                        # 46
                                                        MPN: 691020
                                                        SCREW, NO.8 X 1/2
                                                        from £0.47
                                                        from £0.47
                                                        SCREW NO8 X 1/2 PK Genuine Aston Martin - New (to order)
                                                        # 47
                                                        MPN: 692088
                                                        SCREW, M6X16
                                                        Canister bracket attach
                                                        from £0.47
                                                        from £0.47
                                                        SCREW, FIG, M6X16 Genuine Aston Martin - New (to order)
                                                        # 47
                                                        MPN: 39-70587
                                                        PURGE VALVE
                                                        from £670.35
                                                        from £670.35
                                                        C/CANN PURGE VALVE Genuine Aston Martin - New (to order)
                                                        # 48
                                                        MPN: 692040
                                                        WASHER, SPRING, M6
                                                        Canister bracket attach
                                                        from £0.51
                                                        from £0.51
                                                        HANKBUSH M4 HEX HEAD Genuine Aston Martin - New (to order)
                                                        # 48
                                                        MPN: 08-65037
                                                        TUBE, POLYVON, PURGE VALVE TO CONNECTOR
                                                        Made from 693280 (850mm)
                                                        TUBE, POLYVON, PURGE VALVE TO CONNECTOR Genuine Aston Martin - New (to order)
                                                        # 49
                                                        MPN: 692056
                                                        WASHER, PLAIN, M6
                                                        Canister bracket attach
                                                        from £0.47
                                                        from £0.47
                                                        WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                        # 49
                                                        MPN: 697840
                                                        CONNECTOR, 6MM STRAIGHT
                                                        Purge valve to plenumbase purge
                                                        from £2.05
                                                        from £2.05
                                                        CONN. 6MM STRAIGHT Genuine Aston Martin - New (to order)
                                                        # 50
                                                        MPN: 690386
                                                        WASHER, 1/4 X 3/4
                                                        Canister bracket attach
                                                        from £0.47
                                                        from £0.47
                                                        WASHER 1/4 X 3/4 ZPL Genuine Aston Martin - New (to order)
                                                        # 50
                                                        MPN: 08-65038
                                                        TUBE, POLYVON, CONNECTOR TO PLENUM BASE PURGE
                                                        Made from 693280 (700mm)
                                                        TUBE - PLVN 700MM Genuine Aston Martin - New (to order)
                                                        # 51
                                                        MPN: 08-72204
                                                        CONNECTOR, CARBON CANISTER, L STYLE
                                                        from £10.99
                                                        from £10.99
                                                        CONNECTOR CARBON CAN Genuine Aston Martin - New (to order)
                                                        # 51
                                                        MPN: 693280
                                                        TUBE, 6MM ID, POLYVON
                                                        Roll over valve to canister
                                                        from £26.66
                                                        from £26.66
                                                        TUBE 6MM ID POLYVON Genuine Aston Martin - New (to order)
                                                        # 52
                                                        MPN: 08-65974
                                                        TUBE, CANISTER TO ATMOSPHERE
                                                        Cut from 693280
                                                        TUBE, CANISTER TO ATMOSPHERE Genuine Aston Martin - New (to order)
                                                        # 52
                                                        -
                                                        TIE WRAP
                                                        # 53
                                                        MPN: 693375
                                                        TIE WRAP
                                                        from £0.47
                                                        from £0.47
                                                        CBL-STRAP Genuine Aston Martin - New (to order)
                                                        # 53
                                                        MPN: 692732
                                                        SOCKET, STRAIGHT REDUCING
                                                        from £4.39
                                                        from £4.39
                                                        SOCKET -STRGT REDUCE Genuine Aston Martin - New (to order)
                                                        # 54
                                                        MPN: 08-65975
                                                        TUBE, TEE TO CANISTER, LH
                                                        TUBE, TEE TO CANISTER, LH Genuine Aston Martin - New (to order)
                                                        # 54
                                                        MPN: 692546
                                                        TUBE, 1/8 ID
                                                        Socket to tank
                                                        from £8.13
                                                        from £8.13
                                                        TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
                                                        # 55
                                                        MPN: 692201
                                                        TEE PIECE, 6MM NYLON
                                                        from £5.86
                                                        from £5.86
                                                        TEE-PIECE 6MM NYLON Genuine Aston Martin - New (to order)
                                                        # 55
                                                        MPN: 095-034-0124
                                                        ROLL OVER VALVE
                                                        from £238.82
                                                        from £238.82
                                                        ROLL-OVER VALVE Genuine Aston Martin - New (to order)
                                                        # 56
                                                        MPN: 08-65977
                                                        TUBE, TEE PIECE TO TEE PIECE
                                                        Cut from 693280
                                                        TUBE, TEE PIECE TO TEE PIECE Genuine Aston Martin - New (to order)
                                                        # 56
                                                        MPN: 095-034-0125
                                                        GASKET, ROLL OVER VALVE
                                                        from £25.63
                                                        from £25.63
                                                        GASKET Genuine Aston Martin - New (to order)
                                                        # 57
                                                        MPN: 693280
                                                        TUBE, 6MM ID, POLYVON
                                                        Canister to tee piece
                                                        from £26.66
                                                        from £26.66
                                                        TUBE 6MM ID POLYVON Genuine Aston Martin - New (to order)
                                                        # 58
                                                        MPN: 692201
                                                        TEE PIECE, 6MM NYLON
                                                        from £5.86
                                                        from £5.86
                                                        TEE-PIECE 6MM NYLON Genuine Aston Martin - New (to order)
                                                        # 59
                                                        MPN: 693280
                                                        TUBE, 6MM ID, POLYVON
                                                        Tee piece to drain
                                                        from £26.66
                                                        from £26.66
                                                        TUBE 6MM ID POLYVON Genuine Aston Martin - New (to order)
                                                        # -
                                                        -
                                                        CLIP, SELF ADHESIVE
                                                        Tank link
                                                        # 60
                                                        MPN: 08-21079
                                                        CHOKE UNION ASSY
                                                        Plenum base
                                                        from £44.52
                                                        from £44.52
                                                        ASSEMBLY CHOKE UNION Genuine Aston Martin - New (to order)
                                                        # 61
                                                        MPN: 08-55718
                                                        NIPPLE ASSY, 1/4 BSP
                                                        Plenum base
                                                        from £20.58
                                                        from £20.58
                                                        ASSEMBLY NIPPLE 1/4 BSPT Genuine Aston Martin - New (to order)
