aston martin v8 volante (1998) instruments & controls parts diagram

6.6B - Instruments & Controls

Aston Martin V8 Volante (1998) Instruments & Controls Parts Diagram

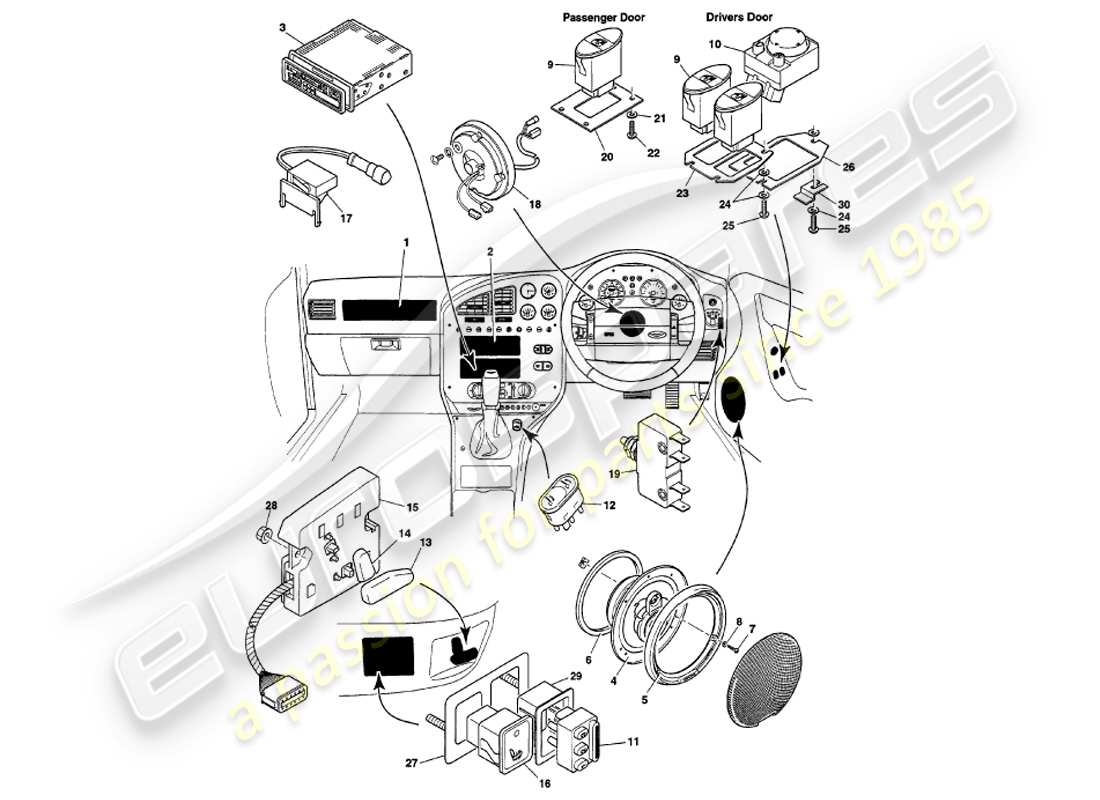

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: 37-90412
                                                            CD AUTOCHANGER, ALPINE S604
                                                            from £447.83
                                                            from £447.83
                                                            CD AUTOCHANGER Genuine Aston Martin - New (to order)
                                                            # 2
                                                            MPN: 37-66063
                                                            SCREEN, NAVIGATION SYSTEM
                                                            Optional, see section 9.1
                                                            SCREEN, NAVIGATION SYSTEM Genuine Aston Martin - New (to order)
                                                            # 3
                                                            MPN: 37-90408
                                                            RADIO CASSETTE
                                                            from £603.80
                                                            from £603.80
                                                            RAD/CASSETTE-UK/EURO Genuine Aston Martin - New (to order)
                                                            # 3
                                                            MPN: 37-90410
                                                            RADIO CASSETTE
                                                            Japan
                                                            from £831.16
                                                            from £831.16
                                                            RADIO CASSETTE-JAPAN Genuine Aston Martin - New (to order)
                                                            # 3
                                                            MPN: 37-90411
                                                            RADIO CASSETTE
                                                            Australia/New Zealand
                                                            from £842.35
                                                            from £842.35
                                                            RADIO/CASSETTE-ROW Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            CD LINK LEAD AI-NET
                                                            # 4
                                                            MPN: 37-64907
                                                            SPEAKERS (SET OF TWO)
                                                            SPEAKERS SET OF 2 Genuine Aston Martin - New (to order)
                                                            # 5
                                                            MPN: 37-52075
                                                            SPEAKER MOUNTING RING
                                                            from £2.32
                                                            from £2.32
                                                            SPEAKR MOUNTING RING Genuine Aston Martin - New (to order)
                                                            # 6
                                                            MPN: 37-74218
                                                            FOAM SPEAKER GASKET, FRONT DOOR
                                                            from £9.75
                                                            from £9.75
                                                            FOAM SPEAKER GASKET Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            SPACER RING, 6MM PLY
                                                            # 7
                                                            MPN: 694173
                                                            SCREW, M4X35
                                                            from £0.47
                                                            from £0.47
                                                            SCREW M4 X35 POZI PN Genuine Aston Martin - New (to order)
                                                            # 8
                                                            MPN: 692064
                                                            WASHER, SPRF, M4
                                                            from £0.47
                                                            from £0.47
                                                            WASHER M4 S/PROOF Genuine Aston Martin - New (to order)
                                                            # 9
                                                            MPN: 37-65352
                                                            SWITCH, WINDOW LIFS
                                                            from £24.60
                                                            from £24.60
                                                            SWITCH WINDOW LIFTS Genuine Aston Martin - New (to order)
                                                            # 10
                                                            MPN: 37-65348
                                                            SWITCH, DOOR MIRROR
                                                            from £209.64
                                                            from £209.64
                                                            SWITCH DOOR MIRROR Genuine Aston Martin - New (to order)
                                                            # 11
                                                            MPN: 37-65347
                                                            SWITCH, SEAT MEMORY
                                                            from £110.72
                                                            from £110.72
                                                            SW SEAT & MIRR MEM'Y Genuine Aston Martin - New (to order)
                                                            # 12
                                                            MPN: 37-65493
                                                            SWITCH, HOOD
                                                            from £86.46
                                                            from £86.46
                                                            HOOD SWITCH Genuine Aston Martin - New (to order)
                                                            # 13
                                                            MPN: 37-65360
                                                            KNOB, RH SEAT, FORWARD/BACKWARD
                                                            from £2.51
                                                            from £2.51
                                                            KNOB RH SEAT FWD/BWD Genuine Aston Martin - New (to order)
                                                            # 14
                                                            MPN: 37-65361
                                                            KNOB, RH SEAT, RECLINE
                                                            from £2.51
                                                            from £2.51
                                                            KNOB RH SEAT RECLINE Genuine Aston Martin - New (to order)
                                                            # 14
                                                            MPN: 37-65360
                                                            KNOB, LH SEAT, FORWARD/BACKWARD
                                                            from £2.51
                                                            from £2.51
                                                            KNOB RH SEAT FWD/BWD Genuine Aston Martin - New (to order)
                                                            # 14
                                                            MPN: 37-65361
                                                            KNOB, LH SEAT, RECLINE
                                                            from £2.51
                                                            from £2.51
                                                            KNOB RH SEAT RECLINE Genuine Aston Martin - New (to order)
                                                            # 15
                                                            MPN: 37-66202
                                                            SEAT SWITCH, RH, MODIFIED
                                                            from £56.11
                                                            from £56.11
                                                            SEAT SWITCH RH Genuine Aston Martin - New (to order)
                                                            # 15
                                                            MPN: 37-66203
                                                            SEAT SWITCH, LH, MODIFIED
                                                            from £56.11
                                                            from £56.11
                                                            SEAT SWITCH LH Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            SOLDER SPLICE, RED
                                                            # 16
                                                            MPN: 37-55978
                                                            SWITCH, SEAT HEATER
                                                            from £13.24
                                                            from £13.24
                                                            SWITCH SEAT HEATER Genuine Aston Martin - New (to order)
                                                            # 17
                                                            MPN: 37-81940
                                                            SWITCH, DOOR ADJAR, RH
                                                            from £96.55
                                                            from £96.55
                                                            DOOR AJAR SWITCH RH Genuine Aston Martin - New (to order)
                                                            # 17
                                                            MPN: 37-81941
                                                            SWITCH, DOOR ADJAR, LH
                                                            from £96.55
                                                            from £96.55
                                                            DOOR AJAR SWITCH LH Genuine Aston Martin - New (to order)
                                                            # 18
                                                            MPN: 37-64233
                                                            SLIP RING AND PLUG ASSEMBLY
                                                            from £531.41
                                                            from £531.41
                                                            ASY-SLIP RING & PLUG Genuine Aston Martin - New (to order)
                                                            # 19
                                                            MPN: 37-15429
                                                            DOUBLE BREAK SWITCH, STOP LAMPS
                                                            from £143.91
                                                            from £143.91
                                                            DOUBLE BREAK SWITCH Genuine Aston Martin - New (to order)
                                                            # 20
                                                            MPN: 83-65380
                                                            PLATE, WINDOW LIFT SWITCH MOUNTING
                                                            from £5.01
                                                            from £5.01
                                                            WINDOW LIFT MOUNTING Genuine Aston Martin - New (to order)
                                                            # 21
                                                            MPN: 692054
                                                            WASHER, PLAIN, M4
                                                            from £0.47
                                                            from £0.47
                                                            WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                                                            # 22
                                                            MPN: 692256
                                                            SCREW, NO.4 X 3/8
                                                            from £0.47
                                                            from £0.47
                                                            SCREW NO4 X 3/8 Genuine Aston Martin - New (to order)
                                                            # 23
                                                            MPN: 83-65380
                                                            PLATE, WINDOW LIFT SWITCH MOUNTING
                                                            from £5.01
                                                            from £5.01
                                                            WINDOW LIFT MOUNTING Genuine Aston Martin - New (to order)
                                                            # 24
                                                            MPN: 692054
                                                            WASHER, PLAIN, M4
                                                            from £0.47
                                                            from £0.47
                                                            WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                                                            # 25
                                                            MPN: 692256
                                                            SCREW, NO.4 X 3/8
                                                            from £0.47
                                                            from £0.47
                                                            SCREW NO4 X 3/8 Genuine Aston Martin - New (to order)
                                                            # 26
                                                            MPN: 83-65319
                                                            PLATE, MIRROR SWITCH MOUNTING
                                                            from £8.17
                                                            from £8.17
                                                            MIRROR SW MOUNTING Genuine Aston Martin - New (to order)
                                                            # 27
                                                            MPN: 74-66482
                                                            MOUNTING PLATE ASSY, SWITCH
                                                            from £7.78
                                                            from £7.78
                                                            ASSEMBLY SWITCH MOUNTING Genuine Aston Martin - New (to order)
                                                            # 28
                                                            MPN: 694275
                                                            NUT, FLG, M4
                                                            from £0.49
                                                            from £0.49
                                                            NUT M4 HEX FLANGE GRD 8 Genuine Aston Martin - New (to order)
                                                            # 29
                                                            MPN: 37-66415
                                                            BEZEL, MEMORY SWITCH
                                                            from £4.81
                                                            from £4.81
                                                            MEMORY SWITCH BEZEL Genuine Aston Martin - New (to order)
                                                            # 30
                                                            MPN: 83-66653
                                                            CLAMPING PLATE, MIRROR SWITCH
                                                            Mirror Switch Genuine Aston Martin - New (to order)
