aston martin v8 volante (1998) body panels parts diagram

7.3A - Body Panels

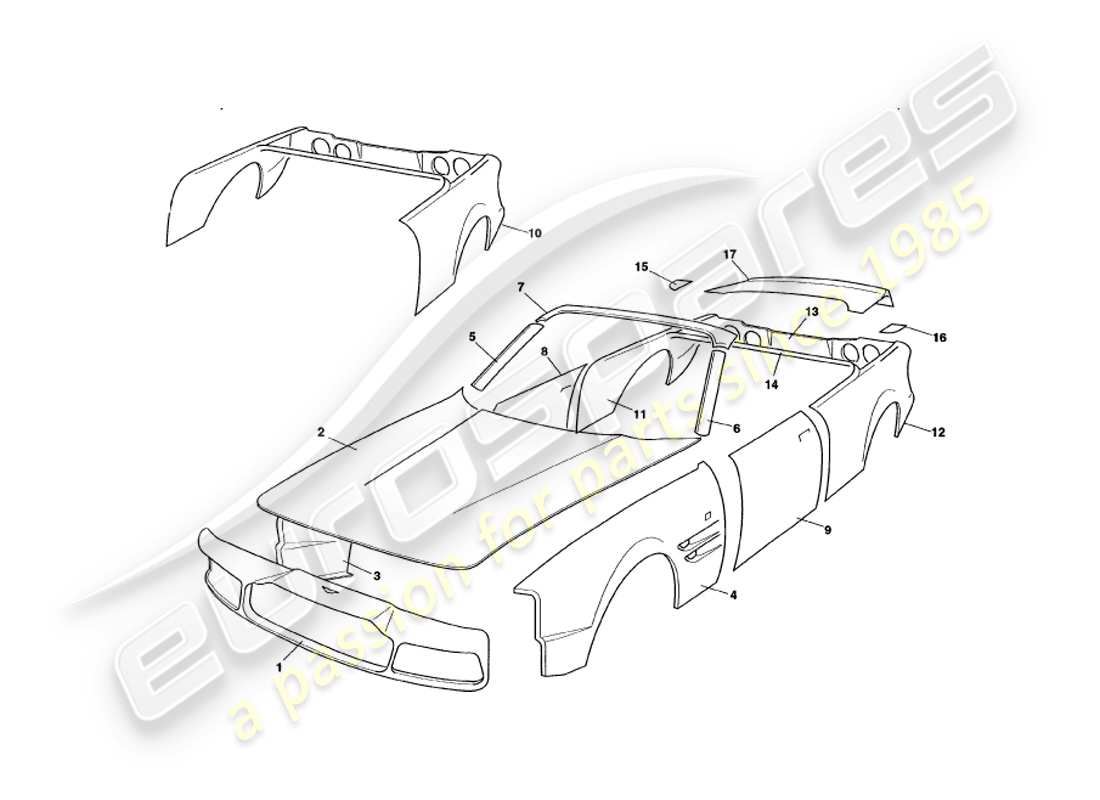

Aston Martin V8 Volante (1998) Body Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # -
                                    MPN: 62-55921
                                    FRONT END ASSEMBLY, COMPLETE
                                    ASSEMBLY FRONT END COMPLETE Genuine Aston Martin - New (to order)
                                    # 1
                                    MPN: 62-74177
                                    NOSE PANEL ASSEMBLY
                                    from £3,760.35
                                    from £3,760.35
                                    ASSEMBLY NOSE PANEL Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    SPREADER PLATE ASSEMBLY, FRONT END NOSE PANEL
                                    # -
                                    -
                                    SCREW, FLG, M6X12
                                    Nose panel to chassis/spreader
                                    # -
                                    -
                                    NUT, LUG, M6
                                    Nose panel to chassis/spreader
                                    # -
                                    -
                                    EVODE MULTI-SEAL
                                    Nose panel to chassis/spreader
                                    # 2
                                    MPN: 64-55931
                                    Bonnet skin panel
                                    Bonnet skin panel Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 62-55922
                                    FRONT WING ASSEMBLY, RH
                                    from £4,099.30
                                    from £4,099.30
                                    ASSEMBLY FRONT WING RH Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 62-55923
                                    FRONT WING ASSEMBLY, LH
                                    from £4,099.30
                                    from £4,099.30
                                    ASSEMBLY FRONT WING LH Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    DRAIN TUBE, FRONT WING
                                    # -
                                    -
                                    Fixing angle, front wing retaining
                                    # -
                                    -
                                    A' post and header rail assy
                                    # 5
                                    MPN: 62-60828
                                    A' post, RH
                                    A' post, RH Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 62-60829
                                    A' post, LH
                                    A' post, LH Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 62-60064
                                    WINDSHIELD HEADER, OUTER
                                    Windshield header 'outer' Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 65-65200
                                    DOOR SKIN ASSY, RH
                                    from £977.23
                                    from £977.23
                                    DOOR SKIN PANEL RH Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 65-65201
                                    DOOR SKIN ASSY, LH
                                    from £977.23
                                    from £977.23
                                    DOOR SKIN PANEL LH Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 62-65187
                                    REAR END ASSEMBLY COMPLETE
                                    REAR END ASSEMBLY COMPLETE Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 62-65188
                                    REAR WING ASSEMBLY, RH
                                    from £3,054.34
                                    from £3,054.34
                                    ASSEMBLY REAR WING RH Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 62-65189
                                    REAR WING ASSEMBLY, LH
                                    from £3,054.34
                                    from £3,054.34
                                    ASSEMBLY REAR WING LH Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 62-71069
                                    REAR PANEL
                                    from £722.72
                                    from £722.72
                                    REAR PANEL Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 62-65190
                                    SADDLE STRIP
                                    SADDLE STRIP Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    PANEL, REAR DRAIN CHANNEL SUPPORT
                                    # 16
                                    MPN: 68-61291
                                    FUEL FLAP, LH
                                    S/ASY F/FIL FLAP LH Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    REINFORCEMENT PLATE, FUEL FLAP HINGE ATTACH
                                    # -
                                    -
                                    REINFORCEMENT PLATE, FUEL FILLER SUPPORT, RH
                                    # -
                                    -
                                    REINFORCEMENT PLATE, FUEL FILLER SUPPORT, LH
                                    # 17
                                    MPN: 67-65196
                                    BOOT LID OUTER SKIN PANEL
                                    from £3,013.01
                                    from £3,013.01
                                    ASSEMBLY BOOT LID OUTER Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    RIVET, 1/8 X 3/8 CSK, SOLID ALUMINIUM
                                    # -
                                    -
                                    POP RIVET, 1/8MILD STEEL
                                    # -
                                    -
                                    POP RIVET, 1/8 X 5/16
                                    # -
                                    -
                                    POP RIVET, 3.2X8.5 CLOSED END
                                    # -
                                    -
                                    MASKING TAPE (RED) 1 1/2
                                    # -
                                    -
                                    DURALAC JOINT COMPOUND
                                    # -
                                    -
                                    SEALANT, TEROSTAT
