7.4A - Doors

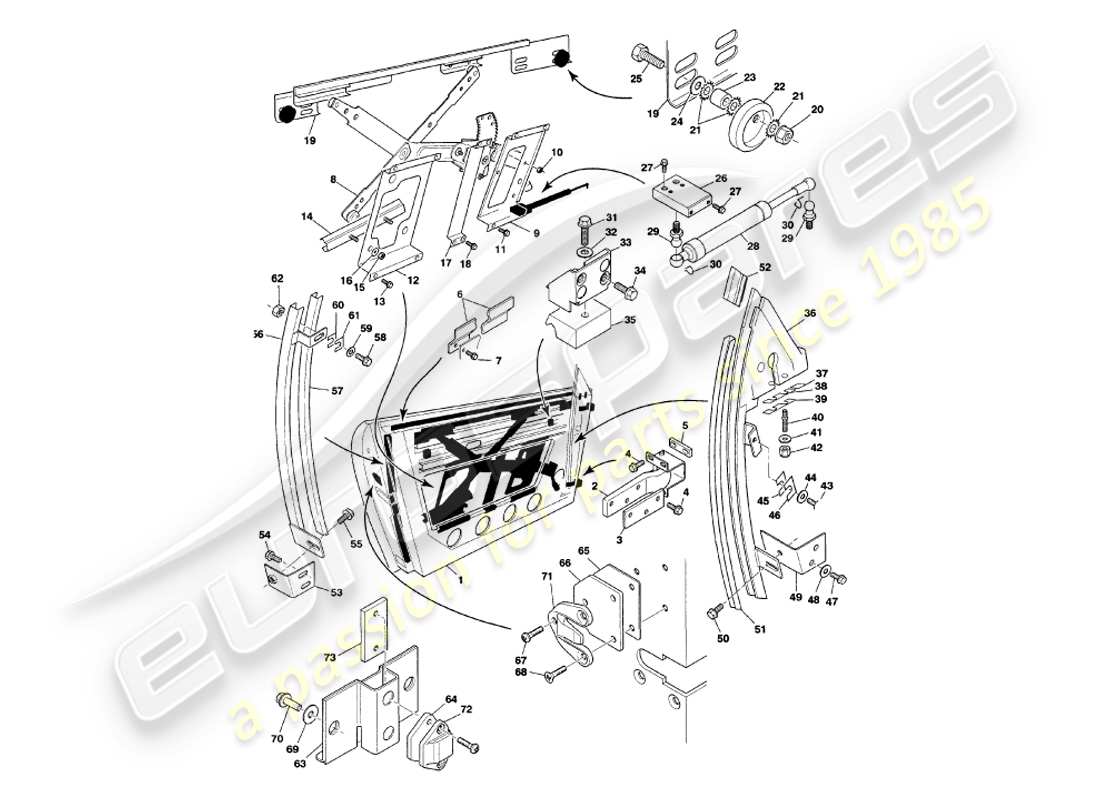

Aston Martin V8 Volante (1998) Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Price
                                                                                                                                # 1
                                                                                                                                MPN: 65-65206
                                                                                                                                DOOR STRUCTURE ASSEMBLY, RH
                                                                                                                                # 1
                                                                                                                                MPN: 65-65207
                                                                                                                                DOOR STRUCTURE ASSEMBLY, LH
                                                                                                                                # 2
                                                                                                                                MPN: 65-55496
                                                                                                                                Door hinge assembly, RH
                                                                                                                                from £239.66
                                                                                                                                from £239.66
                                                                                                                                # 2
                                                                                                                                MPN: 65-55497
                                                                                                                                Door hinge assembly, LH
                                                                                                                                from £239.66
                                                                                                                                from £239.66
                                                                                                                                # 3
                                                                                                                                MPN: 65-11309
                                                                                                                                REINFORCEMENT, HINGE PLATE
                                                                                                                                from £2.05
                                                                                                                                from £2.05
                                                                                                                                # 4
                                                                                                                                MPN: 694033
                                                                                                                                SCREW, FLG, M8X20
                                                                                                                                Hinges to doors and A posts
                                                                                                                                from £3.94
                                                                                                                                from £3.94
                                                                                                                                # 5
                                                                                                                                MPN: 65-61352
                                                                                                                                Spacer, door hinge, 3MM thick
                                                                                                                                from £7.75
                                                                                                                                from £7.75
                                                                                                                                # 6
                                                                                                                                MPN: 65-61414
                                                                                                                                MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, RH
                                                                                                                                from £127.59
                                                                                                                                from £127.59
                                                                                                                                # 6
                                                                                                                                MPN: 65-61415
                                                                                                                                MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, LH
                                                                                                                                from £127.59
                                                                                                                                from £127.59
                                                                                                                                # 7
                                                                                                                                MPN: 695559
                                                                                                                                SCREW, FLG, M5X12
                                                                                                                                Weather seal attach
                                                                                                                                # 8
                                                                                                                                MPN: 65-50603
                                                                                                                                Window lift regulator, LH
                                                                                                                                from £425.37
                                                                                                                                from £425.37
                                                                                                                                # 8
                                                                                                                                MPN: 65-50604
                                                                                                                                Window lift regulator, RH
                                                                                                                                from £509.02
                                                                                                                                from £509.02
                                                                                                                                # 8
                                                                                                                                MPN: 37-66695
                                                                                                                                WINDOW LIFT MOTOR AND PLUG ASSY, LH
                                                                                                                                from £131.24
                                                                                                                                from £131.24
                                                                                                                                # 8
                                                                                                                                MPN: 37-66694
                                                                                                                                WINDOW LIFT MOTOR AND PLUG ASSY, RH
                                                                                                                                from £157.04
                                                                                                                                from £157.04
                                                                                                                                # 9
                                                                                                                                MPN: 65-60687
                                                                                                                                MOUNTING BRACKET, WINDOW MOTOR, LH
                                                                                                                                from £13.63
                                                                                                                                from £13.63
                                                                                                                                # 9
                                                                                                                                MPN: 65-60686
                                                                                                                                MOUNTING BRACKET, WINDOW MOTOR, RH
                                                                                                                                from £13.63
                                                                                                                                from £13.63
                                                                                                                                # 10
                                                                                                                                MPN: 692076
                                                                                                                                NUT, M6
                                                                                                                                Regulator to bracket
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 11
                                                                                                                                MPN: 695559
                                                                                                                                SCREW, FLG, M5X12
                                                                                                                                Window regulator support
                                                                                                                                # 12
                                                                                                                                MPN: 65-60689
                                                                                                                                MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, LH
                                                                                                                                from £20.07
                                                                                                                                from £20.07
                                                                                                                                # 12
                                                                                                                                MPN: 65-60688
                                                                                                                                MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, RH
                                                                                                                                from £20.07
                                                                                                                                from £20.07
                                                                                                                                # 13
                                                                                                                                MPN: 695559
                                                                                                                                SCREW, FLG, M5X12
                                                                                                                                Bracket to door
                                                                                                                                # 14
                                                                                                                                MPN: 65-50605
                                                                                                                                GUIDE CHANNEL
                                                                                                                                from £94.40
                                                                                                                                from £94.40
                                                                                                                                # 15
                                                                                                                                MPN: 692800
                                                                                                                                NUT, NYLOC, M5
                                                                                                                                Guide channel to bracket
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 16
                                                                                                                                MPN: 692055
                                                                                                                                WASHER, PLAIN, M5
                                                                                                                                Guide channel to bracket
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 17
                                                                                                                                MPN: 65-62903
                                                                                                                                BRACKET ASSY, DOOR PULL, LH
                                                                                                                                from £18.40
                                                                                                                                from £18.40
                                                                                                                                # 17
                                                                                                                                MPN: 65-62902
                                                                                                                                BRACKET ASSY, DOOR PULL, RH
                                                                                                                                from £18.40
                                                                                                                                from £18.40
                                                                                                                                # 18
                                                                                                                                MPN: 695559
                                                                                                                                SCREW, FLG, M5X12
                                                                                                                                # -
                                                                                                                                -
                                                                                                                                Door glass, front door, LH
                                                                                                                                See section 7.8A
                                                                                                                                # -
                                                                                                                                -
                                                                                                                                Door glass, front door, RH
                                                                                                                                See section 7.8A
                                                                                                                                # 19
                                                                                                                                MPN: 65-61449
                                                                                                                                LIFT CHANNEL, DOOR GLASS, LH
                                                                                                                                from £114.50
                                                                                                                                from £114.50
                                                                                                                                # 19
                                                                                                                                MPN: 65-61448
                                                                                                                                LIFT CHANNEL, DOOR GLASS, RH
                                                                                                                                from £114.50
                                                                                                                                from £114.50
                                                                                                                                # 20
                                                                                                                                MPN: 695514
                                                                                                                                NUT, FLG, NYLOC, M6, BOBBIN ATTACH
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 21
                                                                                                                                MPN: 696189
                                                                                                                                WASHER, SPRF, M6, BOBBIN ATTACH
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 22
                                                                                                                                MPN: 65-61440
                                                                                                                                BOBBIN ADJUSTMENT
                                                                                                                                from £8.20
                                                                                                                                from £8.20
                                                                                                                                # 23
                                                                                                                                MPN: 65-61444
                                                                                                                                SPACER, BOBBIN
                                                                                                                                from £2.53
                                                                                                                                from £2.53
                                                                                                                                # 24
                                                                                                                                MPN: 692056
                                                                                                                                WASHER, PLAIN, M6, BOBBIN ATTACH
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 25
                                                                                                                                MPN: 695437
                                                                                                                                BOLT, FLG, M6X35, BOBBIN ATTACH
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 26
                                                                                                                                MPN: 65-66014
                                                                                                                                BLOCK, DOORSTOP FIXING
                                                                                                                                # 27
                                                                                                                                MPN: 695559
                                                                                                                                SCREW, FLG, M5X12
                                                                                                                                Doorstop attach
                                                                                                                                # 28
                                                                                                                                MPN: 65-66016
                                                                                                                                DOORSTOP, STABILUS
                                                                                                                                from £297.30
                                                                                                                                from £297.30
                                                                                                                                # 29
                                                                                                                                MPN: 65-66018
                                                                                                                                BALLSTUD, M8
                                                                                                                                # 30
                                                                                                                                MPN: 65-66017
                                                                                                                                RETAINING CLIP, DOORSTOP
                                                                                                                                # 31
                                                                                                                                MPN: 693962
                                                                                                                                SCREW, M6X25, STOP BLOCK TO BRACKET
                                                                                                                                from £1.27
                                                                                                                                from £1.27
                                                                                                                                # 32
                                                                                                                                MPN: 692056
                                                                                                                                WASHER, PLAIN, M6, STOP BLOCK TO BRACKET
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 33
                                                                                                                                MPN: 65-61407
                                                                                                                                MOUNTING BRACKET ASSY, STOP BLOCK, LH
                                                                                                                                from £19.56
                                                                                                                                from £19.56
                                                                                                                                # 33
                                                                                                                                MPN: 65-61406
                                                                                                                                MOUNTING BRACKET ASSY, STOP BLOCK, RH
                                                                                                                                from £19.56
                                                                                                                                from £19.56
                                                                                                                                # 34
                                                                                                                                MPN: 695158
                                                                                                                                SCREW, FLG, M6X12
                                                                                                                                from £0.78
                                                                                                                                from £0.78
                                                                                                                                # 35
                                                                                                                                MPN: 65-61416
                                                                                                                                STOP BLOCK ASSY, WINDOW
                                                                                                                                from £49.93
                                                                                                                                from £49.93
                                                                                                                                # 36
                                                                                                                                MPN: 65-65637
                                                                                                                                SASH AND GLASS CHANNEL ASSY, FRONT LH
                                                                                                                                # 36
                                                                                                                                MPN: 65-65636
                                                                                                                                SASH AND GLASS CHANNEL ASSY, FRONT RH
                                                                                                                                from £639.29
                                                                                                                                from £639.29
                                                                                                                                # 37
                                                                                                                                MPN: 65-61710
                                                                                                                                PACKING PIECE, RUBBER, CHEATER PANEL END TO DOOR
                                                                                                                                from £2.45
                                                                                                                                from £2.45
                                                                                                                                # 38
                                                                                                                                MPN: 65-61681
                                                                                                                                PACKING PIECE, CHEATER PANEL TO DOOR
                                                                                                                                from £1.15
                                                                                                                                from £1.15
                                                                                                                                # 39
                                                                                                                                MPN: 65-64073
                                                                                                                                CLAMP PLATE, CHEATER
                                                                                                                                from £1.62
                                                                                                                                from £1.62
                                                                                                                                # 40
                                                                                                                                MPN: 696153
                                                                                                                                STUD, M6X30
                                                                                                                                from £2.00
                                                                                                                                from £2.00
                                                                                                                                # 41
                                                                                                                                MPN: 124383
                                                                                                                                WASHER, PLAIN, 1/4 X 1
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 42
                                                                                                                                MPN: 695526
                                                                                                                                NUT, M6, CHEATER PANEL FIXING
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 43
                                                                                                                                MPN: 695526
                                                                                                                                SCREW, FLG, M6X20
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 44
                                                                                                                                MPN: 124383
                                                                                                                                WASHER, PLAIN, 1/4 X 1
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 45
                                                                                                                                MPN: 66-19151
                                                                                                                                PACKING DOOR, 16G
                                                                                                                                from £2.05
                                                                                                                                from £2.05
                                                                                                                                # 46
                                                                                                                                MPN: 66-19150
                                                                                                                                PACKING SPACER, 10G
                                                                                                                                from £2.05
                                                                                                                                from £2.05
                                                                                                                                # 47
                                                                                                                                MPN: 695158
                                                                                                                                SCREW, FLG, M6X12
                                                                                                                                from £0.78
                                                                                                                                from £0.78
                                                                                                                                # 48
                                                                                                                                MPN: 124383
                                                                                                                                WASHER, PLAIN, 1/4 X 1
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 49
                                                                                                                                MPN: 65-61391
                                                                                                                                SUPPORT BRACKET ASSY, SASH LOWER FRONT, LH
                                                                                                                                from £10.26
                                                                                                                                from £10.26
                                                                                                                                # 49
                                                                                                                                MPN: 65-61390
                                                                                                                                SUPPORT BRACKET ASSY, SASH LOWER FRONT, RH
                                                                                                                                from £11.00
                                                                                                                                from £11.00
                                                                                                                                # 50
                                                                                                                                MPN: 695563
                                                                                                                                SCREW, FLG, M6X16, LOWER FIXING REAR
                                                                                                                                # 51
                                                                                                                                MPN: 77-61238
                                                                                                                                GLASS RUN CHANNEL, FORWARD
                                                                                                                                # 52
                                                                                                                                MPN: 77-63015
                                                                                                                                Moulding, insert, cheater panel, LH
                                                                                                                                from £144.19
                                                                                                                                from £144.19
                                                                                                                                # 52
                                                                                                                                MPN: 77-63014
                                                                                                                                Moulding, insert, cheater panel, RH
                                                                                                                                from £144.19
                                                                                                                                from £144.19
                                                                                                                                # 53
                                                                                                                                MPN: 65-61397
                                                                                                                                SUPPORT BRACKET ASSY, SASH LOWER REAR, LH
                                                                                                                                from £10.66
                                                                                                                                from £10.66
                                                                                                                                # 53
                                                                                                                                MPN: 65-61396
                                                                                                                                SUPPORT BRACKET ASSY, SASH LOWER REAR, RH
                                                                                                                                from £0.54
                                                                                                                                from £0.54
                                                                                                                                # 54
                                                                                                                                MPN: 695158
                                                                                                                                SCREW, FLG, M6X12
                                                                                                                                from £0.78
                                                                                                                                from £0.78
                                                                                                                                # -
                                                                                                                                -
                                                                                                                                SASH AND GLASS RUN CHANNEL ASSY, REAR LH
                                                                                                                                # -
                                                                                                                                -
                                                                                                                                SASH AND GLASS RUN CHANNEL ASSY, REAR RH
                                                                                                                                # 57
                                                                                                                                MPN: 77-61239
                                                                                                                                GLASS RUN CHANNEL, REAR
                                                                                                                                # 58
                                                                                                                                MPN: 693962
                                                                                                                                SCREW, M6X25
                                                                                                                                from £1.27
                                                                                                                                from £1.27
                                                                                                                                # 59
                                                                                                                                MPN: 692056
                                                                                                                                WASHER, PLAIN, M6
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 60
                                                                                                                                MPN: 66-19150
                                                                                                                                PACKING SPACER, 10G
                                                                                                                                from £2.05
                                                                                                                                from £2.05
                                                                                                                                # 61
                                                                                                                                MPN: 66-19151
                                                                                                                                PACKING SPACER, 16G
                                                                                                                                from £2.05
                                                                                                                                from £2.05
                                                                                                                                # 62
                                                                                                                                MPN: 695515
                                                                                                                                NUT, FLG, NYLOC, M6
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # -
                                                                                                                                -
                                                                                                                                GREASE, MOBILTEMP 100
                                                                                                                                # 63
                                                                                                                                MPN: 65-66710
                                                                                                                                CAPTIVE FIXING ASSY, DOOR WEDGE
                                                                                                                                from £528.16
                                                                                                                                from £528.16
                                                                                                                                # 64
                                                                                                                                MPN: 65-66590
                                                                                                                                SPACER, DOOR WEDGE
                                                                                                                                from £11.69
                                                                                                                                from £11.69
                                                                                                                                # 65
                                                                                                                                MPN: 65-66614
                                                                                                                                SPACER SHIM, DOOR WEDGE, 1MM
                                                                                                                                from £3.11
                                                                                                                                from £3.11
                                                                                                                                # 66
                                                                                                                                MPN: 65-66615
                                                                                                                                SPACER SHIM, DOOR WEDGE, 2MM
                                                                                                                                from £3.11
                                                                                                                                from £3.11
                                                                                                                                # 67
                                                                                                                                MPN: 695976
                                                                                                                                SCREW, M6X25 PAN HD
                                                                                                                                from £0.60
                                                                                                                                from £0.60
                                                                                                                                # 68
                                                                                                                                MPN: 695975
                                                                                                                                SCREW, M6X25 CSK
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 69
                                                                                                                                MPN: 124383
                                                                                                                                WASHER, PLAIN, 1/4 X 1
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 70
                                                                                                                                MPN: 692146
                                                                                                                                SCREW, M6X20
                                                                                                                                from £1.16
                                                                                                                                from £1.16
                                                                                                                                # 71
                                                                                                                                MPN: 695803
                                                                                                                                WEDGE, DOOR
                                                                                                                                from £2.83
                                                                                                                                from £2.83
                                                                                                                                # 72
                                                                                                                                MPN: 65-66715
                                                                                                                                WEDGE KEEP, MODIFIED
                                                                                                                                Made from 695802
                                                                                                                                # 73
                                                                                                                                MPN: 65-66713
                                                                                                                                TAPPED PLATE, CAPTIVE FIXING DOOR WEDGE
                                                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
