7.4C.1 - Weather Seals

Aston Martin V8 Volante (1998) Weather Seals Parts Diagram

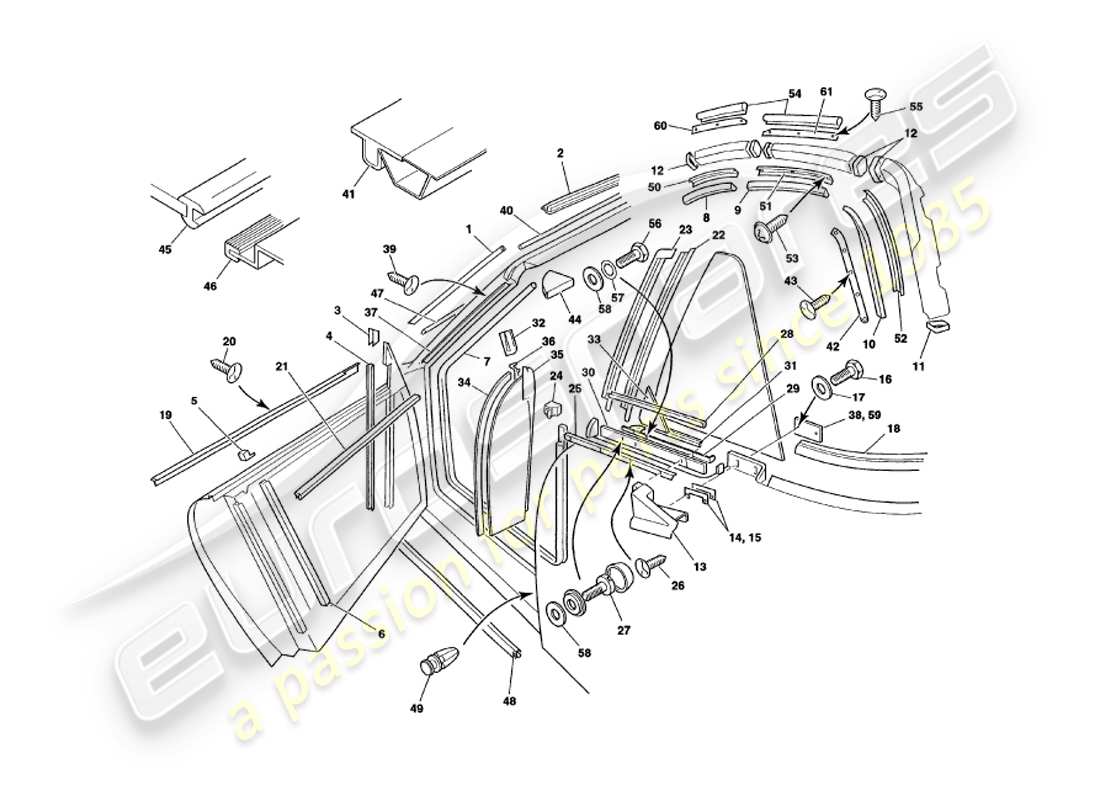

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Key
                                                                                                Price
                                                                                                # 1
                                                                                                MPN: 77-62875
                                                                                                SEAL, A POST, LH
                                                                                                Made from 77-60351. Early cars
                                                                                                Seal 'A' post, LH Genuine Aston Martin - New (to order)
                                                                                                # 1
                                                                                                MPN: 77-62784
                                                                                                SEAL, A POST, RH
                                                                                                Made from 77-60351. Early cars
                                                                                                Seal 'A' post, RH Genuine Aston Martin - New (to order)
                                                                                                # 2
                                                                                                MPN: 77-60065
                                                                                                SEAL, HEADER RAIL
                                                                                                Made from 77-62815
                                                                                                SEAL, HEADER RAIL Genuine Aston Martin - New (to order)
                                                                                                # 3
                                                                                                MPN: 77-63015
                                                                                                MOULDING INSERT, CHEATER PANEL, LH
                                                                                                from £147.80
                                                                                                from £147.80
                                                                                                MOULDING INSERT-LH Genuine Aston Martin - New (to order)
                                                                                                # 3
                                                                                                MPN: 77-63014
                                                                                                MOULDING INSERT, CHEATER PANEL, RH
                                                                                                from £147.80
                                                                                                from £147.80
                                                                                                MOULDING INSERT-RH Genuine Aston Martin - New (to order)
                                                                                                # -
                                                                                                -
                                                                                                SEAL SUPPORT RUBBER, 10X290 LONG
                                                                                                Made from 691886
                                                                                                # 4
                                                                                                MPN: 77-61238
                                                                                                GLASS RUN CHANNEL, FORWARD
                                                                                                GLASS RUN CHNNL FWD Genuine Aston Martin - New (to order)
                                                                                                # 5
                                                                                                MPN: 77-61263
                                                                                                MOULDING, DOOR WAIST END CAPPING, LH
                                                                                                from £134.26
                                                                                                from £134.26
                                                                                                MOULDING Genuine Aston Martin - New (to order)
                                                                                                # 5
                                                                                                MPN: 77-61262
                                                                                                MOULDING, DOOR WAIST END CAPPING, RH
                                                                                                from £136.92
                                                                                                from £136.92
                                                                                                MOULDING Genuine Aston Martin - New (to order)
                                                                                                # 6
                                                                                                MPN: 77-61239
                                                                                                GLASS RUN CHANNEL, REAR
                                                                                                GLASS RUN CHNNL-REAR Genuine Aston Martin - New (to order)
                                                                                                # 7
                                                                                                MPN: 77-62063
                                                                                                WEATHER SEAL, DOOR
                                                                                                Made from 77-62064
                                                                                                WEATHER SEAL, DOOR Genuine Aston Martin - New (to order)
                                                                                                # 8
                                                                                                MPN: 77-65719
                                                                                                SEAL CANTRAIL FRONT, LH
                                                                                                from £131.27
                                                                                                from £131.27
                                                                                                SEAL CANTRAIL FRONT LH Genuine Aston Martin - New (to order)
                                                                                                # 8
                                                                                                MPN: 77-65718
                                                                                                SEAL CANTRAIL FRONT, RH
                                                                                                from £131.27
                                                                                                from £131.27
                                                                                                SEAL CANTRAIL FRONT RH Genuine Aston Martin - New (to order)
                                                                                                # 9
                                                                                                MPN: 77-65717
                                                                                                SEAL CANTRAIL REAR, LH
                                                                                                from £131.27
                                                                                                from £131.27
                                                                                                SEAL CANTRAIL REAR LH Genuine Aston Martin - New (to order)
                                                                                                # 9
                                                                                                MPN: 77-65716
                                                                                                SEAL CANTRAIL REAR, RH
                                                                                                from £149.49
                                                                                                from £149.49
                                                                                                SEAL CANTRAIL REAR RH Genuine Aston Martin - New (to order)
                                                                                                # 10
                                                                                                MPN: 77-65721
                                                                                                SEAL, C POST, LH
                                                                                                from £152.48
                                                                                                from £152.48
                                                                                                SEAL C POST LH Genuine Aston Martin - New (to order)
                                                                                                # 10
                                                                                                MPN: 77-65720
                                                                                                SEAL, C POST, RH
                                                                                                from £152.48
                                                                                                from £152.48
                                                                                                SEAL C POST RH Genuine Aston Martin - New (to order)
                                                                                                # 11
                                                                                                MPN: 77-65740
                                                                                                CAPPING SEAL END
                                                                                                CAPPING SEAL END Genuine Aston Martin - New (to order)
                                                                                                # 12
                                                                                                MPN: 77-66457
                                                                                                CAPPING SEAL END
                                                                                                CAPPING SEAL END Genuine Aston Martin - New (to order)
                                                                                                # 13
                                                                                                MPN: 77-66209
                                                                                                MOULDING, C POST ASSY, LH
                                                                                                from £515.05
                                                                                                from £515.05
                                                                                                MOULDING C POST Genuine Aston Martin - New (to order)
                                                                                                MOULDING C POST Genuine Ferrari Part - New (to order)
                                                                                                # 13
                                                                                                MPN: 77-66208
                                                                                                MOULDING, C POST ASSY, RH
                                                                                                from £515.05
                                                                                                from £515.05
                                                                                                MOULDING C POST Genuine Aston Martin - New (to order)
                                                                                                MOULDING C POST Genuine Ferrari Part - New (to order)
                                                                                                # 14
                                                                                                MPN: 77-61822
                                                                                                PACKER, C POST MOULDING
                                                                                                from £25.85
                                                                                                from £25.85
                                                                                                PACKER `C PST MLDNG Genuine Aston Martin - New (to order)
                                                                                                # 15
                                                                                                MPN: 77-61823
                                                                                                PACKER, C POST MOULDING
                                                                                                from £25.85
                                                                                                from £25.85
                                                                                                PACKER `C PST MLDNG Genuine Aston Martin - New (to order)
                                                                                                # 16
                                                                                                MPN: 696789
                                                                                                SCREW, M5X20
                                                                                                from £2.39
                                                                                                from £2.39
                                                                                                SCREW M5 X 20 HEX HD Genuine Aston Martin - New (to order)
                                                                                                # 17
                                                                                                MPN: 696784
                                                                                                WASHER, PLAIN, M5
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                                                # 18
                                                                                                MPN: 77-61240
                                                                                                SEAL, REAR DECK
                                                                                                Made from 77-64005
                                                                                                SEAL - REAR DECK Genuine Aston Martin - New (to order)
                                                                                                # 19
                                                                                                MPN: 77-61717
                                                                                                OUTER WAIST BELT FINISHER, DOOR GLASS, LH
                                                                                                OUTER W/BELT FINSHR LH Genuine Aston Martin - New (to order)
                                                                                                # 19
                                                                                                MPN: 77-61716
                                                                                                OUTER WAIST BELT FINISHER, DOOR GLASS, RH
                                                                                                OUTER W/BELT FINSHR RH Genuine Aston Martin - New (to order)
                                                                                                # 20
                                                                                                MPN: 696338
                                                                                                SCREW, NO.4 X 1/2
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
                                                                                                # 21
                                                                                                MPN: 77-72298
                                                                                                INNER WAIST BELT FINISHER, DOOR GLASS
                                                                                                INNER W/BLT FNR-DOOR Genuine Aston Martin - New (to order)
                                                                                                # 22
                                                                                                MPN: 77-62007
                                                                                                Seal carrier, door glass/quarter glass, LH
                                                                                                Made from 77-61247
                                                                                                from £58.44
                                                                                                from £58.44
                                                                                                CARR SEAL-DOOR GLASS Genuine Aston Martin - New (to order)
                                                                                                # 22
                                                                                                MPN: 77-62006
                                                                                                Seal carrier, door glass/quarter glass, RH
                                                                                                Made from 77-61246
                                                                                                from £73.10
                                                                                                from £73.10
                                                                                                CARR SEAL-DOOR GLASS Genuine Aston Martin - New (to order)
                                                                                                # 23
                                                                                                MPN: 77-61249
                                                                                                Seal, door glass/quarter glass, LH
                                                                                                Made from 77-66109
                                                                                                from £128.93
                                                                                                from £128.93
                                                                                                SEAL-DR GLS/QTR GLS Genuine Aston Martin - New (to order)
                                                                                                # 23
                                                                                                MPN: 77-61248
                                                                                                Seal, door glass/quarter glass, RH
                                                                                                Made from 77-66108
                                                                                                from £161.31
                                                                                                from £161.31
                                                                                                SEAL-DR GLS/QTR GLS Genuine Aston Martin - New (to order)
                                                                                                # 24
                                                                                                MPN: 77-61259
                                                                                                MOULDING, B POST CAPPING, LH
                                                                                                from £203.75
                                                                                                from £203.75
                                                                                                MLDNG `B' PST CAP LH Genuine Aston Martin - New (to order)
                                                                                                # 24
                                                                                                MPN: 77-61258
                                                                                                MOULDING, B POST CAPPING, RH
                                                                                                from £203.75
                                                                                                from £203.75
                                                                                                MLDNG `B' PST CAP RH Genuine Aston Martin - New (to order)
                                                                                                # 25
                                                                                                MPN: 77-65713
                                                                                                OUTER WAIST BELT FINISHER, QUARTER GLASS, LH
                                                                                                Made from 77-61715
                                                                                                OUTER WAISTBELT Genuine Aston Martin - New (to order)
                                                                                                # 25
                                                                                                MPN: 77-65712
                                                                                                OUTER WAIST BELT FINISHER, QUARTER GLASS, RH
                                                                                                Made from 77-61715
                                                                                                OUTER WAISTBELT Genuine Aston Martin - New (to order)
                                                                                                # 26
                                                                                                MPN: 696338
                                                                                                SCREW, NO.4 X 1/2
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
                                                                                                # 27
                                                                                                MPN: 696923
                                                                                                SCREW, M4X20, BLACK NYLON
                                                                                                from £1.11
                                                                                                from £1.11
                                                                                                SCREW M4X20 BLACK Genuine Aston Martin - New (to order)
                                                                                                # -
                                                                                                -
                                                                                                CAP, SCREW PROTECTION
                                                                                                # -
                                                                                                -
                                                                                                WASHER, SCREW PROTECTION
                                                                                                # 28
                                                                                                MPN: 77-65715
                                                                                                INNER WAIST BELT FINISHER, QUARTER GLASS, LH
                                                                                                Made from 77-62001
                                                                                                INNR W/BELT FINISHER LH Genuine Aston Martin - New (to order)
                                                                                                # 28
                                                                                                MPN: 77-65714
                                                                                                INNER WAIST BELT FINISHER, QUARTER GLASS, RH
                                                                                                Made from 77-62001
                                                                                                INNR W/BELT FINISHER RH Genuine Aston Martin - New (to order)
                                                                                                # 29
                                                                                                MPN: 94-61527
                                                                                                RAIL, SEAL CARRIER, QUARTER GLASS, LH
                                                                                                from £8.92
                                                                                                from £8.92
                                                                                                RAIL SEAL CARRIER LH Genuine Aston Martin - New (to order)
                                                                                                # 29
                                                                                                MPN: 94-61526
                                                                                                RAIL, SEAL CARRIER, QUARTER GLASS, RH
                                                                                                from £8.92
                                                                                                from £8.92
                                                                                                RAIL SEAL CARRIER RH Genuine Aston Martin - New (to order)
                                                                                                # 30
                                                                                                MPN: 77-65739
                                                                                                SEAL CARRIER, LH
                                                                                                SEAL CARRIER, LH Genuine Aston Martin - New (to order)
                                                                                                # 30
                                                                                                MPN: 77-65738
                                                                                                SEAL CARRIER, RH
                                                                                                SEAL CARRIER, RH Genuine Aston Martin - New (to order)
                                                                                                # 31
                                                                                                MPN: 94-62313
                                                                                                SUPPORT, UPPER TRIM, QUARTER LIGHT, LH
                                                                                                from £14.35
                                                                                                from £14.35
                                                                                                SPT UPPER TRIM LH Q/LGT Genuine Aston Martin - New (to order)
                                                                                                # 31
                                                                                                MPN: 94-62312
                                                                                                SUPPORT, UPPER TRIM, QUARTER LIGHT, RH
                                                                                                from £14.35
                                                                                                from £14.35
                                                                                                SPT UPPER TRIM RH Q/LGT Genuine Aston Martin - New (to order)
                                                                                                # 32
                                                                                                MPN: 77-62164
                                                                                                SEAL, INFILL PANEL, B POST
                                                                                                from £186.49
                                                                                                from £186.49
                                                                                                SEAL-PNL INFLL B/PST Genuine Aston Martin - New (to order)
                                                                                                # 33
                                                                                                MPN: 77-66109
                                                                                                BLANKING PLATE, QUARTER LIGHT GLASS, LH
                                                                                                from £3.60
                                                                                                from £3.60
                                                                                                BLANKING PLATE Genuine Aston Martin - New (to order)
                                                                                                # 33
                                                                                                MPN: 77-66108
                                                                                                BLANKING PLATE, QUARTER LIGHT GLASS, RH
                                                                                                from £3.60
                                                                                                from £3.60
                                                                                                BLANKING PLATE Genuine Aston Martin - New (to order)
                                                                                                # 34
                                                                                                MPN: 696093
                                                                                                EDGE FINISHER RUBBER
                                                                                                from £18.84
                                                                                                from £18.84
                                                                                                RUBBER -EDGE FINISHR Genuine Aston Martin - New (to order)
                                                                                                # 35
                                                                                                MPN: 77-65733
                                                                                                PANEL ASSY, B POST FINISHER, LH
                                                                                                PANEL ASSEMBLY B POST FINISHER, LH Genuine Aston Martin - New (to order)
                                                                                                # 35
                                                                                                MPN: 77-65732
                                                                                                PANEL ASSY, B POST FINISHER, RH
                                                                                                PANEL ASSEMBLY B POST FINISHER, RH Genuine Aston Martin - New (to order)
                                                                                                # 36
                                                                                                MPN: 696093
                                                                                                RUBBER, EDGE FINISHER
                                                                                                Made from 693770
                                                                                                from £18.84
                                                                                                from £18.84
                                                                                                RUBBER -EDGE FINISHR Genuine Aston Martin - New (to order)
                                                                                                # 37
                                                                                                MPN: 77-63073
                                                                                                Finisher, screen pillar, LH
                                                                                                Made from 77-62743
                                                                                                Finisher, screen pillar, LH Genuine Aston Martin - New (to order)
                                                                                                # 37
                                                                                                MPN: 77-63072
                                                                                                FINISHER, SCREEN PILLAR, RH
                                                                                                Made from 77-62743
                                                                                                from £90.00
                                                                                                from £90.00
                                                                                                SCRN PILLAR FINISHER Genuine Aston Martin - New (to order)
                                                                                                # 38
                                                                                                MPN: 77-62816
                                                                                                SPACER, CLAMP PLATE
                                                                                                from £12.75
                                                                                                from £12.75
                                                                                                SPACER - CLAMP PLATE Genuine Aston Martin - New (to order)
                                                                                                # 39
                                                                                                MPN: 692359
                                                                                                SCREW, CSK, NO.4 X 5/16
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW NO4 X 5/16 Genuine Aston Martin - New (to order)
                                                                                                # 40
                                                                                                MPN: 77-62346
                                                                                                SEAL, HEADER FINISHER
                                                                                                SEAL, HEADER FINISHER Genuine Aston Martin - New (to order)
                                                                                                # 41
                                                                                                MPN: 77-64084
                                                                                                SEAL, HEADER POKE
                                                                                                Made from 77-62064
                                                                                                from £45.73
                                                                                                from £45.73
                                                                                                SEAL-HEADER POKE Genuine Aston Martin - New (to order)
                                                                                                # 42
                                                                                                MPN: 93-66092
                                                                                                PLATE, C POST SEAL RETAINER
                                                                                                from £6.93
                                                                                                from £6.93
                                                                                                PLATE C POST SEAL Genuine Aston Martin - New (to order)
                                                                                                # 43
                                                                                                MPN: 696260
                                                                                                SCREW, CSK, NO.6 X 5/8
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW NO6 X5/8 S/T Genuine Aston Martin - New (to order)
                                                                                                # 44
                                                                                                MPN: 78-63085
                                                                                                CAPPING, A POST, LH
                                                                                                from £9.03
                                                                                                from £9.03
                                                                                                CAPPING-`A' POST LH Genuine Aston Martin - New (to order)
                                                                                                # 44
                                                                                                MPN: 78-63084
                                                                                                CAPPING, A POST, RH
                                                                                                from £9.03
                                                                                                from £9.03
                                                                                                CAPPING `A' POST RH Genuine Aston Martin - New (to order)
                                                                                                # -
                                                                                                -
                                                                                                DOUBLE SIDED ADHESIVE TAPE
                                                                                                # 45
                                                                                                MPN: 77-65668
                                                                                                SEAL, WINDSCREEN FINISHER
                                                                                                SEAL, WINDSCREEN FINISHER Genuine Aston Martin - New (to order)
                                                                                                # 46
                                                                                                MPN: 77-52043
                                                                                                MASTIC RETENSION DAM
                                                                                                MASTIC RETENTION DAM Genuine Aston Martin - New (to order)
                                                                                                # 47
                                                                                                MPN: 77-52045
                                                                                                Damming strip, lower screen rail
                                                                                                Damming strip, lower screen rail Genuine Aston Martin - New (to order)
                                                                                                # 48
                                                                                                MPN: 77-65663
                                                                                                SEAL, DOOR SILL
                                                                                                from £70.67
                                                                                                from £70.67
                                                                                                SEAL - DOOR SILL Genuine Aston Martin - New (to order)
                                                                                                # 49
                                                                                                MPN: 77-65664
                                                                                                PIN, WEATHERSTRIP FIXING
                                                                                                from £3.77
                                                                                                from £3.77
                                                                                                PIN - WEATHER Genuine Aston Martin - New (to order)
                                                                                                # 50
                                                                                                MPN: 77-65723
                                                                                                SEAL CARRIER, FRONT CANTRAIL, LH
                                                                                                Made from 698231
                                                                                                SEAL CARRIER, FRONT CANTRAIL, LH Genuine Aston Martin - New (to order)
                                                                                                # 50
                                                                                                MPN: 77-65722
                                                                                                SEAL CARRIER, FRONT CANTRAIL, RH
                                                                                                Made from 698231
                                                                                                from £25.13
                                                                                                from £25.13
                                                                                                SEAL CARRIER FRONT Genuine Aston Martin - New (to order)
                                                                                                # 51
                                                                                                MPN: 77-65725
                                                                                                SEAL CARRIER, REAR CANTRAIL, LH
                                                                                                Made from 698231
                                                                                                SEAL CARRIER, REAR CANTRAIL, LH Genuine Aston Martin - New (to order)
                                                                                                # 51
                                                                                                MPN: 77-65724
                                                                                                SEAL CARRIER, REAR CANTRAIL, RH
                                                                                                Made from 698231
                                                                                                SEAL CARRIER, REAR CANTRAIL, RH Genuine Aston Martin - New (to order)
                                                                                                # 52
                                                                                                MPN: 77-65727
                                                                                                SEAL CARRIER, C POST, LH
                                                                                                Made from 698231
                                                                                                seal carrier Genuine Aston Martin - New (to order)
                                                                                                # 52
                                                                                                MPN: 77-65726
                                                                                                SEAL CARRIER, C POST, RH
                                                                                                Made from 698231
                                                                                                seal carrier Genuine Aston Martin - New (to order)
                                                                                                # 53
                                                                                                MPN: 695991
                                                                                                SCREW, NO.8 X 3/4 POSI FLG HD
                                                                                                from £0.52
                                                                                                from £0.52
                                                                                                SCREW NO8 X 3/4 POZI Genuine Aston Martin - New (to order)
                                                                                                # 54
                                                                                                MPN: 030-017-0019
                                                                                                SEALING SECTION
                                                                                                from £18.63
                                                                                                from £18.63
                                                                                                SEALING SECTION-1MTR Genuine Aston Martin - New (to order)
                                                                                                # 55
                                                                                                MPN: 696338
                                                                                                SCREW, NO.4 X 1/2 POSI CSK
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
                                                                                                # 56
                                                                                                MPN: 692228
                                                                                                SCREW, M4X10
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                SCREW M4 X 10 HEX HD Genuine Aston Martin - New (to order)
                                                                                                # 57
                                                                                                MPN: 692064
                                                                                                WASHER, SPRF, M4
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                WASHER M4 S/PROOF Genuine Aston Martin - New (to order)
                                                                                                # 58
                                                                                                MPN: 692054
                                                                                                WASHER, PLAIN, M4
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                                                                                                # 59
                                                                                                MPN: 77-62699
                                                                                                CLAMP PLATE
                                                                                                from £48.41
                                                                                                from £48.41
                                                                                                CLAMP PLATE Genuine Aston Martin - New (to order)
                                                                                                # 60
                                                                                                MPN: 77-66138
                                                                                                PLATE, SEAL RETAINER, FRONT
                                                                                                from £5.32
                                                                                                from £5.32
                                                                                                PLT SEAL RETN FRONT Genuine Aston Martin - New (to order)
                                                                                                # 61
                                                                                                MPN: 77-66139
                                                                                                PLATE, SEAL RETAINER, CENTRE
                                                                                                from £5.29
                                                                                                from £5.29
                                                                                                PLT SEAL RETN CTR Genuine Aston Martin - New (to order)
                                                                                                # -
                                                                                                -
                                                                                                LOCTITE 270 STUDLOCK, RED
