aston martin v8 volante (1998) trunk lid parts diagram

7.6B - TRUNK LID

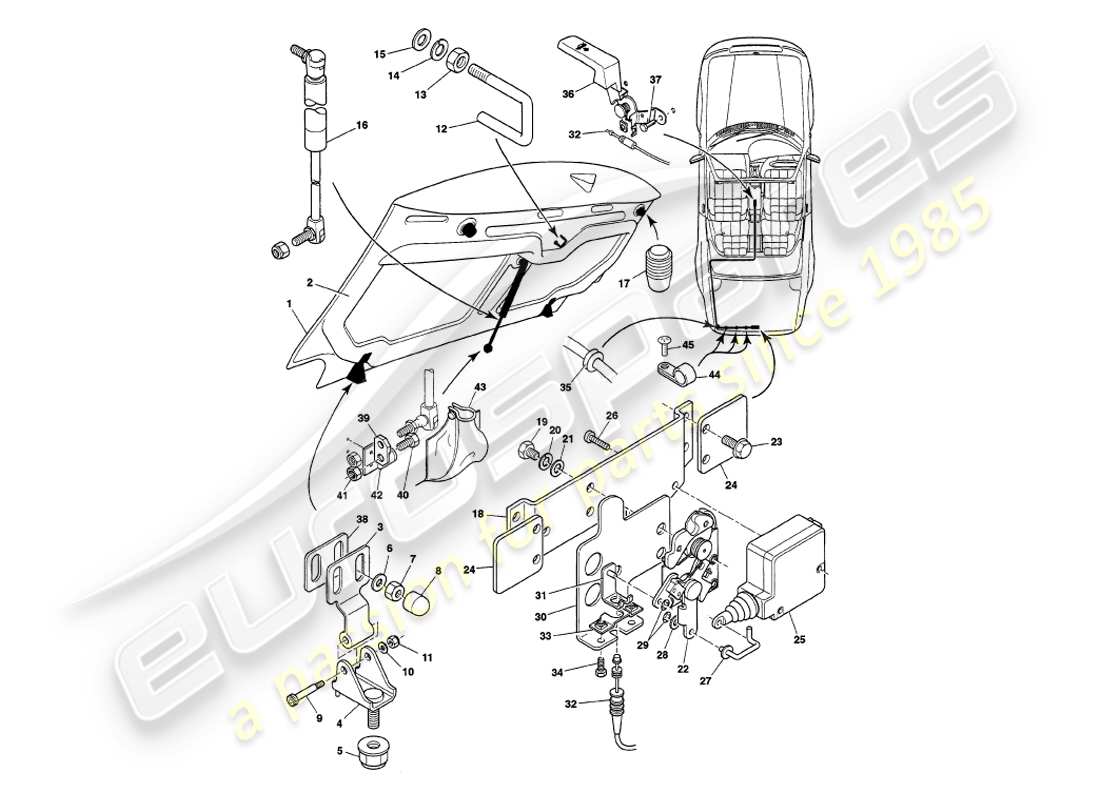

Aston Martin V8 Volante (1998) Trunk Lid Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Key
                                                                                      Price
                                                                                      # -
                                                                                      MPN: 67-65183
                                                                                      BOOT LID ASSEMBLY
                                                                                      from £6,016.67
                                                                                      from £6,016.67
                                                                                      ASSEMBLY BOOT LID IN WHT Genuine Aston Martin - New (to order)
                                                                                      # 1
                                                                                      MPN: 67-65196
                                                                                      BOOT LID OUTER SKIN PANEL
                                                                                      from £3,013.01
                                                                                      from £3,013.01
                                                                                      ASSEMBLY BOOT LID OUTER Genuine Aston Martin - New (to order)
                                                                                      # 2
                                                                                      MPN: 67-65198
                                                                                      PANEL, BOOT LID INNER ASSEMBLY
                                                                                      Made from 67-66654
                                                                                      from £2,047.70
                                                                                      from £2,047.70
                                                                                      PANEL BOOT LID INN ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                      # -
                                                                                      -
                                                                                      LOCTITE 341, 2X300ML
                                                                                      Boot inner to boot outer
                                                                                      # 3
                                                                                      MPN: 67-60676
                                                                                      HINGE PLATE ASSY
                                                                                      from £30.79
                                                                                      from £30.79
                                                                                      ASSEMBLY HINGE PLATE Genuine Aston Martin - New (to order)
                                                                                      # 4
                                                                                      MPN: 67-606664
                                                                                      HINGE BRACKET ASSY
                                                                                      HINGE BRACKET ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                      # 5
                                                                                      MPN: 695515
                                                                                      NUT, FLG, NYLOC, M8, HINGE BRACKET TO DRAIN CHANNEL
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      NUT M8 HEX FLANGE SLK Genuine Aston Martin - New (to order)
                                                                                      # 6
                                                                                      MPN: 692057
                                                                                      WASHER, PLAIN, M8, HINGE PLATE TO BOOT LID INNER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                                                                      # 7
                                                                                      MPN: 692135
                                                                                      NUT, NYLOC, M8, HINGE PLATE TO BOOT LID INNER
                                                                                      from £0.95
                                                                                      from £0.95
                                                                                      NUT M8 HEX SLK Genuine Aston Martin - New (to order)
                                                                                      # 8
                                                                                      MPN: 696538
                                                                                      CAP, PROTECTION, HINGE PLATE TO BOOT LID INNER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      CAP PROTECTION M8 Genuine Aston Martin - New (to order)
                                                                                      # 9
                                                                                      MPN: 695199
                                                                                      SCREW, SHOULDER, M5, BOOT HINGE PIVOT
                                                                                      from £1.46
                                                                                      from £1.46
                                                                                      SCREW M5 -.6 X 30 Genuine Aston Martin - New (to order)
                                                                                      # 10
                                                                                      MPN: 692055
                                                                                      WASHER, PLAIN, M5, BOOT HINGE PIVOT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                                      # 11
                                                                                      MPN: 692800
                                                                                      NUT, NYLOC, M5, BOOT HINGE PIVOT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                                                      # 12
                                                                                      MPN: 67-52444
                                                                                      STRIKER, TRUNK LID LOCK
                                                                                      from £22.00
                                                                                      from £22.00
                                                                                      STRIKER-TRUNK LID LK Genuine Aston Martin - New (to order)
                                                                                      # 13
                                                                                      MPN: 692077
                                                                                      NUT, M8, STRIKER TRUNK LID
                                                                                      Nut, plain, M8 Genuine Aston Martin - New (to order)
                                                                                      # 14
                                                                                      MPN: 692047
                                                                                      WASHER, SPRING, M8, STRIKER TRUNK LID
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER M8 SPRING Genuine Aston Martin - New (to order)
                                                                                      # 15
                                                                                      MPN: 692057
                                                                                      WASHER, PLAIN, M8, STRIKER TRUNK LID
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                                                                      # 16
                                                                                      MPN: 67-66090
                                                                                      GAS STRUT ASSEMBLY, BOOT
                                                                                      from £165.82
                                                                                      from £165.82
                                                                                      ASSEMBLY GAS STRUT-BOOT Genuine Aston Martin - New (to order)
                                                                                      # 17
                                                                                      MPN: 67-72324
                                                                                      OVERSLAM RUBBER
                                                                                      from £3.33
                                                                                      from £3.33
                                                                                      OVERSLAM RUBBER Genuine Aston Martin - New (to order)
                                                                                      # 18
                                                                                      MPN: 80-66488
                                                                                      Bracket, trunk latch actuator mounting
                                                                                      from £6.12
                                                                                      from £6.12
                                                                                      BRACKET TRUNK LATCH Genuine Aston Martin - New (to order)
                                                                                      # 19
                                                                                      MPN: 697543
                                                                                      SCREW, 1/4 UNF X 3/8
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      SCREW 1/4 UNF X 3/8 Genuine Aston Martin - New (to order)
                                                                                      # 20
                                                                                      MPN: 697546
                                                                                      WASHER, LOCK
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER-LOCK Genuine Aston Martin - New (to order)
                                                                                      # 21
                                                                                      MPN: 697485
                                                                                      WASHER, PLAIN, M6
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER M6 PLAIN FM C Genuine Aston Martin - New (to order)
                                                                                      # 22
                                                                                      MPN: 67-82587
                                                                                      TRUNK LATCH
                                                                                      from £188.65
                                                                                      from £188.65
                                                                                      TRUNK LATCH W/MSWTCH Genuine Aston Martin - New (to order)
                                                                                      # 23
                                                                                      MPN: 692672
                                                                                      SCREW, FLG, M6X16
                                                                                      from £6.32
                                                                                      from £6.32
                                                                                      SCREW M6 X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                      # 24
                                                                                      MPN: 83-66365
                                                                                      PLATE, CENTRE BOOT PANEL RETAINER
                                                                                      PLATE, CENTRE BOOT PANEL RETAINER Genuine Aston Martin - New (to order)
                                                                                      # 25
                                                                                      MPN: 37-82584
                                                                                      ACTUATOR, TRUNK LATCH
                                                                                      from £233.04
                                                                                      from £233.04
                                                                                      ACTUATOR-TRUNK LATCH Genuine Aston Martin - New (to order)
                                                                                      # 26
                                                                                      MPN: 697542
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      SCREW Genuine Aston Martin - New (to order)
                                                                                      # 27
                                                                                      MPN: 67-82586
                                                                                      LINK, ACTUATOR TRUNK LOCK
                                                                                      from £10.71
                                                                                      from £10.71
                                                                                      LINK ACTUATOR T/LOCK Genuine Aston Martin - New (to order)
                                                                                      # 28
                                                                                      MPN: 697544
                                                                                      WASHER, PLAIN, 4BA
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      WASHER 4BA PLAIN C Genuine Aston Martin - New (to order)
                                                                                      # 29
                                                                                      MPN: 697290
                                                                                      CLIP, STARLOCK, M3
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      PUSH ON FIXER-M3 Genuine Aston Martin - New (to order)
                                                                                      # 30
                                                                                      MPN: 80-66140
                                                                                      PLATE, BOOT RELEASE CABLE ABUTMENT
                                                                                      from £6.44
                                                                                      from £6.44
                                                                                      PLATE-BOOT RELEASE Genuine Aston Martin - New (to order)
                                                                                      # 31
                                                                                      MPN: 80-66141
                                                                                      PIVOT ASSY, BOOT RELEASE CABLE
                                                                                      from £10.19
                                                                                      from £10.19
                                                                                      ASSY-PIVOT RELEASE Genuine Aston Martin - New (to order)
                                                                                      # 32
                                                                                      MPN: 80-72266
                                                                                      CABLE, BOOT RELEASE
                                                                                      from £18.84
                                                                                      from £18.84
                                                                                      CABLE BOOT RELEASE Genuine Aston Martin - New (to order)
                                                                                      # 33
                                                                                      MPN: 80-56425
                                                                                      PLATE ASSY, CABLE RETAINER
                                                                                      from £8.69
                                                                                      from £8.69
                                                                                      ASSEMBLY PLT CABLE RET'R Genuine Aston Martin - New (to order)
                                                                                      # 34
                                                                                      MPN: 692228
                                                                                      SCREW, M4X10
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      SCREW M4 X 10 HEX HD Genuine Aston Martin - New (to order)
                                                                                      # 35
                                                                                      MPN: 698403
                                                                                      GROMMET
                                                                                      from £0.57
                                                                                      from £0.57
                                                                                      DIAPHRAGM GROMMET Genuine Aston Martin - New (to order)
                                                                                      # 36
                                                                                      MPN: 83-72232
                                                                                      LEVER, REMOTE BOOT RELEASE
                                                                                      from £20.17
                                                                                      from £20.17
                                                                                      LEVER BOOT RELEASE Genuine Aston Martin - New (to order)
                                                                                      # 37
                                                                                      MPN: 692215
                                                                                      SCREW, M5X20, BOOT LEVER SWITCH
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      SCREW M5 X 20 HEX HD Genuine Aston Martin - New (to order)
                                                                                      # 38
                                                                                      MPN: 67-66522
                                                                                      SPACER, BOOT HINGE
                                                                                      from £2.27
                                                                                      from £2.27
                                                                                      SPACER - BOOT HINGE Genuine Aston Martin - New (to order)
                                                                                      # 39
                                                                                      MPN: 80-66645
                                                                                      ADAPTOR PLATE, BOOT GAS STAY
                                                                                      ADAPTOR PLATE Genuine Aston Martin - New (to order)
                                                                                      # 40
                                                                                      MPN: 692089
                                                                                      SCREW, M8X16
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      SCREW M8 X 16 HEX HD Genuine Aston Martin - New (to order)
                                                                                      # 42
                                                                                      MPN: 80-66646
                                                                                      ANGLE REINF, PIVOT BRACKET BOOT GAS STAY
                                                                                      from £2.62
                                                                                      from £2.62
                                                                                      ANGLE REINFORCEMENT - PIVOT Genuine Aston Martin - New (to order)
                                                                                      # 43
                                                                                      MPN: 83-66647
                                                                                      GAITER, ADAPTOR PLATE
                                                                                      Made from 697962
                                                                                      GAITER, ADAPTOR PLATE Genuine Aston Martin - New (to order)
                                                                                      # 44
                                                                                      MPN: 691910
                                                                                      P CLIP, BOOT CABLE
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      P-CLIP PLASTIC 5MM Genuine Aston Martin - New (to order)
                                                                                      # 45
                                                                                      MPN: 627-000-0604
                                                                                      SCREW, NO.6 X 1/2
                                                                                      P clip attach
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      SCREW NO6 X 1/2 Genuine Aston Martin - New (to order)
