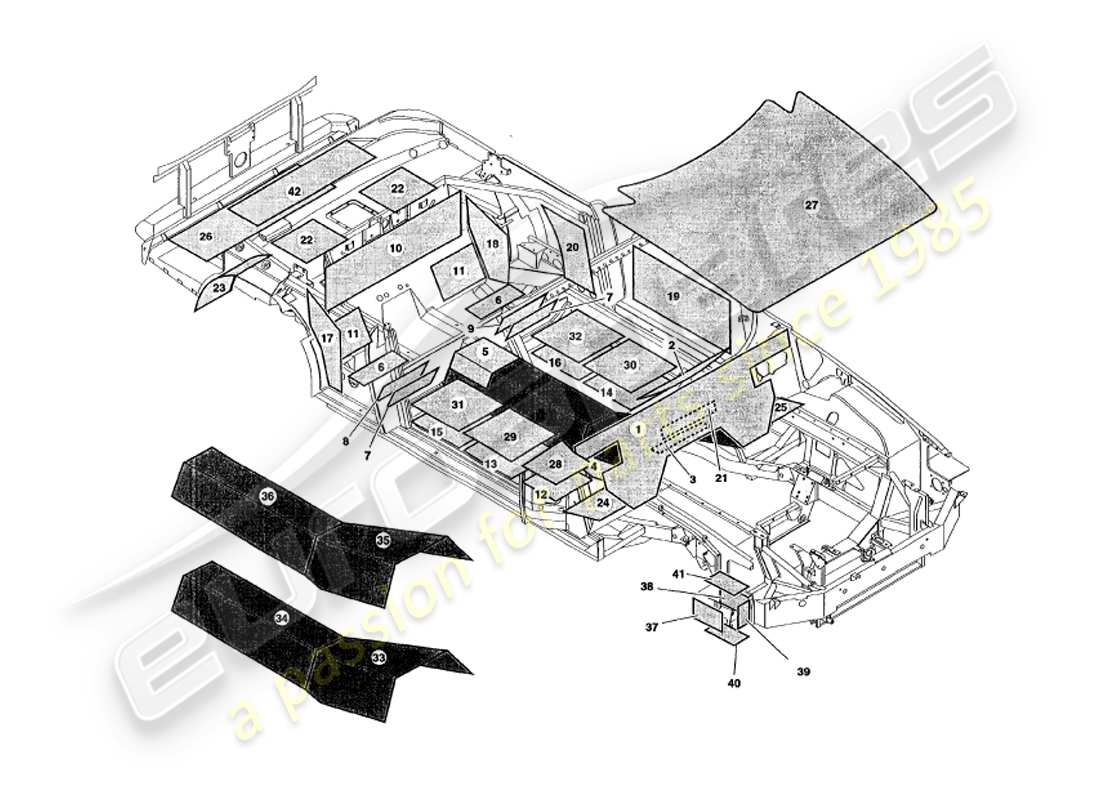

7.8D.1 - SOUND DEADENING
Aston Martin V8 Volante (1998) Sound Deadening Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 85-65472
KIT, BODY SOUND DEADENING
RHD
# -
MPN: 85-65473
KIT, BODY SOUND DEADENING
LHD
# 1
MPN: 85-72788
INSULATION, FRONT BULKHEAD
RHD
from £226.90
from £226.90
# 1
MPN: 85-73778
Insulation, front bulkhead (col)
RHD
# 1
MPN: 85-73750
INSULATION, FRONT BULKHEAD
LHD
from £171.98
from £171.98
# 1
MPN: 85-73779
Insulation, front bulkhead (col)
LHD
from £170.86
from £170.86
# 2
MPN: 85-65549
DAMPING PANEL, BULKHEAD INT, UPPER
# 3
MPN: 85-65556
DAMPING PANEL, TUNNEL, TOP
# 4
MPN: 85-65557
DAMPING PANEL, TUNNEL, LOWER
# 5
MPN: 85-65486
DAMPING PANEL, TUNNEL, REAR
# 6
MPN: 85-65568
DAMPING PANEL, REAR SEAT WELL
# 7
MPN: 85-65560
DAMPING PANEL, HEELBOARD, FRONT
# 8
MPN: 85-65558
DAMPING PANEL, HEELBOARD REAR, RH
# 9
MPN: 85-65559
DAMPING PANEL, HEELBOARD REAR, LH
# 10
MPN: 85-65481
DAMPING PANEL, REAR BULKHEAD UPPER
# 11
MPN: 85-65480
DAMPING PANEL, REAR BULKHEAD LOWER
# 12
MPN: 85-65554
DAMPING PANEL, FRONT FLOOR PAN, RH
# 12
MPN: 85-65555
DAMPING PANEL, FRONT FLOOR PAN, LH
# 13
MPN: 85-66632
DAMPING PANEL, REAR, FRONT FLOOR PAN, RH
# 14
MPN: 85-66633
DAMPING PANEL, REAR, FRONT FLOOR PAN, LH
# 15
MPN: 85-66630
DAMPING PANEL, REAR FLOOR PAN, RH
# 16
MPN: 85-66631
DAMPING PANEL, REAR FLOOR PAN, LH
# 17
MPN: 85-65488
DAMPING PANEL, WHEELARCH SIDE INNER, RH
# 18
MPN: 85-65489
DAMPING PANEL, WHEELARCH SIDE INNER, LH
# 19
MPN: 85-65482
DAMPING PANEL, DOORS
# 20
MPN: 85-65491
DAMPING PANEL, REAR WING, LH
# 20
MPN: 85-65490
DAMPING PANEL, REAR WING, RH
# 21
MPN: 85-65483
DAMPING PANEL, CROSSMEMBER
# 22
MPN: 85-65484
DAMPING PANEL, PLATFORM, HOOD WELL
# 23
MPN: 85-65485
DAMPING PANEL, REAR WHEELARCH, INNER BOOT
from £5.81
from £5.81
# 24
MPN: 85-65564
Insulation, toeboard, RH
RHD
# 24
MPN: 85-65566
Insulation, toeboard, RH
LHD
# 25
MPN: 85-65565
Insulation, toeboard, LH
RHD
# 25
MPN: 85-65567
Insulation, toeboard, LH
LHD
# 26
MPN: 85-65792
DAMPING PANEL, BOOT FLOOR
from £46.27
from £46.27
# 27
MPN: 85-56297
INSULATION, BONNET, SOUND DEADENING
from £479.72
from £479.72
# -
-
KIT, UNDERLAY, SOUND DEADENING
# 28
MPN: 85-72814
UNDERLAY, FRONT, RH
from £37.99
from £37.99
# 28
MPN: 85-72815
UNDERLAY, FRONT, LH
from £35.09
from £35.09
# 29
MPN: 85-66640
UNDERLAY, FRONT, REAR, RH
# 30
MPN: 85-66641
UNDERLAY, FRONT, REAR, LH
# 31
MPN: 85-66642
UNDERLAY, REAR, RH
# 32
MPN: 85-66643
UNDERLAY, REAR, LH
# 33
MPN: 85-65569
INSULATION, TUNNEL FRONT
# 34
MPN: 85-65570
INSULATION, TUNNEL REAR
# 35
MPN: 85-56203
QUILT COVER
from £405.66
from £405.66
# 36
MPN: 85-65477
QUILT, REAR
from £238.38
from £238.38
# -
-
WASHER, M5X38 OD SPEEDFIX
# -
-
ARMAFLEX, GRADE 22, 53X32X19
# -
-
SILICON SEALER, BLACK
# -
-
FOAM FIRE FLEX, 80X80X10
# -
-
INSULATION KIT, FRONT WING
# 37
MPN: 85-66732
PANEL, OUTER INSULATION, RH
# 37
MPN: 85-66733
PANEL, OUTER INSULATION, LH
# 38
MPN: 85-66734
PANEL, INNER INSULATION, RH
# 38
MPN: 85-66735
PANEL, INNER INSULATION, LH
# 39
MPN: 85-66736
Panel, front insulation, RH
# 39
MPN: 85-66737
PANEL, FRONT INSULATION, LH
# 40
MPN: 85-66738
PANEL, BOTTOM INSULATION, RH
# 40
MPN: 85-66739
PANEL, BOTTOM INSULATION, LH
# 41
MPN: 85-66740
PANEL, TOP INSULATION, RH
# 41
MPN: 85-66741
Panel, top insulation, LH
# -
-
ANDIFOAM 2
# 42
MPN: 85-72810
INSULATION, FUEL TANK
from £67.65
from £67.65
