4.2 - Rear Suspension

Aston Martin V8 Volante (2000) Rear Suspension Parts Diagram

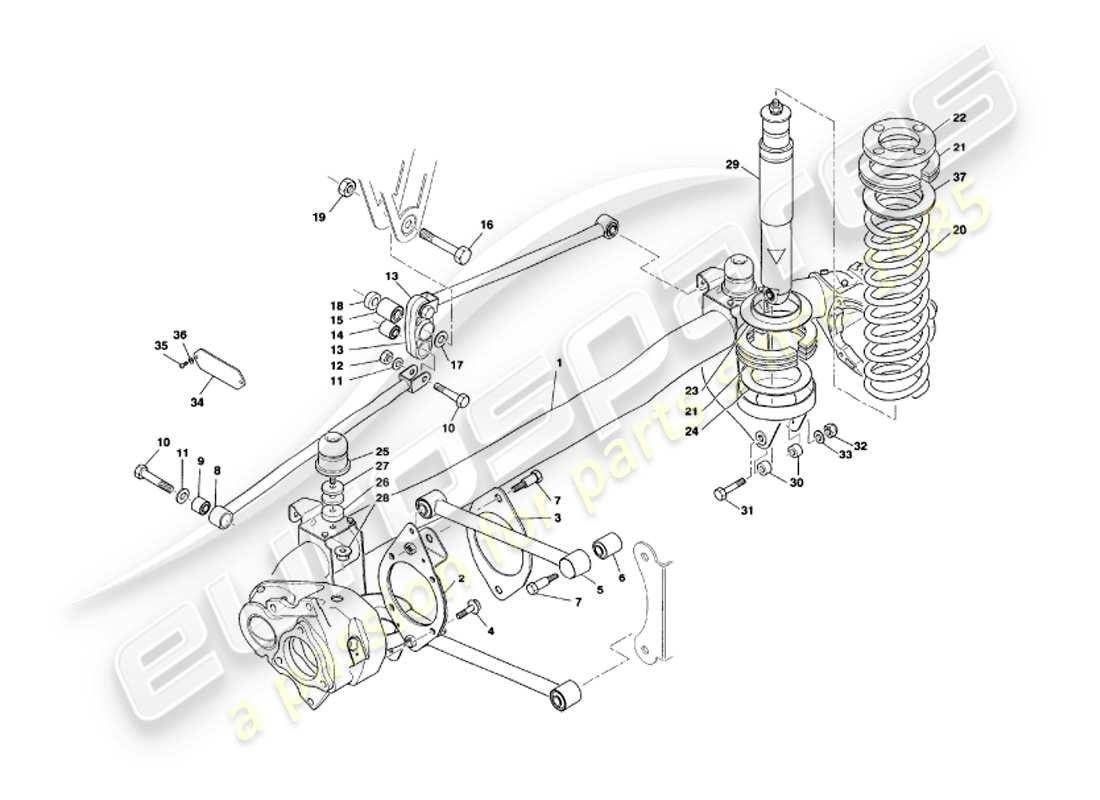

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 26-72958
                                                      AXLE ASSEMBLY, DE DION
                                                      from £11,370.40
                                                      from £11,370.40
                                                      ASSEMBLY DE-DION AXLE Genuine Aston Martin - New (to order)
                                                      # 2
                                                      MPN: 26-70382
                                                      YOKE ASSEMBLY, WELDED
                                                      YOKE ASSEMBLY, WELDED Genuine Aston Martin - New (to order)
                                                      # 3
                                                      MPN: 26-73068
                                                      PLATE, YOKE REINF
                                                      from £9.13
                                                      from £9.13
                                                      PLATE YOKE REINFORCEMENT Genuine Aston Martin - New (to order)
                                                      # 4
                                                      MPN: 697916
                                                      SCREW, DURLOK, M12X25
                                                      from £7.70
                                                      from £7.70
                                                      SCREW M12 X 25DURLOK Genuine Aston Martin - New (to order)
                                                      # -
                                                      -
                                                      LONGITUDINAL LINK ASSEMBLY, COMPLETE
                                                      # 5
                                                      MPN: 26-72350
                                                      LONGITUDINAL LINK ASSEMBLY
                                                      from £319.30
                                                      from £319.30
                                                      ASSEMBLY LINK LONGIT Genuine Aston Martin - New (to order)
                                                      # 6
                                                      MPN: 26-16560
                                                      METALASTIC BUSH
                                                      METALASTIC BUSH Genuine Aston Martin - New (to order)
                                                      # 7
                                                      MPN: 26-73121
                                                      PIVOT BOLT
                                                      Links to chassis and hub
                                                      from £28.65
                                                      from £28.65
                                                      BOLT- PIVOT Genuine Aston Martin - New (to order)
                                                      # -
                                                      -
                                                      LOCTITE 242E, SEALANT
                                                      # 8
                                                      MPN: 26-70416
                                                      TRANSVERSE LINK ASSEMBLY
                                                      from £373.25
                                                      from £373.25
                                                      ASSEMBLY TRANSVERSE LINK Genuine Aston Martin - New (to order)
                                                      # 9
                                                      MPN: 020-026-0141
                                                      BUSH
                                                      from £91.45
                                                      from £91.45
                                                      BUSH(SWING LNK-END) Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 520820
                                                      BOLT, 1/2 UNF X 2 1/2
                                                      Transverse link attach
                                                      from £2.96
                                                      from £2.96
                                                      BOLT 1/2 UNF X 2 1/2 Genuine Aston Martin - New (to order)
                                                      PINION Genuine Ferrari Part - New (to order)
                                                      # 11
                                                      MPN: 119474
                                                      WASHER, PLAIN, 1/2
                                                      Transverse link attach
                                                      from £0.47
                                                      from £0.47
                                                      WASHER 1/2 SMALL HVY Genuine Aston Martin - New (to order)
                                                      Genuine Ferrari Part (no longer available to order)
                                                      # 12
                                                      MPN: 690156
                                                      NUT, NYLOC, 1/2
                                                      Transverse link attach
                                                      from £2.96
                                                      from £2.96
                                                      NUT 1/2 UNF SLK HEX Genuine Aston Martin - New (to order)
                                                      # 13
                                                      MPN: 26-70418
                                                      SWING LINK ASSEMBLY
                                                      SWING LINK ASSEMBLY Genuine Aston Martin - New (to order)
                                                      # 14
                                                      MPN: 020-026-0141
                                                      BUSH, SWING LINK END
                                                      from £91.45
                                                      from £91.45
                                                      BUSH(SWING LNK-END) Genuine Aston Martin - New (to order)
                                                      # 15
                                                      MPN: 26-70396
                                                      METALASTIC BUSH
                                                      Swing link to chassis
                                                      from £78.11
                                                      from £78.11
                                                      BUSH METALSTK 13/985 Genuine Aston Martin - New (to order)
                                                      # 16
                                                      MPN: 696606
                                                      BOLT, 3/4 UNF X 3
                                                      Swing link to chassis
                                                      from £3.53
                                                      from £3.53
                                                      BOLT 3/4UNF X 3 HEX Genuine Aston Martin - New (to order)
                                                      # 17
                                                      MPN: 26-70394
                                                      SPACER, FORWARD
                                                      Swing link to chassis
                                                      from £30.39
                                                      from £30.39
                                                      SPACER - FORWARD Genuine Aston Martin - New (to order)
                                                      # 18
                                                      MPN: 26-70395
                                                      SPACER, REAR
                                                      Swing link to chassis
                                                      from £46.49
                                                      from £46.49
                                                      SPACER - REAR Genuine Aston Martin - New (to order)
                                                      # 19
                                                      MPN: 690989
                                                      NUT, NYLOC, 3/4 UNF
                                                      Swing link to chassis
                                                      from £12.68
                                                      from £12.68
                                                      NUT 3/4 UNF NYLOC Genuine Aston Martin - New (to order)
                                                      # 20
                                                      MPN: 26-56349
                                                      ROAD SPRING, REAR
                                                      from £178.01
                                                      from £178.01
                                                      ROAD SPRING-REAR Genuine Aston Martin - New (to order)
                                                      # 21
                                                      MPN: 26-70404
                                                      PACKER, ROAD SPRING
                                                      from £13.51
                                                      from £13.51
                                                      PACKER-R/SPRING PLTD Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: 26-70406
                                                      ISOLATOR, ROAD SPRING
                                                      from £59.34
                                                      from £59.34
                                                      ISOLATOR-ROADSPRING Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: 26-71677
                                                      SPRING SEAT, REAR
                                                      from £22.05
                                                      from £22.05
                                                      SPRING SEAT - REAR Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: 26-70397
                                                      ISOLATOR
                                                      from £14.09
                                                      from £14.09
                                                      ISOLATOR Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: 26-56351
                                                      SPRING ASSISTOR, REAR
                                                      from £107.21
                                                      from £107.21
                                                      SPRING ASSISTOR REAR Genuine Aston Martin - New (to order)
                                                      # 26
                                                      MPN: 26-73405
                                                      SPACER, BUMPSTOP
                                                      from £14.79
                                                      from £14.79
                                                      SPACER BUMP STOP Genuine Aston Martin - New (to order)
                                                      # 27
                                                      MPN: 26-66703
                                                      SPACER, BUMPSTOP
                                                      from £1.66
                                                      from £1.66
                                                      SPACER BUMP STOP Genuine Aston Martin - New (to order)
                                                      # 28
                                                      MPN: 693239
                                                      NUT, FLG, NYLOC, M8
                                                      from £0.47
                                                      from £0.47
                                                      NUT M8 X1.25 SLK HEX Genuine Aston Martin - New (to order)
                                                      # 29
                                                      MPN: 26-56347
                                                      DAMPER, REAR
                                                      DAMPER, REAR Genuine Aston Martin - New (to order)
                                                      # 30
                                                      MPN: 26-70398
                                                      SPACER, DAMPER LOWER MOUNTING
                                                      SPACER, DAMPER LOWER MOUNTING Genuine Aston Martin - New (to order)
                                                      # 31
                                                      MPN: 696105
                                                      BOLT, M12X100
                                                      Damper to spring hanger
                                                      from £1.28
                                                      from £1.28
                                                      BOLT M12 X 100 Genuine Aston Martin - New (to order)
                                                      # 32
                                                      MPN: 692093
                                                      NUT, NYLOC, M12
                                                      Damper to spring hanger
                                                      from £0.47
                                                      from £0.47
                                                      NUT M12 HEX SLK Genuine Aston Martin - New (to order)
                                                      # 33
                                                      MPN: 692059
                                                      WASHER, PLAIN, M12
                                                      Damper to spring hanger
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
                                                      # 34
                                                      MPN: 26-72555
                                                      PLATE, DAMPER FIXING
                                                      from £4.84
                                                      from £4.84
                                                      PLATE DAMPER FIXING Genuine Aston Martin - New (to order)
                                                      # 35
                                                      MPN: 692210
                                                      SCREW, M4X12 PAN
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M4 X 12 PAN Genuine Aston Martin - New (to order)
                                                      # 36
                                                      MPN: 692054
                                                      WASHER, PLAIN, M4
                                                      from £0.47
                                                      from £0.47
                                                      WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                                                      # 37
                                                      MPN: 26-66706
                                                      SPACER ASSY, ROAD SPRING
                                                      from £39.13
                                                      from £39.13
                                                      ASSEMBLY SPACER Genuine Aston Martin - New (to order)
