4.4 - POWER STEERING

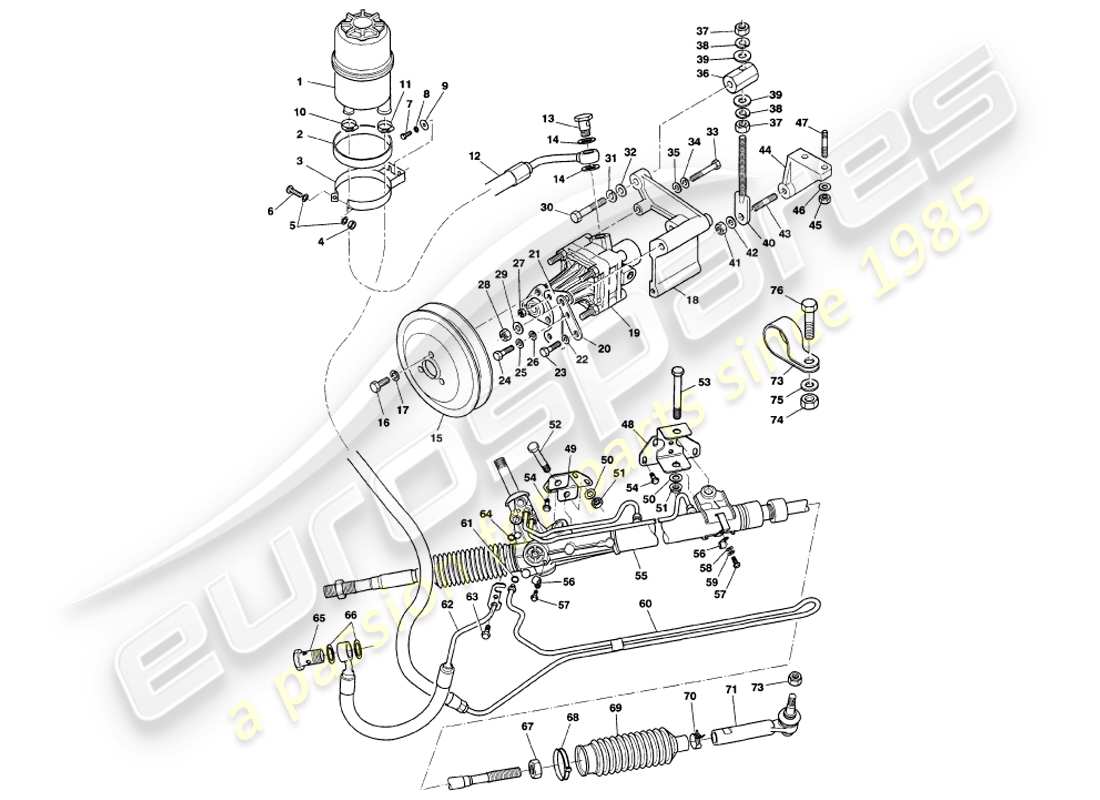

Aston Martin V8 Volante (2000) Power Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 24-50549
Reservoir, power steering
from £50.08
from £50.08
# 2
MPN: 693068
REST RUBBER
from £32.62
from £32.62
# 3
MPN: 24-72514
MOUNTING BRACKET ASSEMBLY, PAS RESERVOIR
from £31.26
from £31.26
# 4
MPN: 692074
NUT, HEX, M4
CLAMP RING
from £0.47
from £0.47
# 5
MPN: 692054
WASHER, PLAIN, M4
CLAMP RING
from £0.47
from £0.47
# 6
MPN: 694311
SCREW, POZI PAN HD, M4X30
CLAMP RING
from £0.47
from £0.47
# 7
MPN: 695560
SCREW, M5X16
Mounting bracket attach
from £0.47
from £0.47
# 8
MPN: 692045
WASHER, SPRING, M5
Mounting bracket attach
from £0.47
from £0.47
# 9
MPN: 695825
WASHER, M5X20X1
Mounting bracket attach
from £1.21
from £1.21
# 10
MPN: 694297
HOSE CLIP
from £0.82
from £0.82
# 11
MPN: 693142
HOSE CLIP
from £0.68
from £0.68
# 12
MPN: 24-56167
HOSE, RESERVOIR TO PUMP
from £139.02
from £139.02
# 13
MPN: 696080
BANJO BOLT
# 14
MPN: 696083
SEAL, BONDED
from £3.64
from £3.64
# 15
MPN: 24-26077
PULLEY, POWER STEERING PUMP
from £157.61
from £157.61
# 16
MPN: 692089
SCREW, M8X16
Pulley to pump
from £0.47
from £0.47
# 17
MPN: 692047
WASHER, SPRING, M8
Pulley to pump
from £0.47
from £0.47
# 18
MPN: 24-26089
BRACKET, POWER STEERING PUMP
from £129.69
from £129.69
# 19
MPN: 24-50686
STEERING PUMP - ZF
from £543.88
from £543.88
# 20
MPN: 24-26097
PLATE, PIVOT
from £5.08
from £5.08
# 21
MPN: 24-26098
PLATE, RETAINING
from £28.76
from £28.76
# 22
MPN: 692047
WASHER, SPRING, M8
Plate to front cover
from £0.47
from £0.47
# 23
MPN: 692087
SCREW, M8X20
Plate to front cover
# 24
MPN: 692087
SCREW, M8X20
Plate to bracket
# 25
MPN: 692047
WASHER, SPRING, M8
Plate to bracket
from £0.47
from £0.47
# 26
MPN: 692057
WASHER, PLAIN, M8
Plate to bracket
from £0.47
from £0.47
# 27
MPN: 692135
NUT, NYLOC, M8
Plate to pump
from £0.94
from £0.94
# 28
MPN: 692034
NUT, NYLOC, M10
Pump pivot stud
from £0.47
from £0.47
# 29
MPN: 692058
WASHER, PLAIN, M10
Pump pivot stud
from £0.47
from £0.47
# 30
MPN: 692095
BOLT, M10X40
Trunnion to bracket
from £1.81
from £1.81
# 31
MPN: 692048
WASHER, SPRING, M10
Trunnion to bracket
from £0.47
from £0.47
# 32
MPN: 692058
WASHER, PLAIN, M10
Trunnion to bracket
from £0.47
from £0.47
# 33
MPN: 694257
BOLT, M8X50
Pump to bracket
from £0.73
from £0.73
# 34
MPN: 692047
WASHER, SPRING, M8
Pump to bracket
from £0.47
from £0.47
# 35
MPN: 692057
WASHER, PLAIN, M8
Pump to bracket
from £0.47
from £0.47
# 36
MPN: 09-25873
TRUNNION ADJUSTER
from £32.53
from £32.53
# 37
MPN: 692078
NUT, M10
Eyebolt to trunnion
from £0.71
from £0.71
# 38
MPN: 692048
WASHER, SPRING, M10
Eyebolt to trunnion
from £0.47
from £0.47
# 39
MPN: 692058
WASHER, PLAIN, M10
Eyebolt to trunnion
from £0.47
from £0.47
# 40
MPN: 09-25874
EYEBOLT ADJUSTER
from £88.41
from £88.41
# 41
MPN: 692034
NUT, NYLOC, M10
Eyebolt to bracket
from £0.47
from £0.47
# 42
MPN: 692058
WASHER, PLAIN, M10
Eyebolt to bracket
from £0.47
from £0.47
# 43
MPN: 694227
STUD, M10/M10
ADJUSTER BRACKET
from £11.03
from £11.03
# 44
MPN: 24-26090
ADJUSTER BRACKET
from £80.43
from £80.43
# 45
MPN: 123115
NUT, SLK, 5/16 UNF
Adjuster bracket to cylinder head
from £3.58
from £3.58
# 46
MPN: 119471
WASHER, PLAIN, 5/16
Adjuster bracket to cylinder head
# 47
MPN: 694229
STUD, 5/16 UNC/UNF X 1.55
Adjuster bracket to cylinder head
from £4.84
from £4.84
# 48
MPN: 24-74477
RACK MOUNTING BRACKET ASSEMBLY, LONG, LH
RHD
from £94.33
from £94.33
# 48
MPN: 24-74476
RACK MOUNTING BRACKET ASSEMBLY, LONG, RH
LHD
from £104.55
from £104.55
# 49
MPN: 24-74482
RACK MOUNTING BRACKET ASSEMBLY, SHORT, RH
RHD
from £94.33
from £94.33
# 49
MPN: 24-74483
RACK MOUNTING BRACKET ASSEMBLY, SHORT, LH
LHD
from £104.55
from £104.55
# 50
MPN: 119473
WASHER, PLAIN, 7/16
Rack to rack mounting bracket
from £0.47
from £0.47
# 51
MPN: 697221
NUT, NYLOC, 7/16
Rack to rack mounting bracket
from £0.74
from £0.74
# 52
MPN: 520724
BOLT, 7/16 UNF X3
Rack to rack mounting bracket
from £1.21
from £1.21
# 53
MPN: 520732
BOLT, 7/16 UNF X4
Rack to rack mounting bracket
from £3.86
from £3.86
# 54
MPN: 692284
SCREW, DURLOK, M8X25
Rack mounting brackets to front crossmember
from £2.18
from £2.18
# 55
MPN: 24-73320
Steering Rack
RHD
# 55
MPN: 24-73321
Steering Rack
LHD
# 56
MPN: 692209
P CLIP, 3/8 NYLON
PAS pipe to rack
from £0.49
from £0.49
# 57
MPN: 692210
SCREW, M4X12
PAS pipe to rack
from £0.47
from £0.47
# 58
MPN: 692054
WASHER, PLAIN, M4
PAS pipe to rack
from £0.47
from £0.47
# 59
MPN: 692064
WASHER, SPRF, M4
PAS pipe to rack
from £0.47
from £0.47
# 60
MPN: 24-70322
HOSE, RACK TO RESERVOIR
RHD
from £592.48
from £592.48
# 60
MPN: 24-73791
HOSE, RACK TO RESERVOIR
LHD
from £222.14
from £222.14
# 61
MPN: 24-73200
SEAL, STEERING RACK
from £2.15
from £2.15
# 62
MPN: 24-56168
HOSE, PUMP TO RACK
RHD
from £287.75
from £287.75
# 62
MPN: 24-56169
HOSE, PUMP TO RACK
LHD
from £218.22
from £218.22
# 63
MPN: 694374
SCREW, FLG, M8X12
Pipe mounting to rack
from £0.79
from £0.79
# 64
MPN: 24-70448
PIPE SEAL, STEERING RACK
from £5.10
from £5.10
# 65
MPN: 696079
BANJO BOLT
# 66
MPN: 696082
SEAL, BONDED
from £3.25
from £3.25
# 67
MPN: 694285
LOCKNUT, M14X2
from £2.77
from £2.77
# 68
MPN: 698167
TIE WRAP
from £1.27
from £1.27
# 69
MPN: 698166
BELLOWS
from £29.61
from £29.61
# 70
MPN: 698168
SPRING CLIP
from £0.66
from £0.66
# 71
MPN: 24-70440
TIE ROD ASSEMBLY
from £86.16
from £86.16
# 72
MPN: 692142
NUT, NYLOC, M12X1.25
from £4.16
from £4.16
# 73
MPN: 694923
P CLIP
from £5.84
from £5.84
# 74
MPN: 692034
NUT, NYLOC, M10
RHD P clip to bracket
from £0.47
from £0.47
# 75
MPN: 692058
WASHER, PLAIN, M10
RHD P clip to bracket
from £0.47
from £0.47
# 76
MPN: 692138
SCREW, M10X20
RHD P clip to bracket
from £1.32
from £1.32
# -
-
Bracket, power steering hose mounting
LHD
-part-diagram-5.1.webp "ASTON MARTIN V8 VOLANTE (2000) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VOLANTE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VOLANTE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VOLANTE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 VOLANTE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 VOLANTE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 VOLANTE (2000) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 VOLANTE (2000) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.webp "ASTON MARTIN V8 VOLANTE (2000) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 VOLANTE (2000) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 VOLANTE (2000) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VOLANTE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VOLANTE (2000) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VOLANTE (2000) UNDERBONNET COMPONENTS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VOLANTE (2000) UNDERBONNET COMPONENTS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 VOLANTE (2000) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.1.webp "ASTON MARTIN V8 VOLANTE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6a.2.webp "ASTON MARTIN V8 VOLANTE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 VOLANTE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 VOLANTE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 VOLANTE (2000) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 VOLANTE (2000) RELAYS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 VOLANTE (2000) RELAYS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 VOLANTE (2000) RELAYS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 VOLANTE (2000) RELAYS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 VOLANTE (2000) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VOLANTE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VOLANTE (2000) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VOLANTE (2000) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 VOLANTE (2000) REAR STRUCTURE, BUMPER & BOOT PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 VOLANTE (2000) FLOOR PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 VOLANTE (2000) SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VOLANTE (2000) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VOLANTE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VOLANTE (2000) DOOR LATCH MECHANISM PARTS DIAGRAM")
-part-diagram-7.4c.1.webp "ASTON MARTIN V8 VOLANTE (2000) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.4c.2.webp "ASTON MARTIN V8 VOLANTE (2000) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 VOLANTE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 VOLANTE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 VOLANTE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 VOLANTE (2000) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.webp "ASTON MARTIN V8 VOLANTE (2000) TRUNK LID PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 VOLANTE (2000) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VOLANTE (2000) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 VOLANTE (2000) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VOLANTE (2000) FRONT SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 VOLANTE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 VOLANTE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 VOLANTE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 VOLANTE (2000) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 VOLANTE (2000) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 VOLANTE (2000) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 VOLANTE (2000) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 VOLANTE (2000) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 VOLANTE (2000) CARPETS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VOLANTE (2000) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VOLANTE (2000) HOOD HYDRAULICS PARTS DIAGRAM")
-part-diagram-7.9c.1.webp "ASTON MARTIN V8 VOLANTE (2000) HOOD FRAME WOODS PARTS DIAGRAM")
-part-diagram-7.9c.2.webp "ASTON MARTIN V8 VOLANTE (2000) HOOD FRAME WOODS PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VOLANTE (2000) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VOLANTE (2000) DROPPING REAR QUARTERLIGHT PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 VOLANTE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 VOLANTE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 VOLANTE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 VOLANTE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VOLANTE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VOLANTE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VOLANTE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VOLANTE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 VOLANTE (2000) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VOLANTE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VOLANTE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VOLANTE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 VOLANTE (2000) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.webp "ASTON MARTIN V8 VOLANTE (2000) WATER COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 VOLANTE (2000) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VOLANTE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 VOLANTE (2000) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 VOLANTE (2000) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VOLANTE (2000) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 VOLANTE (2000) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VOLANTE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VOLANTE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 VOLANTE (2000) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VOLANTE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 VOLANTE (2000) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 VOLANTE (2000) TORQUE CONVERTER PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 VOLANTE (2000) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VOLANTE (2000) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 VOLANTE (2000) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 VOLANTE (2000) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 VOLANTE (2000) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 VOLANTE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VOLANTE (2000) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VOLANTE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VOLANTE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 VOLANTE (2000) STEERING COLUMN PARTS DIAGRAM")
