aston martin v8 volante (2000) rear structure parts diagram

7.2B - rear structure

Aston Martin V8 Volante (2000) Rear Structure Parts Diagram

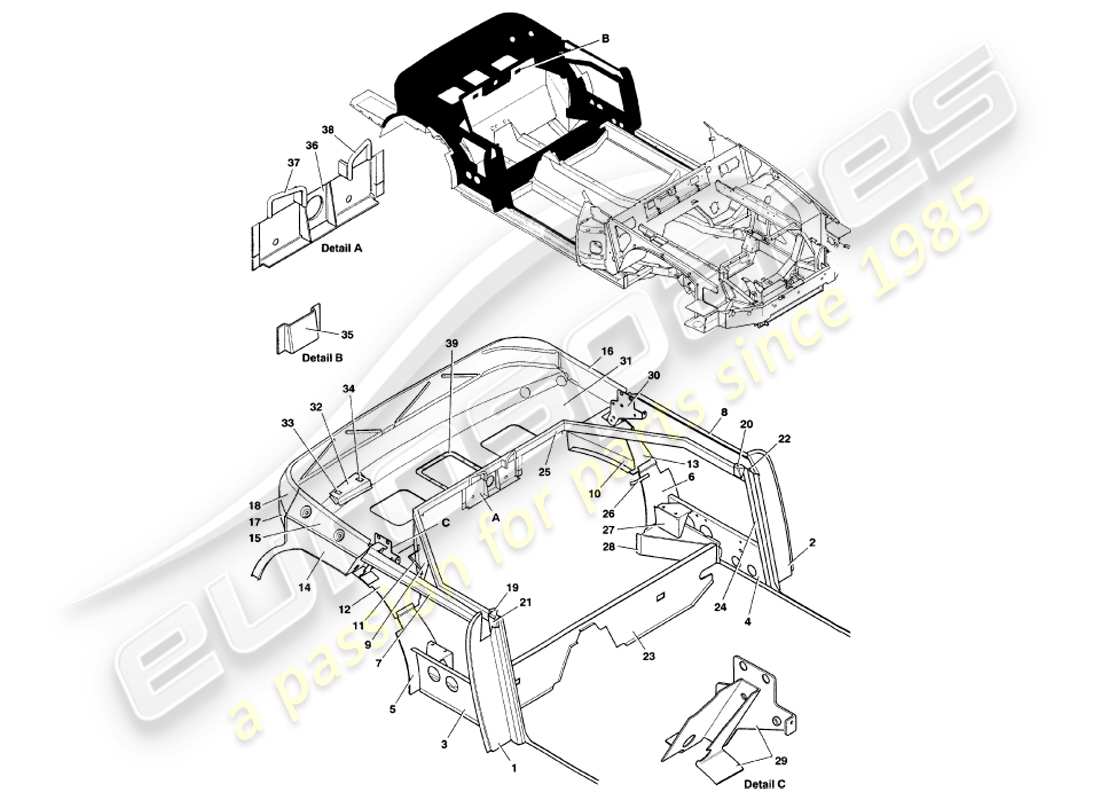

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # 1
                                                                              MPN: 61-66038
                                                                              PANEL ASSY, B POST LOCKFACE, RH
                                                                              PANEL ASSEMBLY B POST LOCKFACE, RH Genuine Aston Martin - New (to order)
                                                                              # 2
                                                                              MPN: 61-66039
                                                                              PANEL ASSY, B POST LOCKFACE, LH
                                                                              PANEL ASSEMBLY B POST LOCKFACE, LH Genuine Aston Martin - New (to order)
                                                                              # 3
                                                                              MPN: 61-65130
                                                                              BRACKET ASSY, REEL MOUNTING FRONT, RH
                                                                              from £20.00
                                                                              from £20.00
                                                                              ASSEMBLY REEL MOUNTING BRACKET RH Genuine Aston Martin - New (to order)
                                                                              # 4
                                                                              MPN: 61-65131
                                                                              BRACKET ASSY, REEL MOUNTING FRONT, LH
                                                                              from £20.00
                                                                              from £20.00
                                                                              ASSEMBLY REEL MOUNTING BKRT LH Genuine Aston Martin - New (to order)
                                                                              # 5
                                                                              MPN: 18-65096
                                                                              Reinforcement, splash panel lower, RH
                                                                              from £17.67
                                                                              from £17.67
                                                                              PANEL SPLASH REINFORCEMENT RH Genuine Aston Martin - New (to order)
                                                                              # 6
                                                                              MPN: 18-65097
                                                                              Reinforcement, splash panel lower, LH
                                                                              from £17.67
                                                                              from £17.67
                                                                              PANEL SPLASH REINFORCEMENT LH Genuine Aston Martin - New (to order)
                                                                              # 7
                                                                              MPN: 17-65154
                                                                              Reinforcement panel, quarter light aperture, RH
                                                                              from £25.99
                                                                              from £25.99
                                                                              PANEL REINFORCEMENT QUARTER Genuine Aston Martin - New (to order)
                                                                              # 8
                                                                              MPN: 17-65155
                                                                              Reinforcement panel, quarter light aperture, LH
                                                                              from £25.99
                                                                              from £25.99
                                                                              PANEL REINFORCEMENT QUARTER Genuine Aston Martin - New (to order)
                                                                              # 9
                                                                              MPN: 22-60270
                                                                              PANEL, QUARTER INFILL, RH
                                                                              PANEL, QUARTER INFILL, RH Genuine Aston Martin - New (to order)
                                                                              # 10
                                                                              MPN: 22-60271
                                                                              PANEL, QUARTER INFILL, LH
                                                                              PANEL, QUARTER INFILL, LH Genuine Aston Martin - New (to order)
                                                                              # 11
                                                                              MPN: 17-66103
                                                                              Bracket, back light stay
                                                                              Bracket, back light stay Genuine Aston Martin - New (to order)
                                                                              # 12
                                                                              MPN: 22-60276
                                                                              PANEL, SPLASH REINFORCEMENT, RH
                                                                              from £83.90
                                                                              from £83.90
                                                                              PANEL SPL REINFORCEMENT RH Genuine Aston Martin - New (to order)
                                                                              # 13
                                                                              MPN: 22-60277
                                                                              PANEL, SPLASH REINFORCEMENT, LH
                                                                              from £83.90
                                                                              from £83.90
                                                                              PANEL SPL REINFORCEMENT LH Genuine Aston Martin - New (to order)
                                                                              # 14
                                                                              MPN: 61-65138
                                                                              Panel assy, rear inner wing, RH
                                                                              from £23.96
                                                                              from £23.96
                                                                              PANEL REAR INNR WING RH Genuine Aston Martin - New (to order)
                                                                              # 14
                                                                              MPN: 61-65139
                                                                              Panel assy, rear inner wing, LH
                                                                              from £23.96
                                                                              from £23.96
                                                                              PANEL REAR INNR WING LH Genuine Aston Martin - New (to order)
                                                                              # 15
                                                                              MPN: 22-60348
                                                                              PANEL, CLOSING, HOOD TRAY SIDE, RH
                                                                              from £13.99
                                                                              from £13.99
                                                                              PANEL CLS H/TRY SDE RH Genuine Aston Martin - New (to order)
                                                                              # 16
                                                                              MPN: 22-60349
                                                                              PANEL, CLOSING, HOOD TRAY SIDE, LH
                                                                              from £13.99
                                                                              from £13.99
                                                                              PANEL CLS H/TRY SDE LH Genuine Aston Martin - New (to order)
                                                                              # 17
                                                                              MPN: 61-65142
                                                                              PANEL, CLOSING, HOOD TRAY REAR LOWER
                                                                              from £20.00
                                                                              from £20.00
                                                                              PANEL CLSNG HOOD TRAY Genuine Aston Martin - New (to order)
                                                                              # 18
                                                                              MPN: 65-65141
                                                                              PANEL, CLOSING, HOOD TRAY REAR
                                                                              PANEL, CLOSING, HOOD TRAY REAR Genuine Aston Martin - New (to order)
                                                                              # 19
                                                                              MPN: 61-65156
                                                                              MOUNTING BRACKET ASSY, SEAT BELT UPPER, RH
                                                                              from £5.98
                                                                              from £5.98
                                                                              ASSEMBLY MOUNTING BRACKET RH Genuine Aston Martin - New (to order)
                                                                              # 20
                                                                              MPN: 61-65157
                                                                              MOUNTING BRACKET ASSY, SEAT BELT UPPER, LH
                                                                              from £5.98
                                                                              from £5.98
                                                                              ASSEMBLY MOUNTING BRACKET LH Genuine Aston Martin - New (to order)
                                                                              # 21
                                                                              MPN: 61-61678
                                                                              B POST TUBE ASSY, RH
                                                                              from £239.72
                                                                              from £239.72
                                                                              ASSEMBLY B POST TUBE RH Genuine Aston Martin - New (to order)
                                                                              # 22
                                                                              MPN: 61-61679
                                                                              B POST TUBE ASSY, LH
                                                                              from £219.55
                                                                              from £219.55
                                                                              ASSEMBLY B POST TUBE LH Genuine Aston Martin - New (to order)
                                                                              # 23
                                                                              MPN: 61-65134
                                                                              PANEL ASSY, HEELBOARD
                                                                              from £489.45
                                                                              from £489.45
                                                                              ASSEMBLY PANEL HEELBOARD Genuine Aston Martin - New (to order)
                                                                              # 24
                                                                              MPN: 21-60369
                                                                              PANEL, FURFLEX SUPPORT, B POST, RH
                                                                              from £23.96
                                                                              from £23.96
                                                                              PNL-FURFLX SPT-B PST Genuine Aston Martin - New (to order)
                                                                              # 24
                                                                              MPN: 21-60368
                                                                              PANEL, FURFLEX SUPPORT, B POST, LH
                                                                              from £23.96
                                                                              from £23.96
                                                                              PNL-FURFLX SPT B PST Genuine Aston Martin - New (to order)
                                                                              # 25
                                                                              MPN: 61-65153
                                                                              HOOP RAIL ASSY
                                                                              Hoop rail assembly Genuine Aston Martin - New (to order)
                                                                              # 26
                                                                              MPN: 22-61672
                                                                              RETAINING TAG
                                                                              RETAINING TAG Genuine Aston Martin - New (to order)
                                                                              # 27
                                                                              MPN: 17-65439
                                                                              PLATFORM ASSY, HOOD RAM SUPPORT, LH
                                                                              from £38.97
                                                                              from £38.97
                                                                              HOODRAM SUPPORT Genuine Aston Martin - New (to order)
                                                                              # 27
                                                                              MPN: 17-65438
                                                                              PLATFORM ASSY, HOOD RAM SUPPORT, RH
                                                                              from £38.97
                                                                              from £38.97
                                                                              HOODRAM SUPPORT Genuine Aston Martin - New (to order)
                                                                              # 28
                                                                              MPN: 61-65145
                                                                              REINFORCEMENT, B POST LOWER, LH
                                                                              from £11.99
                                                                              from £11.99
                                                                              REINFORCEMENT B POST LOWER LH Genuine Aston Martin - New (to order)
                                                                              # 28
                                                                              MPN: 61-65144
                                                                              REINFORCEMENT, B POST LOWER, RH
                                                                              from £11.99
                                                                              from £11.99
                                                                              REINFORCEMENT B POST LOWER RH Genuine Aston Martin - New (to order)
                                                                              # 29
                                                                              MPN: 22-60320
                                                                              MOUNTING BRACKET ASSY, HOODSTICK, RH
                                                                              from £31.98
                                                                              from £31.98
                                                                              ASSEMBLY M/BRKT H/STCK RH Genuine Aston Martin - New (to order)
                                                                              # 30
                                                                              MPN: 22-60321
                                                                              MOUNTING BRACKET ASSY, HOODSTICK, LH
                                                                              from £31.98
                                                                              from £31.98
                                                                              ASSEMBLY M/BRKT H/STCK LH Genuine Aston Martin - New (to order)
                                                                              # 31
                                                                              MPN: 18-65098
                                                                              TRAY ASSY, HOOD STOWAGE
                                                                              from £320.91
                                                                              from £320.91
                                                                              ASSEMBLY TRAY HOOD STOW Genuine Aston Martin - New (to order)
                                                                              # 32
                                                                              MPN: 18-66104
                                                                              RECESS PANEL
                                                                              RECESS PANEL Genuine Aston Martin - New (to order)
                                                                              # 33
                                                                              MPN: 18-66160
                                                                              GUIDE BRACKET ASSY, CPS, RH
                                                                              GUIDE BRACKET ASSEMBLY CPS, RH Genuine Aston Martin - New (to order)
                                                                              # 34
                                                                              MPN: 18-66161
                                                                              GUIDE BRACKET ASSY, CPS, LH
                                                                              GUIDE BRACKET ASSEMBLY CPS, LH Genuine Aston Martin - New (to order)
                                                                              # 35
                                                                              MPN: 21-66429
                                                                              BRACKET, SEAT SQUAB RETAINING
                                                                              from £76.34
                                                                              from £76.34
                                                                              SEAT SQUAB Genuine Aston Martin - New (to order)
                                                                              # 36
                                                                              MPN: 22-61700
                                                                              CARRIER ASSY, INERTIA REEL
                                                                              RH CARRIER INERTIA Genuine Aston Martin - New (to order)
                                                                              # 37
                                                                              MPN: 61-61698
                                                                              GUIDE LOOP ASSY, SEAT BELT, RH
                                                                              GUIDE LOOP ASSEMBLY SEAT BELT, RH Genuine Aston Martin - New (to order)
                                                                              # 38
                                                                              MPN: 61-61699
                                                                              Guide loop assy, seat belt, LH
                                                                              GUIDE LOOP ASSEMBLY SEAT BELT, LH Genuine Aston Martin - New (to order)
                                                                              # -
                                                                              -
                                                                              WELD ASSY, CHILD RESTRAINT
                                                                              Australia
                                                                              # -
                                                                              -
                                                                              BRACKET ASSY, CHILD RESTRAINT ATTACHMENT
                                                                              Australia
