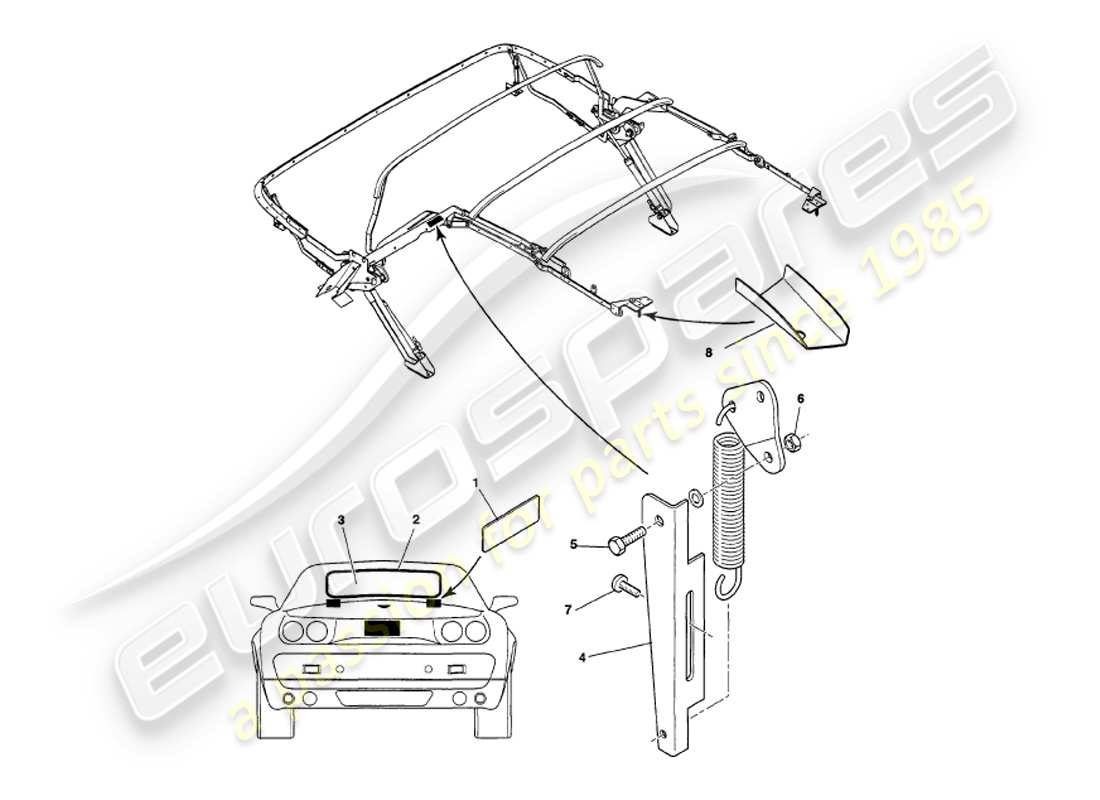

7.9D - HOOD ASSEMBLY

Aston Martin V8 Volante (2000) Hood Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 93-64072
                    PLATE, BACK LIGHT WEB SUPPORT
                    from £2.81
                    from £2.81
                    PLATE-B/LIGHT WEB Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 93-61855
                    FRAME ASSY, BACKLIGHT
                    from £312.81
                    from £312.81
                    ASSEMBLY FRAME BACKLIGHT Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 79-60001
                    GLASS, REAR SCREEN
                    GLASS , REAR SCREEN Genuine Aston Martin - New (to order)
                    # -
                    -
                    ROD, WEB RETAINING
                    # 4
                    MPN: 93-61838
                    Bracket assy, wire tensioner, cantrail, RH
                    BRACKET ASSEMBLY WIRE TENSIONER, CANTRAIL, RH Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 93-61839
                    BRACKET ASSY, WIRE TENSIONER, CANTRAIL, LH
                    BRACKET ASSEMBLY WIRE TENSIONER, CANTRAIL, LH Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 695513
                    NUT, FLG, NYLOC, M5
                    from £0.47
                    from £0.47
                    NUT M5 HEX FLANGE SLK Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 692011
                    SCREW, NO.10 X 3/4
                    from £0.47
                    from £0.47
                    SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
                    # -
                    -
                    Wire assy, cantrail
                    # -
                    -
                    SCREW, NO.6 X 1/2
                    # -
                    -
                    GRAB HANDLE, BLACK
                    # -
                    -
                    SCREW, NO.10 X 3/4
                    # -
                    -
                    COVER PLATE, BLACK
                    # 8
                    MPN: 93-61836
                    TRIM PANEL, HEADER END, RH
                    from £9.30
                    from £9.30
                    PANEL TRIM HDR END RH Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 93-61837
                    TRIM PANEL, HEADER END, LH
                    from £9.30
                    from £9.30
                    PANEL TRIM HDR END LH Genuine Aston Martin - New (to order)
                    # -
                    -
                    SCREW, NO.6 X 3/4
