4.1 - Front Suspension

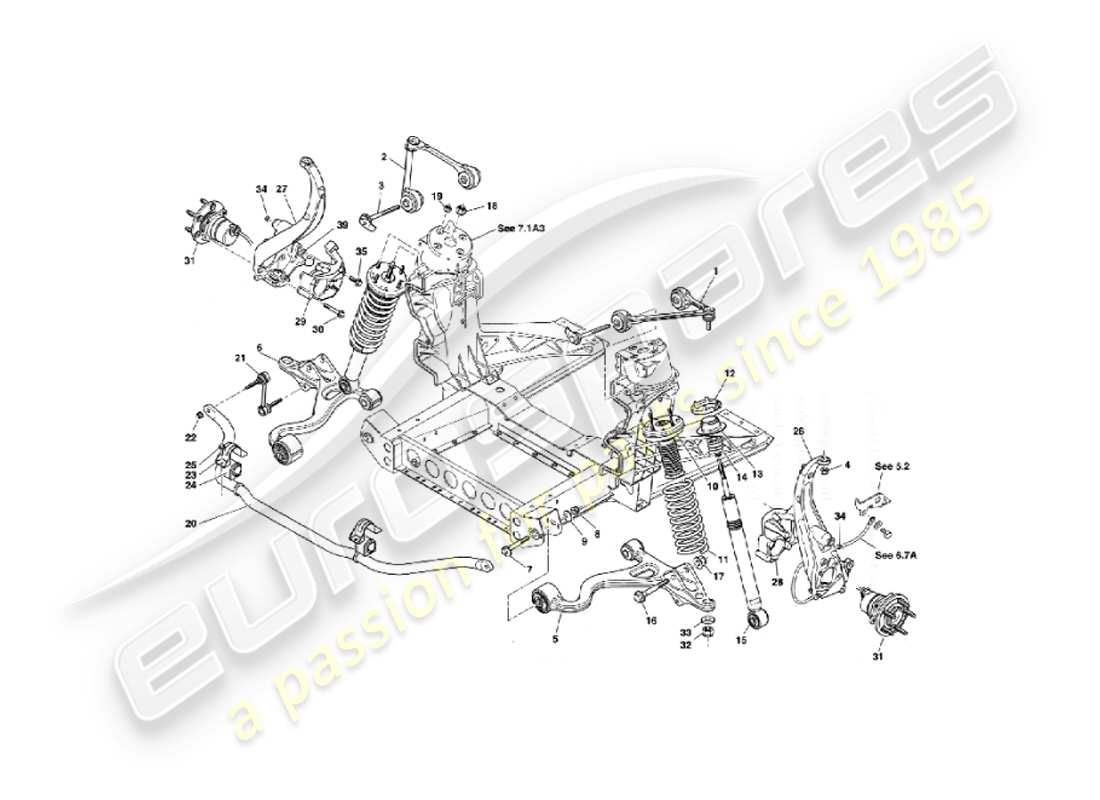

Aston Martin Vanquish (2003) Front Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-230435-AA
Arm and bushing assy, front suspension upper, LH
from £268.53
from £268.53
# 2
MPN: 1R12-230434-AA
Arm and bushing assy, front suspension upper, RH
from £268.53
from £268.53
# 3
MPN: 700402
BOLT FLG, M10X75
from £9.16
from £9.16
# 4
MPN: 699876
NUT, FLG, M12
Supersession
Supersession
# 5
MPN: 1R12-232163-AD
Arm assy, front suspension lower, LH
from £438.76
from £438.76
# 6
MPN: 1R12-232162-AD
Arm assy, front suspension lower, RH
from £438.76
from £438.76
# 7
MPN: 1R12-234889-AA
CAM BOLT ASSY, FRONT LCA
from £47.68
from £47.68
# 8
MPN: 699857
NUT, FLG, M14
# 9
MPN: 1R12-232726-AB
CAM WASHER, FRONT LCA
from £8.24
from £8.24
# 9
MPN: 1R12-234890-AA
CAM WASHER, BOLT HEX, FRONT LCA
from £16.15
from £16.15
# 10
MPN: 1R12-234129-AB
TOP MOUNT, FRONT DAMPER
from £146.74
from £146.74
# -
-
ISOLATOR, DAMPER UPPER MOUNT/CLIP SUPT
# 11
MPN: 1R12-230436-AB
ROAD SPRING FRONT
from £139.09
from £139.09
# 11
MPN: 4R12-236268-AA
ROAD SPRING FRONT (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
from £148.35
from £148.35
# 12
MPN: 1R12-231695-AA
CLIP, ROAD SPRING
from £224.93
from £224.93
# 13
-
LOWER MOUNTING CUP
Part of damper assy
# 14
MPN: 1R12-230748-AC
BUMP RUBBER, FRONT
from £75.53
from £75.53
# 15
MPN: 1R12-232196-AG
DAMPER, FRONT
from £491.36
from £491.36
# 15
MPN: 4R12-236270-AB
DAMPER, FRONT, (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
from £368.82
from £368.82
# 16
MPN: 699856
BOLT, FLG, CONE, M14X95
# 17
MPN: 699857
NUT, FLG, M14
# 18
MPN: 699876
NUT, FLG, M12
Supersession
Supersession
# 19
MPN: 699868
NUT, FLG, M8
from £0.47
from £0.47
# 20
MPN: 4R12-230669-AA
STABILISER BAR, FRONT
from £578.52
from £578.52
# 21
MPN: 1R12-23-10088
LINK ASSY, FRONT STABILISER BAR
Supersession
Supersession
# 22
MPN: 700127
NUT, FLG, M10
from £0.47
from £0.47
# 23
MPN: 1R12-23-10089
MOUNTING BRACKET, FRONT STABILISER BAR
from £11.43
from £11.43
# 24
MPN: 1R12-23-10090
INSULATOR, FRONT STABILISER BAR
from £59.34
from £59.34
# 25
MPN: 699866
BOLT, FLG, CONE, M10X20
from £0.47
from £0.47
# 26
MPN: 1R12-233223-AD
KNUCKLE ASSY, MODIFIED, LH
from £1,235.43
from £1,235.43
# -
-
FRONT UPRIGHT ASSY, (SVO OPTION), LH
For uprated brakes/Vanquish S From (V) 501506
# -
-
STEERING ARM, (SVO OPTION), LH
For uprated brakes/Vanquish S From (V) 501506
# 27
MPN: 1R12-233222-AD
KNUCKLE ASSY, MODIFIED, RH
from £1,235.43
from £1,235.43
# -
-
FRONT UPRIGHT ASSY, (SVO OPTION), RH
For uprated brakes/Vanquish S From (V) 501506
# -
-
STEERING ARM, (SVO OPTION), RH
For uprated brakes/Vanquish S From (V) 501506
# -
-
BOLT, M10X45, STEERING ARM TO UPRIGHT, (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
BOLT, CAP HD, M12, STEERING ARM TO UPRIGHT, (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# -
-
RING DOWEL, STEERING ARM TO UPRIGHT, (SVO OPTION)
For uprated brakes/Vanquish S From (V) 501506
# 28
MPN: 1R12-234564-AB
CARRIER BRACKET, FRONT BRAKE CALIPER, RH
from £425.80
from £425.80
# 29
MPN: 1R12-234565-AB
CARRIER BRACKET, FRONT BRAKE CALIPER, LH
from £448.25
from £448.25
# 30
MPN: 1R12-284575-AA
BOLT, M12X80, FRONT HUB TO KNUCKLE
from £1.57
from £1.57
# -
-
BOLT, CAP HD, M10X40, (SVO OPTION) FRONT HUB TO KNUCKLE
For uprated brakes/Vanquish S From (V) 501506
# -
-
WASHER, PLAIN, M10, (SVO OPTION) FRONT HUB TO KNUCKLE
For uprated brakes/Vanquish S From (V) 501506
# 31
MPN: 1R12-232248-AC
HUB AND BEARING ASSY, FRONT ANTI LOCK BRAKE
from £315.21
from £315.21
# 31
MPN: 4G43-2B663-AA
HUB AND BEARING ASSY
For Uprated Brakes
from £324.52
from £324.52
# 31
MPN: 4G43-2B663-AB
HUB AND BEARING ASSY
Vanquish S From (V) 501506
# 32
MPN: 699766
NUT, FLCA, M16X1.5
from £0.92
from £0.92
# 33
MPN: 693075
WASHER, M16X2MM
from £0.47
from £0.47
# 34
MPN: 1R12-284578-AA
DOWEL, RING
# 35
MPN: 700128
BOLT, M12X45
from £2.04
from £2.04
# -
-
HEAT PROOF TIE, ABS LEAD
