aston martin vanquish (2003) wheels & tyres parts diagram

5.6 - Wheels & Tyres

Aston Martin Vanquish (2003) Wheels & Tyres Parts Diagram

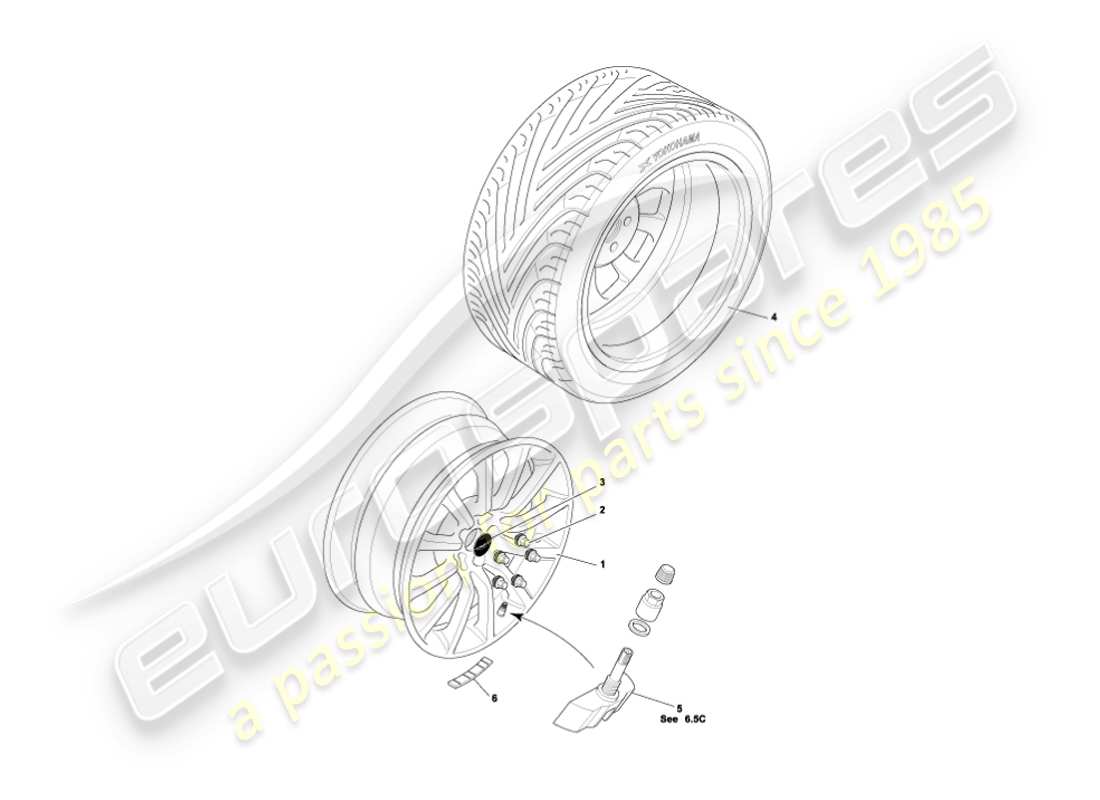

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 1R12-360216-AD
      ROADWHEEL FRONT
      Up to (V) 501285
      from £626.56
      from £626.56
      ROADWHEEL FRONT Genuine Aston Martin - New (to order)
      # 1
      MPN: 4R12-365888-AA
      ROADWHEEL FRONT
      From (V) 501286
      ROADWHEEL FRONT Genuine Aston Martin - New (to order)
      # 1
      MPN: 3R12-365954-AA
      ROADWHEEL FRONT, (SVO LIGHTWEIGHT OPTION)
      optional
      from £1,979.25
      from £1,979.25
      ROADWHEEL FRONT, (SVO LIGHTWEIGHT OPTION) Genuine Aston Martin - New (to order)
      # 1
      MPN: 5R13-1007-AA
      ROADWHEEL FRONT, HP
      Vanquish S From (V) 501506
      ROADWHEEL FRONT, HP Genuine Aston Martin - New (to order)
      # 2
      MPN: 1R12-36-10006
      WHEEL NUT, M12X1.5
      WHEEL NUT, M12X1.5 Genuine Aston Martin - New (to order)
      # 2
      MPN: 4G43-1K024-AD
      WHEEL NUT, M14X2
      Vanquish S From (V) 501506
      from £20.61
      from £20.61
      Genuine Aston Martin (no longer available to order)
      NUT, WHEEL BOLT Genuine Aston Martin - Used In stock
      # 3
      MPN: 36-121172-AB
      BADGE, WHEEL CENTRE
      Up to (V) 501285
      Supersession
      Supersession
      Genuine Aston Martin (no longer available to order)
      # 3
      MPN: 4R12-126227-AA
      BADGE, WHEEL CENTRE
      From (V) 501286
      BADGE, WHEEL CENTRE Genuine Aston Martin - New (to order)
      # 3
      MPN: 5R13-37190-AA
      BADGE, WHEEL CENTRE
      Vanquish S From (V) 501506
      BADGE, WHEEL CENTRE Genuine Aston Martin - New (to order)
      # 4
      MPN: 1R12-360449-AB
      TYRE, FRONT
      TYRE, FRONT Genuine Aston Martin - New (to order)
      # 4
      MPN: 1R12-360217-AD
      ROADWHEEL REAR
      Up to (V) 501285
      from £626.56
      from £626.56
      ROADWHEEL REAR Genuine Aston Martin - New (to order)
      # 4
      MPN: 4R12-365889-AA
      ROADWHEEL REAR
      From (V) 501286
      ROADWHEEL REAR Genuine Aston Martin - New (to order)
      # 4
      MPN: 3R12-365955-AA
      ROADWHEEL REAR, (SVO LIGHTWEIGHT OPTION)
      optional
      from £2,038.78
      from £2,038.78
      ROADWHEEL REAR, (SVO LIGHTWEIGHT OPTION) Genuine Aston Martin - New (to order)
      # 4
      MPN: 5R13-1007-BA
      ROADWHEEL REAR, HP
      Vanquish S From (V) 501506
      ROADWHEEL REAR, HP Genuine Aston Martin - New (to order)
      # 4
      MPN: 1R12-360450-AB
      TYRE, REAR
      TYRE, REAR Genuine Aston Martin - New (to order)
      # 5
      MPN: 1R12-36-10357
      TRANSMITTER/VALVE & RING SET, (1 WHEEL)
      from £95.00
      from £95.00
      Genuine Aston Martin (no longer available to order)
      Transmitter/valve and ring set (1 Wheel) Genuine Aston Martin - Used In stock
      # 5
      MPN: 1R12-36-10304
      Transmitter wheel, coloured ring set (4)
      Transmitter wheel, coloured ring set (4) Genuine Aston Martin - New (to order)
      # -
      -
      Dust cap, transmitter, silver
      For use with tyre pressure monitoring valves
      # 6
      MPN: 1R12-36-10018
      BALANCE WEIGHT
      BALANCE WEIGHT Genuine Aston Martin - New (to order)
      # -
      -
      GREASE, SHELL RETINAX A
      # -
      -
      Wheel, winter - TPMS Sensors not included
      Not Vanquish S or SVO option
      # -
      -
      CENTRE CAP, WINTER WHEEL
      Not Vanquish S or SVO option
      # -
      -
      BADGE, WINTER WHEEL
      Not Vanquish S or SVO option
      # -
      -
      VALVE, SNAP IN
      Pack of 4
      # -
      -
      ROADTYRE WINTER, FRONT, RH
      # -
      -
      ROADTYRE WINTER, FRONT, LH
      # -
      -
      ROADTYRE WINTER, REAR, RH
      # -
      -
      ROADTYRE WINTER, REAR, LH
      # -
      -
      ROADTYRE WINTER, FRONT, 19 PARTS OPS NO
      Vanquish S
      # -
      -
      ROADTYRE WINTER, REAR, 19 PARTS OPS NO
      Vanquish S
      # -
      -
      SNOW TRACK KIT
