4.4 - POWER STEERING

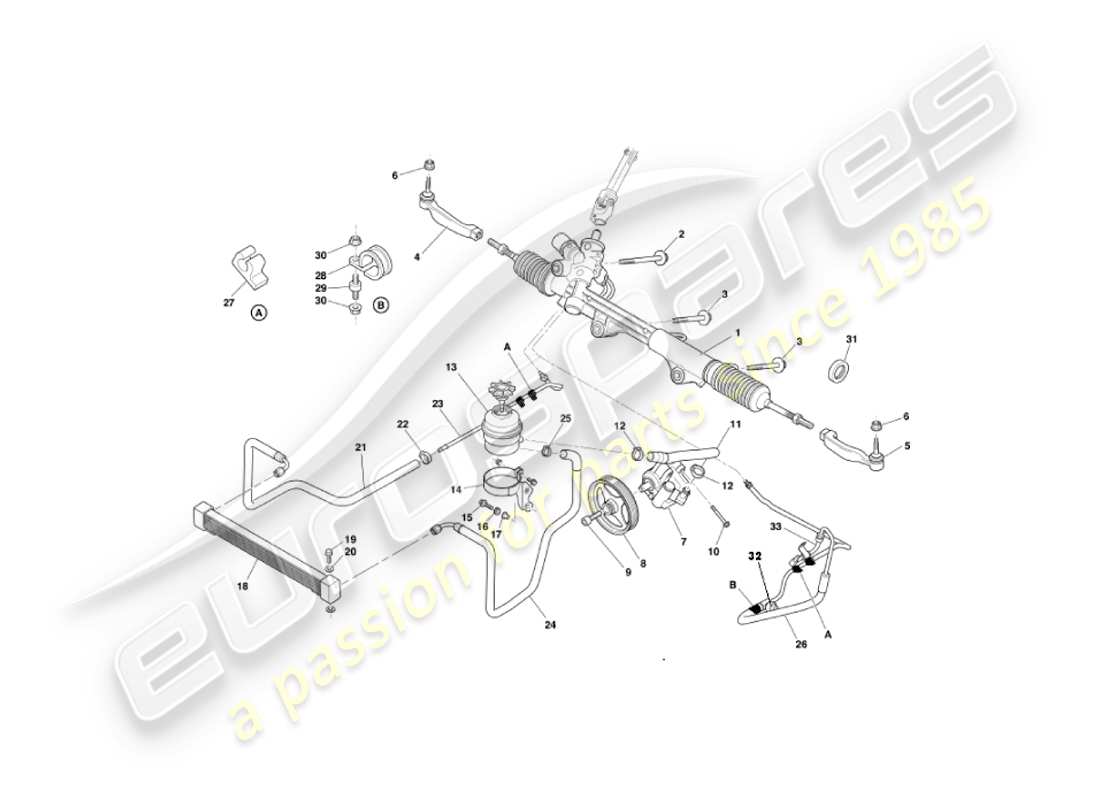

Aston Martin Vanquish (2004) Power Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-242288-AD
STEERING RACK ASSY, COMPLETE
RHD
# 1
MPN: 4R12-256284-AA
STEERING RACK ASSY, COMPLETE
RHD (SVO option) / Vanquish S From (V) 501506
from £3,279.64
from £3,279.64
# 1
MPN: 1R12-242289-AD
STEERING RACK ASSY, COMPLETE
LHD
from £1,854.22
from £1,854.22
# 1
MPN: 4R12-256285-AA
STEERING RACK ASSY, COMPLETE
LHD (SVO option) / Vanquish S From (V) 501506
from £3,279.64
from £3,279.64
# -
-
STEERING RACK GAITER, LH
# -
-
STEERING RACK GAITER, RH
# 2
MPN: 699874
BOLT AND WASHER, M12X151.7
from £2.38
from £2.38
# 3
MPN: 700988
BOLT FLG, M12X90
from £4.89
from £4.89
# 4
MPN: 1R12-24-10101
END ASSY, STEERING SPINDLE ARM CONN ROD, RH
from £101.27
from £101.27
# 5
MPN: 1R12-24-10102
END ASSY, STEERING SPINDLE ARM CONN ROD, LH
from £101.27
from £101.27
# -
-
TRACK ROD END
(SVO option)/Vanquish S From (V) 501506
# 6
MPN: 699876
NUT,FLG, M12
Supersession
Supersession
# -
-
NUT, M14X1.5 NYLOC
Pack of 2 (SVO option)/Vanquish S
# 7
MPN: 1R12-24-10103
PUMP, POWER STEERING
# 8
MPN: 24-85419
PULLEY, POWER STEERING PUMP
# 9
-
SCREW, CAP HD
# 10
MPN: 699131
BOLT, FLG PILOT, M8X70
P/S pump to cylinder block
from £1.72
from £1.72
# 11
MPN: 1R12-240484-AF
HOSE RESERVOIR TO PUMP
from £71.87
from £71.87
# 12
MPN: JHC400401
CLIP, HOSE
# 13
MPN: 1R12-242727-AA
RESERVOIR, HYDRAULIC OIL
# 14
MPN: 1R12-242415-AB
BRACKET ASSY, PAS RESERVOIR
from £24.72
from £24.72
# -
-
SCREW, FLG, M6X16
# 15
MPN: 700145
BOLT, FLG, M6X30
# 16
MPN: 32-80356
GROMMET
from £3.31
from £3.31
# 17
MPN: 700119
SPACER
from £0.68
from £0.68
# 18
MPN: 1R12-442060-AA
MATRIX, OIL COOLER
from £1,270.81
from £1,270.81
# -
-
PAS COOLER ASSY
Vanquish S From (V) 501506
# 19
MPN: 700149
BOLT, HEX FLG, M8X30
from £10.99
from £10.99
# 20
MPN: 700150
WASHER, PLAIN, M8
from £0.51
from £0.51
# 21
MPN: 1R12-243791-AB
HOSE AASSY, RACK TUBE TO PAS COOLER
from £403.05
from £403.05
# 21
MPN: 1R12-245731-AA
HOSE ASSY, RACK TUBE TO PAS COOLER
Middle East cars
from £216.95
from £216.95
# 21
MPN: 5R13-3A713-AA
HOSE ASSY, RACK TUBE TO PAS COOLER
Vanquish S From (V) 501506
from £708.37
from £708.37
# 22
MPN: 699721
OETIKER HOSE CLIP 21MM DIA
from £1.62
from £1.62
# 23
MPN: 1R12-240482-AE
PIPE ASSY, RACK RETURN
RHD
from £69.93
from £69.93
# 23
MPN: 1R12-241388-AE
PIPE ASSY, RACK RETURN
LHD
from £79.69
from £79.69
# 24
MPN: 1R12-243790-AC
HOSE ASSY, COOLER TO PAS BOTTLE
from £545.19
from £545.19
# 24
MPN: 1R12-245732-AC
HOSE ASSY, COOLER TO PAS BOTTLE
Middle East cars
# 24
MPN: 5R13-3E525-AA
HOSE ASSY, COOLER TO PAS BOTTLE
Vanquish S From (V) 501506
from £150.54
from £150.54
# 25
MPN: 699721
OETIKER HOSE CLIP 21MM DIA
from £1.62
from £1.62
# 26
MPN: 1R12-240485-AE
HOSE ASSY, PAS PRESSURE LINE
RHD
from £149.85
from £149.85
# 26
MPN: 1R12-241387-AE
HOSE ASSY, PAS PRESSURE LINE
LHD
from £434.47
from £434.47
# 27
MPN: 699710
CLIP, PAS PIPES TO CROSSMEMBER
from £0.59
from £0.59
# 28
MPN: 699711
P CLIP, 23MM DIA X 15XM6
from £1.15
from £1.15
# 29
MPN: 699709
ISOLATOR
# 30
MPN: 699877
NUT, HEX FLG M6
Supersession
Supersession
# 31
MPN: 1R12-254454-AB
TRAVEL RESTRICTOR, STEERING RACK
from £64.72
from £64.72
# 31
MPN: 4R12-256292-AA
TRAVEL RRESTRICTOR, STEERING RACK
(SVO option)/Vanquish S From (V) 501506
from £13.24
from £13.24
# -
-
TIE ROD ASSY, SHORT
# -
-
TIE ROD ASSY, LONG
# 32
MPN: 1R12-24-10105
SWITCH, PAS PUMP PRESSURE
from £206.84
from £206.84
# 33
MPN: 1R12-243557-AB
TUBE ASSY, PAS PIPE TO CRIMP
# 33
MPN: 4R13-3494-AA
TUBE ASSY, PAS PIPE TO JOINT
from £197.03
from £197.03
# -
-
CLAMP, HOSE
# -
-
CLAMP, HOSE
# -
-
FLUID, POWER STEERING
