5.5 - Pedal Gear

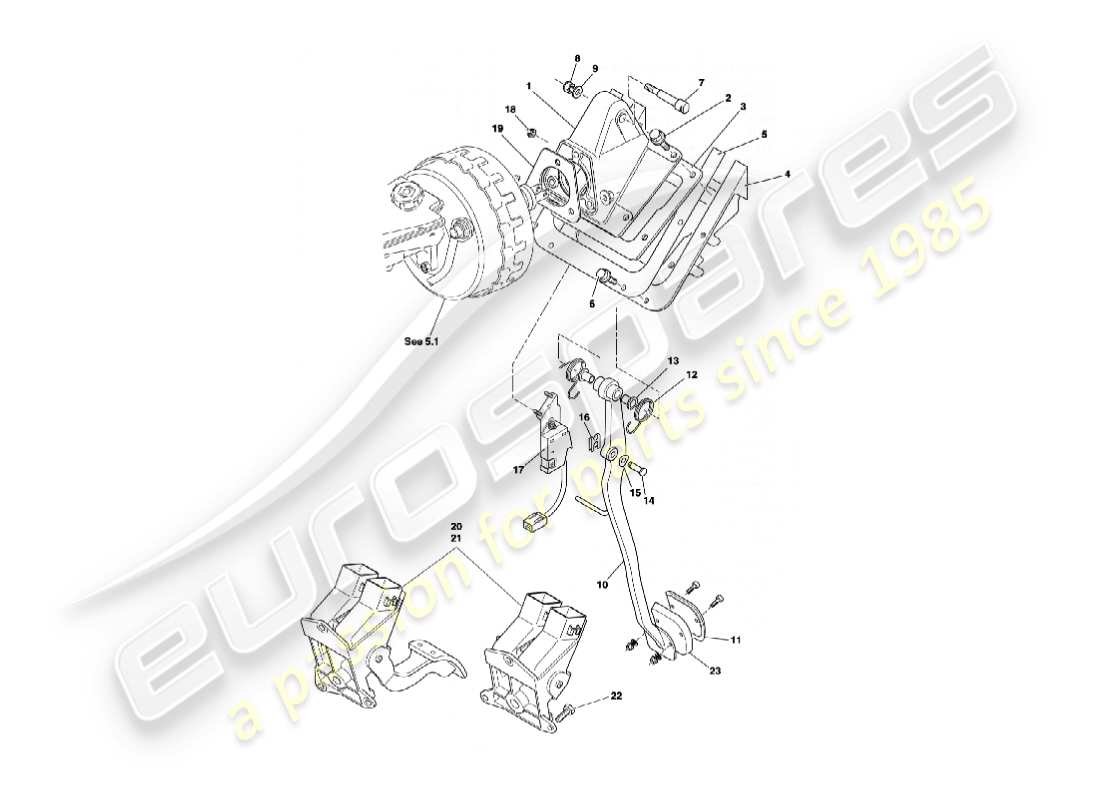

Aston Martin Vanquish (2004) Pedal Gear Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-29-10124
Housing - pedal
from £37.98
from £37.98
# 2
MPN: 697100
SCREW, FLG, M8X30
from £1.28
from £1.28
# 3
MPN: 1R12-29-10125
GASKET, PEDAL HOUSING
from £14.79
from £14.79
# 4
MPN: 1R12-291404-AF
ADAPTOR, PEDAL BOX
# 5
MPN: 1R12-293607-AC
GASKET, ADAPTOR, PEDAL BOX
from £4.07
from £4.07
# 6
MPN: 700091
SCREW, FLG, M8X20
from £765.63
from £765.63
# 7
MPN: 29-81255
PIVOT PIN - BRAKE PEDAL
from £25.77
from £25.77
# 8
MPN: 697291
NUT, NYLOC M10
from £1.38
from £1.38
# 9
MPN: 697258
WASHER, PLAIN, M10
from £0.47
from £0.47
# 10
MPN: 1R12-292846-AC
BRAKE PEDAL - ASSEMBLY
RHD
from £105.91
from £105.91
# 10
MPN: 4R12-296298-AA
BRAKE PEDAL - ASSEMBLY, (SVO OPTION) RHD
For uprated brakes/Vanquish S From (V) 501506
from £204.34
from £204.34
# 10
MPN: 1R12-292847-AC
BRAKE PEDAL - ASSEMBLY
LHD
# 10
MPN: 4R12-296299-AA
BRAKE PEDAL - ASSEMBLY, (SVO OPTION) LHD
For uprated brakes/Vanquish S From (V) 501506
from £204.34
from £204.34
# 11
MPN: 1R12-382811-AE
PAD, BRAKE PEDAL
RHD
from £56.50
from £56.50
# 11
MPN: 1R12-384328-AB
PAD, BRAKE PEDAL
LHD
from £57.00
from £57.00
# -
-
SCREW, M5X35 PEDAL PAD
RHD
# -
-
SCREW, M5X35 PEDAL PAD
LHD
# -
-
SCREW, M5X30 PEDAL PAD
LHD
# -
-
NUT, FLG, M5 PEDAL PAD
# 12
MPN: 29-81257
SPRING
from £50.47
from £50.47
# 13
MPN: 29-81271
BUSH, PEDAL
from £0.56
from £0.56
# 14
MPN: 29-84879
JOINT PIN
from £9.86
from £9.86
# 15
MPN: 697294
WASHER, WAVE SPRING
# 16
MPN: 29-81239
CLIP, SAFETY NOM SHAFT 5/16
# 17
MPN: 37-85782
SWITCH, STOP LAMP
from £265.34
from £265.34
# 18
MPN: 700114
NUT, FLG, M5
from £86.01
from £86.01
# 19
MPN: 90-84092
GASKET
from £8.56
from £8.56
# 20
MPN: 1R12-382240-AC
THROTTLE PEDAL ASSY
RHD
from £464.89
from £464.89
# 20
MPN: 1R12-382239-AD
THROTTLE PEDAL ASSY
LHD
from £439.94
from £439.94
# 21
MPN: 1R12-37-10339
SENSOR, ACCELERATOR PEDAL POSITION
# -
-
PAD, ACCELERATOR PEDAL ASSY
# -
-
SCREW, M5X20 PEDAL PAD
# 22
MPN: 695563
SCREW, M6X16
# 23
MPN: 1R12-384737-AB
SPACER, BRAKE PEDAL
RHD
from £19.48
from £19.48
# 23
MPN: 1R12-384327-AB
SPACER, BRAKE PEDAL
LHD
from £19.48
from £19.48
